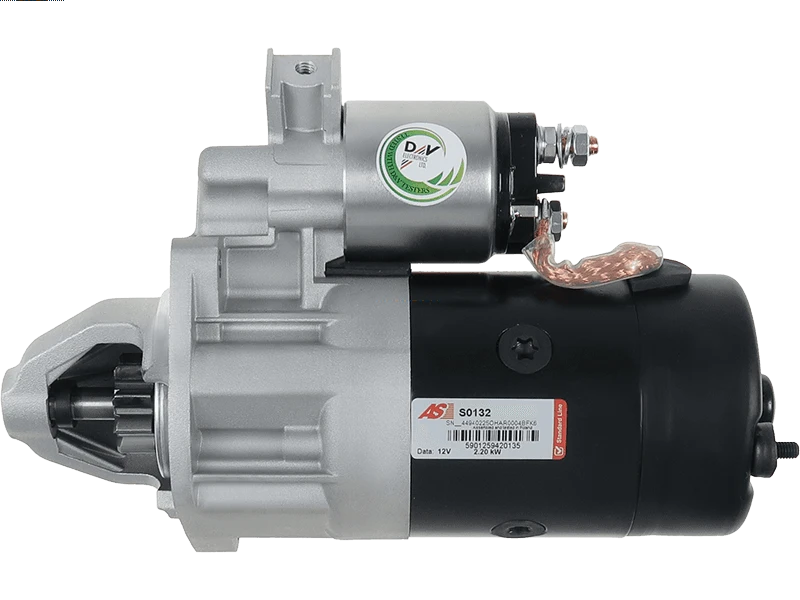

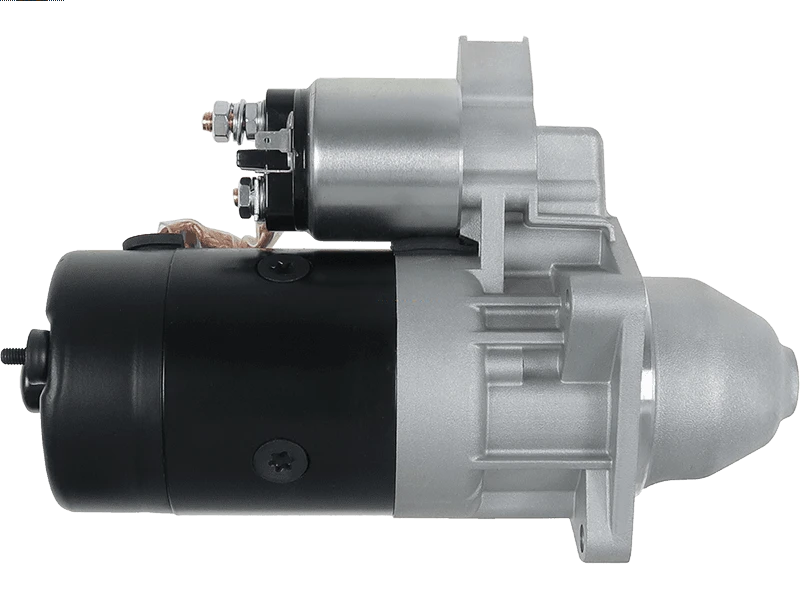

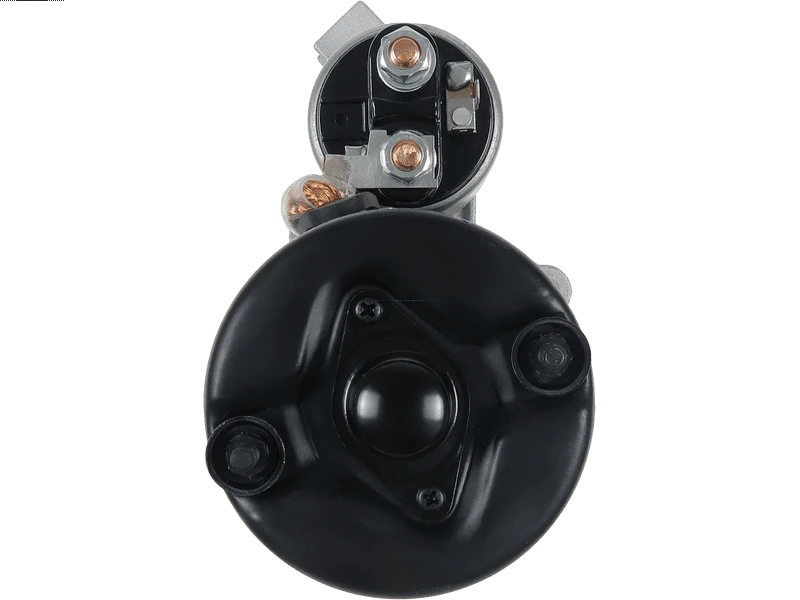

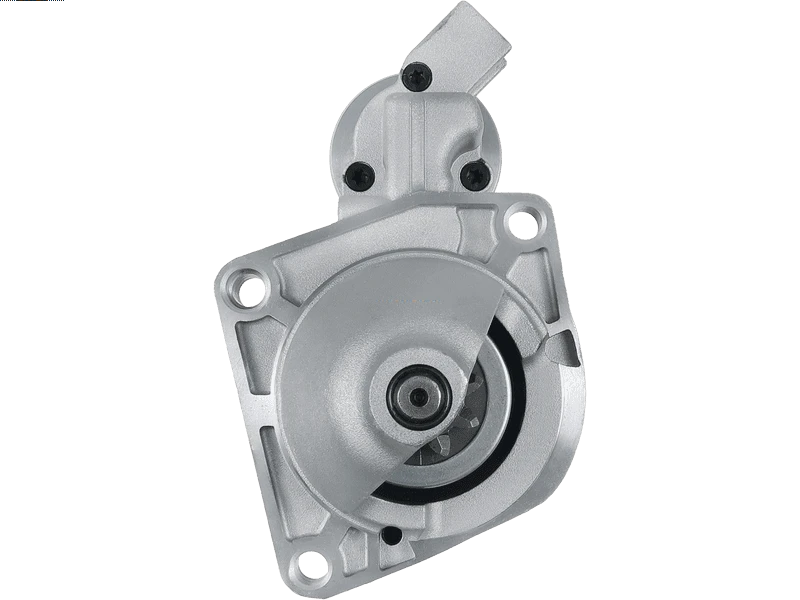

S0132 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 390.93 including GST

NZ$ 339.94 excluding GST

each
S0132
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001218014 0001218102 0001218154 0986013640 0986013641 10351 10351M 10381R 10510 111113 11208 20401533BN 20404431RC 22.0351 22.0351M 22.0504 25-1195 3548 433233 436028 436045 46231610 500.504.093 580264 5985265 6010335 6030134 63222001 63222031 63222039 63222136 7589435 7658555 7727487 77452430 77671430 8013640 8212545 8EA726099-001 AES6163 CS351 CST10335AS CST30134GS CST30134RS DRS3640 LRS00663 STR52079
Kilowatt2.2 kW
Length (L.1)272 mm
Mount Hole Center - Center (O.1)117 mm
Mount Hole Center - Center (O.2)83 mm
Mount Hole Center - Center (O.3)83 mm
Mount Hole Diameter (C.1)9.5 mm
Mount Hole Diameter (C.2)9.5 mm
Mount Hole Diameter (C.3)9.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
OEM ProductNo
Pinion at Rest (B)23 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)81.5 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
FIAT Croma 1.9 TD [154C6.000] 03.1988-10.1992
FIAT Croma 2.5 Diesel [8144.67] 12.1985-12.1989
FIAT Croma 2.5 TD 2500 [8144.91.2000] 12.1985-08.1989
FIAT Croma 2.5 TD 2500 [8144.97] 05.1989-08.1996
FIAT Croma 2.5 TD 2500 [8144.97Y] 11.1992-08.1996
LANCIA Thema 2.5 TD [8144.91] 11.1984-09.1988
LANCIA Thema 2.5 TD [8144.97] 06.1988-05.1992
LANCIA Thema 2.5 TD [8144.97S] 05.1988-07.1992
LANCIA Thema 2.5 TD [8144.97Y] 05.1992-11.1994
LANCIA Thema 2.5 TDS [8144.97] 06.1988-05.1992
LANCIA Thema 2.5 TDS [8144.97S] 05.1992-07.1994
MAV6720 8212545 111113 8EA726099-001 6030134 20404431RC 22.0351M CST10335AS STX200341 77452430 63222136 STR52079 0001218014 436045 DRS3640 LRS663 6010335 0986013640 46231642 22.0351 220145 5985265 CST30134RS 7580575 0986013641 7658555 500.504.093 0001218102 AES6163 7666135 20401533BN 7589435 CST30134GS 46231610 330503 7727487 7727486 MAV321340 8013640 CS351 MAV123350 11208 ANM15860X 10351 0001218154 10381R 10510 433233 436028 STX200521 63222031 22.0504 7674733 10351M 63222039 STR1441 STRS061 3548 LRS00663 STX200299 77671430 63222001 25-1195 580264
S0132
