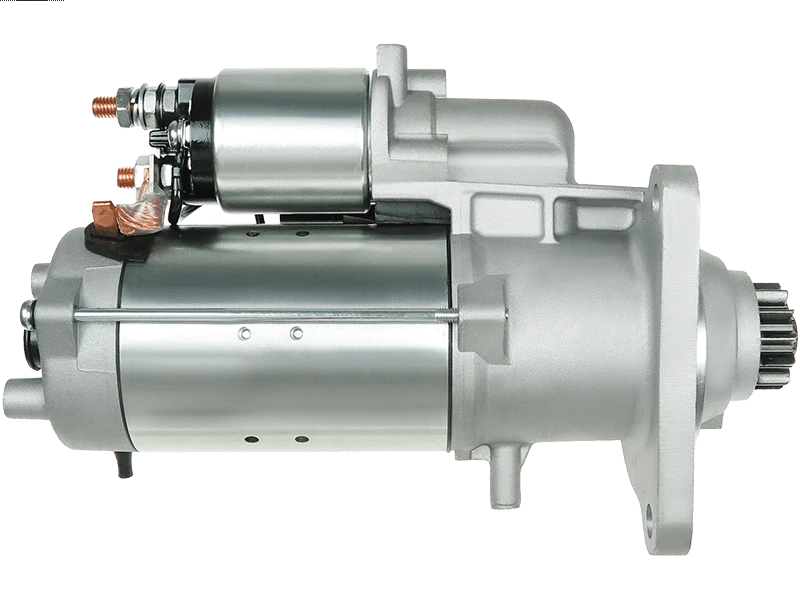

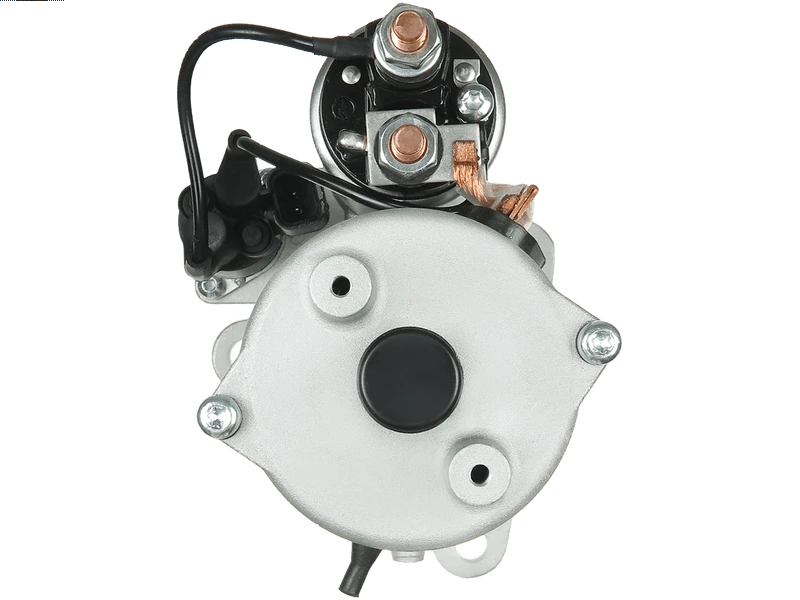

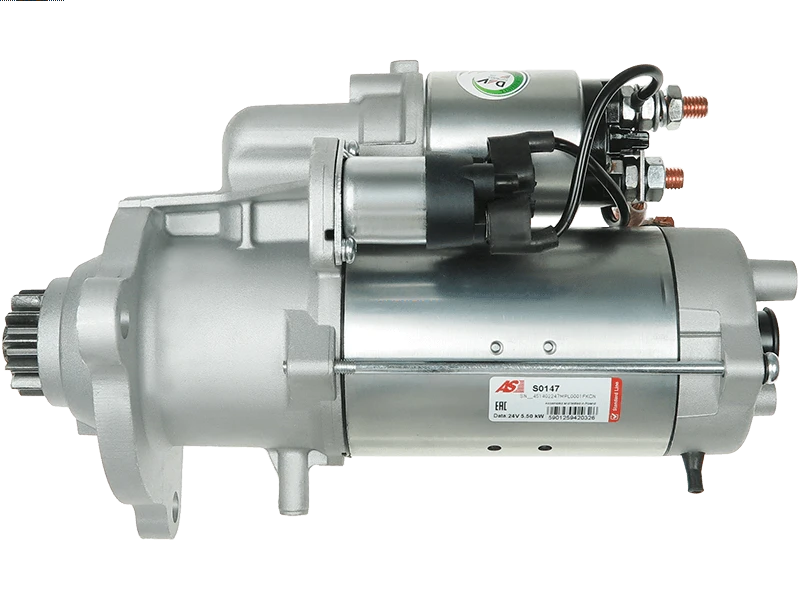

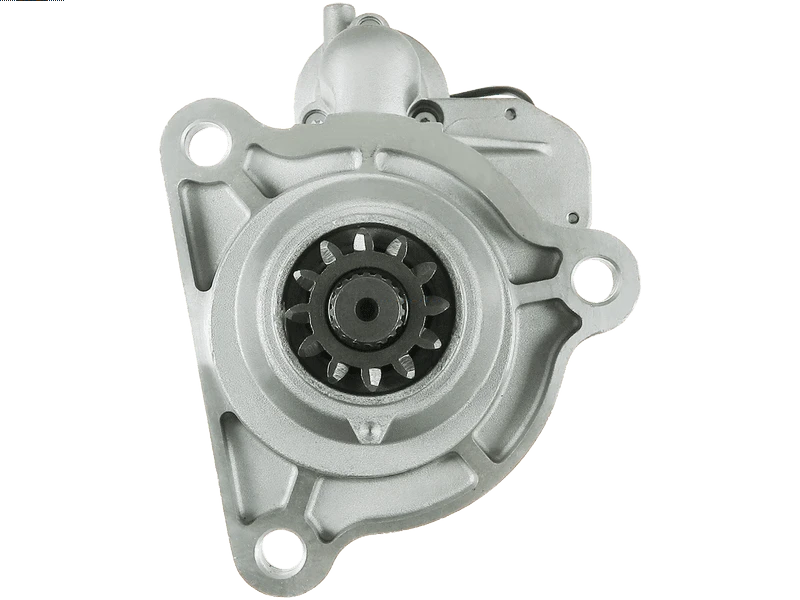

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 713.53 including GST
NZ$ 620.46 excluding GST
or four payments of $178.38
with
Learn More
each
S0147
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001241005Associated Numbers
0001241005 0001241009 0001241021 20401386BN 20401386OE 254177 254177M 45-4050 51.26201-7220 51.26201-7239 6010683 CST10683AS CST10683GS EAA-121280 S0147 STR50413Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 325 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAN | 18.480 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 18.480 12.8 | (TGA)[D2876LF12] | 09.2002- |
| MAN | 18.480 12.8 | (TGA)[D2876LF25] | 09.2002- |
| MAN | 18.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 18.530 12.8 | (TGA)[D2876LF13] | 04.2002-03.2009 |
| MAN | 18.530 12.8 | (TGA)[D2876LF13] | 04.2004- |
| MAN | 18.530 12.8 | (TGA)[D2876LF13] | 09.2002- |
| MAN | 19.480 12.8 | (TGA)[D2876LF25] | 05.2004- |
| MAN | 24.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 24.480 12.8 | (TGA)[D2876LF12] | 07.2005- |
| MAN | 24.480 12.8 | (TGA)[D2876LF12] | 09.2002- |
| MAN | 24.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 24.530 12.8 | (TGA)[D2876LF13] | 07.2005- |
| MAN | 24.530 12.8 | (TGA)[D2876LF13] | 09.2001- |
| MAN | 26.480 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 26.480 12.8 | (TGA)[D2876LF12] | 04.2002-05.2007 |
| MAN | 26.480 12.8 | (TGA)[D2876LF12] | 09.2002- |
| MAN | 26.480 12.8 | (TGA)[D2876LF25] | 09.2002- |
| MAN | 26.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 26.530 12.8 | (TGA)[D2876LF13] | 01.2001- |
| MAN | 26.530 12.8 | (TGA)[D2876LF13] | 04.2002-07.2007 |
| MAN | 26.530 12.8 | (TGA)[D2876LF13] | 07.2006- |
| MAN | 26.530 12.8 | (TGA)[D2876LF13] | 09.2002- |
| MAN | 28.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 28.480 12.8 | (TGA)[D2876LF12] | 07.2006- |
| MAN | 28.480 12.8 | (TGA)[D2876LF12] | 09.2002- |
| MAN | 28.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 28.530 12.8 | (TGA)[D2876LF13] | 07.2006- |
| MAN | 28.530 12.8 | (TGA)[D2876LF13] | 09.2002- |
| MAN | 32.480 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 32.480 12.8 | (TGA)[D2876LF12] | 09.2002- |
| MAN | 32.530 12.8 | (TGA) | 01.2004-12.2004 |
| MAN | 33.480 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 33.480 12.8 | (TGA)[D2876LF12] | 04.2002-06.2007 |
| MAN | 33.480 12.8 | (TGA)[D2876LF12] | 09.2002- |
| MAN | 33.480 12.8 | (TGA)[D2876LF25] | 09.2002- |
| MAN | 33.530 12.8 | (TGA) | 01.2002-12.2006 |
| MAN | 33.530 12.8 | (TGA)[D2876LF13] | 04.2002-06.2007 |
| MAN | 33.530 12.8 | (TGA)[D2876LF13] | 04.2002-07.2007 |
| MAN | 33.530 12.8 | (TGA)[D2876LF13] | 07.2003- |
| MAN | 33.530 12.8 | (TGA)[D2876LF13] | 09.2002- |
| MAN | 35.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 35.480 12.8 | (TGA)[D2876LF12] | 04.2002-08.2006 |
| MAN | 35.480 12.8 | (TGA)[D2876LF12] | 04.2002-09.2008 |
| MAN | 35.480 12.8 | (TGA)[D2876LF12] | 07.2006- |
| MAN | 35.480 12.8 | (TGA)[D2876LF12] | 10.2003- |
| MAN | 35.480 12.8 | (TGA)[D2876LF12] | 11.2003- |
| MAN | 35.530 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 35.530 12.8 | (TGA)[D2876LF13] | 04.2002-08.2006 |
| MAN | 35.530 12.8 | (TGA)[D2876LF13] | 04.2002-09.2008 |
| MAN | 35.530 12.8 | (TGA)[D2876LF13] | 04.2004- |
| MAN | 35.530 12.8 | (TGA)[D2876LF13] | 07.2006- |
| MAN | 37.480 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 37.480 12.8 | (TGA)[D2876LF12] | 12.2004- |
| MAN | 37.530 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 37.530 12.8 | (TGA)[D2876LF13] | 12.2004- |
| MAN | 40.480 12.8 | (TGA) | 01.2004-12.2006 |
| MAN | 40.480 12.8 | (TGA)[D2876LF12] | 04.2004- |
| MAN | 40.480 12.8 | (TGA)[D2876LF25] | 04.2004- |
| MAN | 41.480 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 41.480 12.8 | (TGA)[D2876LF12] | 04.2002-09.2008 |
| MAN | 41.480 12.8 | (TGA)[D2876LF12] | 06.2005- |
| MAN | 41.480 12.8 | (TGA)[D2876LF12] | 07.2006- |
| MAN | 41.480 12.8 | (TGA)[D2876LF12] | 12.2004- |
| MAN | 41.480 12.8 | (TGA)[D2876LF25] | 06.2005- |
| MAN | 41.530 12.8 | (TGA) | 01.2003-12.2006 |
| MAN | 41.530 12.8 | (TGA)[D2876LF13] | 04.2002-09.2008 |
| MAN | 41.530 12.8 | (TGA)[D2876LF13] | 07.2006- |
| MAN | 41.530 12.8 | (TGA)[D2876LF13] | 09.2002- |
| MAN | 41.530 12.8 | (TGA)[D2876LF13] | 12.2004- |
| MAN | 50.480 12.8 | (TGA)[D2876LF12] | 04.2002-03.2009 |
| MAN | 50.480 12.8 | (TGA)[D2876LF12] | 04.2002-05.2007 |
| MAN | 50.480 12.8 | (TGA)[D2876LF25] | 04.2002-03.2009 |
| MAN | 50.530 12.8 | (TGA)[D2876LF13] | 04.2002-03.2009 |
| MAN | 50.530 12.8 | (TGA)[D2876LF13] | 04.2002-05.2007 |
Reference Information
STD1418R 551.513.123.390 0001241021 STX210206R DRT2640 STR50413 114031 MAV126830 IS9456 203062 STRL863 LRS2378 51.26201-9220 ANM24860 45-4050 STR1343 551.513.123.280 20401386OE BOS0001241021 PRSL863 254177M 254177 S24BH0066A2 F042S02139 51.26201-9239 11.139.604 551.513.123.310 20401386BN S0147 551.513.123.010 STM1215 0001241009 8111 51.26101-7228 CGB-22150 51.26201-7228 72442832 STX210206 0001241005 6010683.0 331872 6010683.1 MS757 LRS02378 220730A CST10683AS 0986022640 51.26201-7220 19084000 PTC-4027 1182235 CST10683GS 51.26201-7239 DRT2640X 51.26201-7195 120-20163 AZF4875 10707N STB4105 PTC-4151 51262019199 STR50542Video/Publications
S0147View your shopping basket or Browse other items in Starter Motors.
