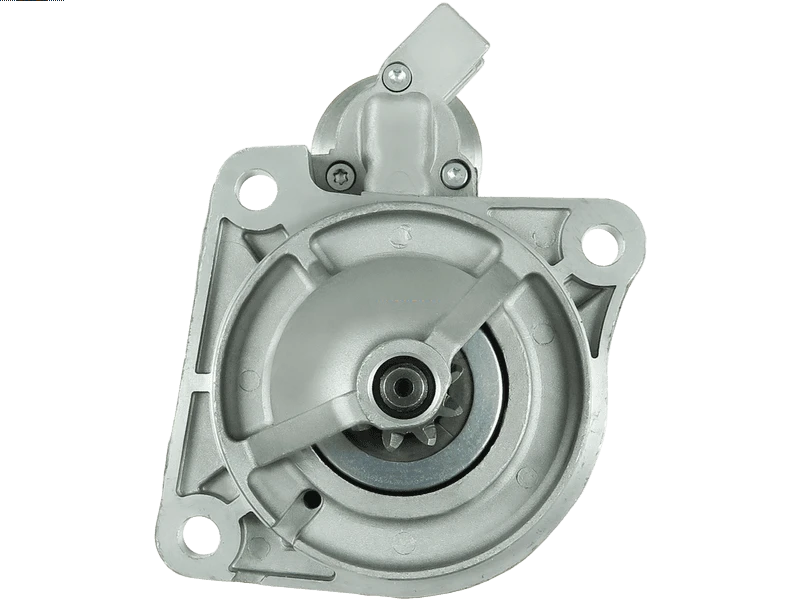

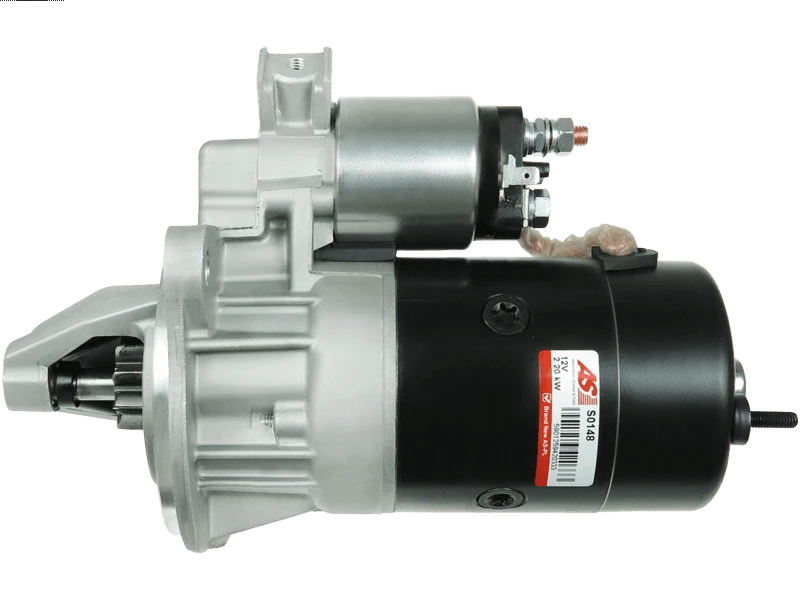

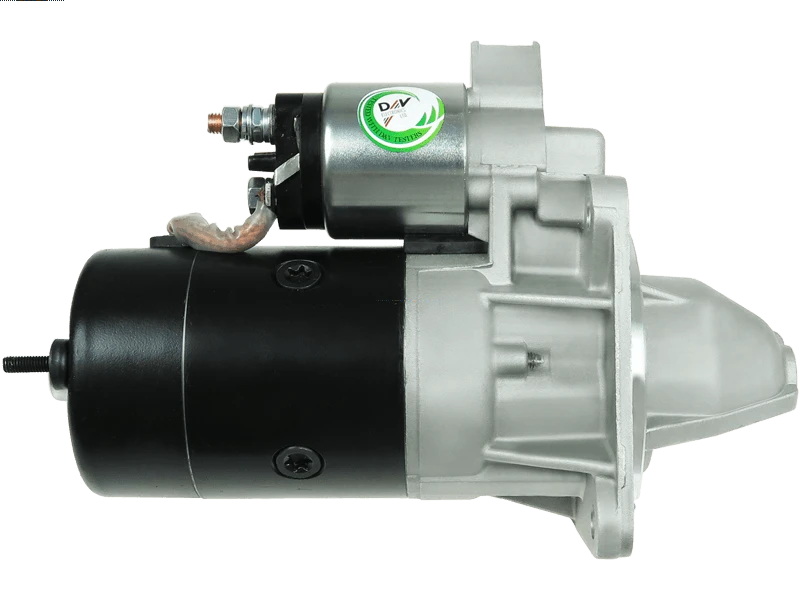

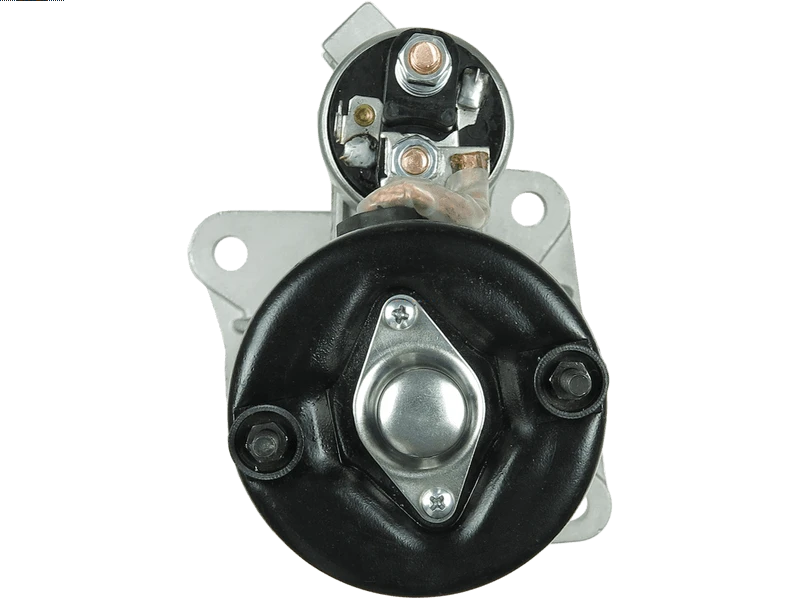

S0148 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	278 mm
Mount Hole Center - Center (O.1)	104 mm
Mount Hole Center - Center (O.2)	146 mm
Mount Hole Center - Center (O.3)	104 mm
Mount Hole Diameter (C.1)	12 mm
Mount Hole Diameter (C.2)	12 mm
Mount Hole Diameter (C.3)	12 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	27 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	110 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALFA ROMEO	AR 6 2.4 TD	[8144.21.220]	09.1986-12.1989
FIAT	Ducato 2.4 TD	[8144.21]	01.1986-08.1990
FIAT	Ducato 2.5 Diesel	[8144.67]	06.1990-08.1990
FIAT	Ducato 2.5 Diesel	[CRD93L]	01.1982-08.1990
FIAT	Ducato 2.5 Diesel 4x4	[8144.67]	06.1990-03.1994
FIAT	Ducato 2.5 TD	[8140.27]	07.1990-03.1994
FIAT	Ducato 2.5 TD 4x4	[8140.27]	07.1990-03.1994
FIAT	Ducato 2.5 TD Panorama	[8140.27]	08.1990-03.1994
FIAT	Ducato 2.5 TD Panorama	[8144.21]	01.1987-08.1990
FIAT	Ducato 2.5 TD Panorama 4x4	[8140.27]	01.1991-03.1994
FIAT	Ducato 2.5 TD Panorama 4x4	[8144.21]	01.1986-08.1990

Reference Information

MAV2120 MAV6720 4741699 943252858 SS671 LRS828 20401041BN 8212981 STX200341 25-1147 436045 113846 46231640 SS669 46231642 20401041RC CST10140AS 500.505.093.010 7580575 S0148 22.051 6010140 0001218024 8813660 32160R STRL895 7666135 0001218103 7666132 0001218703 7565668 STR10149 331710 EAA-121435 1516765R ANM15880X 220183 3454 CST10140RS DRS3660 8EA726158-001 10510 0986013660 LRS00828 STR10159 STR10158 S12BH0262A2 500.505.093.550 33545 AES8128 220050 CS510 STX200299 STX200691 77671430 STR50140
