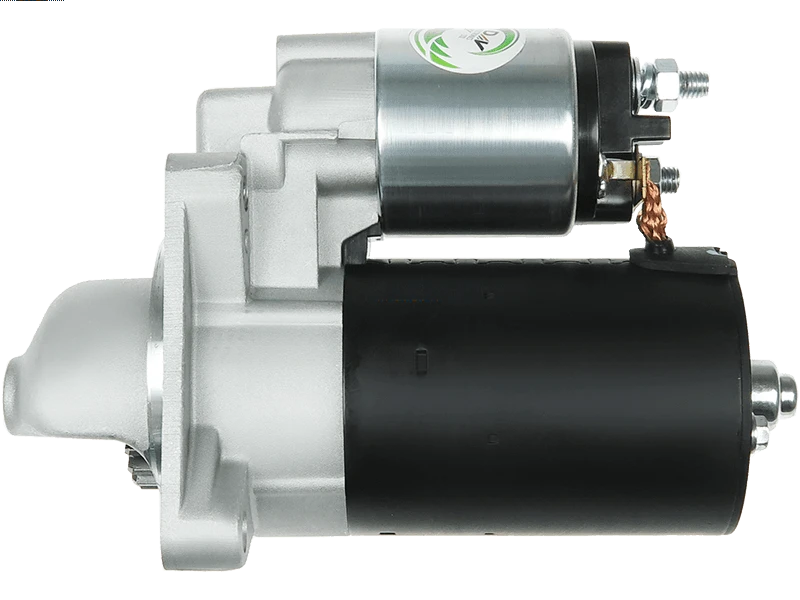

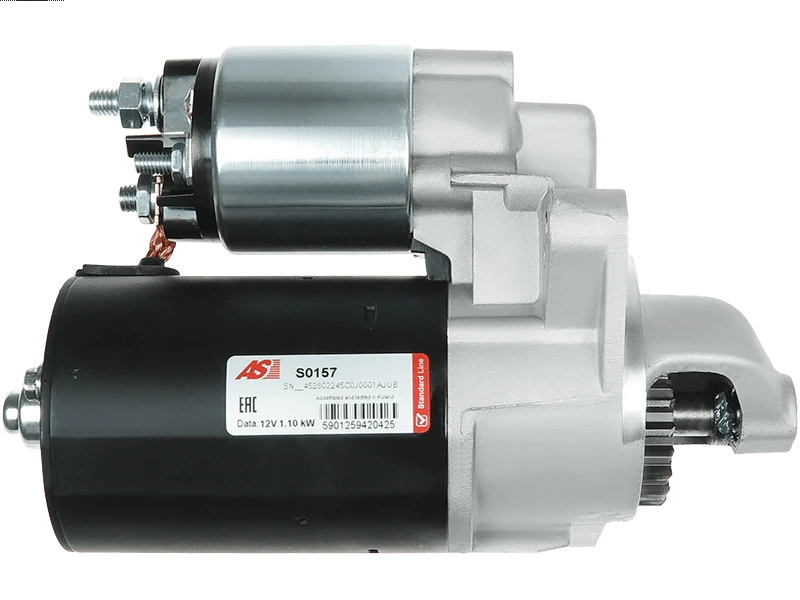

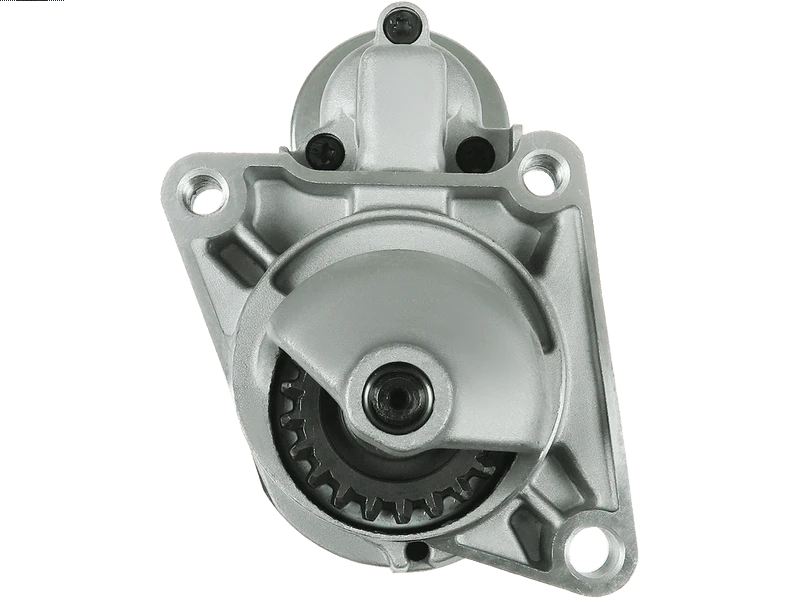

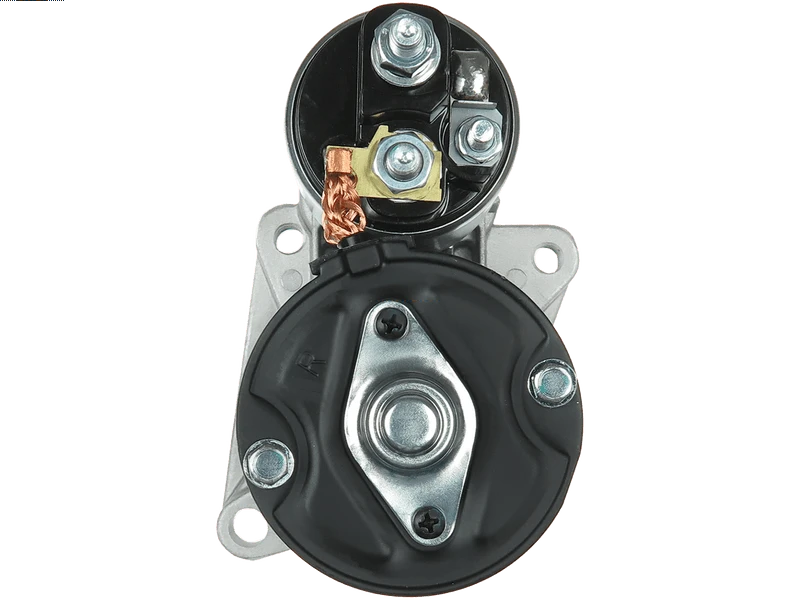

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 222.79 including GST
NZ$ 193.73 excluding GST
or four payments of $55.70
with
Learn More
each
S0157
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107059Associated Numbers
0001107059 0001107082 0986017530 1030151 1092117 10986 10986V 111680 11807 20450601OE 20510165 22.0986 25-2220 30978R 31165N 3848 42017530 455894 6014106 8017530 8212135 88212135 8EA737235-001 97KB11000AB 97KB11000AC AES1265 CS986 CST14106GS CST14113GS DRS7530 DRS7530N EAA-121161 LRT00165 SS442 STR50033Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 210 mm |
| Mount Hole Center - Center (O.1) | 86 mm |
| Mount Hole Center - Center (O.2) | 119 mm |
| Mount Hole Center - Center (O.3) | 76 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 21 qty |
| No./Teeth (Replaces) | 21 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 72 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Escort 1.3 | [J4B] | 01.1995-10.1998 |
| FORD | Escort 1.3 | [J4B] | 09.1992-01.1995 |
| FORD | Escort 1.3 | [J6A] | 01.1995-02.1999 |
| FORD | Escort 1.3 | [J6A] | 01.1995-10.1998 |
| FORD | Fiesta 1.3 | [J4C] | 02.1996- |
| FORD | Fiesta 1.3 | [J6B] | 09.1991-02.1996 |
| FORD | Fiesta 1.3 i | [J4C] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4J] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4L] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4Q] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4R] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4T] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JBC] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJA] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJC] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJE] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJJ] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJK] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJM] | 08.1995-01.2002 |
| FORD | Ka 1.0 i | [C4B] | 07.1997-09.1999 |
| FORD | Ka 1.3 i | [BAA] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [J4D] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [J4K] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [J4M] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [J4N] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [J4P] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [J4S] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [JJB] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [JJD] | 06.1998- |
| FORD | Ka 1.3 i | [JJF] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [JJG] | 09.1998-10.2002 |
| FORD | Ka 1.3 i | [JJH] | 09.1996-10.2002 |
| FORD | Ka 1.3 i | [JJL] | 09.1996-10.2002 |
| MAZDA | 121 1.2 | [DHF] | 03.1996- |
| MAZDA | 121 1.2 | [DHG] | 03.1996- |
| MAZDA | 121 1.3 | [J4T] | 03.1996- |
| MAZDA | 121 1.3 | [JHC] | 03.1996- |
| MAZDA | 121 1.3 | [JJK] | 03.1996- |
| MAZDA | 121 1.3 | [JJM] | 03.1996- |
Reference Information
10986V 6014106.0 6014106.1 220034 LRT00165 1057811 0986017530 0001107082 1030151 DENDSN3003 20450601OE 1020508 CS986 DSN3003 1416236 1067621 J5213041 590.521.233.020 111680 1067622 590.521.233.261 88212135 CST14106GS 20450601BN STR50033 0001107059 CST14106AS 1416207 1019852 1092117 31165N PRSS513 1033781 10986 25-2220 S12BH0192A2 1067536 8EA737235-001 1416226 1047081 7275964 LRT165 590.521.233.010 1027772 STB0986Video/Publications
