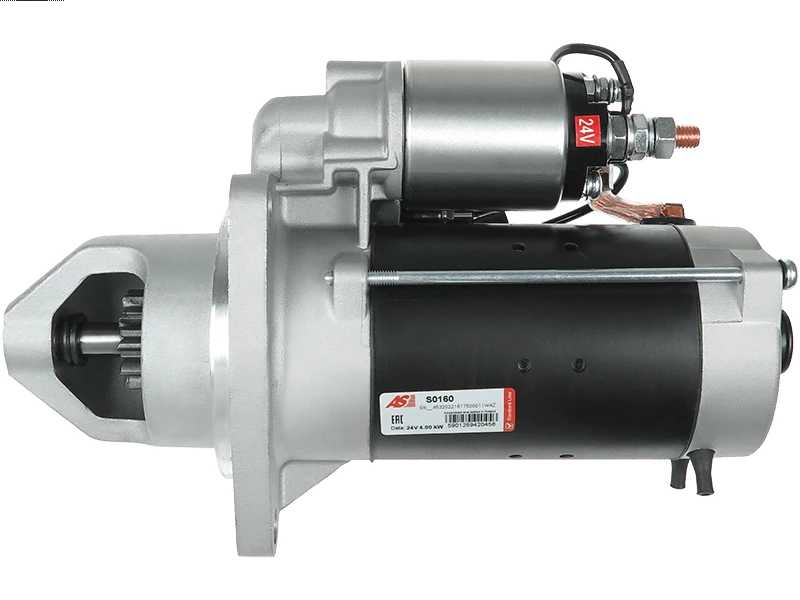

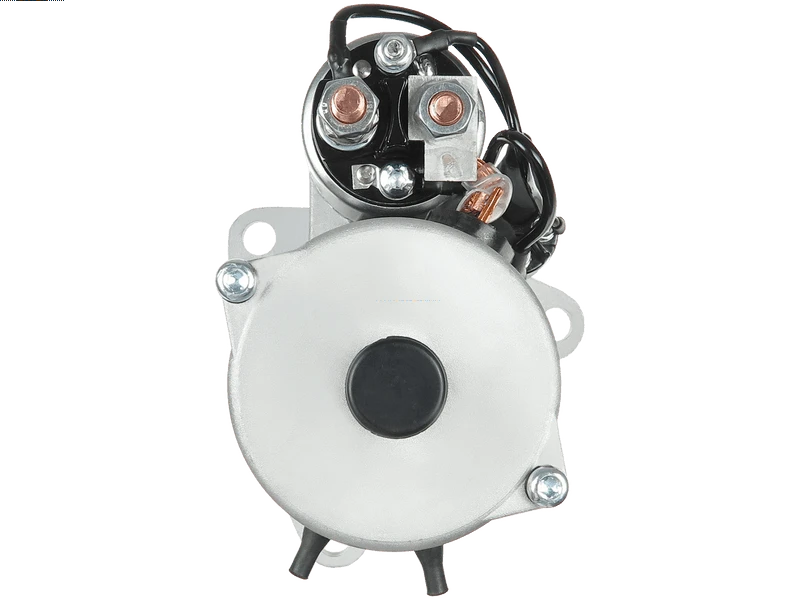

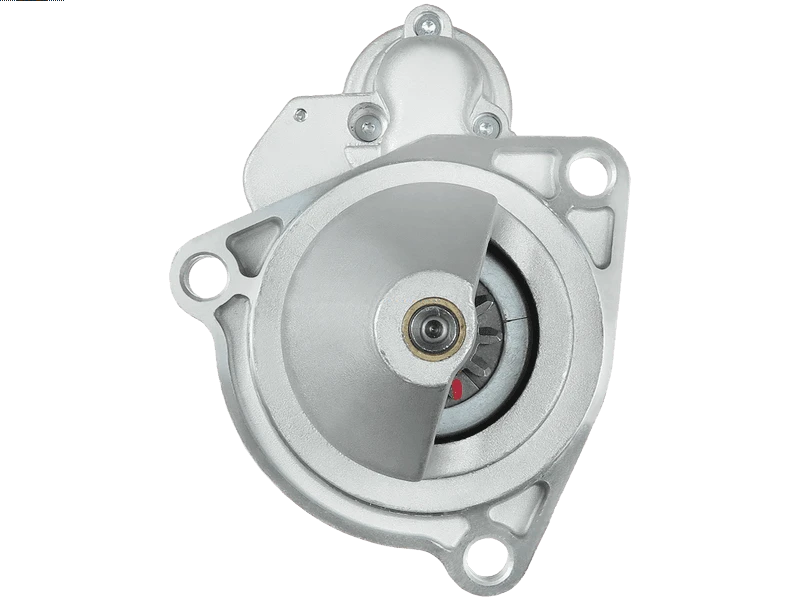

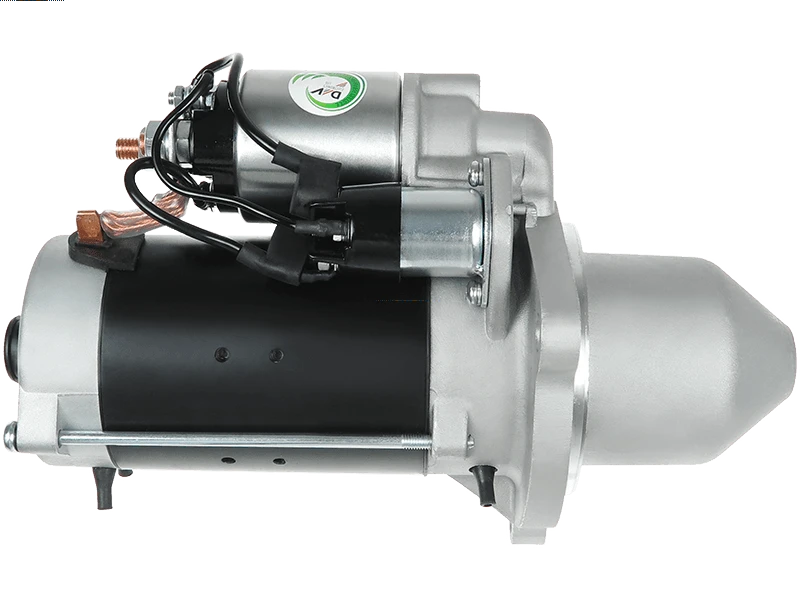

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 500.73 including GST
NZ$ 435.42 excluding GST
or four payments of $125.18
with
Learn More
each
S0160
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001231013Associated Numbers
0001231013 0001231041 0001368313 0986017980 101129P 101331 101331B 101331P 112055 1287890 1346162 1735788 20401117BN 20401366BN 20401366OE 20401587BN 28.1331 28.1331M 30125N 33912 45-2175 6010663 6010711 6010785 77704208 8435 860304 861035 861040 8817980 8EA738212-001 CS1331 CST10663AS CST10663GS CST10711AS CST10785AS DRS7980 EAA-121520 LRS01896 M93R3091SE S0160 STR50013Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | 75.240 8.7 | [RS180][RS180L][RS180M] | 07.1992-02.1998 |
| DAF | 75.270 8.7 | [RS200][RS200L][RS200M] | 07.1992-02.1998 |
| DAF | 75.300 8.7 | [RS222L][RS222L][RS222M] | 07.1992-02.1998 |
| DAF | 75 CF.250 9.2 | [PF183M] | 01.1998-12.2000 |
| DAF | 75 CF.250 9.2 | [PF183M][PF212M] | 01.1998-12.2000 |
| DAF | 75 CF.290 9.2 | [PF212M] | 01.1998-12.2000 |
| DAF | 75 CF.320 9.2 | [PF235M] | 01.1998-12.2000 |
| DAF | CF 75.250 9.2 | [PE183C] | 01.2001- |
| DAF | CF 75.310 9.2 | [PE228C] | 01.2001- |
| DAF | CF 75.360 9.2 | [PE265C] | 01.2001- |
| DAF | CF 75 FA 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FA 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FA 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FA 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FA 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FA 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FAD 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FAD 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FAD 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FAG 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FAG 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FAG 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FAG 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FAG 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FAG 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FAN 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FAN 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FAN 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FAN 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FAN 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FAN 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FAR 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FAR 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FAR 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FAR 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FAR 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FAR 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FAS 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FAS 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FAS 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FAS 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FAS 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FAS 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FAT 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FAT 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FAT 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FAT 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FAT 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FAT 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 75 FT 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75 FT 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75 FT 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75 FT 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75 FT 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75 FT 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
Reference Information
28.1331M 1346162 6010663.0 6010663.1 CS1331 28.1331 331774 MAV126630 901.501.113.381 CST10663AS 0001231013 19084020 STR10094 112055 8EA738212-001 STR50013 DRS7980 861035 901.501.113.019 901.501.113.018 S24BH0114 M93R3091SE 126246 CST10663GS 2165369R LRS01896 8817980 STM937 STB1331 504640 30125N 901.501.113.010 30125R 901.501.113.210 DRS0166 1735788 88212526 901.501.113.215 19084210 0001231041 1262460 861040 8235 MAV127110 77704208 901.501.113.281 19070127 860304 458331 289183 33912 STRS517 PRSS517 220728 S0160 CGB-23293 20401366OE 0986017980 45-2175 20401366BN S24BH0114A2 PTC-4031 901.501.113.310 1287890 LRS1896 0001368313Video/Publications
S0160View your shopping basket or Browse other items in Starter Motors.
