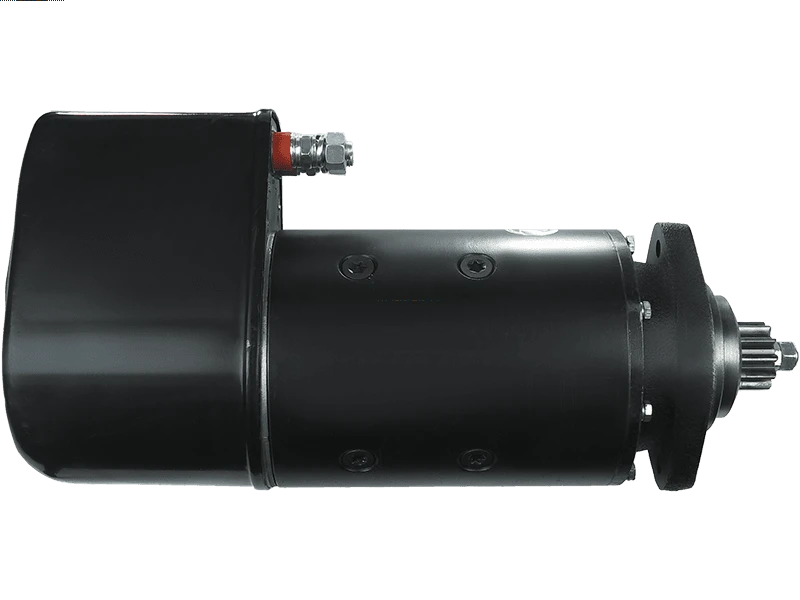

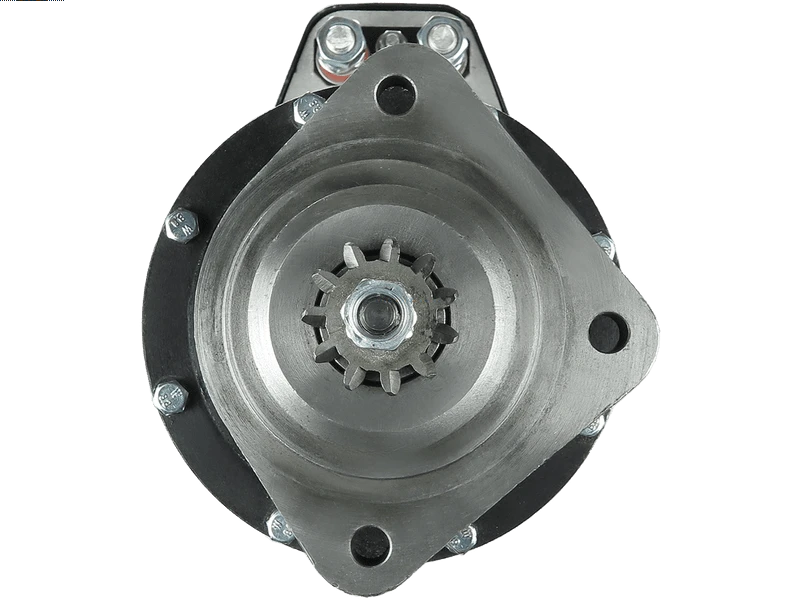

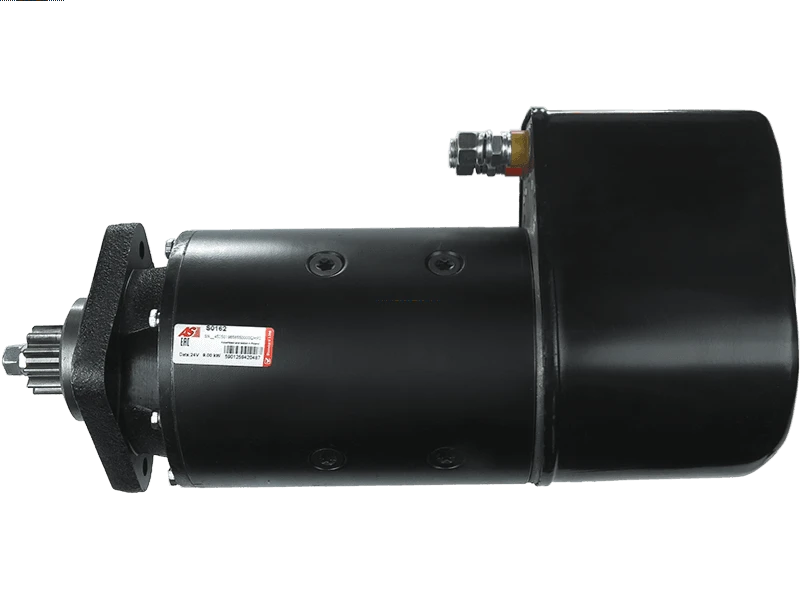

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 2,138.15 including GST
NZ$ 1,859.26 excluding GST
or four payments of $534.54
with
Learn More
each
S0162
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001510017Associated Numbers
0001510014 0001510017 0986011590 11.130.287 20401876BN 20401876EL 254235 45-0211 6010678 861043 CST10678AS CST10678ES DRS1590 EAA-121389 LRS00959 MSR744 S0162 STR50274Specifications
| Kilowatt | 9 kW |
| Length (L.1) | 458 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAGIRUS-DEUTZ | M310 D16 | 01.1975-12.1982 | |
| MAGIRUS-DEUTZ | M310 D19 | 01.1975-12.1982 |
Reference Information
6290033 861043 0986011590 LRS00959 20401876EL STR1111 MAV126780 220279 3045094 MSR744 STR50274 6010678 6290069 0001510014 0001510017 42522861 1701051 3040116 1163556 K41593 LRS959 45-0211 20401876BN 332079 1171204 11.130.287 254235 STRL792 S0162 CGB-91590 1179061 CST10678ES DRS1590 CST10678ASVideo/Publications
S0162View your shopping basket or Browse other items in Starter Motors.
