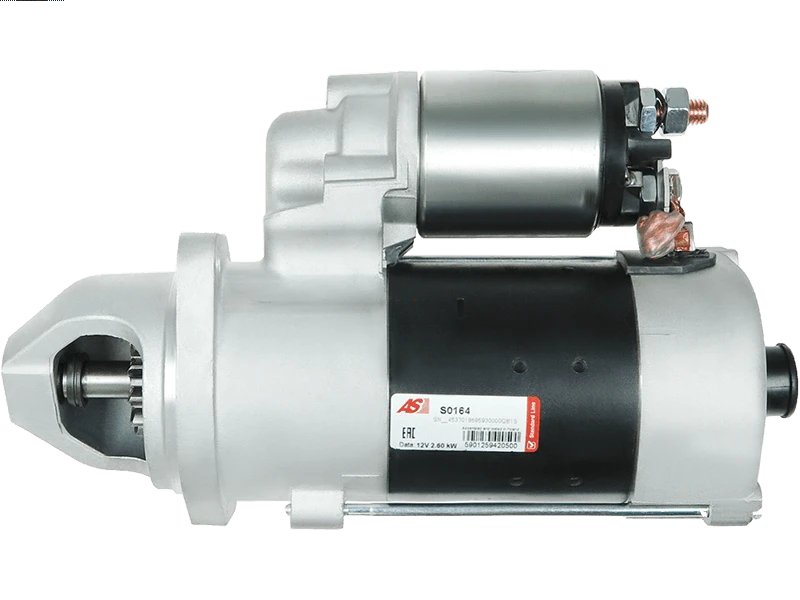

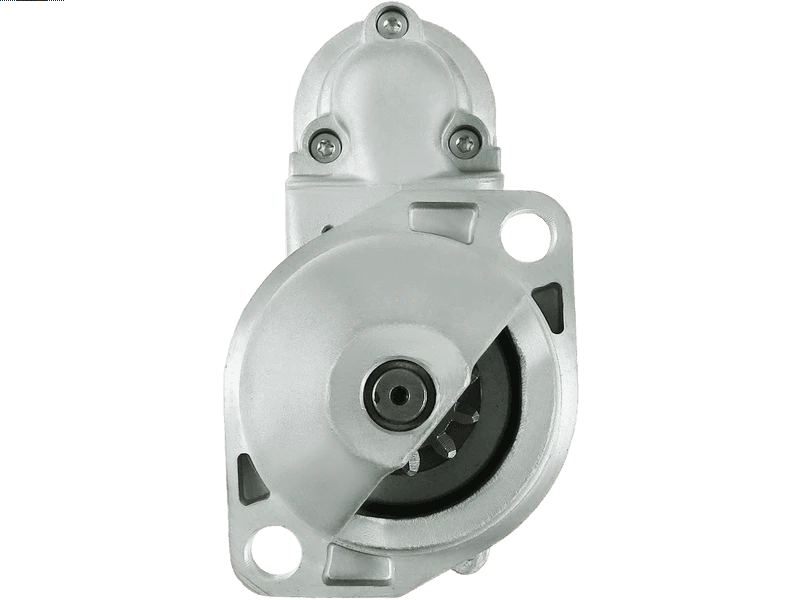

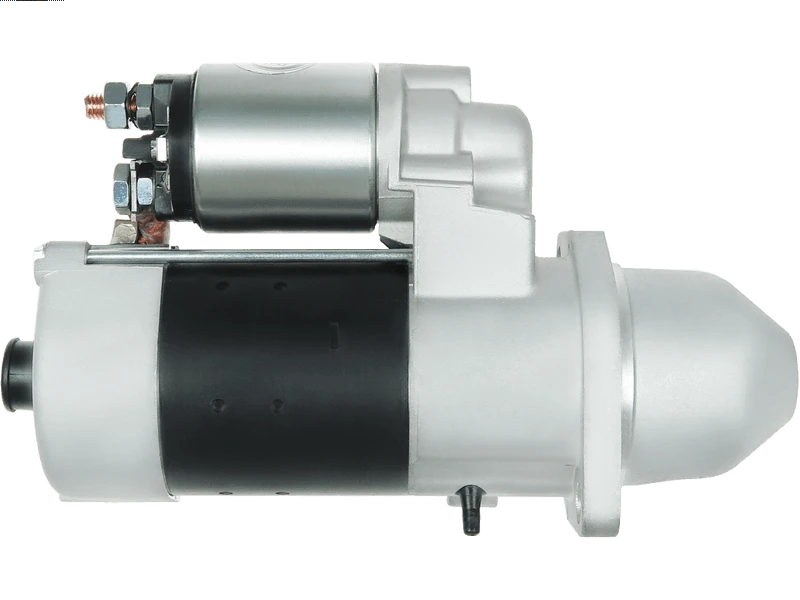

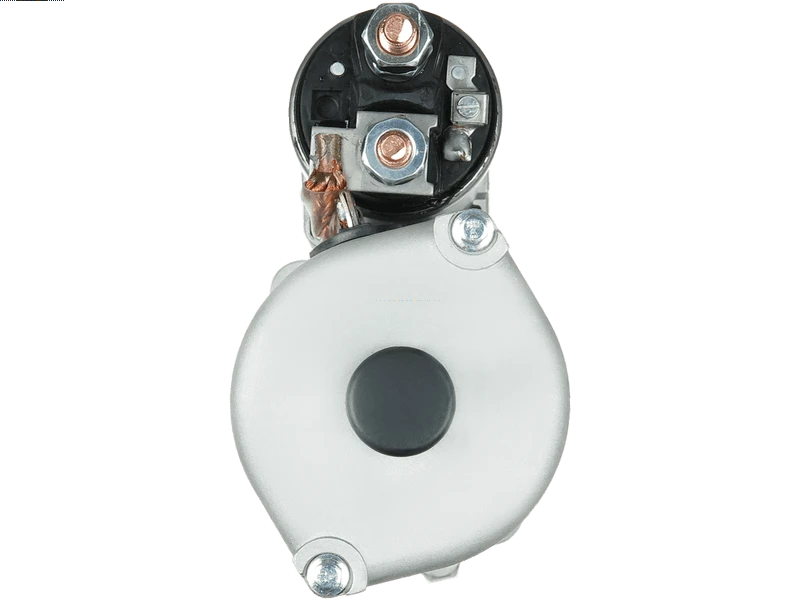

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 423.92 including GST
NZ$ 368.63 excluding GST
or four payments of $105.98
with
Learn More
each
S0164
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001223506Associated Numbers
0001223506 10996 10996B 10996I 10996M 20401451BN 6010154 610.002.112 610.501.112 63522235060 8049 CS996 CST10154AS EAA-121578 MSN2037 S0164 STR50203Specifications
| Kilowatt | 2.6 kW |
| Length (L.1) | 285 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAMBORGHINI | 135 6.0 Diesel Formula | [1000.6] | 12.1989-12.1999 |
| LAMBORGHINI | 165 6.0 Diesel Racing | [1000.6] | 05.1991-12.1999 |
| LAMBORGHINI | 190 6.0 Diesel Rasing | [1000.6] | 01.1992-12.1999 |
| LAMBORGHINI | 674-70 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 674-70 N 4.0 Diesel | [1000.4] | 06.1986-12.1995 |
| LAMBORGHINI | 674-70 N 4.0 Diesel Bosso | [1000.4] | 06.1986-12.1995 |
| LAMBORGHINI | 774-80 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 774-80 DT 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 774-80 N 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | 775 4.0 Diesel | [1000.4] | 06.1987-12.1999 |
| LAMBORGHINI | 874-90 4.0 Diesel | [1000.4] | 06.1986-12.1999 |
| LAMBORGHINI | C 774-80 4.0 Diesel | [1000.4] | 06.1986-12.2000 |
| LAMBORGHINI | Engine | [1000.3W] | 01.1987-12.1999 |
| LAMBORGHINI | Engine | [1000.4W] | 01.1987-12.1999 |
| LAMBORGHINI | Engine | [1000.6..] | 09.1990-12.1999 |
| SAME | Buffalo 120 6.2 | [DA1056] | 07.1974- |
| SAME | Centauro 70 Diesel | 12.1981-10.1987 | |
| SAME | Centurion 75 Diesel | 11.1978-05.1988 | |
| SAME | Drago 5.4 | 11.1971- | |
| SAME | Frutteto 75 3.0 Diesel | 05.1991- | |
| SAME | Galaxy 170 6.2 Diesel | 06.1983- | |
| SAME | Laser 100 5.2 Diesel | 03.1984- | |
| SAME | Laser 110 5.7 Diesel | 03.1983- | |
| SAME | Laser 130 6.2 Diesel | 04.1983- | |
| SAME | Laser 150 6.2 Diesel | 03.1983- | |
| SAME | Ranger 45 2.7 Diesel | 02.1982- | |
| SAME | Solar 60 3.1 Diesel | 06.1986- | |
| SAME | Titan 160 6.0 Diesel | 05.1991- | |
| SAME | Titan 190 6.0 Diesel | 01.1992- | |
| SAME | Transporter | 01.1991- |
Reference Information
610.002.112.460 10996M MAV121540 12345655 10996I MSN2037 6226486 CGB-93506 CST10154AS 220930 296190300 6010154 10996B 296190800 63522235060 STR1392 10996 1530359C1 63217108 0001223506 8049 MAV121510 S12BH0288A2 207090002 20401451BN CS996 207020002 STR50203 296193700 610.501.112 RNL223506 296193600 STRL111 605720100084 2961928 S0164 40800090007 610.002.112 51262017011Video/Publications
