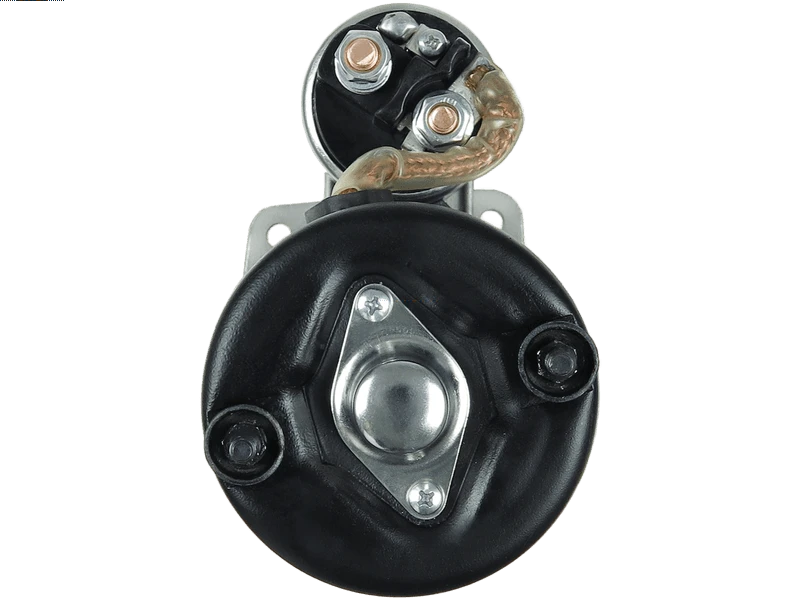

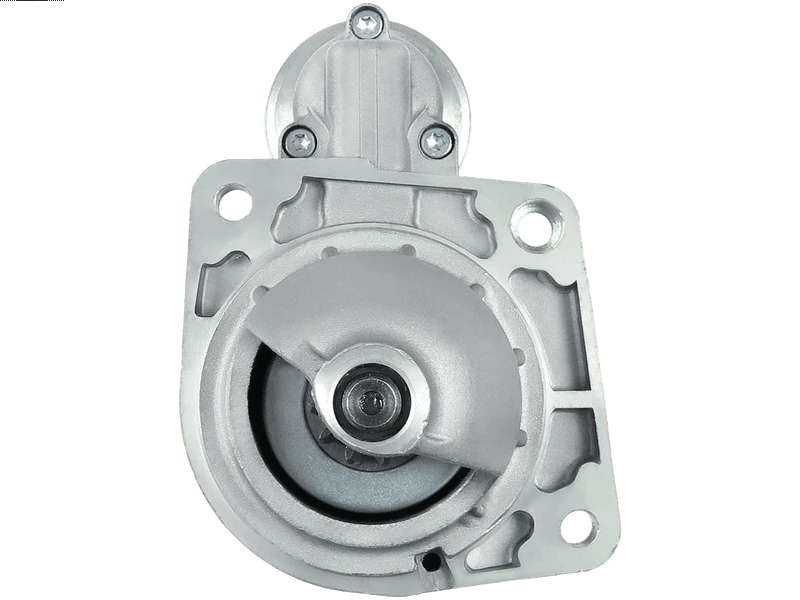

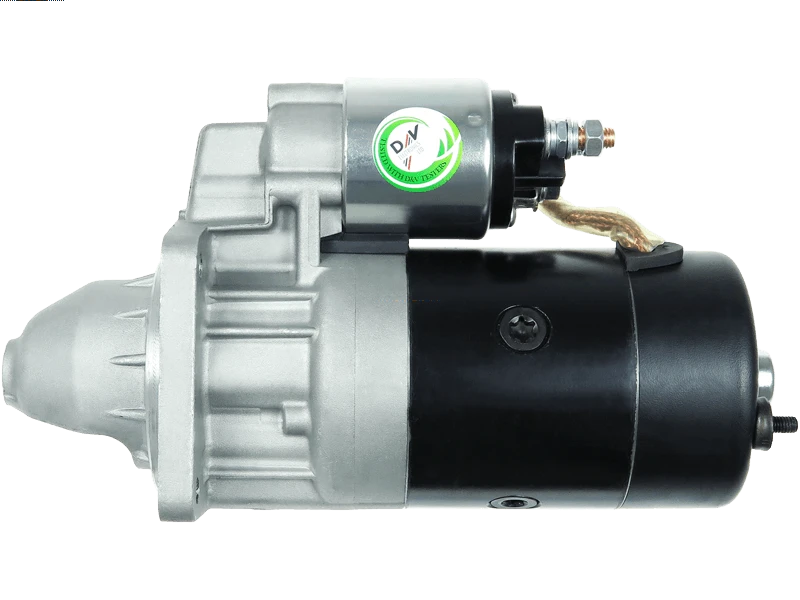

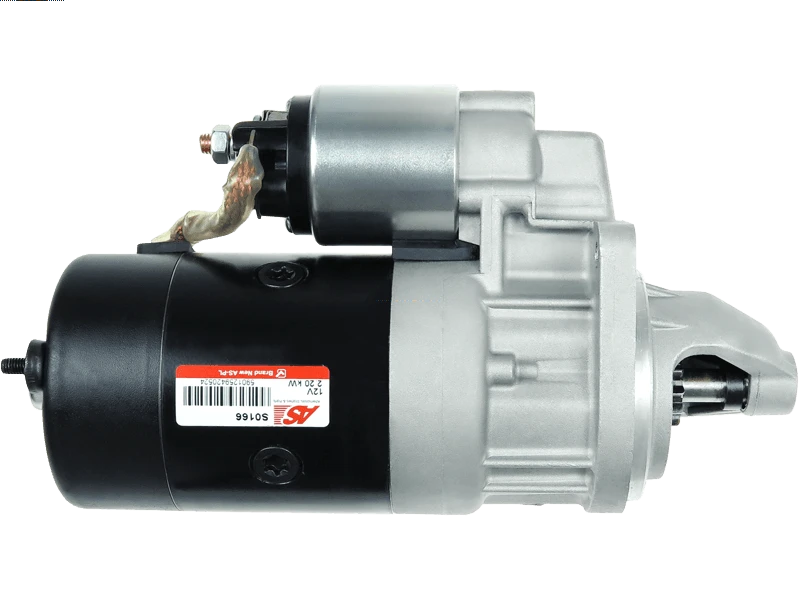

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 388.65 including GST
NZ$ 337.96 excluding GST
or four payments of $97.16
with
Learn More
each
S0166
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001218175Associated Numbers
0001218023 0001218125 0001218158 0001218175 0001218725 0001218758 0986015610 0986017950 10611 112454 11501 20401522BN 20401522RC 22.0611 25-2032 31195N 3575 458523 458556 6010225 60512969 605129690 8017950 8212932 88212932 8EA730181-001 AES1295 CS611 CST10225AS CST10225RS DRS5610 DRS7950 EAA-121159 LRS00972 LRT00195 SS713 STR50083Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 272 mm |
| Mount Hole Center - Center (O.1) | 73 mm |
| Mount Hole Center - Center (O.2) | 73 mm |
| Mount Hole Center - Center (O.3) | 113.5 mm |
| Mount Hole Diameter (C.1) | 8.5 mm |
| Mount Hole Diameter (C.2) | 8.5 mm |
| Mount Hole Diameter (C.3) | 8.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 155 2.5 TD | [VM07B] | 04.1993-04.1996 |
| ALFA ROMEO | 155 2.5 TD | [VM31B] | 04.1993-12.1997 |
| ALFA ROMEO | 164 2.5 TD | [VM08B] | 09.1992-10.1998 |
| ALFA ROMEO | 164 2.5 TD | [VM32B] | 09.1992-10.1998 |
| ALFA ROMEO | 164 2.5 TD | [VM84A] | 06.1987-09.1992 |
| ALFA ROMEO | 33 1.8 TD | [VM82A] | 09.1986-12.1989 |
| ALFA ROMEO | 33 1.8 TD | [VM96A] | 07.1990-09.1994 |
| ALFA ROMEO | 33 1.8 TD | [VW82A] | 03.1988-12.1989 |
| CHRYSLER | Voyager 2.5 TD | [425CLIRS/X] | 01.1995-12.2000 |
| CHRYSLER | Voyager 2.5 TD SE | [09B] | 04.1992-12.1995 |
| CHRYSLER | Voyager 2.5 TD SE | [M00] | 04.1992-01.1995 |
| JEEP | Cherokee 2.5 TD | [VMHR425CLIRX] | 09.1994-08.1996 |
| JEEP | Grand Cherokee 2.5 TD | [M51] | 10.1995-04.1999 |
| JEEP | Grand Cherokee 2.5 TD | [M52] | 10.1995-04.1999 |
| ROVER | 825 2.5 Diesel | [425SL1] | 01.1992-12.1998 |
| ROVER | 825 2.5 Diesel | [4924SHIRG] | 01.1992-02.1999 |
| ROVER | 825 2.5 TD | [425SL1] | 10.1991-02.1999 |
| ROVER | 825 2.5 TD | [4924SHIRG] | 10.1991-02.1999 |
| VW | Passat 2.0 | [AUZ] | 01.2000-11.2001 |
Reference Information
0001218725 0986015610 SS713 04864693 330763 0986017950 220080 LRS00972 0001218175 LRT00195 25-2032 10611 458556 88212932 11501 195270503000 35532041F 8212932 8017950 35532037F STR1702 CS611 MAV122250 60412969 ANM17830X 04796044 035532041F DRS5610 035532037F 0001218023 STX200178R 458523 6010225 DRS7950 STR50083 60512969 CST10225RS STRS112 3575 CST10225AS 605129690 CGB-27950 0001218158 20401522BN 0001218758 35532011F 112454 8EA730181-001 35532011A 31195N AES1295 RL042331AA STX200178 035532011F 20401522RC 22.0611 S0166 LRS972 035532011A 0001218125Video/Publications
