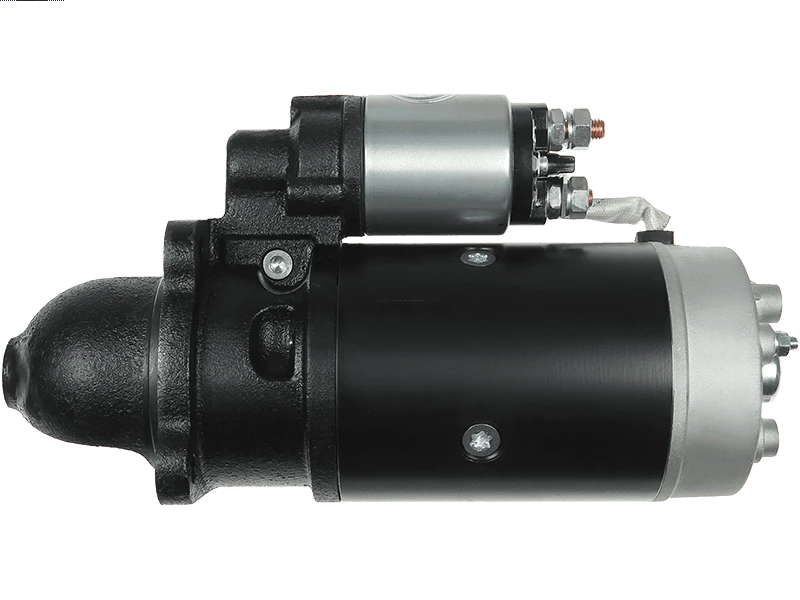

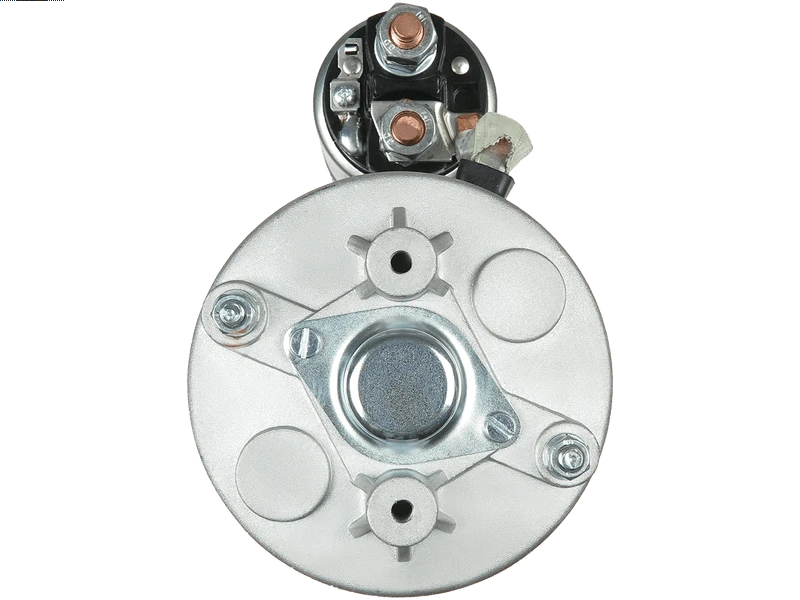

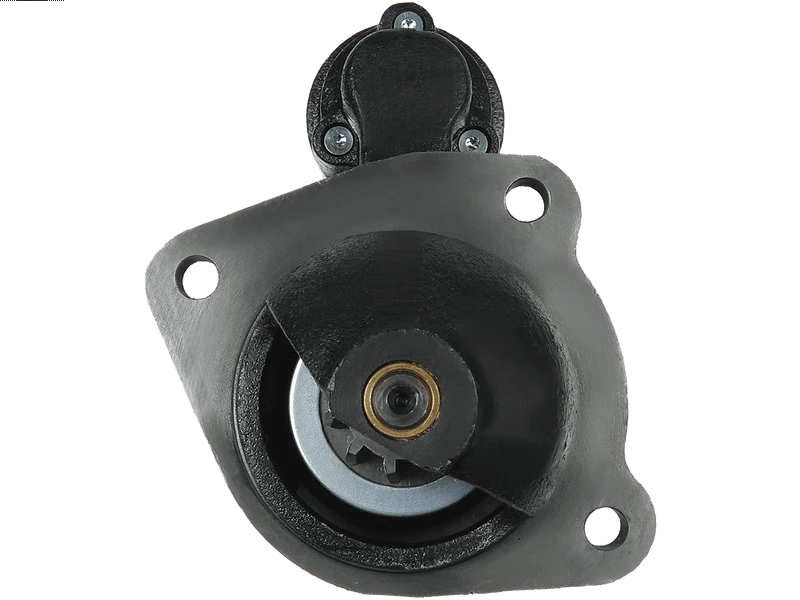

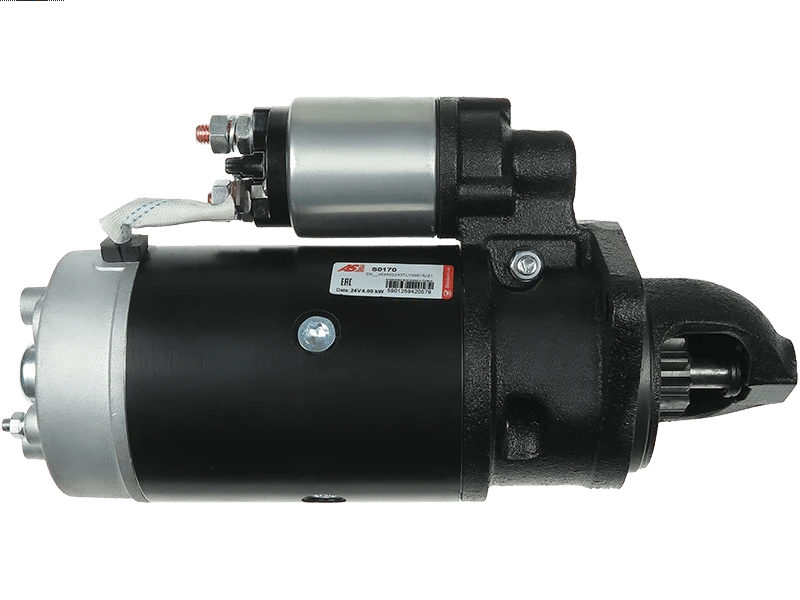

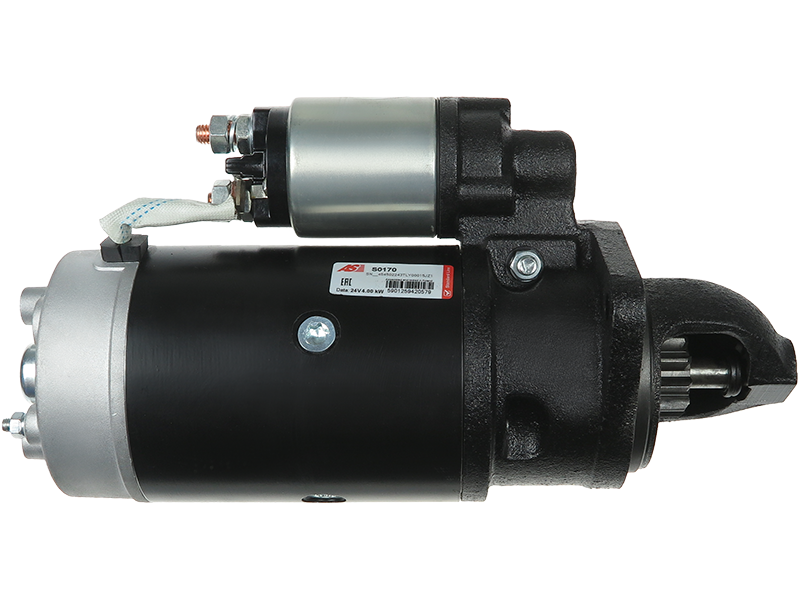

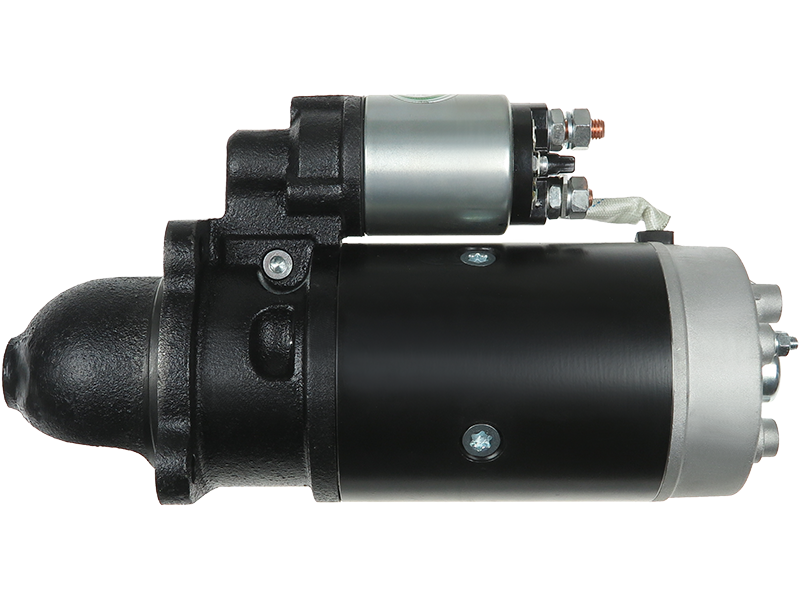

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 449.09 including GST
NZ$ 390.51 excluding GST
or four payments of $112.27
with
Learn More
each
S0170
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368085Associated Numbers
0001368085 109-2361 112037 154011053 18251N 19024260 20401176BN 20401176EL 254191 27462 2873D304 45-2353 6010671 860112 860112Z CST10671AS CST10671ES LRS01917 STR22032 UD03451SSpecifications
| Kilowatt | 4 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127.5 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 312B Excavators | ||
| PERKINS | Various Models | 01.1988- | |
| VOLVO BM | EC130C | ||
| VOLVO BM | EW130C | ||
| VOLVO BM | L50 | 01.1993- |
Reference Information
CGB-23064 72735661 STR22032 MAV126710 RNL368085 S24BH0099A2 CGB-52353 MS33 154011053 112037 0001368065 3181A027 6010671.3 701.001.103.510 IS1326 18251N 45-2353 6010671.0 11.131.409 LRS1917 109-2361 220273 20401176BN 3872D304 71434000 STR1312 S0170 CST10671AS CST10671ES 331793 1702594 STB2137 STRS037 ANM12259 DRS0039 11702594 714/34000 20401176EL 9011702594 701.001.103.016 PRSS037 0001368085 LRS01917 701.001.103.018 OR1903 UD03451S 701.001.103.010 2873D304 AZF4110 19024260 701.506.103.090Video/Publications
