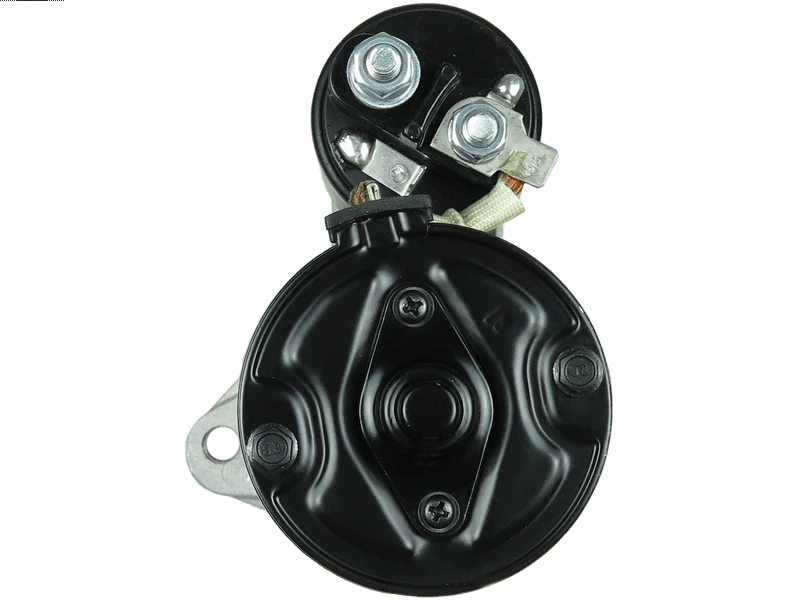

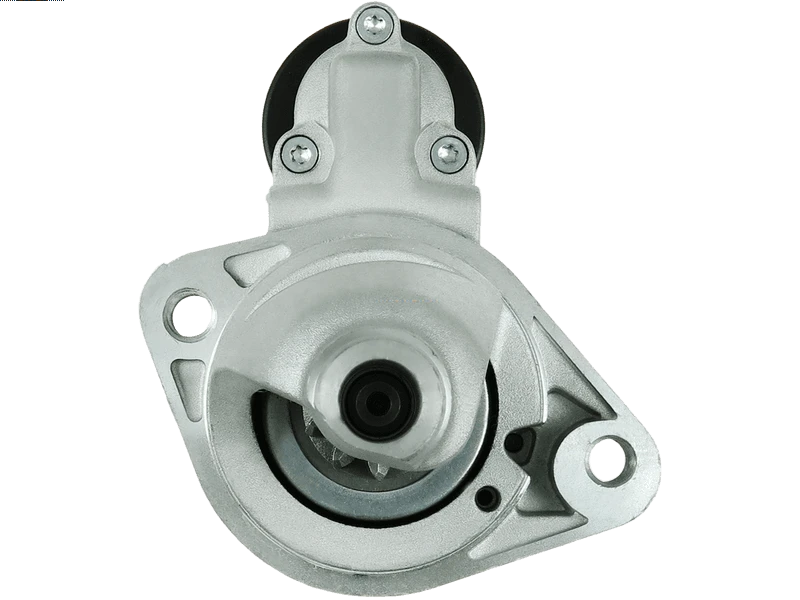

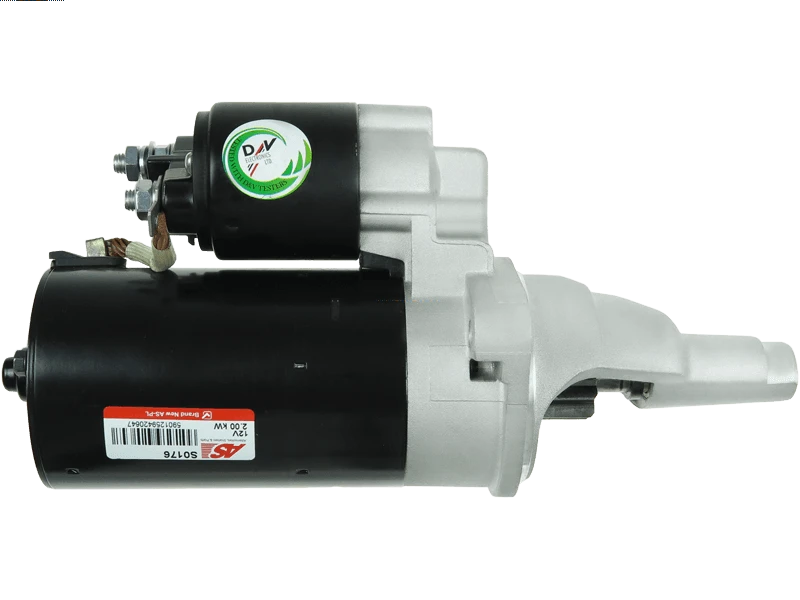

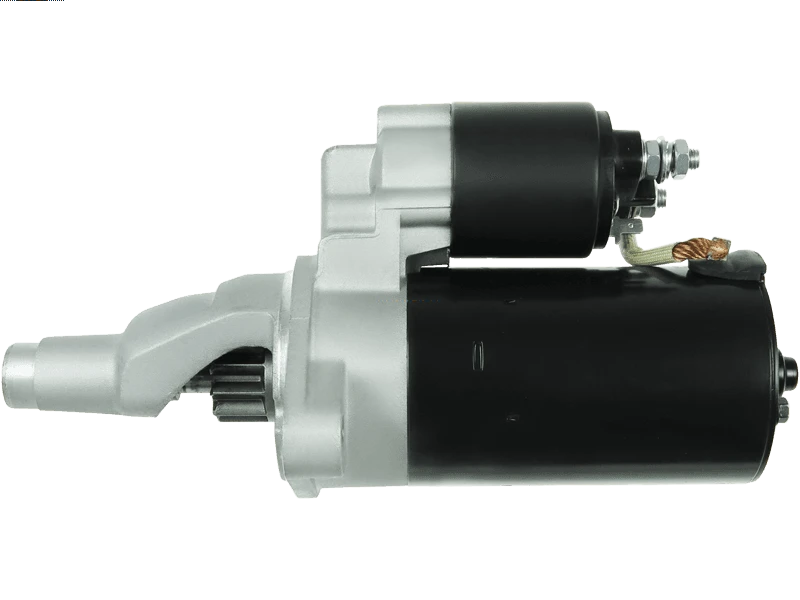

S0176 - Brand new AS-PL Starter motor

Associated Numbers

0001109021 0001109022 0001109066 0001109067 059911023H 059911023HX 0986018020 101114 111995 11935 200.513.102 20401902 220206 25-2363 31217N 3874 42018020 458220 6010209 88212372 8EA012526-371 8EA737557-001 943253118010 944280180200 AES2217 CS1114 CST10209 CST10209AS CST10209ES CST10209GS CST10209OS CST10209RS DRS8020 DS9130 EAA-121091 LRT00217 MRS18020 MSR5318 RNL1802 S0176 SG0676 SS599 STB1114 STR50359

Specifications

Kilowatt	2 kW
Length (L.1)	286 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
OEM Product	No
Pinion at Rest (B)	29 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A4 2.5 TDi	[AFB]	09.1997-06.2000
AUDI	A4 2.5 TDi	[AKN]	09.1997-10.2000
AUDI	A4 2.5 TDi	[AYM]	09.2001-
AUDI	A4 2.5 TDi	[BCZ]	08.2002-
AUDI	A4 2.5 TDi	[BDG]	08.2002-
AUDI	A4 2.5 TDi	[BFC]	08.2002-12.2005
AUDI	A4 2.5 TDi Quattro	[AFB]	09.1997-06.2000
AUDI	A4 2.5 TDi Quattro	[AKE]	11.2000-05.2003
AUDI	A4 2.5 TDi Quattro	[AKN]	02.1999-10.2000
AUDI	A4 2.5 TDi Quattro	[BAU]	09.2001-
AUDI	A4 2.5 TDi Quattro	[BDH]	11.2002-12.2004
AUDI	A4 2.5 TDi S4	[AFB]	09.1997-06.2000
AUDI	A4 2.5 TDi S4	[AKN]	08.1998-09.2001
AUDI	A4 2.5 TDi S4 Quattro	[AFB]	09.1997-06.2000
AUDI	A4 2.5 TDi S4 Quattro	[AKN]	07.1998-07.1999
AUDI	A6 2.5 TDi	[AFB]	04.1997-05.2000
AUDI	A6 2.5 TDi	[AKE]	02.2000-08.2003
AUDI	A6 2.5 TDi	[AKN]	11.1998-04.2001
AUDI	A6 2.5 TDi	[AYM]	08.2001-06.2002
AUDI	A6 2.5 TDi	[BAU]	11.2002-01.2005
AUDI	A6 2.5 TDi	[BCZ]	11.2002-
AUDI	A6 2.5 TDi	[BDG]	11.2002-
AUDI	A6 2.5 TDi	[BDH]	11.2002-01.2005
AUDI	A6 2.5 TDi	[BFC]	07.2002-08.2003
AUDI	A6 2.5 TDi	[BND]	02.2000-08.2003
AUDI	A6 2.5 TDi Quattro	[AFB]	07.1997-05.2000
AUDI	A6 2.5 TDi Quattro	[AKE]	02.2000-08.2003
AUDI	A6 2.5 TDi Quattro	[AKN]	12.1997-06.1999
AUDI	A6 2.5 TDi Quattro	[BAU]	02.2003-01.2005
AUDI	A6 2.5 TDi Quattro	[BDH]	02.2003-01.2005
AUDI	A8 2.5 TDi	[AFB]	06.1997-04.2000
AUDI	A8 2.5 TDi	[AKE]	05.2000-09.2002
AUDI	A8 2.5 TDi	[AKN]	11.1997-09.2002
AUDI	A8 2.5 TDi Quattro	[AFB]	07.1997-06.2000
AUDI	A8 2.5 TDi Quattro	[AKE]	11.1999-09.2002
AUDI	A8 2.5 TDi Quattro	[AKN]	03.1998-04.1999
AUDI	Allroad 2.5 TDi Quattro	[AKE]	05.2000-05.2003
AUDI	Allroad 2.5 TDi Quattro	[BAU]	02.2003-08.2005
AUDI	Allroad 2.5 TDi Quattro	[BCZ]	06.2003-
SKODA	Superb 2.5 TDi	[AYM]	12.2001-08.2003
SKODA	Superb 2.5 TDi	[BDG]	06.2003-
VW	Passat 2.5 TDi	[AFB]	07.1998-11.2000
VW	Passat 2.5 TDi	[AKN]	05.1999-05.2003
VW	Passat 2.5 TDi	[BDG]	05.2003-
VW	Passat 2.5 TDi 4-Motion	[AFB]	11.2000-01.2003
VW	Passat 2.5 TDi 4-Motion	[AKN]	11.2000-01.2003
VW	Passat 2.5 TDi 4-Motion	[BAU]	01.2003-
VW	Passat 2.5 TDi 4-Motion	[BDH]	01.2003-
VW	Passat 2.5 TDi Syncro 4-Motion	[AFB]	08.1998-11.2000
VW	Passat 2.5 TDi Syncro 4-Motion	[AKN]	05.1999-11.2000

Reference Information

059911023H 6010209 111995 31217N CST10209RS 200.513.102 8EA737557-001 5010232 SS599 59911023HX CST10209AS SG0676 313904 3874 CST10209ES STA0378R 59911023H 8EA012526-371 88212372 CST10209OS LRT00217 DS9130 MRS18020 STRS248 0001109021 0001109022 0001109066 0986018020 MAV122090 0001109067 101114 AES2217 S12BH0231A2 CS1114 MSR5318 STR50359 CST10209GS S0176 42018020 ANM10240X 220206 STR1249 RNL1802 943253118010 CST10209 331266 STB1114 11935 25-2363 458220 20401902 944280180200 DRS8020 059911023HX
