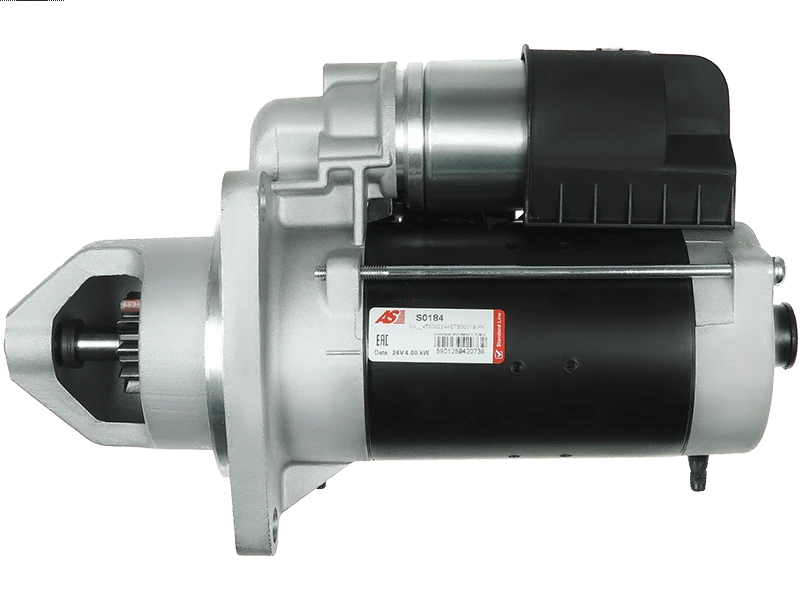

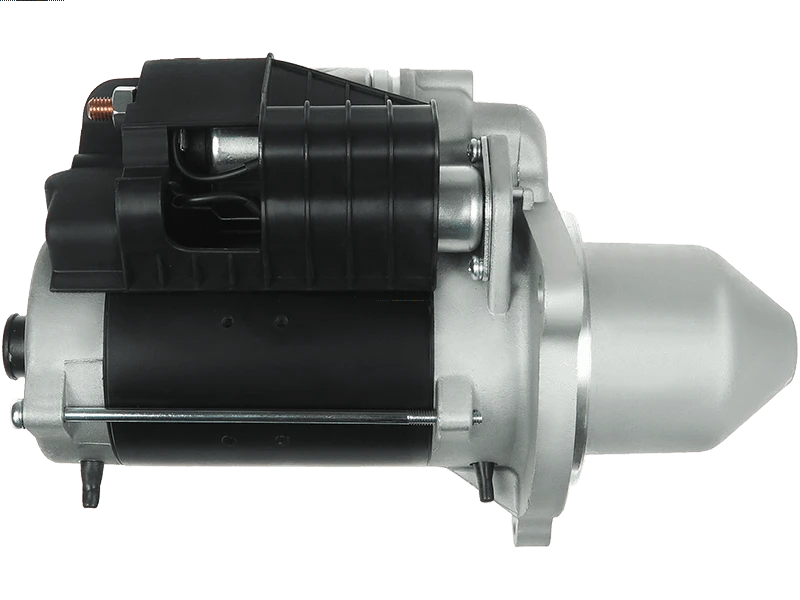

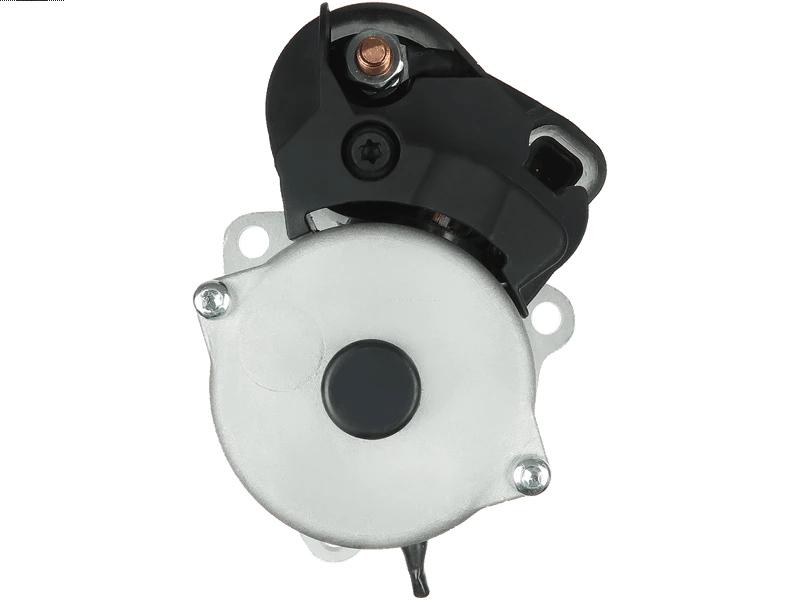

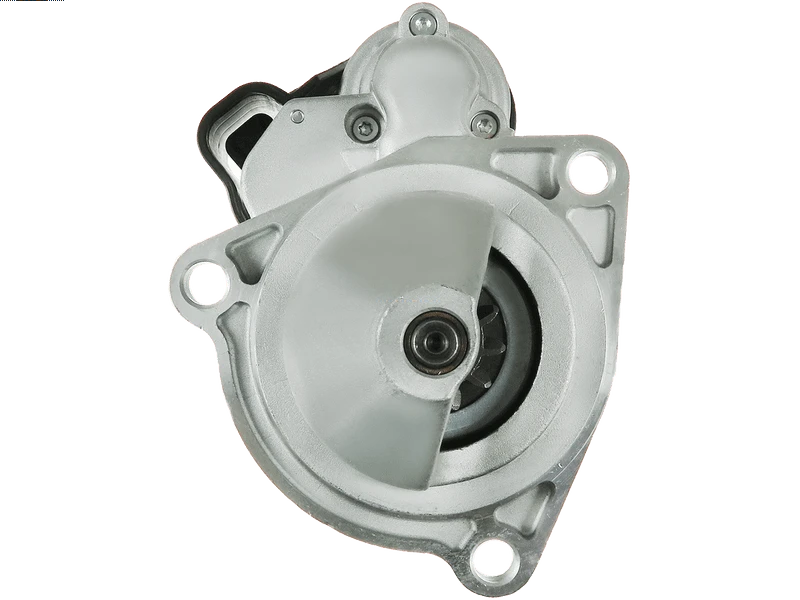

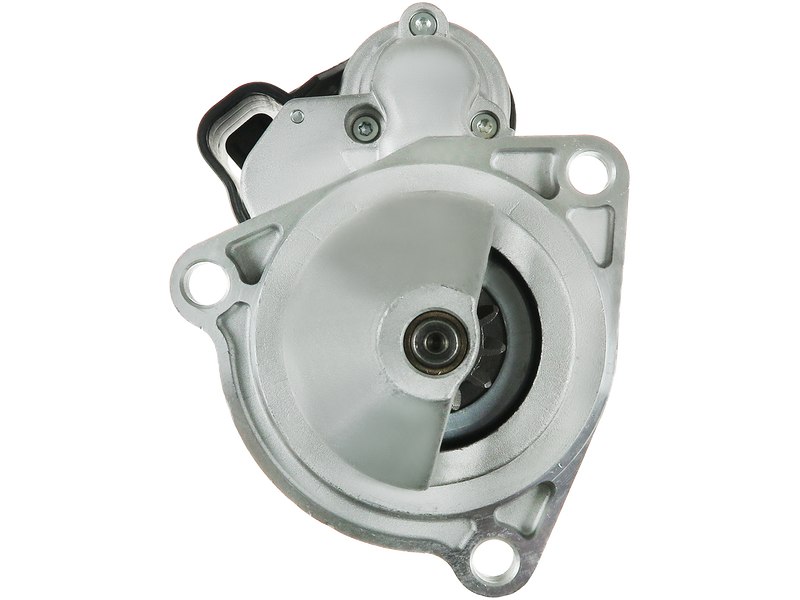

S0184 - Brand new AS-PL Starter motor

Specifications

Kilowatt	4 kW
Length (L.1)	316 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Center - Center (O.2)	126 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
OEM Product	No
Pinion at Rest (B)	48 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	110 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
DAF	CF 75.250 9.2	[PE183C]	01.2001-
DAF	CF 75.250 9.2	[PR183S]	01.2001-
DAF	CF 75.310 9.2	[PE228C]	01.2001-
DAF	CF 75.360 9.2	[PR265]	01.2006-

Reference Information

330529 LRS2457 0001263053 0001263054 CGB-21040 SBO781A 254371 11090173 901.505.113.310 460268 20401187OE DRS0414 3127092 0986025890 45-4129 CST10781AS 19084021 STR50493 20401187BN A91100 3127094 11.139.611 3127096 8143 88214350 901.505.113.280 STR10015 254371P 331800 WG2045395 CS1486 254371M 1956092R 10010781OV MS768 1725900 6010781 PTC-4051 S24BH0117A2 114069 S0184 BST32093 1956092 6010781.1 SG0106 72444491 254371B 30197N 106782 8EA012586-621 330529M 19084208 5.47006 0001231040 861040 88-02095-SX LES0409 901.505.113.210 901.505.113.010 AZF4406 901.505.113.011 LRS02457 901.505.113.215 1986S10080 901.505.113.018 901.505.113.019 S24BH0117 0001263053-R TT16646 1826120 0001231036 STRS517 CST10781GS 0001263004 220724 PRSS517 10010781AV 0001263003 646018114 901.505.113.380 203008 1633811 438591 ST02690 10438229 STB4069 SBO781 5110077G 011-001-000696R STR50580 IS9463
