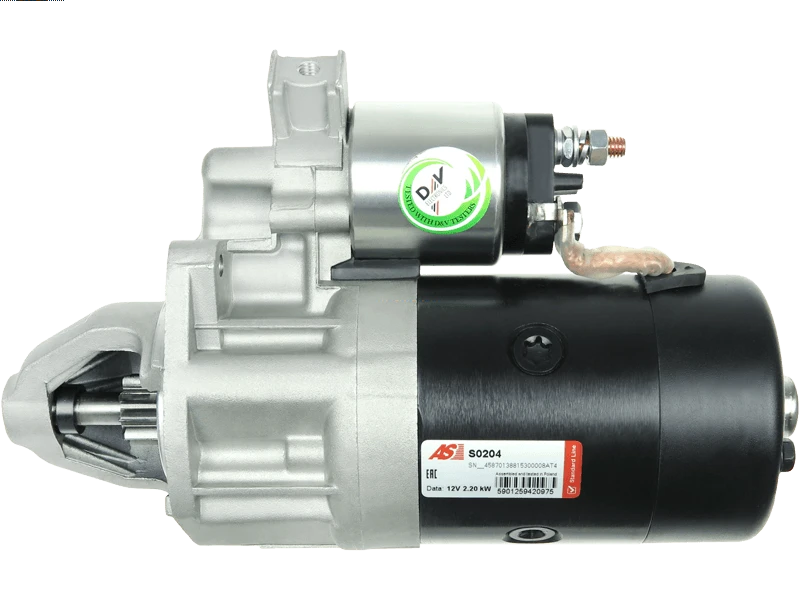

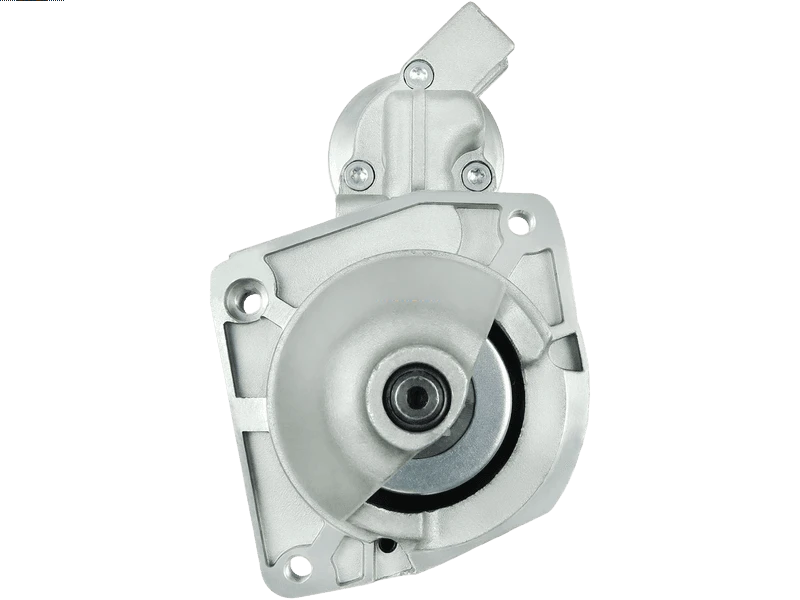

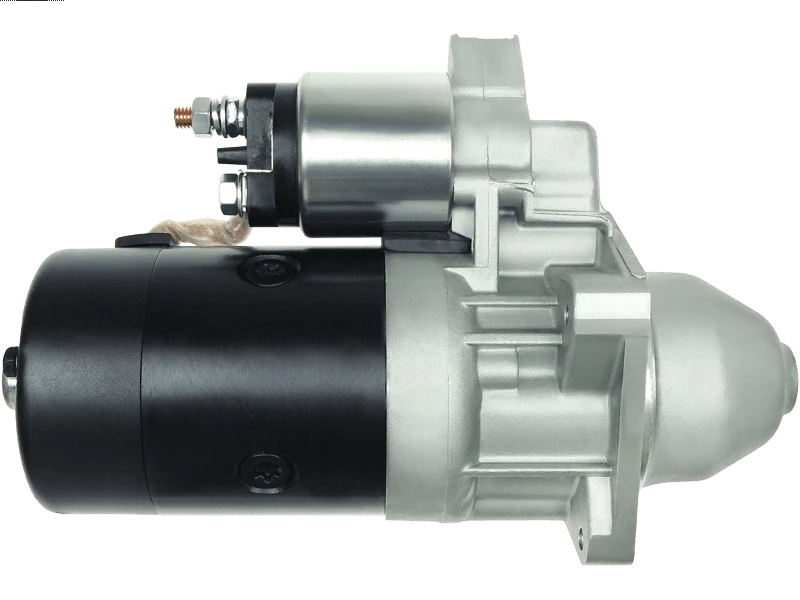

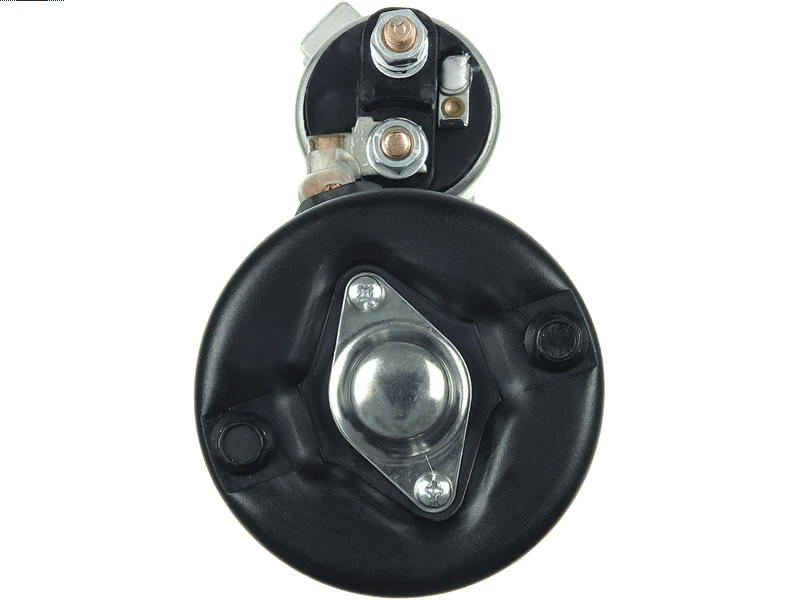

S0204 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 420.62 including GST

NZ$ 365.76 excluding GST
each
S0204
No stock in NZ
No stock in NZ
0001218008 0001218131 0001218145 0986013400 0986017220 10376 10376R 111423 11209 20404871RC 22.0376 25-1080 25-2041 30591R 3547 433348 500.501.093 5984563 6030178 63221801 63221831 63222036 63222133 7608589 7716771 77425430 8013400 8EA726124-001 AES5191 CS376 CST30178RS DRS3400 DRS7230 EAA-121362 LRS00591 SS163 STR52040 VS289
Kilowatt2.2 kW
Length (L.1)272 mm
Mount Hole Center - Center (O.1)114 mm
Mount Hole Center - Center (O.2)78 mm
Mount Hole Center - Center (O.3)80 mm
Mount Hole Diameter (C.1)M8x1.25 mm
Mount Hole Diameter (C.2)M8x1.25 mm
Mount Hole Diameter (C.3)M8x1.25 mm
No./Mount holes3 qty
No./Mount holes with thread3 qty
No./Teeth9 qty
No./Teeth (Replaces)9. 10 qty
OEM ProductNo
Pinion at Rest (B)23 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)82.5 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
FIAT Marengo 1.9 Diesel [160A7.000] 02.1990-12.1996
FIAT Regata 1.9 Diesel [149A1.000] 04.1984-07.1989
FIAT Tempra 1.9 Diesel [160A7.000] 02.1990-12.1996
FIAT Tempra 1.9 TD [160A7.000] 07.1991-08.1996
FIAT Tipo 1.9 Diesel [160A7.000] 07.1989-09.1991
0001218008 MAV3250 STR52040 63221831 6030178 MAV2160 MAV321360 10376R 30591R 330528 5984563 7716767 5884563 0001218131 ANM15620X 7576186 220043 DRS3400 10376 63222133 500.501.093 63221801 111423 STRS166 CST30178RS 0986013400 7716771 7608589 CS376 VS289 60808773 0001218145 LRS591 DRS7230 AES5191 433348 STR1995 MAV2060 8EA726124-001 20404871RC 8013400 11209 LRS00591 25-1080 STR1670 63222036 EAA-121362 0986017220 220123 S0204 STX200374 3547 7716196 STX200374R 77425430 SS163 22.0376 7716194 STX200735 25-2041
S0204
