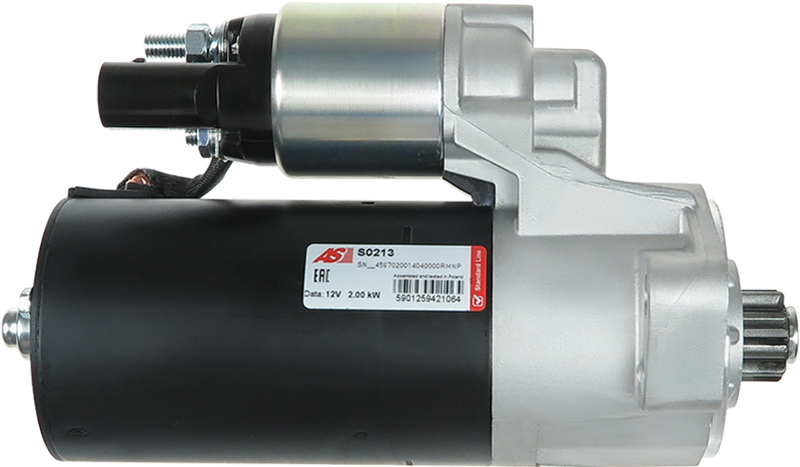

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 251.84 including GST
NZ$ 218.99 excluding GST
or four payments of $62.96
with
Learn More
each
S0270
S0213
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001125519Associated Numbers
0001125519 0001125520 0001125521 059911023S 059911023SX 059911024C 059911024CX 059911024J 059911024JX 0986024050 101187 101187B 114690 200.536.093 20401863BN 20401863OE 22.3082M 220683 25-4002 254305 254305B 254373 254373B 254430 254430B 300.577.093 3066 458538 6010368 943215211010 AEY2330 BOS0001125519 CS1521 CST10368 CST10368AS CST10368ES CST10368GS CST10368OS CST10368RS DRS0566 EAA-121104 LRS02330 S0213 SG0595 STB4519 STB4519BA STR50544 UNIT BOM 120-5035Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 104.5 mm |
| Mount Hole Center - Center (O.2) | 101 mm |
| Mount Hole Center - Center (O.3) | 24 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Q7 3.0 TDi | [BUG] | 03.2006-05.2008 |
| AUDI | Q7 3.0 TDi | [BUN] | 03.2006-11.2007 |
| VW | Touareg 3.0 TDi | [BUN] | 12.2016- |
| VW | Touareg 3.0 TDi | [CASB] | 12.2016- |
| VW | Touareg 3.0 TDi | [CATA] | 11.2004- |
Reference Information
11090174 S100422 254373 33330R 059911023SX 10439623 PRSS320 STX200189R AC-CBS1521 059911024CX CMA-621104 CST10368AS S104699 CS1521 25-4002 VW9086 DRS0566 SBO368A SBO368 MRS80392 STR1751 114690 20401863OE ANM12786X H5010381 STR1762 1638121280 5010381 ST01529 ANM12786 5010381G 6010368.1 6010368.0 3116919 059911024JX AZMT-53-010-1352 059911023J CST10368GS STX200189 SG0595 300.577.093.281 12138049 120-5035 0001125520 0001125521 LRS2330 2S0168 BOM AEY2330 95560410800 UNIT A79140 220683A 10010368AV STRS320 RNL125519 332265 103ST21 059911024HX 22.3082M 254305B S12BH0252A2 3066 BOS0001125519 20401863BN 254305 1986S00820 LRS02330 056911024J STX200201 WG2013245 STX200600 S0213 059911024EX 059911024J 059911024E AC-CBS5786 IR8018 059911024H 220683 059911024C 8080392 944280803920 0001125519 254305S 300.577.093.010 STR50544 254430 S12BH0252 254373B 12103 943215211010 059911023S 311246092 STX200201R STX200214 254430BVideo/Publications
