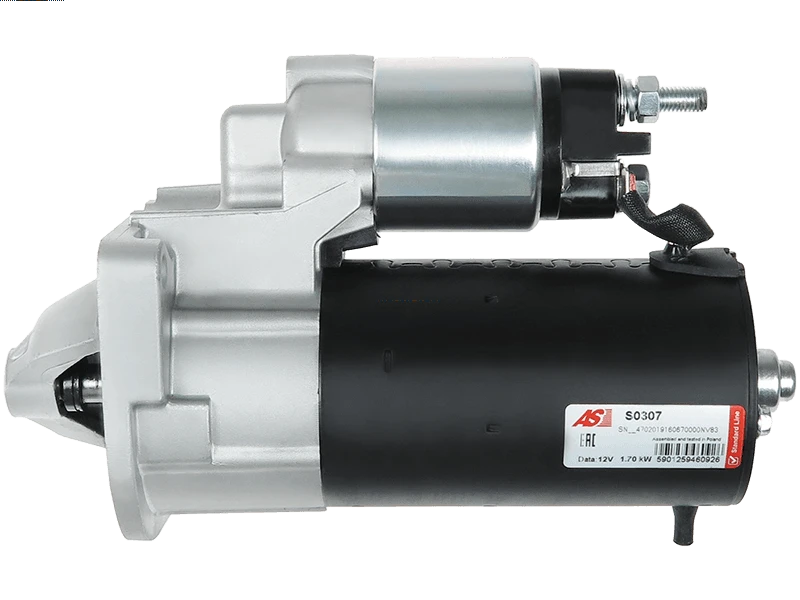

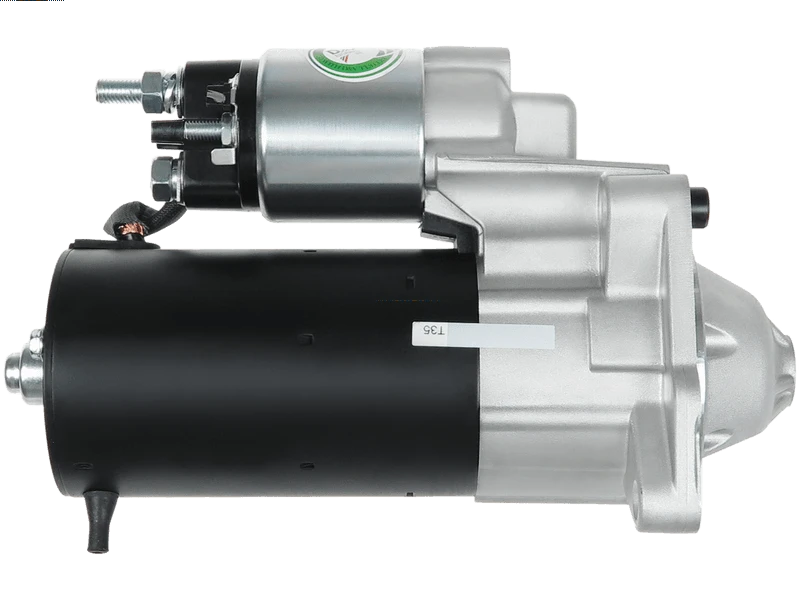

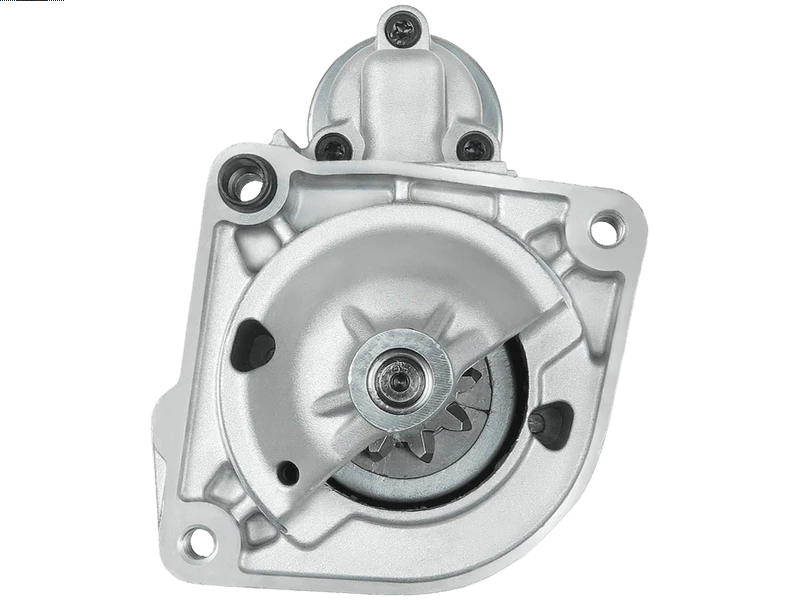

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 302.77 including GST
NZ$ 263.28 excluding GST
or four payments of $75.69
with
Learn More
each
S0307
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001115079Associated Numbers
0001115078 0001115079 0001115114 0001115115 0986025380 114833 12245 20401554BN 20401554OE 22.3090M 220610 25-4318 254655 254655B 30315N 3173 500.565.093 51832949 51984357 55832949 6010455 71794785 88214292 AEY2645 CS1552 CST10455 CST10455AS CST10455ES CST10455GS CST10455OS CST10455RS DRS0787 DS1897 EAA-121918 LRS02645 LRS2645 S0307 SG1147 STB1552 STR50624 UD15141SSpecifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 236 mm |
| Mount Hole Center - Center (O.1) | 116 mm |
| Mount Hole Center - Center (O.2) | 82 mm |
| Mount Hole Center - Center (O.3) | 82 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 1 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Ducato 110 2.3 JTD | [F1AE3481G] | 01.2011- |
| FIAT | Ducato 110 Multijet 2.3 D | [F1AE3481G] | 05.2014- |
| FIAT | Ducato 110 Multijet 2.3 D | [F1AE3481G] | 08.2006- |
| FIAT | Ducato 110 Multijet 2.3 D | [F1AE3481G] | 10.2011- |
| FIAT | Ducato 11 2.3 JTD | [F1AE0481D/N] | 01.2010- |
| FIAT | Ducato 120 2.3 JTD | [F1AE0481D] | 01.2010- |
| FIAT | Ducato 120 Multijet 2.3 D | [F1AE0481D] | 07.2006- |
| FIAT | Ducato 120 Multijet 2.3 D | [F1AGL4114] | 07.2006- |
| FIAT | Ducato 120 Multijet 2.3 D 4x4 | [F1AE0481D] | 03.2010- |
| FIAT | Ducato 130 2.3 JTD | [F1AE?.] | 01.2010- |
| FIAT | Ducato 130 2.3 JTD | [F1AE0481D] | 01.2011- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE0481N] | 01.2007- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE0481N] | 06.2011- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE0481N] | 07.2006- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE0481N] | 08.2006- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE3481D] | 01.2007- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE3481D] | 06.2011- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE3481D] | 07.2006- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AE3481D] | 08.2006- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AGL411D] | 01.2007- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AGL411D] | 06.2011- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AGL411D] | 07.2006- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AGL411D] | 08.2006- |
| FIAT | Ducato 130 Multijet 2.3 D | [F1AGL411M] | 01.2007- |
| FIAT | Ducato 130 Multijet 2.3 D 4x4 | [F1AE0481N] | 06.2011- |
| FIAT | Ducato 130 Multijet 2.3 D 4x4 | [F1AE3481D] | 06.2011- |
| FIAT | Ducato 130 Multijet 2.3 D 4x4 | [F1AGL411D] | 06.2011- |
| FIAT | Ducato 140 Multijet 2.3 D | [F1AGL4113] | 05.2019- |
| FIAT | Ducato 150 2.3 JTD | [F1AE3481.] | 01.2011- |
| FIAT | Ducato 150 3.0 JTD | [F1AGL411.] | 01.2015- |
| FIAT | Ducato 150 Multijet 2.3 D | [F1AE3481E] | 06.2011- |
| FIAT | Ducato 150 Multijet 2.3 D | [F1AGL411.] | 01.2015- |
| FIAT | Ducato 150 Multijet 2.3 D | [F1AGL411A] | 04.2015- |
| FIAT | Ducato 150 Multijet 2.3 D | [F1AGL411A] | 12.2015- |
| FIAT | Ducato 150 Multijet 2.3 D | [F1AGL411C] | 04.2015- |
| FIAT | Ducato 150 Multijet 2.3 D | [F1AGL411C] | 12.2015- |
| FIAT | Ducato 150 Multijet 2.3 D 4x4 | [F1AGL411A] | 04.2015- |
| FIAT | Ducato 150 Multijet 2.3 D 4x4 | [F1AGL411C] | 04.2015- |
| FIAT | Ducato 15 2.3 JTD | [F1AE0481D] | 01.2010- |
| FIAT | Ducato 17 2.3 JTD | [F1AE0481D/N] | 01.2010- |
| FIAT | Ducato 180 3.0 JTD | [F1AGL411.] | 01.2015- |
| FIAT | Ducato 180 Multijet 2.3 D | [F1AGL4111] | 12.2015- |
| FIAT | Ducato 180 Multijet 2.3 D | [F1AGL411B] | 12.2015- |
| FIAT | Ducato 20 2.3 JTD | [F1AE0481D/N] | 01.2010- |
Reference Information
MRS80292 SEG0001115114 51832949 063721552010 0986025380 71724240 AI-80042 500.565.093.280 AEX1139 STA0479R LRS2645 254655B RNL115079 20401554OE DS1897 220906 V24-12-15078 STRS319NE RE83674N 254655 500.565.093.210 71724237 10010455AV 500.565.093.215 WG2372479 52110465 STX200069R 71795570 AC-CBS1552 NPANSM1158 6010455.1 STRS319B 6010455.0 5010099 ST01814 0001115078 0001115079 332056 SG1147 6.7094.1 ANM13007X STRS319 71797122 42025380 11090203 4721651 0001115114 114833 0001115115 88214292 0001115121 10439556 71794785 71794786 STR50624 0001115120 LRS02645 PRSS319B 944280802920 STX200582 UD15141S GS115078-A MAV124550A STM1272 55832949 GS115078B-R STX200069 188509 12.71001 CST10455GS RAS31898 3173 S12BH0030A2 STR1547 MAV124550 500.565.093.010 S0307 30315N STX200582R S12BH0030 12245 13058 51984357 20401554BN LES0526 25-4318 AEY2645 220610 CS1552 8EA011611-921 5010099G 245ST21 CST10455AS 5010099R 10010455OV PRSS319 108019 458817 1986S00777 ASM1158 DRS0787 STB1552 220610A AZMT-53-010-1030Video/Publications
