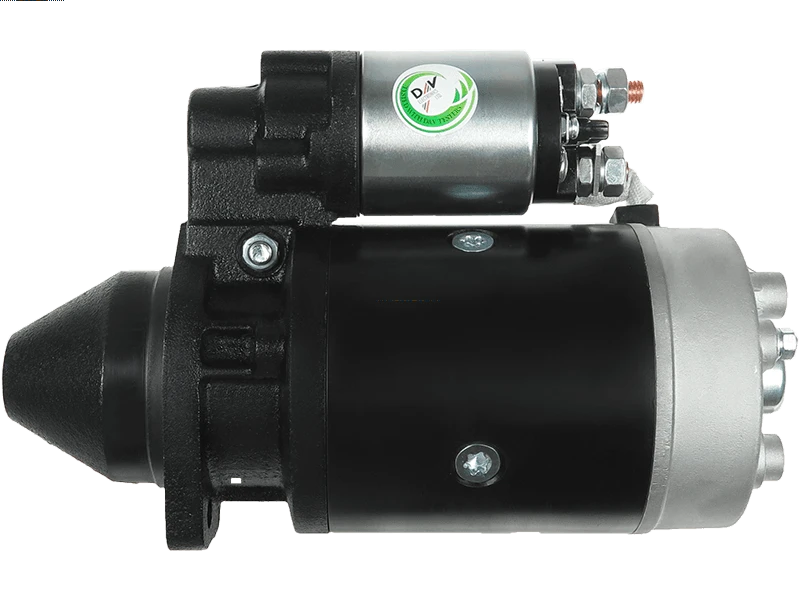

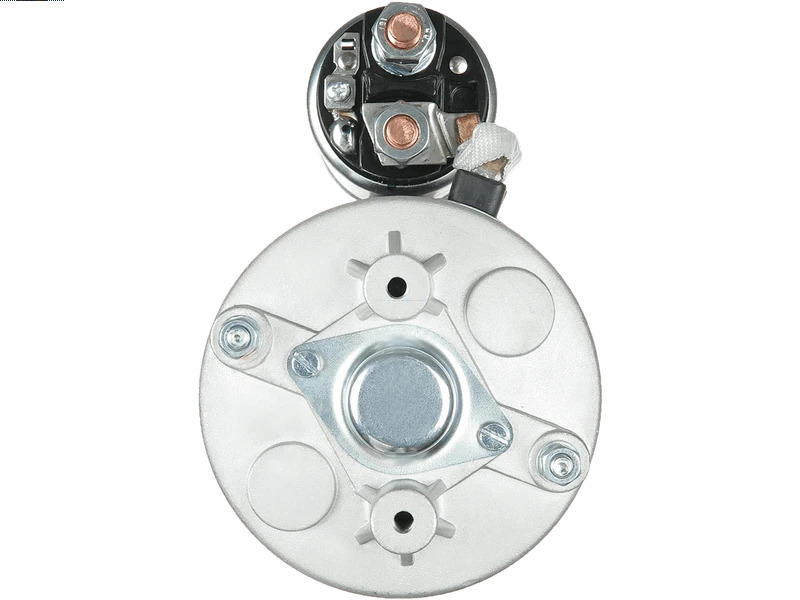

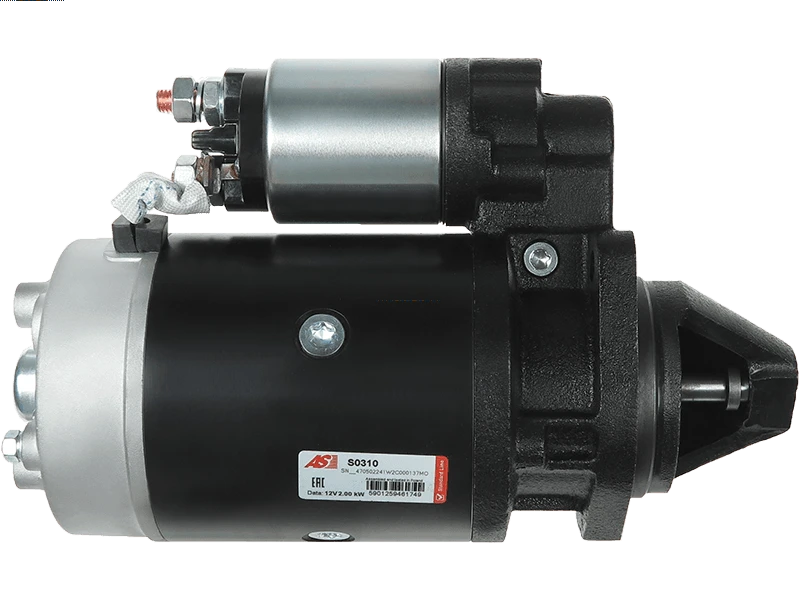

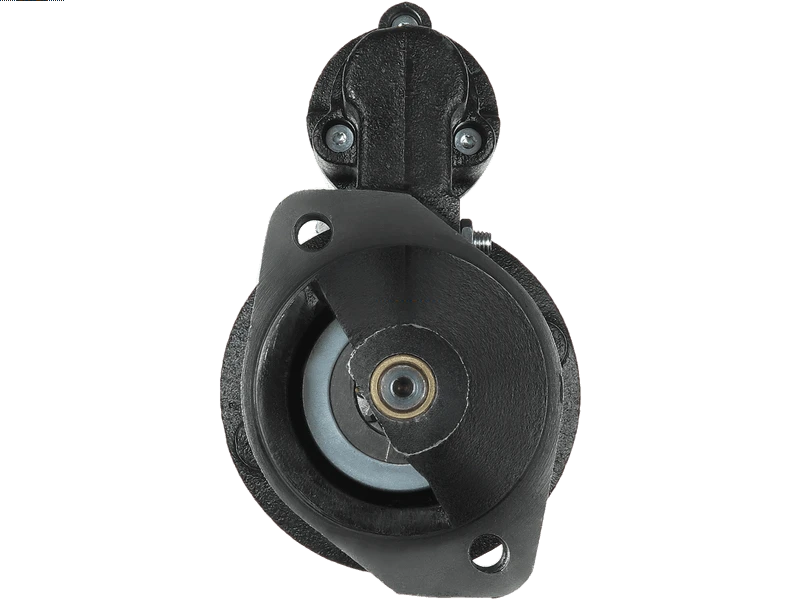

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 435.37 including GST
NZ$ 378.58 excluding GST
or four payments of $108.84
with
Learn More
each
S0310
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001362001 0001362002 0001362029 0001362030 0001362047 0001362600 0001362601 0001369004 0011516201 0021506901 0021513001 0021516901 0031510701 0031511101 0031512001 0031515401 068911023AX 0986011150 10188 10716 11.130.300 11.130.399 11.130.885 11.130.886 110368 11118 16445N 19024239 19024249 20401581BN 20500534 25-0188 3467 35261130 3917420 433294 6010185 726108 7431022000 7431028000 84043545 88212270 8EA726020-001 9000143406 9000143408 91-15-6849 91-15-6849N 943251443010 943252223 943252223010 944280111500 A0011516201 A0021506901 A0021513001 A0021516901 A0031510701 A0031511101 A0031512001 A0031515401 AES8116 AZJ3107 AZJ3311 AZJ3312 AZJ3567 CS188 CST10185 CST10185AS CST10185ES CST10185GS CST10185OS CST10185RS D9R141 LRS00816 MRS11150 MSR425 MSR516 STB0188 STR50243 UD15025SSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 290 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | 5000 2.0 | [CN] | 01.1979-01.1980 |
| AUDI | 5000 2.0 | [CN] | 01.1981-01.1981 |
| AUDI | 5000 2.0 S | [CN] | 01.1979-01.1980 |
| AUDI | 5000 2.0 S | [CN] | 01.1981-01.1981 |
| AUDI | 5000 2.0 Turbo | [DE] | 01.1982-01.1983 |
| MERCEDES BENZ | 100 2.4 Diesel | (631.340)[OM616.963] | 12.1990-02.1996 |
| MERCEDES BENZ | 100 2.4 Diesel | (631)[OM616] | 12.1990-12.1994 |
| MERCEDES BENZ | 100 2.4 Diesel | (631)[OM616.963] | 12.1990-02.1996 |
| MERCEDES BENZ | 200 2.0 Diesel | (115)[OM615.913] | 01.1968-01.1977 |
| MERCEDES BENZ | 200 2.0 Diesel | (123)[OM615.940] | 03.1979-11.1985 |
| MERCEDES BENZ | 200 2.0 Diesel | (123)[OM615.940] | 07.1976-02.1979 |
| MERCEDES BENZ | 200 D 2.0 | (W115)[OM615.913] | 01.1968-01.1977 |
| MERCEDES BENZ | 200 D 2.0 | (W123)[OM615.940] | 03.1979-11.1985 |
| MERCEDES BENZ | 200 D 2.0 | (W123)[OM615.940] | 07.1976-02.1979 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.917] | 04.1977-12.1982 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.917] | 05.1977-12.1982 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.934] | 04.1977-12.1982 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.937] | 06.1982-01.1990 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.937] | 07.1982-01.1990 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.937] | 12.1977-10.1989 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.917] | 04.1977-12.1982 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.917] | 05.1977-12.1982 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.934] | 05.1977-12.1982 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.937] | 06.1982-01.1990 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.937] | 07.1982-01.1990 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.937] | 12.1977-10.1989 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 207 D 2.4 | (601)[OM616.939] | 07.1982-01.1990 |
| MERCEDES BENZ | 207 D 2.4 | (611)[OM616.937] | 06.1982-01.1990 |
| MERCEDES BENZ | 207 D 2.4 | (611)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 209 3.0 Diesel | (601)[OM617.913] | 12.1982-01.1990 |
| MERCEDES BENZ | 209 D 2.9 | (601)[OM617.913] | 12.1982-01.1990 |
| MERCEDES BENZ | 209 D 2.9 | (611)[OM617.913] | 12.1982-01.1990 |
| MERCEDES BENZ | 220 2.2 Diesel | (115)[OM615.912] | 01.1968-01.1977 |
| MERCEDES BENZ | 220 2.2 Diesel | (123)[OM615.941] | 01.1976-02.1979 |
| MERCEDES BENZ | 220 2.2 Diesel | (123)[OM615.941] | 01.1977-03.1979 |
| MERCEDES BENZ | 220 D 2.2 | (W115)[OM615.912] | 01.1968-01.1977 |
| MERCEDES BENZ | 220 D 2.2 | (W123)[OM615.941] | 01.1976-02.1979 |
| MERCEDES BENZ | 220 D 2.2 | (W123)[OM615.941] | 01.1977-03.1979 |
| MERCEDES BENZ | 220D 2.2 | 01.1968-01.1973 | |
| MERCEDES BENZ | 2236 18.3 | (NG)[OM423.905] | 09.1982-03.1991 |
| MERCEDES BENZ | 2236 18.3 | (NG)[OM423.905] | 12.1984-03.1991 |
| MERCEDES BENZ | 2238 14.6 | (NG)[OM422.953] | 01.1981-12.1986 |
| MERCEDES BENZ | 2238 14.6 | (NG)[OM422.953] | 08.1973-09.1996 |
| MERCEDES BENZ | 240 2.4 Diesel | (115)[OM616.916] | 08.1973-01.1977 |
| MERCEDES BENZ | 240 2.4 Diesel | (123)[OM616.912] | 02.1976-02.1979 |
| MERCEDES BENZ | 240 2.4 Diesel | (123)[OM616.912] | 03.1979-11.1985 |
| MERCEDES BENZ | 240 2.4 TD | (123)[OM616.912] | 03.1979-12.1985 |
| MERCEDES BENZ | 240 2.4 TD | (123)[OM616.912] | 09.1977-02.1979 |
| MERCEDES BENZ | 240 3.0 Diesel | (115)[OM617.910] | 08.1974-11.1976 |
| MERCEDES BENZ | 240 D 2.4 | (W115)[OM616.916] | 08.1973-01.1977 |
| MERCEDES BENZ | 240 D 2.4 | (W123)[OM616.912] | 02.1976-02.1979 |
| MERCEDES BENZ | 240 D 2.4 | (W123)[OM616.912] | 03.1979-11.1985 |
| MERCEDES BENZ | 240D 2.4 | 01.1974-01.1980 | |
| MERCEDES BENZ | 240D 2.4 | 01.1981-01.1983 | |
| MERCEDES BENZ | 240 D 3.0 | (W115)[OM617.910] | 08.1974-11.1976 |
| MERCEDES BENZ | 240G 2.4 Diesel | (460)[OM616.936] | 03.1979-08.1987 |
| MERCEDES BENZ | 240 GD 2.4 | (W460)[OM616.936] | 03.1979-08.1987 |
| MERCEDES BENZ | 240 TD 2.4 | (S123)[OM616.912] | 03.1979-12.1985 |
| MERCEDES BENZ | 240 TD 2.4 | (S123)[OM616.912] | 09.1977-02.1979 |
| MERCEDES BENZ | 2528 14.6 | (NG)[OM422.907] | 01.1980-03.1991 |
| MERCEDES BENZ | 2628 14.6 | (NG)[OM422.905] | 02.1980-03.1991 |
| MERCEDES BENZ | 2628 14.6 | (NG)[OM422.905] | 02.1980-08.1989 |
| MERCEDES BENZ | 2628 14.6 | (NG)[OM422.907] | 02.1980-03.1991 |
| MERCEDES BENZ | 2632 15.9 | (NG)[OM403.916] | 05.1974-09.1983 |
| MERCEDES BENZ | 2636 18.3 | (NG)[OM423.905] | 11.1981-03.1991 |
| MERCEDES BENZ | 2636 18.3 | (NG)[OM423.907] | 11.1981-03.1991 |
| MERCEDES BENZ | 300 3.0 Diesel | (123)[OM617.912] | 02.1976-07.1980 |
| MERCEDES BENZ | 300 3.0 Diesel | (123)[OM617.912] | 03.1979-11.1985 |
| MERCEDES BENZ | 300 3.0 Diesel | (123)[OM617.912] | 09.1977-10.1985 |
| MERCEDES BENZ | 300 3.0 TD | (123)[OM617.952] | 08.1981-07.1985 |
| MERCEDES BENZ | 300 3.0 TD | (123)[OM617.952] | 10.1980-11.1985 |
| MERCEDES BENZ | 300 C 2.9 TD | (123)[OM617.952] | 09.1981-07.1985 |
| MERCEDES BENZ | 300 CD 3.0 | 01.1978-01.1981 | |
| MERCEDES BENZ | 300 CD 3.0 Turbo | (C123)[OM617.952] | 09.1981-07.1985 |
| MERCEDES BENZ | 300 CDT 3.0 Turbo | 01.1982-01.1982 | |
| MERCEDES BENZ | 300 CDT 3.0 Turbo | 01.1983-01.1985 | |
| MERCEDES BENZ | 300 D 3.0 | (W123)[OM617.912] | 02.1976-07.1980 |
| MERCEDES BENZ | 300 D 3.0 | (W123)[OM617.912] | 03.1979-11.1985 |
| MERCEDES BENZ | 300 D 3.0 | 01.1975-01.1980 | |
| MERCEDES BENZ | 300 D 3.0 | 01.1981-01.1981 | |
| MERCEDES BENZ | 300 D 3.0 Turbo | (W123)[OM617.952] | 08.1981-07.1985 |
| MERCEDES BENZ | 300 DT 3.0 Turbo | 01.1979-01.1981 | |
| MERCEDES BENZ | 300 DT 3.0 Turbo | 01.1982-01.1982 | |
| MERCEDES BENZ | 300 DT 3.0 Turbo | 01.1983-01.1985 | |
| MERCEDES BENZ | 300 G 3.0 Diesel | (460)[OM617.931] | 12.1979-12.1991 |
| MERCEDES BENZ | 300 GD 3.0 | (W460)[OM617.931] | 12.1979-12.1991 |
| MERCEDES BENZ | 300 SD 3.0 Turbo | 01.1978-01.1980 | |
| MERCEDES BENZ | 300 SD 3.0 Turbo | 01.1981-01.1982 | |
| MERCEDES BENZ | 300 SD 3.0 Turbo | 01.1983-01.1985 | |
| MERCEDES BENZ | 300 TD 3.0 | (S123)[OM617.912] | 03.1979-11.1985 |
| MERCEDES BENZ | 300 TD 3.0 | (S123)[OM617.912] | 09.1977-10.1985 |
| MERCEDES BENZ | 300 TD 3.0 Turbo | (S123)[OM617.952] | 10.1980-11.1985 |
| MERCEDES BENZ | 307 2.4 Diesel | (602)[OM616.937] | 04.1977-01.1983 |
| MERCEDES BENZ | 307 2.4 Diesel | (602)[OM616.937] | 06.1982-01.1990 |
| MERCEDES BENZ | 307 2.4 Diesel | (602)[OM616.937] | 10.1982-01.1990 |
| MERCEDES BENZ | 307 2.4 Diesel | (602)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 307 D 2.4 | (602)[OM616.937] | 04.1977-01.1983 |
| MERCEDES BENZ | 307 D 2.4 | (602)[OM616.937] | 06.1982-01.1990 |
| MERCEDES BENZ | 307 D 2.4 | (602)[OM616.937] | 10.1982-01.1990 |
| MERCEDES BENZ | 307 D 2.4 | (602)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 307 D 2.4 | (602)[OM616.939] | 10.1982-01.1990 |
| MERCEDES BENZ | 309 3.0 Diesel | (602)[OM617.913] | 10.1982-01.1990 |
| MERCEDES BENZ | 309 D 3.0 | (602)[OM616.937] | 10.1982-01.1990 |
| MERCEDES BENZ | 309 D 3.0 | (602)[OM616.939] | 10.1982-01.1990 |
| MERCEDES BENZ | 309 D 3.0 | (602)[OM617.913] | 10.1982-01.1990 |
| MERCEDES BENZ | 407 2.4 Diesel | [OM616.913] | 07.1981-01.1989 |
| MERCEDES BENZ | 407 D 2.4 | [OM616.913] | 07.1981-01.1989 |
| MERCEDES BENZ | 407 D 2.4 | [OM616.939] | 07.1981-01.1989 |
| MERCEDES BENZ | 409 2.4 Diesel | [OM617.913] | 04.1982-01.1989 |
| MERCEDES BENZ | 409 3.0 Diesel | [OM617.913] | 04.1982-01.1989 |
| MERCEDES BENZ | 409 D 3.0 | [OM617.913] | 04.1982-01.1989 |
| MERCEDES BENZ | 507 2.4 Diesel | [OM616.914] | 04.1986-04.1989 |
| MERCEDES BENZ | 507 D 2.4 | [OM616.914] | 04.1986-04.1989 |
| MERCEDES BENZ | 507 DK 2.4 | [OM616.914] | 04.1986-04.1989 |
| MERCEDES BENZ | L 407 D 2.4 | [OM616.910] | 01.1975-12.1988 |
| MERCEDES BENZ | MB 100 2.4 Diesel | (631)[OM616.963] | 02.1988-05.1992 |
| MERCEDES BENZ | MB 100 2.4 Diesel | (631)[OM616.963] | 12.1990-02.1996 |
| MERCEDES BENZ TRUCKS & BUSES | U45 2.2 | [OM615.911] | 01.1966-04.1971 |
| MERCEDES BENZ TRUCKS & BUSES | U 52 | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 52 | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 52 | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 52 | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U52 2.4 | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U52 2.4 | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U52 2.4 | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U52 2.4 | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60 | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60 | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60 | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60 | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600 | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600 | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600 | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600 | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600 | [OM616.942] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U 600 | [OM616.943] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U600 2.4 | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U600 2.4 | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U600 2.4 | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U600 2.4 | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U600 2.4 | [OM616.942] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U600 2.4 | [OM616.943] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U 600L | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600L | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600L | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600L | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600T | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600T | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600T | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 600T | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U60 2.4 | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U60 2.4 | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U60 2.4 | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U60 2.4 | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60T | [OM616.911] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60T | [OM616.915] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60T | [OM616.931] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 60T | [OM616.932] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 650 | [OM616.942] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U 650 | [OM616.943] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U650 2.4 | [OM616.942] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U650 2.4 | [OM616.943] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U 650L | [OM616.942] | 05.1988- |
| MERCEDES BENZ TRUCKS & BUSES | U 650L | [OM616.943] | 05.1988- |
| SEAT | 132 2.2 Diesel | [OM615.912] | 05.1979-12.1982 |
| VOLVO | 264 2.4 GL | [D24] | 01.1980-01.1981 |
| VOLVO | 264 2.4 GLE | [D24] | 01.1980-01.1980 |
| VOLVO | 265 2.4 GLE | [D24] | 01.1980-01.1980 |
Reference Information
AZJ3312 AZJ3311 3151110180 068911023AX LRS00816 91-15-6849 3917420 9.43252E+11 STR79082 31512001 A0031510701 220082 0001362001 433294 3151540180 11516201 A003151070180 0001362002 7431022000 21506901 CST10185GS 41510901 91-15-6849N MSR516 STRS246 STR7840 UD15025S MRS11150 CST10185OS STR50243 330707 110368 0986011150 A0021513001 3151070180 35261130 A0031511101 A0021516901 20401581BN 11.130.399 CS188 2151690180 A004151090180 STX200245 A003151200180 STRL249 88212270 550.009.092.010 AZJ3567 A0011516201 1516705R A002151690180 CST10185AS 21515101 16445N 31515401 11.130.300 STX200656 8EA726020-001 9000331419 1516772R STX200245R 84043545 0001369004 D9R141 3151200180 4151090180 A0031515401 19024239 943252223 0001362601 0001362600 MSR425 A0041510901 S0310 0001362047 CST10185RS ND90800000 AZJ3107 MS 20500534 9.4428E+11 19024249 323 11.130.885 326 6010185 11.130.886 10188 9.43251E+11 MD90800001 11830 31511101 CST10185 0001362030 STX200836 9000143406 550.009.092.460 9000143408 A0021515101 A003151540180 0001362029 AES8116 A003151110180 10716 STRS079 21516901 31510701 A0031512001 LRS816 726108 CST10185ES 7431028000 MAV121850 550.009.092.215 25-0188 3467 STB0188 STR1680 A0021506901 21513001Video/Publications
S0310View your shopping basket or Browse other items in Starter Motors.
