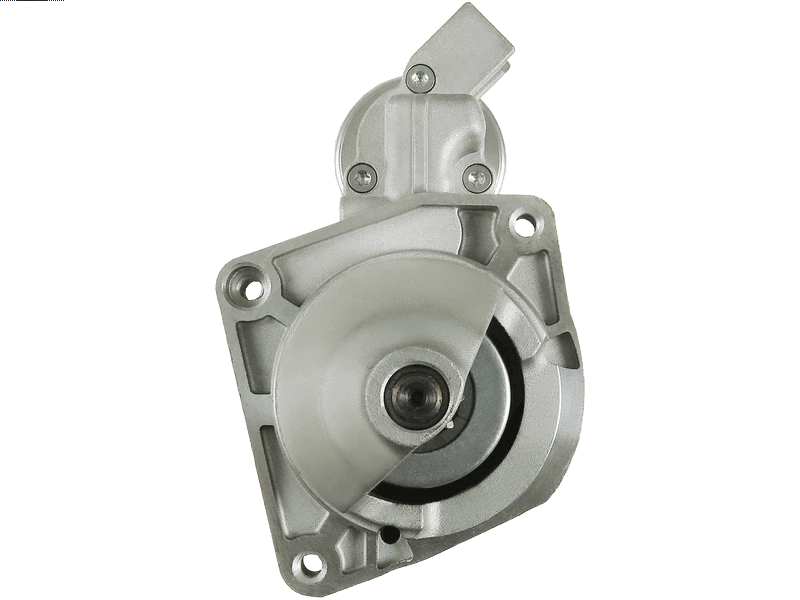

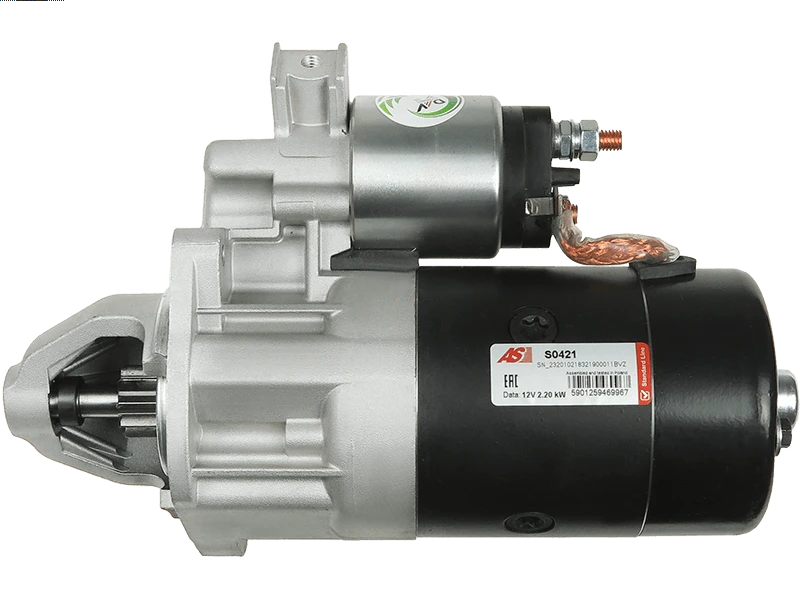

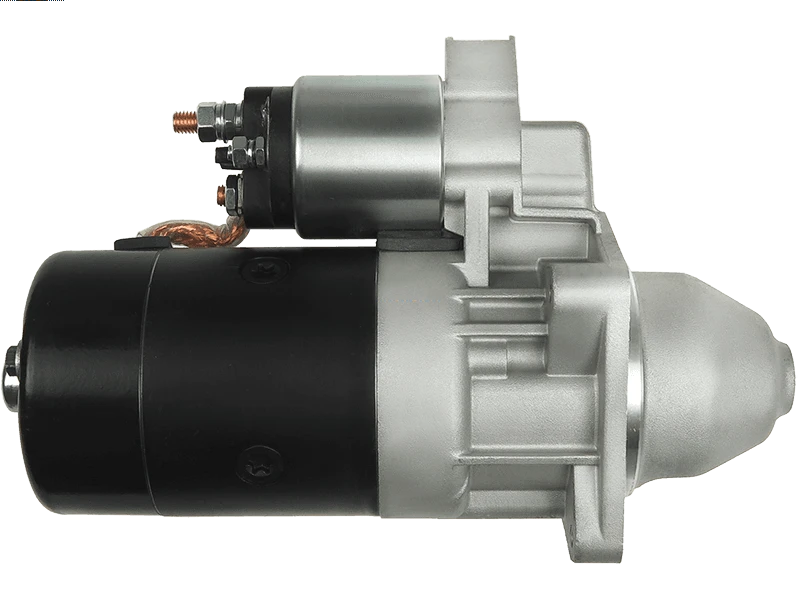

S0421 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	272 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Center - Center (O.2)	82 mm
Mount Hole Center - Center (O.3)	82 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	23 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	81.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FIAT	Regata 80 1.9 TD	[831D1.000]	01.1988-02.1989
FIAT	Tempra 1.9 TD	[160A6.000]	01.1990-12.1993
FIAT	Tempra 1.9 TD	[160D1.000]	01.1990-12.1993
FIAT	Tipo 1.9 TD	[160A6.000]	01.1987-12.1991
FIAT	Tipo 1.9 TD	[160B6.046]	01.1987-12.1991
LANCIA	Dedra 1.9 TD	[831D1.000]	01.1989-12.1991
LANCIA	Dedra 1.9 TD	[835A4.000]	01.1989-12.1992
LANCIA	Prisma 1.9 D	[831D.000]	01.1989-

Reference Information

MAV3250 STR1992 76422610 MAV2160 7716769 10709 120-344 25-1447 7731823 7716767 330861 LRS00970 220043 20401111RC 6010111 0001218133 STX200521 7642261 CST10111RS BOM UNIT 63222038 10709R 7565057 CST10111AS 7680619 STX200374 7658554 STRS004 ANM18130X 0001218120 STX200374R DRS5910 6010111.2 SS186 20401111BN AES9170 7642260 LRS970
