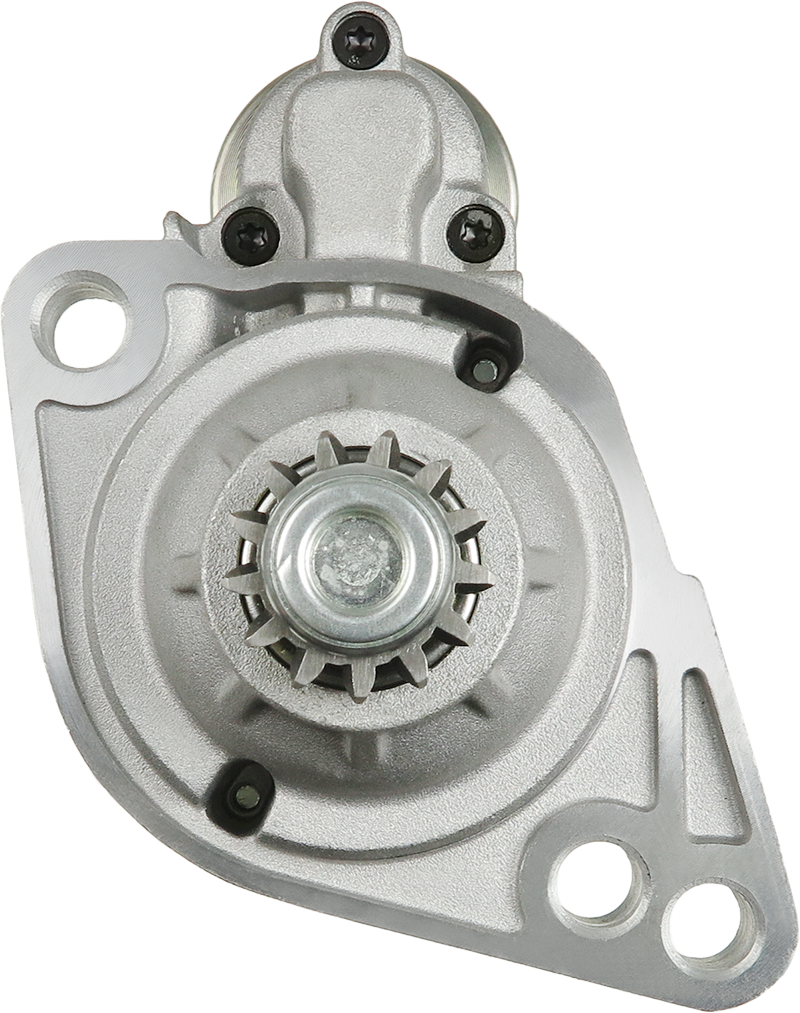

S0477 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0477
Price: 319.77 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 319.77 including GST

NZ$ 278.06 excluding GST

or four payments of $79.94 with
Learn More

UOM:

each

Product Code:

S0477

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001179503

0001179502 0001179503 0001179514 0001179515 02Z911024Q 02Z911024QV 02Z911024QX 0986026130 115818 12231 200.552.132 20401774OE 220985 25-4333 254913 254913B 33130N 3396 42026130 6010477 88214399 943215051010 AEY2661 BOS0001179514 CST10477 CST10477AS CST10477ES CST10477GS CST10477OS CST10477RS DRS0829 EAA-122446 LRS02661 S0477 STB9503 STR50601 UD14881S

Kilowatt	1.1 kW
Length (L.1)	229 mm
Mount Hole Center - Center (O.1)	18 mm
Mount Hole Center - Center (O.2)	112 mm
Mount Hole Center - Center (O.3)	127 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
No./Teeth (Replaces)	13 qty
OEM Product	No
Pinion at Rest (B)	52 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	79 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A3 1.4 TFSi	[CMBA]	04.2012-
AUDI	A3 1.4 TFSi	[CMBA]	09.2013-
AUDI	A3 1.4 TFSi	[CPTA]	02.2014-
AUDI	A3 1.4 TFSi	[CPTA]	03.2013-
AUDI	A3 1.4 TFSi	[CPTA]	05.2013-
AUDI	A3 1.4 TFSi	[CXSA]	04.2012-
AUDI	A3 1.4 TFSi	[CXSA]	09.2013-
AUDI	A3 1.4 TFSi	[CXSB]	02.2014-
AUDI	A3 1.4 TFSi	[CXSB]	05.2014-
AUDI	A3 1.4 TFSi	[CXSB]	09.2013-
AUDI	A3 1.4 TFSi	[CZCA]	05.2014-
AUDI	A3 1.4 TFSi	[CZCC]	02.2016-
AUDI	A3 1.4 TFSi	[CZEA]	05.2014-
AUDI	A3 1.4 TFSi G-Tron Sportback	[CPWA]	11.2013-
AUDI	A3 1.4 TFSi Sportback	[CMBA]	09.2012-
AUDI	A3 1.4 TFSi Sportback	[CXSA]	09.2012-
AUDI	A3 1.4 TFSi Sportback	[CXSB]	05.2014-
AUDI	A3 1.4 TFSi Sportback	[CZCA]	05.2014-
AUDI	A3 1.4 TFSi Sportback	[CZEA]	05.2014-
AUDI	A3 1.4 TFSi Sportsback	[CPTA]	03.2013-
AUDI	A3 1.8 TFSi	[CJSA]	02.2014-
AUDI	A3 1.8 TFSi	[CJSA]	04.2012-
AUDI	A3 1.8 TFSi	[CJSA]	05.2013-
AUDI	A3 1.8 TFSi	[CJSB]	05.2013-
AUDI	A3 1.8 TFSi Quattro	[CJSB]	08.2012-
AUDI	A3 1.8 TFSi Quattro	[CJSB]	11.2013-
AUDI	A3 1.8 TFSi Quattro Sportback	[CJSB]	05.2013-
AUDI	A3 1.8 TFSi Sportback	[CJSA]	09.2012-
AUDI	A3 1.8 TFSi Sportback	[CJSB]	09.2012-
AUDI	Q2 1.0 TFSi	[CHZJ]	01.2016-
AUDI	Q2 1.4 TFSi	[CZEA]	09.2016-
AUDI	Q2 1.4 TFSi Quattro	[CZEA]	01.2016-
SEAT	Ateca 1.4 TSi 4Drive	[CZEA]	01.2016-
SEAT	Leon 1.0 TSi	[CHZD]	01.2015-
SEAT	Leon 1.4 TSi	[CHPA]	09.2012-
SEAT	Leon 1.4 TSi	[CMBA]	11.2012-
SEAT	Leon 1.4 TSi	[CPTA]	09.2012-
SEAT	Leon 1.4 TSi	[CXSA]	11.2012-
SEAT	Leon 1.4 TSi	[CZCA]	05.2014-
SEAT	Leon 1.4 TSi	[CZEA]	05.2014-
SEAT	Leon SC 1.4 TSi	[CHPA]	02.2013-
SEAT	Leon SC 1.4 TSi	[CMBA]	02.2013-
SEAT	Leon SC 1.4 TSi	[CPTA]	02.2013-
SEAT	Leon SC 1.4 TSi	[CXSA]	02.2013-
SEAT	Leon SC 1.4 TSi	[CZCA]	05.2014-
SEAT	Leon SC 1.4 TSi	[CZEA]	05.2014-
SEAT	Leon ST 1.4 TGi	[CPWA]	10.2013-
SEAT	Leon ST 1.4 TSi	[CHPA]	10.2013-
SEAT	Leon ST 1.4 TSi	[CMBA]	10.2013-
SEAT	Leon ST 1.4 TSi	[CPTA]	10.2013-
SEAT	Leon ST 1.4 TSi	[CXSA]	10.2013-
SEAT	Leon ST 1.4 TSi	[CZCA]	05.2014-
SEAT	Leon ST 1.4 TSi	[CZEA]	05.2014-
SKODA	Karoq 1.0 TSi	[CHZJ]	07.2017-
SKODA	Octavia 1.0 TSi	[CHZD]	05.2016-
SKODA	Octavia 1.4 TSi	[CHPB]	08.2014-
SKODA	Octavia 1.4 TSi	[CZDA]	08.2014-
SKODA	Octavia 1.4 TSi G-TEC	[CPWA]	11.2013-
SKODA	Octavia 1.8 TSi	[CJSA]	11.2012-
SKODA	Octavia 1.8 TSi	[CJSB]	11.2012-
SKODA	Octavia 1.8 TSi 4x4	[CJSA]	09.2014-
SKODA	Octavia 1.8 TSi 4x4	[CJSB]	11.2012-
SKODA	Superb 1.4 TSi	[CZCA]	03.2015-
SKODA	Superb 1.4 TSi	[CZDA]	03.2015-
SKODA	Superb 1.4 TSi	[CZEA]	03.2015-
SKODA	Superb 1.4 TSi 4x4	[CZDA]	03.2015-
SKODA	Superb 1.4 TSi 4x4	[CZEA]	03.2015-
SKODA	Yeti 1.2 TSi	[CYVB]	05.2015-
VW	Caddy 1.0 TSi	[CHZG]	11.2015-
VW	Caddy 1.4 TGi CNG	[CPWA]	06.2015-
VW	Caddy 1.4 TSi	[CZCB]	05.2015-
VW	Caddy Alltrack 1.0 TSi	[CHZG]	11.2015-
VW	Caddy Alltrack 1.4 TGi CNG	[CPWA]	06.2015-
VW	Caddy Alltrack 1.4 TSi	[CZCB]	05.2015-
VW	CC 1.4 TSi	[CZDA]	05.2015-
VW	Golf Sportsvan 1.0 TSi	[CHZC]	05.2017-
VW	Golf Sportsvan 1.0 TSi	[CHZK]	05.2017-
VW	Golf Sportsvan 1.4 TSi	[CZCA]	04.2014-
VW	Golf Sportsvan 1.4 TSi	[CZDA]	02.2014-
VW	Golf VI 1.4 TSi	[CHPB]	11.2013-
VW	Golf VI 1.4 TSi	[CXSB]	11.2013-
VW	Golf VI 1.4 TSi	[CZCA]	11.2013-
VW	Golf VI 1.4 TSi	[CZDA]	11.2013-
VW	Golf VII 1.0 TSi	[CHZC]	11.2016-
VW	Golf VII 1.0 TSi	[CHZD]	05.2015-
VW	Golf VII 1.0 TSi	[CHZK]	01.2017-
VW	Golf VII 1.4	[CPWA]	09.2013-
VW	Golf VII 1.4	[CZBA]	09.2013-
VW	Golf VII 1.4 TGi	[CPWA]	06.2013-
VW	Golf VII 1.4 TGi	[CZBA]	06.2013-
VW	Golf VII 1.4 TSi	[CHPA]	05.2013-
VW	Golf VII 1.4 TSi	[CHPA]	11.2012-
VW	Golf VII 1.4 TSi	[CHPB]	05.2014-
VW	Golf VII 1.4 TSi	[CMBA]	11.2012-
VW	Golf VII 1.4 TSi	[CPTA]	11.2012-
VW	Golf VII 1.4 TSi	[CPVA]	04.2013-
VW	Golf VII 1.4 TSi	[CPVA]	07.2013-
VW	Golf VII 1.4 TSi	[CPVA]	11.2012-
VW	Golf VII 1.4 TSi	[CPVB]	05.2014-
VW	Golf VII 1.4 TSi	[CPVB]	12.2013-
VW	Golf VII 1.4 TSi	[CUKA]	11.2012-
VW	Golf VII 1.4 TSi	[CXSA]	07.2013-
VW	Golf VII 1.4 TSi	[CXSA]	11.2012-
VW	Golf VII 1.4 TSi	[CZCA]	05.2014-
VW	Golf VII 1.4 TSi	[CZDA]	05.2014-
VW	Golf VII 1.4 TSi	[CZEA]	05.2014-
VW	Golf VII 1.4 TSi MultiFuel	[CPVA]	04.2013-
VW	Jetta 1.4 TSi	[CZCA]	08.2014-
VW	Jetta 1.4 TSi	[CZDA]	08.2014-
VW	New Beetle 1.4 TSi	[CZDA]	12.2014-
VW	Passat 1.4 TSi	[CZCA]	11.2014-
VW	Passat 1.4 TSi	[CZEA]	11.2014-
VW	Polo 1.0 TSi	[CHZJ]	09.2017-
VW	Polo 1.0 TSi	[DKJA]	09.2017-
VW	Scirocco 1.4 TSi	[CZCA]	01.2013-
VW	Scirocco 1.4 TSi	[CZDA]	01.2013-
VW	Touran 1.4 TSi	[CZDA]	09.2015-
VW	T-Roc 1.0 TSi	[CHZJ]	07.2017-

20401774OE 115818 0001179515 STX201408 0001179514 AEY2661 CST10477 12231 254913B CST10477RS 33130N 943215051010 02Z911022CX 25-4333 S12BH0861 200.552.132 02Z911024Q CST10477AS 6010477 STB9503 ANM13049X STX201114 S0477 02Z911024QV 02Z911022C CST10477ES 0001179503 88214399 0001179502 CST10477GS STR10213 DRS0829 3396 02Z911024QX BOS0001179514 CST10477OS 220985 42026130 STX201114R STR50601 332185 LRS02661 UD14881S 0986026130 LRS2661 254913

S0477
