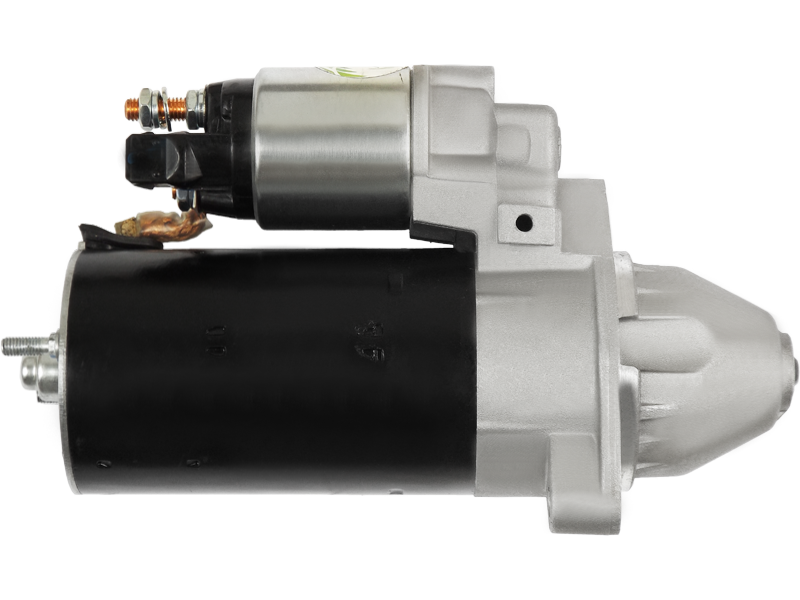

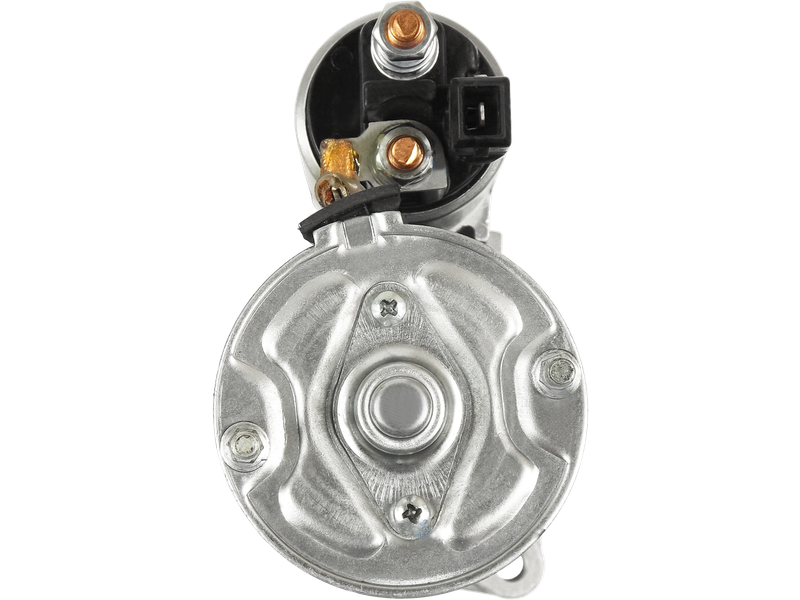

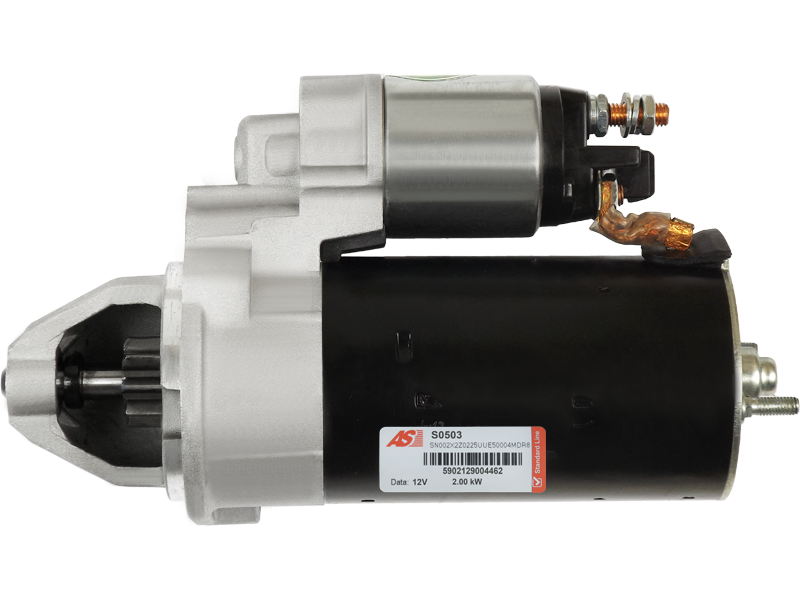

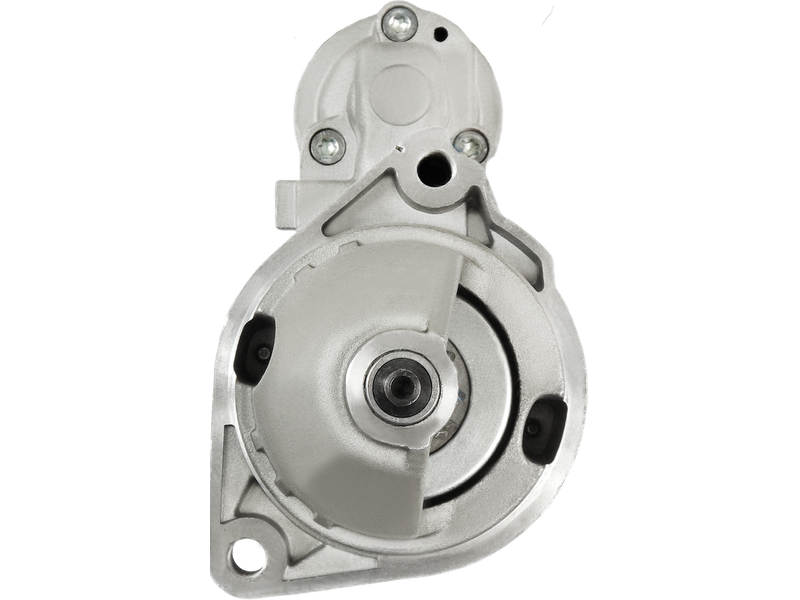

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 356.60 including GST
NZ$ 310.09 excluding GST
or four payments of $89.15
with
Learn More
each
S0503
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001109202Associated Numbers
0001109202 101408V 12417515784 12417537490 12417537513 210.524.092 25-4095 254431 458449 91-15-7229 AEY2423 BOS0001109202 DRS0088 LRS02423 S-6259 UD30035S UNIT BOM 120-6168Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 248 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 760 6.0 i | (E65)[N73B60] | 01.2002-12.2008 |
| BMW | 760 6.0 i | (E66)[N73B60] | 01.2002-12.2008 |
| ROLLS-ROYCE | Drophead 6.8 | [N73B68] | 01.2007- |
| ROLLS-ROYCE | Phantom 6.8 | [N73B68] | 01.2003- |
| ROLLS-ROYCE | Phantom 6.8 | [N73B68] | 01.2007- |
Reference Information
UD30035S STR10366 11090135 88214285 7515784 STRF515 6010011.1 210.524.092.395 AEY2423 IR8285 201159 332197 7610343 7610346 STR50730 12417537515 SBO011 25-4095 12417537513 7537490 CST10011GS WOOSTR50730 S100218 WG2471150 460516 91-15-7229 BM9062 STX210357 ANM12308X S-6259 210.524.092.280 12410393732 LRS02423 201132 3115128 3115126 10010011OV DRS0088 438412 ST01613 12417515784 458449 12417515786 12417537490 7537513 7537515 210.524.092.010 315024092 STB0084 MAV120110 530ST21 12417610346 12530 LRS2423 108013 210.524.092.460 BREF0321986S00730 WG2471214 S104593 STRF515B 20401110OE 254431 12417610353 7610353 A78710 0001109288 3940 ANM12308 0001109202 1986S00730Video/Publications
