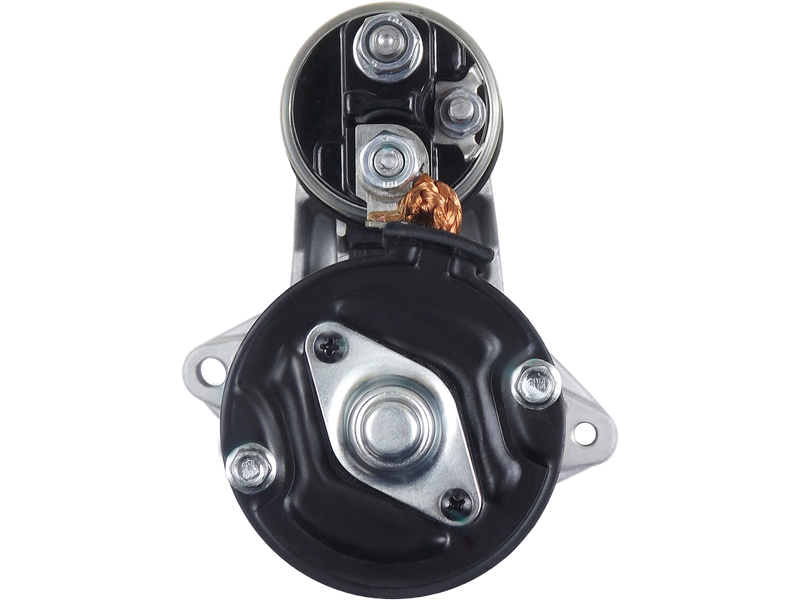

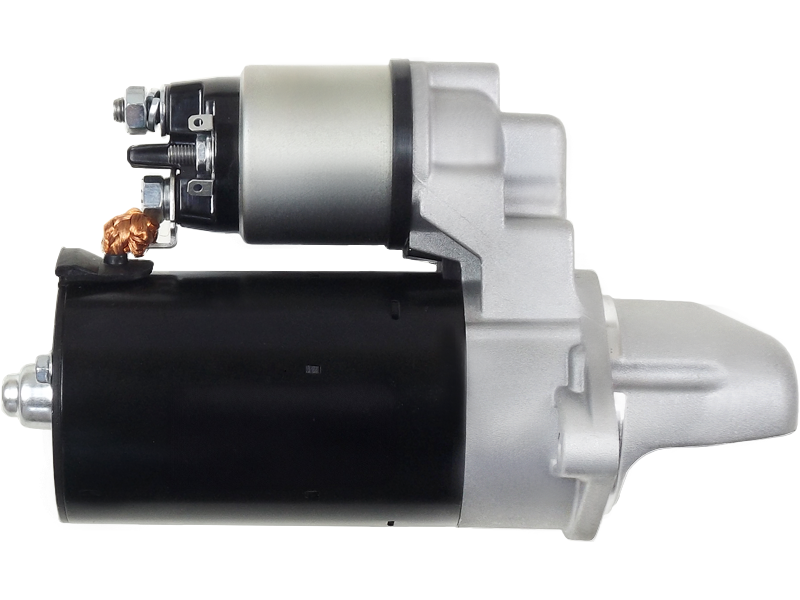

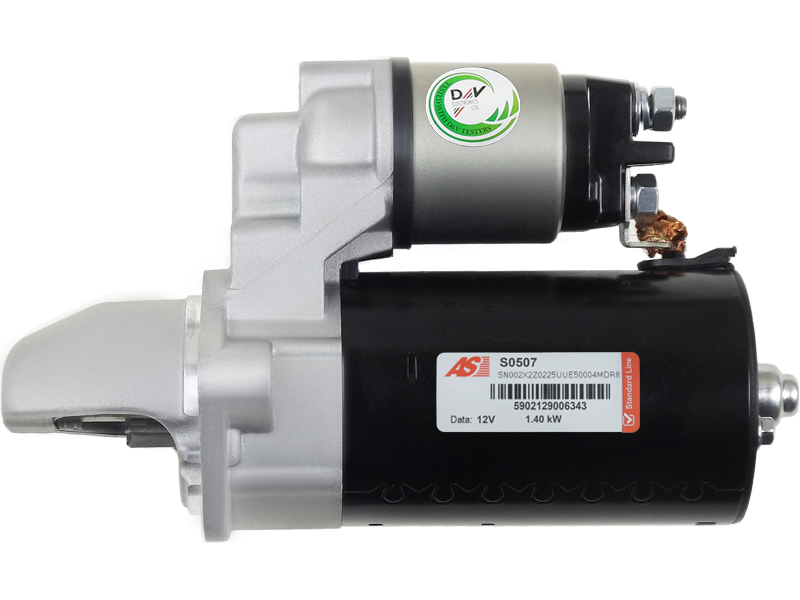

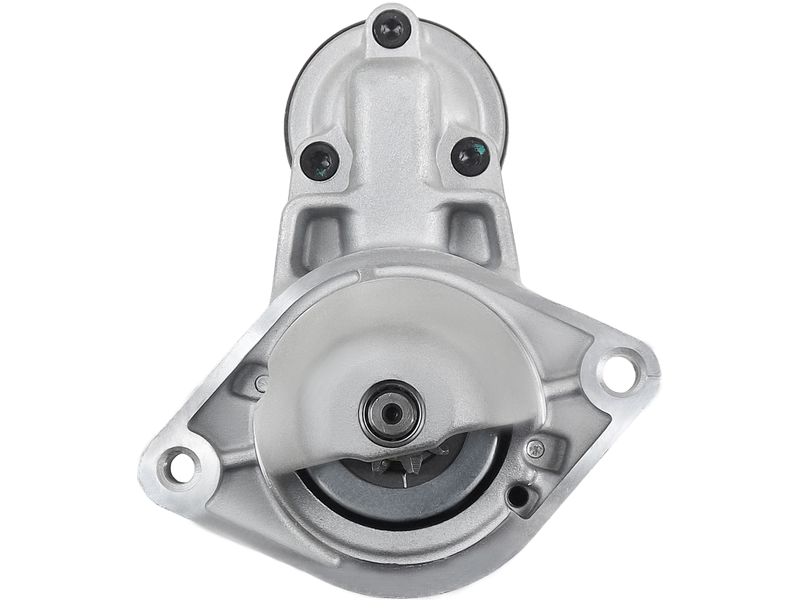

S0507 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	230 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
OEM Product	No
Pinion at Rest (B)	24 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	64 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CHEVROLET	Aveo 1.3 Diesel	[LDV]	07.2011-
CHEVROLET	Aveo 1.3 Diesel	[LSF]	07.2011-
OPEL	Astra J 1.3 CDTi	[A13DTE]	06.2012-
OPEL	Astra J 1.3 CDTI 16V Ecoflex	[A13DTE]	10.2010-
OPEL	Astra J 1.3 CDTi ecoFlex	[A13DTE]	12.2009-
OPEL	Corsa D 1.3 CDTi	[A13DTC]	07.2006-
OPEL	Corsa D 1.3 CDTi	[A13DTE]	06.2010-
OPEL	Corsa D 1.3 CDTi	[A13DTR]	06.2010-
OPEL	Corsa D 1.3 CDTi	[Z13DTE]	06.2010-
OPEL	Corsa D 1.3 CDTi	[Z13DTJ]	07.2006-
OPEL	Meriva B 1.3 CDTi	[A13DTC]	01.2010-
OPEL	Meriva B 1.3 CDTi	[A13DTE]	01.2010-
VAUXHALL	Astra MK VI 1.3 CDTi 16V	[A13DTE]	10.2010-
VAUXHALL	Astra MK VI 1.3 CDTi 16V	[A13DTE]	12.2009-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[A13DTE]	07.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[A13DTR]	07.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DTE]	07.2010-
VAUXHALL	Corsavan MK IV 1.3 CDTi	[Z13DTE]	07.2006-
VAUXHALL	Meriva B 1.3 CDTi	[A13DTC]	01.2010-
VAUXHALL	Meriva B 1.3 CDTi	[A13DTE]	01.2010-

Reference Information

55254583 CS1535 CST10458RS 1202378 55570445 LRS02553 8EA012528-601 CST10458ES 12310 130.565.102 UD30031S CST10458AS 6010458 95518995 1726350 254853B 88214277 STR1749 0001172605 0001172604 254853 55591492 STX200431 STR50648 STRF072 51916170 STRL897 8EA738259-411 CST10458 0001138029 0986025080 1202514 220774 254853V 0001138030 55226844 51810307 STR1592 STR1593 CST10458GS 20401854 LRS2553 BOS0001138029 CST10458OS AEY2553 331424 95520347 220686 1202203 5802FR 115570 25-4225 STX200431R 3148 BS5111000BA 10909N
