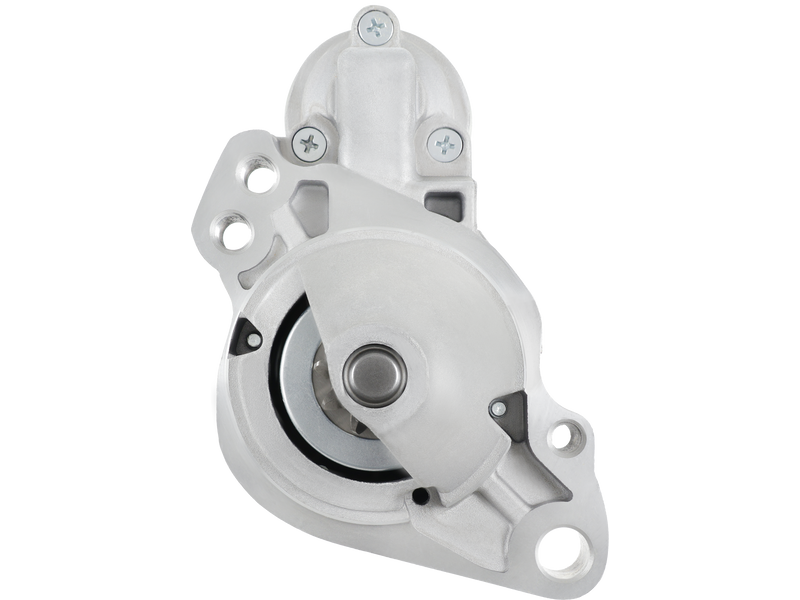

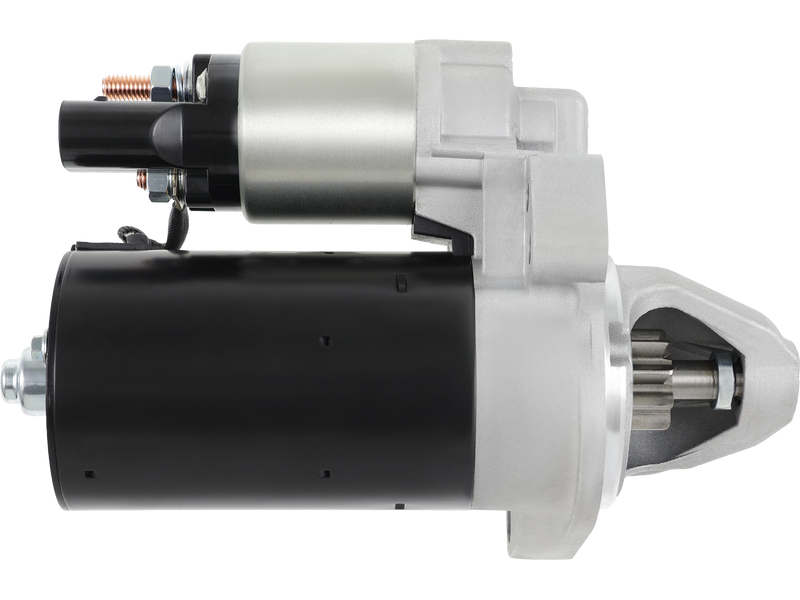

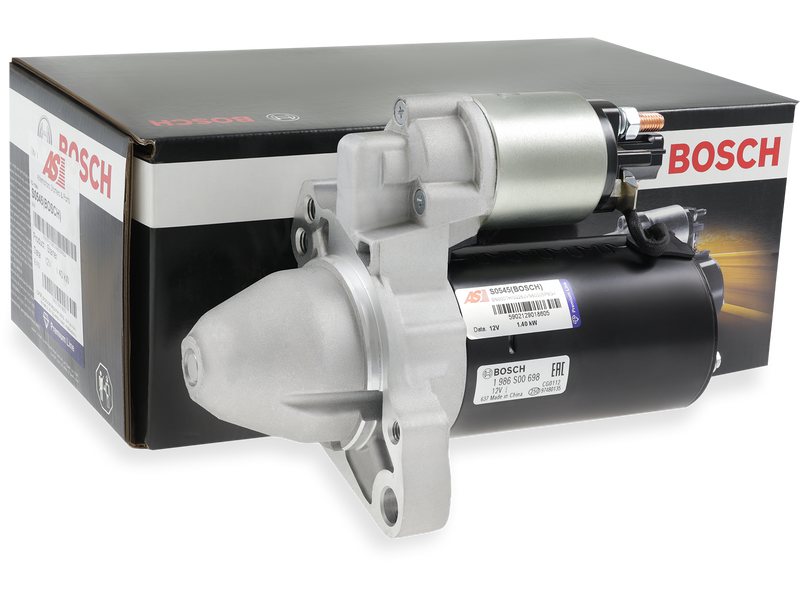

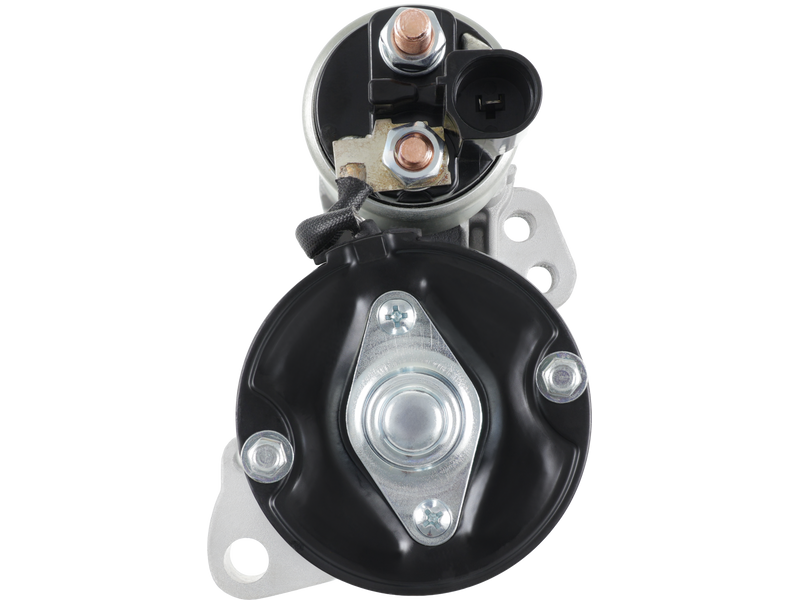

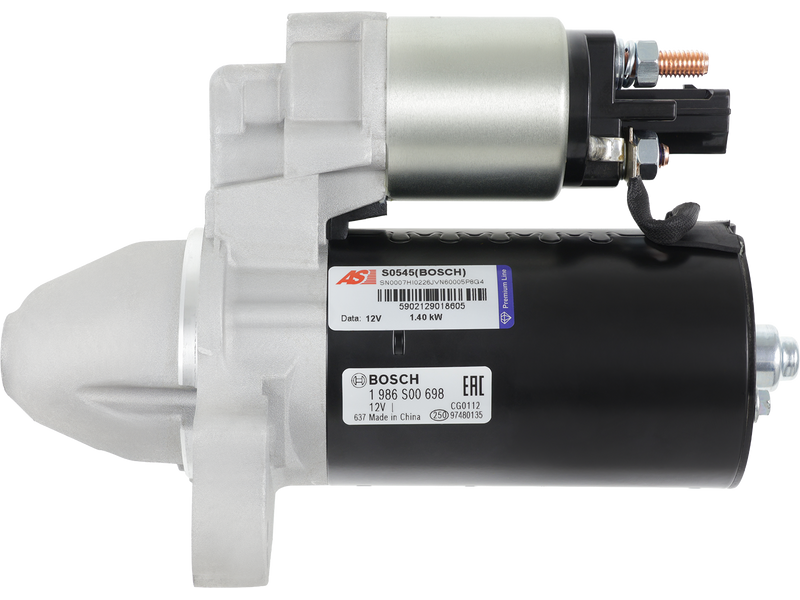

S0545(BOSCH) - Brand new OEM BOSCH Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	224 mm
Mount Hole Center - Center (O.1)	28 mm
Mount Hole Center - Center (O.2)	115 mm
Mount Hole Center - Center (O.3)	16 mm
Mount Hole Center - Center (O.4)	101 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	12 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
Mount Hole Diameter (C.4)	M10x1.5 mm
No./Mount holes	4 qty
No./Mount holes with thread	3 qty
No./Teeth	9 qty
OEM Product	Yes
Pinion at Rest (B)	23 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A6 2.0 TDi	[BVG]	09.2005-06.2006
AUDI	A6 2.0 TDi	[BVG]	09.2005-06.2006
AUDI	A8 6.0 W12 Quattro	[BHT]	12.2003-07.2010
AUDI	A8 6.0 W12 Quattro	[BSB]	12.2003-07.2010
AUDI	A8 6.0 W12 Quattro	[BTE]	12.2003-07.2010
AUDI	Q7 4.2 FSi Quattro	[BAR]	03.2006-05.2010
AUDI	RS6 5.0 Quattro	[BUH]	04.2008-08.2010
AUDI	RS6 5.0 Quattro	[BUH]	09.2008-08.2010
AUDI	S6 5.2 Quattro	[BXA]	03.2006-03.2011
AUDI	S6 5.2 Quattro	[BXA]	03.2006-08.2011
AUDI	S8 5.2 Quattro	[BSM]	06.2006-07.2010
VW	Touareg 4.2 V8 FSi	[CGNA]	01.2011-03.2018

Reference Information

0001108238 0001108237 200.529.092.280 STX210262R STRF954 AEY2461 STX210262 115996 F032115996 255536 06-10223-SX 19004N SBO495 BOS0001108237 25-4133 106838 311260092 STR10371 UD802871(BOSCH)S CST10495GS 200.529.092.211 200.529.092.010 331251 S12BH0599 LRS02461 TT16816 20401594OE AC-CBS5926 6010495.1 335ST21 H5010468 10438308 11090271 3114722 255536B 3114723 200.529.092.018 MAV124950 IR9633 2S0506 3179 91-15-7271 07C911023GX 12335 VW9112 V10-12-08237 25-4133CT 07C911023G 07C911023H STB8237 5010468 10010495OV ST01648 1986S00698 STR50669 LRS2461 07C911023HX 88214524 S12BH0599A2
