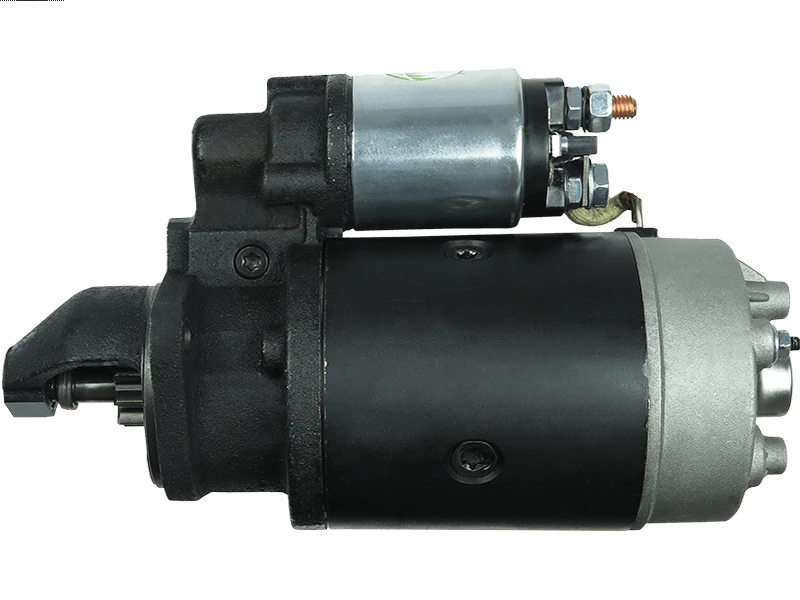

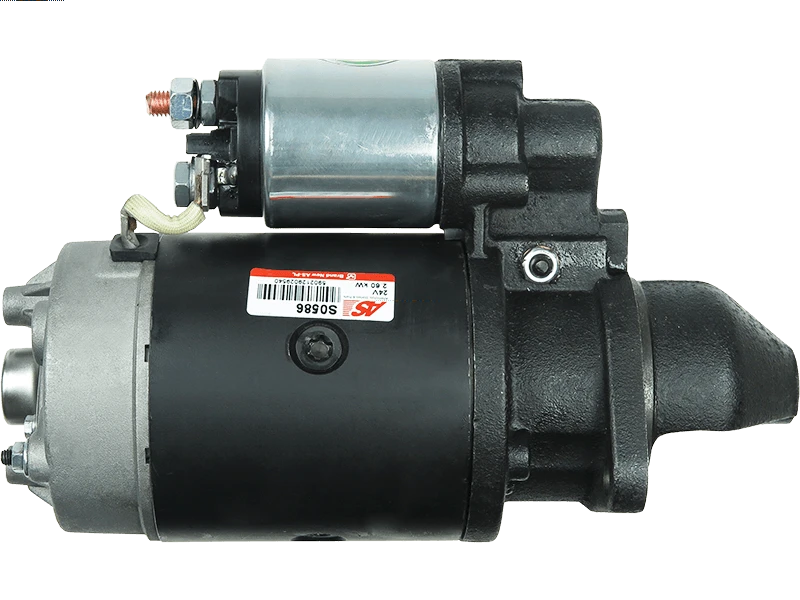

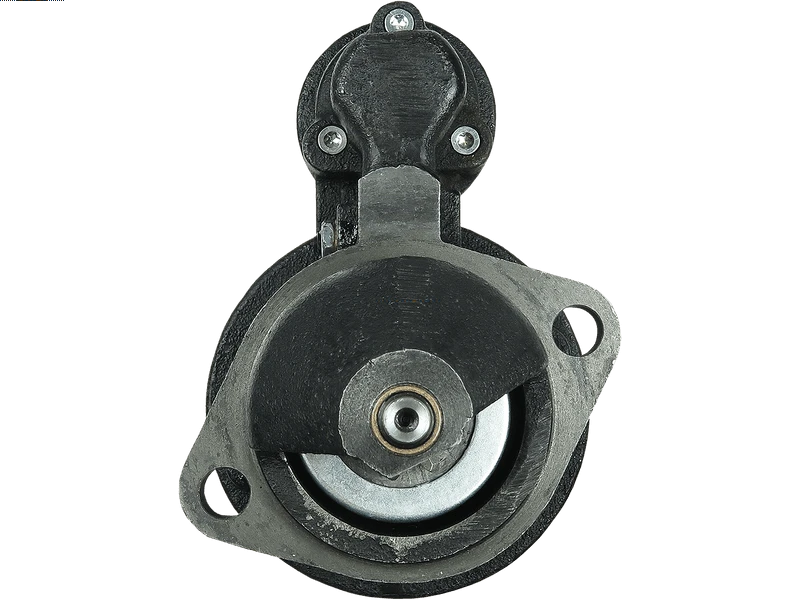

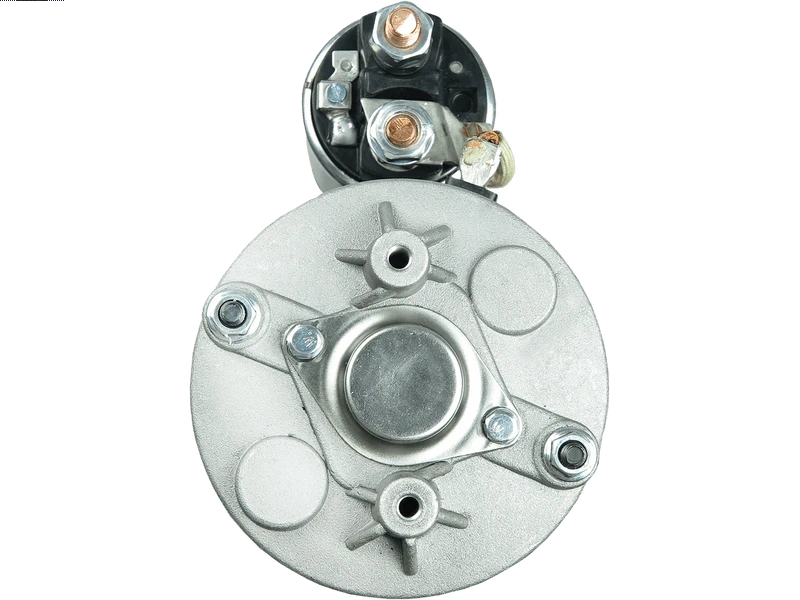

S0586 - Brand new AS-PL Starter motor

Associated Numbers

0001363110 035530048A 20404606BN 254024 35530048A 6030606 CST30606AS STR50375 UD12022S UNIT BOM 120-6280 0001355014 Bosch show 11130370 Mahle 19070141 Remy 2107 Fiat 35532026A 4002986 4104783 4130796 450312 Elstock 501006092 PSH 501009092 63223800 Magneti Marelli 63223800010 63223802 63223802010 63223830010 852962 E115324 E115324MS E115324SP LRS01817 Lucas RNL363110 RNL Wood Auto WOOSTR50375 0-001-363-110 Dixie Electric New 260-62214 IAT 570-070 Industry 31022 Lester PIC Standard Starter Drive 423557 Voltux V1-423557 0001363110SEL +line 01363110 Andrà © Niermann 020545 Da Silva 10438802 Alanko 19729 255289R DAS 501009092SEL 509304 WAI old Sando 618002094 DRI 625016094 8879 CEVAM 8EA015642331 Hella CST30606 Airframe DEM218 ADI IR8541 Protech S0586 AS-PL S132866 Short code S168738 S168739 SXE2002 Everkraft SXE2002D SXE2002E

Specifications

Kilowatt	2.6 kW
Length (L.1)	294 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	22 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
FIAT	Various Models

Reference Information

5110008 02107 4104783 220611 4002986 852962 E115324SP 254024 E115324MS 0001363110 260-62214 STR50375 STR10333 971961 S24BH0004A2 63223800 CST30606AS 63223802 20404606BN 501.006.092.010 MAV326060 STRS008 E115324 UD12022S STB3631 35532026A 63223830 6030606.0 4130796 S0586

Video/Publications

S0586
