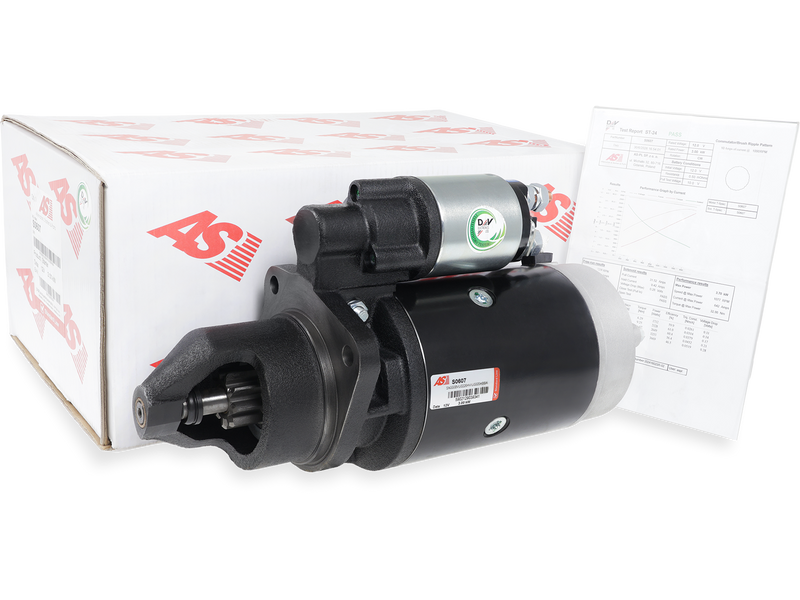

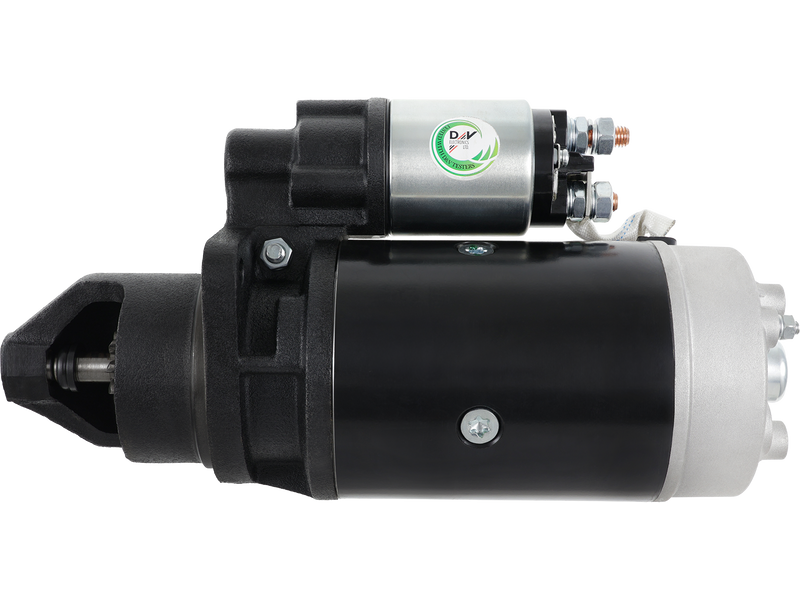

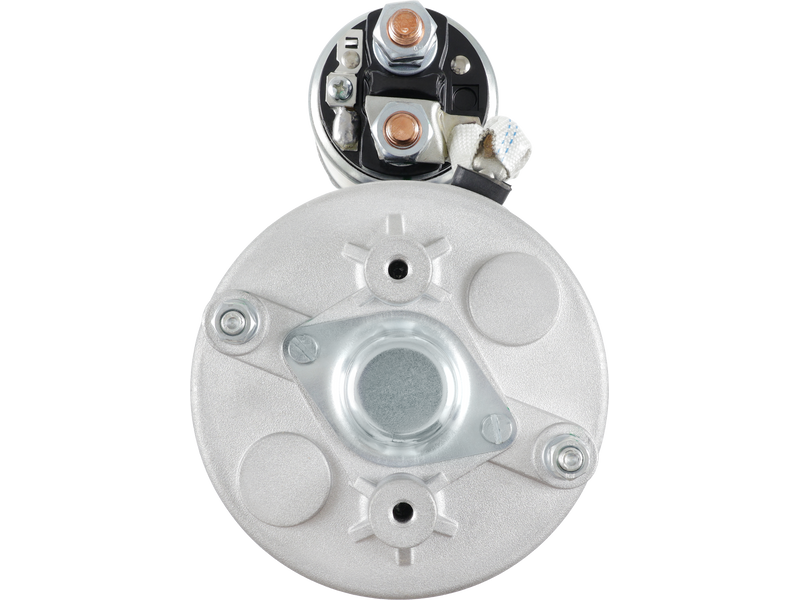

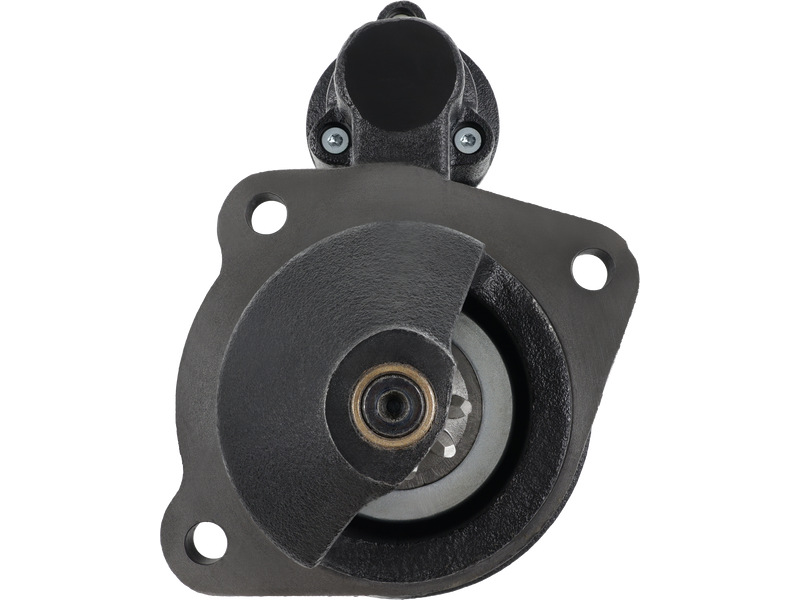

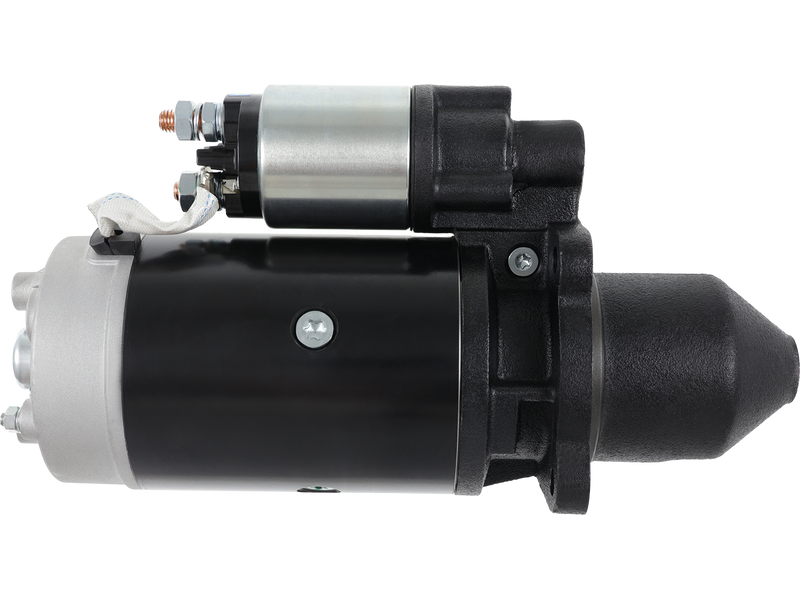

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 476.86 including GST
NZ$ 414.66 excluding GST
or four payments of $119.22
with
Learn More
each
S0607
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001367049Associated Numbers
0001359119 0001367049 10783 10783K 10783V 11.130.811 1516806R 1545417 182-30402 25-1086 260-67144 33436 35261420 6015155 810.006.093 8697 8EA731773-001 AZJ3333 CST15155 CST15155AS CST15155ES CST15155GS CST15155OS CST15155RS EAA-111118 IS0811 LRS01132 MAHMS263 MS263 STR22047 UD12337SSpecifications
| Kilowatt | 3 kW |
| Length (L.1) | 341 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | 11.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | F406 | [TD40A] | 01.1978-12.1986 |
| VOLVO | F407 | [TD40A] | 01.1978-12.1986 |
| VOLVO | F408 | [TD40A] | 01.1978-12.1986 |
| VOLVO | F409 | [TD40A] | 01.1978-12.1986 |
| VOLVO PENTA | Engine | [AQAD30A] | 01.1983-12.1986 |
| VOLVO PENTA | Engine | [AQAD31A] | 01.1986-12.1989 |
| VOLVO PENTA | Engine | [AQD40A] | 01.1997-12.1986 |
| VOLVO PENTA | Engine | [AQD40B] | 01.1997-12.1986 |
| VOLVO PENTA | Engine | [AQD41A] | 01.1986-12.1989 |
| VOLVO PENTA | Engine | [MD30] | 01.1983-12.1986 |
| VOLVO PENTA | Engine | [MD30A] | 01.1983-12.1986 |
| VOLVO PENTA | Engine | [MD31A] | 01.1986-12.1994 |
| VOLVO PENTA | Engine | [MD40A] | 01.1976-12.1985 |
| VOLVO PENTA | Engine | [MD5C] | 01.1981-12.1982 |
| VOLVO PENTA | Engine | [TAMD31D] | 01.1985-12.2004 |
| VOLVO PENTA | Engine | [TAMD31X] | 01.1985-12.2004 |
| VOLVO PENTA | Engine | [TAMD40A] | 01.1979-12.1986 |
| VOLVO PENTA | Engine | [TAMD40B] | 01.1979-12.1986 |
| VOLVO PENTA | Engine | [TAMD40C] | 01.1979-12.1986 |
| VOLVO PENTA | Engine | [TAMD41A] | 01.1986-12.2005 |
| VOLVO PENTA | Engine | [TMD30B] | 01.1983-12.1986 |
| VOLVO PENTA | Engine | [TMD40A] | 01.1976-12.1986 |
| VOLVO PENTA | Engine | [TMD40B] | 01.1976-12.1986 |
| VOLVO PENTA | Engine | [TMD40C] | 01.1976-12.1986 |
| VOLVO PENTA | Engine | [TMD41A] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 2.4 | [AD31] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [AD31A] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [AD31B] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [AD31D] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [AD31L] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [AD31P] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [AD31X] | 01.1986-12.2004 |
| VOLVO PENTA | Engine 2.4 | [KAD32P] | 01.1996-12.2005 |
| VOLVO PENTA | Engine 2.4 | [TAMD30] | 01.1983-12.1986 |
| VOLVO PENTA | Engine 2.4 | [TAMD30A] | 01.1983-12.1986 |
| VOLVO PENTA | Engine 2.4 | [TAMD31A] | 01.1985-12.1991 |
| VOLVO PENTA | Engine 2.4 | [TAMD31B] | 01.1985-12.2004 |
| VOLVO PENTA | Engine 2.4 | [TAMD31L] | 01.1985-12.2004 |
| VOLVO PENTA | Engine 2.4 | [TAMD31M] | 01.1985-12.2004 |
| VOLVO PENTA | Engine 2.4 | [TAMD31P] | 01.1985-12.2004 |
| VOLVO PENTA | Engine 2.4 | [TAMD31S] | 01.1985-12.2004 |
| VOLVO PENTA | Engine 2.4 | [TMD31A] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 2.4 | [TMD31B] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 2.4 | [TMD31D] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 2.4 | [TMD31L] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 3.6 | [AQAD40A] | 01.1980-12.1986 |
| VOLVO PENTA | Engine 3.6 | [AQAD40B] | 01.1980-12.1986 |
| VOLVO PENTA | Engine 3.6 | [AQAD41A] | 01.1986-12.1994 |
| VOLVO PENTA | Engine 3.6 | [AQAD41B] | 01.1986-12.1994 |
| VOLVO PENTA | Engine 3.6 | [AQAD41C] | 01.1986-12.1994 |
| VOLVO PENTA | Engine 3.6 | [D41A] | 01.1998-12.1999 |
| VOLVO PENTA | Engine 3.6 | [D41B] | 01.1998-12.1999 |
| VOLVO PENTA | Engine 3.6 | [D41D] | 01.1998-12.1999 |
| VOLVO PENTA | Engine 3.6 | [D41L] | 01.1998-12.1999 |
| VOLVO PENTA | Engine 3.6 | [KAD300] | 01.2001-12.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD42A] | 01.1991-12.2001 |
| VOLVO PENTA | Engine 3.6 | [KAD42B] | 01.1991-12.2001 |
| VOLVO PENTA | Engine 3.6 | [KAD42P] | 01.1991-12.2001 |
| VOLVO PENTA | Engine 3.6 | [KAD43P] | 01.1997-12.2005 |
| VOLVO PENTA | Engine 3.6 | [KAD44P] | 01.1997-12.2004 |
| VOLVO PENTA | Engine 3.6 | [KAMD300] | 01.2001-12.2004 |
| VOLVO PENTA | Engine 3.6 | [KAMD42A] | 01.1991-12.1997 |
| VOLVO PENTA | Engine 3.6 | [KAMD42B] | 01.1991-12.1997 |
| VOLVO PENTA | Engine 3.6 | [KAMD42P] | 01.1991-12.1997 |
| VOLVO PENTA | Engine 3.6 | [KAMD43P] | 01.1997-12.2005 |
| VOLVO PENTA | Engine 3.6 | [KAMD44P] | 01.1999-12.2004 |
| VOLVO PENTA | Engine 3.6 | [TAMD41B] | 01.1986-12.2005 |
| VOLVO PENTA | Engine 3.6 | [TAMD41D] | 01.1986-12.2005 |
| VOLVO PENTA | Engine 3.6 | [TAMD41H] | 01.1986-12.2005 |
| VOLVO PENTA | Engine 3.6 | [TAMD41L] | 01.1986-12.2005 |
| VOLVO PENTA | Engine 3.6 | [TAMD41M] | 01.1986-12.2005 |
| VOLVO PENTA | Engine 3.6 | [TAMD41P] | 01.1986-12.2005 |
| VOLVO PENTA | Engine 3.6 | [TAMD42A] | 01.1992-12.2003 |
| VOLVO PENTA | Engine 3.6 | [TAMD42B] | 01.1992-12.2003 |
| VOLVO PENTA | Engine 3.6 | [TAMD42WJ] | 01.1992-12.2003 |
| VOLVO PENTA | Engine 3.6 | [TMD30A] | 01.1983-12.1986 |
| VOLVO PENTA | Engine 3.6 | [TMD41B] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 3.6 | [TMD41D] | 01.1986-12.1997 |
| VOLVO PENTA | Engine 3.6 | [TMD41L] | 01.1986-12.1997 |
Reference Information
0986012780 8697 260-67144 STRS053 CST15155RS 0001359119 10783V 11.130.811 MAV4770 3803200 MAHMS263 MS CST15155GS UD12337S 35261420 810.006.093.461 CST15155OS 6015155 LRS01132 10783 0001367049 CST15155 8EA731773-001 AZJ3333 STR10066 S0607 STR22047 33436 182-30402 3803118 S12BH0736A2 1542195 25-1086 3803386 1545417 10783K CST15155AS LRS1132 3581774 330935 859252 IS0811 1516806R MS263 STR79070 188486 CST15155ES 263 5001759 810.006.093 8113901Video/Publications
S0607View your shopping basket or Browse other items in Starter Motors.
