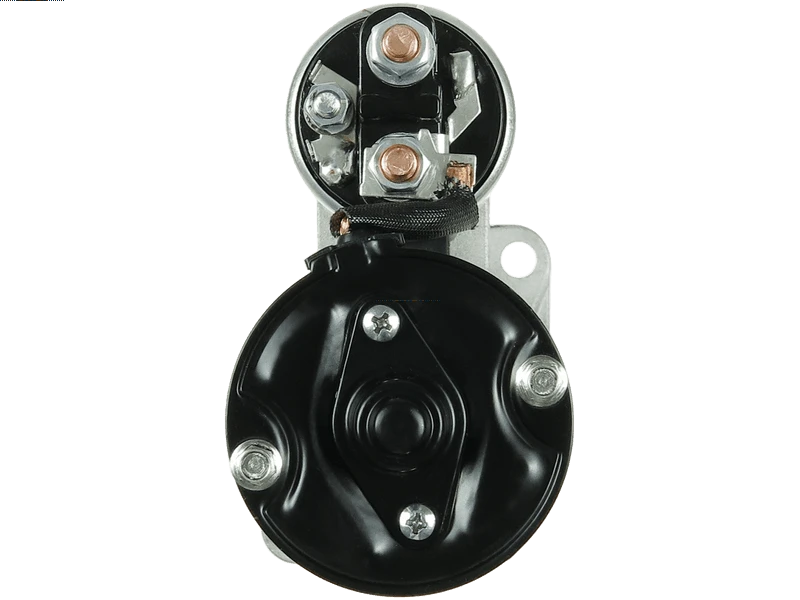

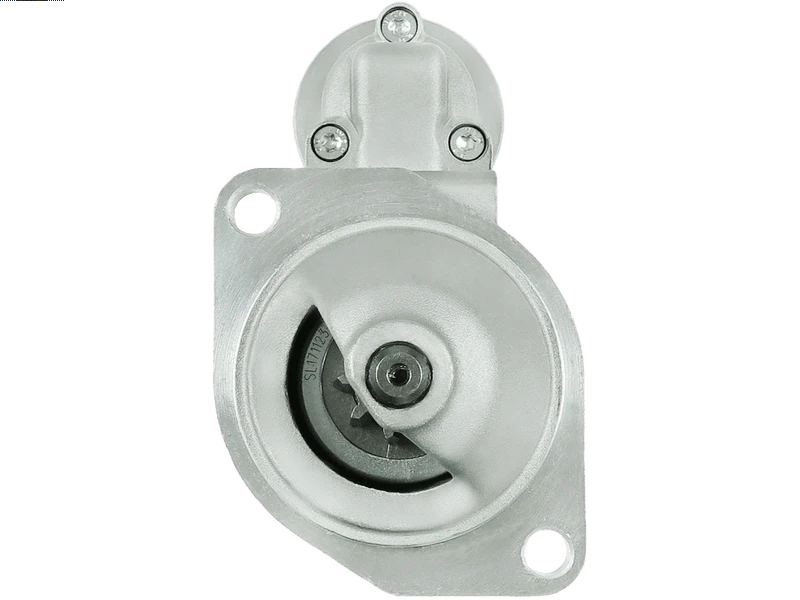

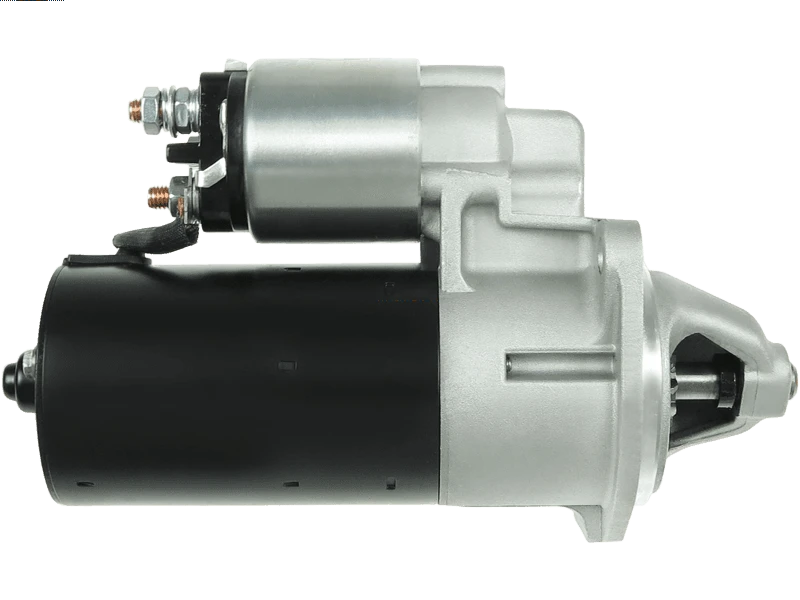

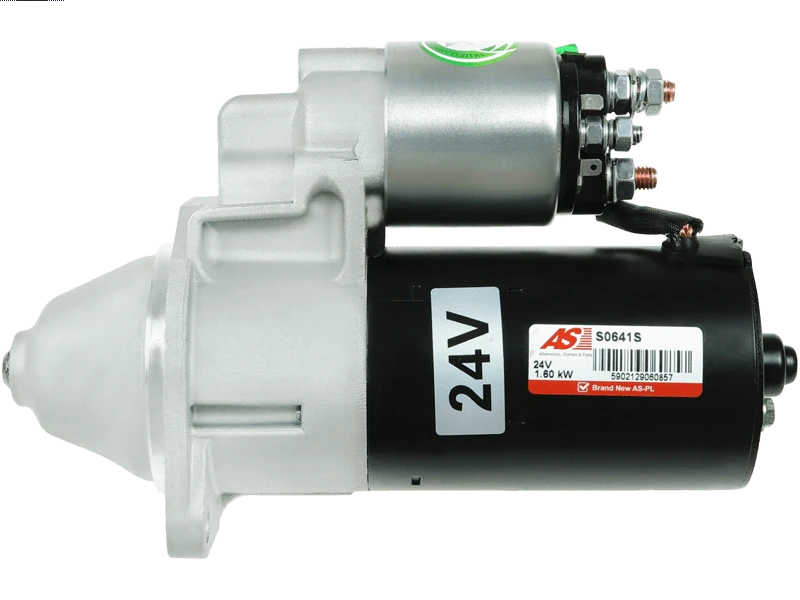

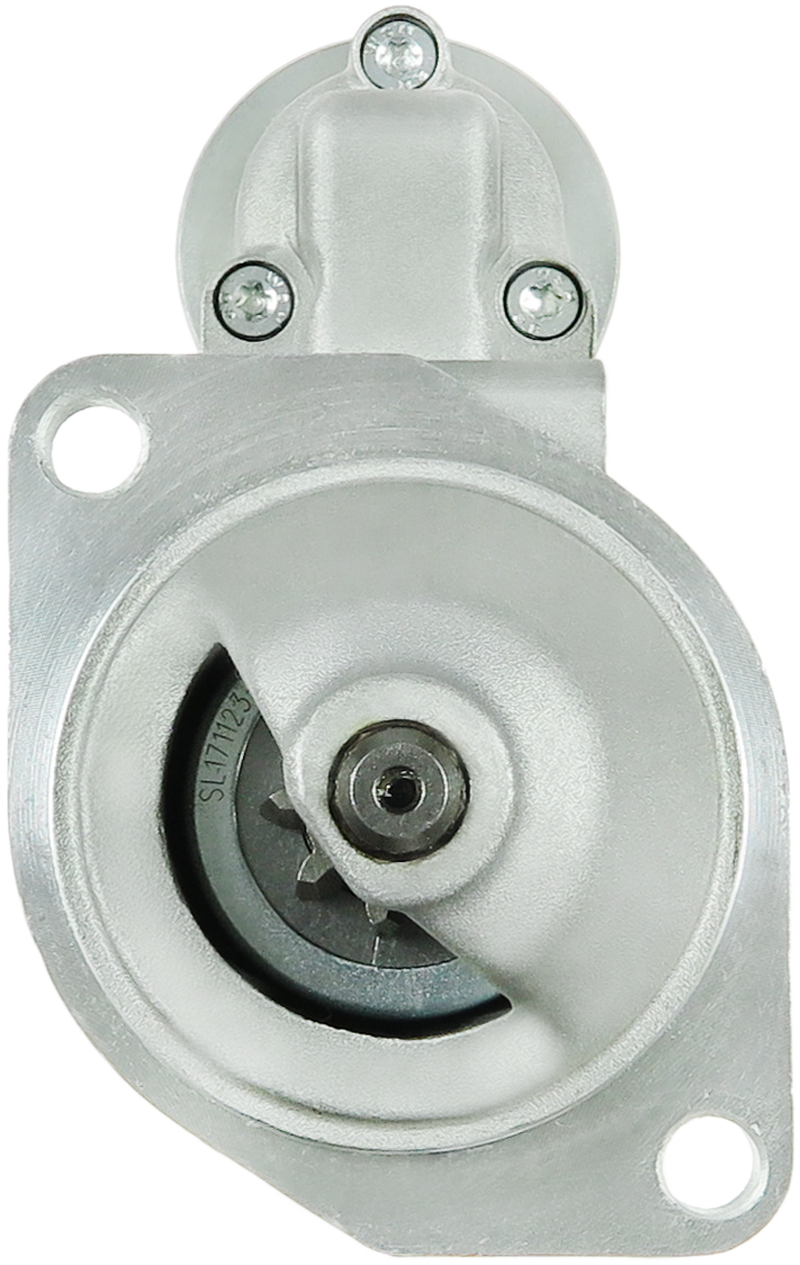

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 303.89 including GST
NZ$ 264.25 excluding GST
or four payments of $75.97
with
Learn More
each
S0641S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001111003Associated Numbers
0001111003 120-10169 254199B 254199R 58401720 6010766 691.505.092 BOS0001111003 CST10766 CST10766AS CST10766ES CST10766GS CST10766OS CST10766RS DRS0005 S0641S STB1103YJ STR50293 UD13764S UNIT BOM 920-325Specifications
| Kilowatt | 1.6 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LOMBARDINI | Engine | [LDW1204] | |
| LOMBARDINI | Engine | [LDW1204/T] | |
| LOMBARDINI | Engine | [LDW602] | |
| LOMBARDINI | Engine | [LDW702] | |
| LOMBARDINI | Engine | [LDW903] |
Reference Information
STRJ818 120-10169 0001111003 332002 691.505.092 RNL111003 STR50293 CST10766OS UD13764S CST10766 STB1103YJ BOM S0641S BOS0001111003 CST10766AS UNIT CST10766GS CST10766ES 254199R 920-325 CST10766RS 58401720 DRS0005 6010766 254199BVideo/Publications
