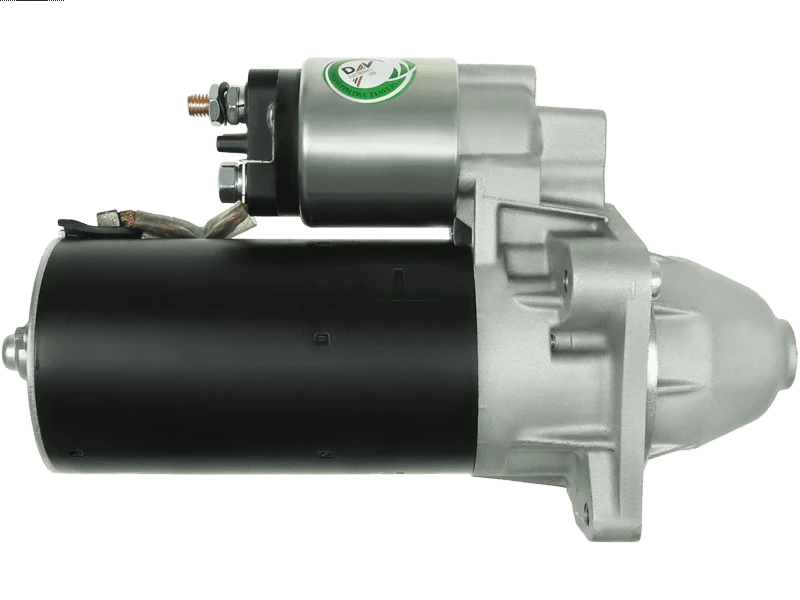

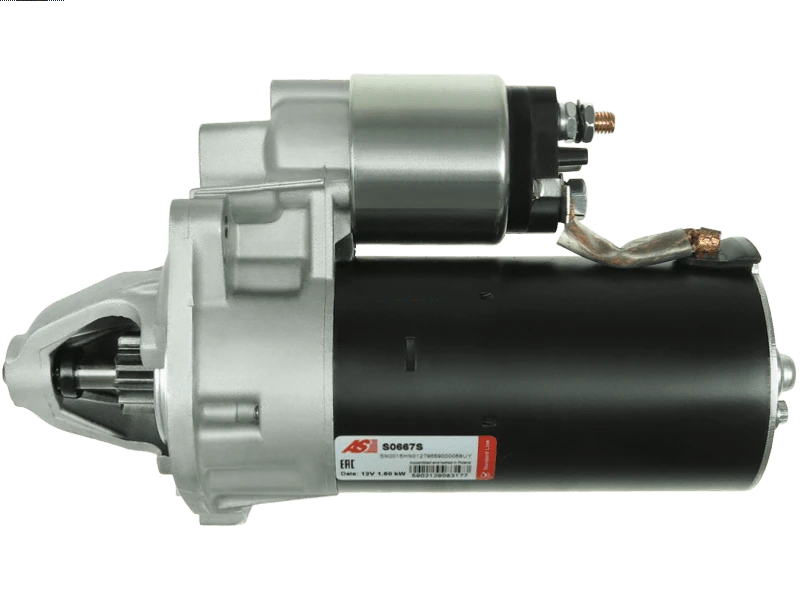

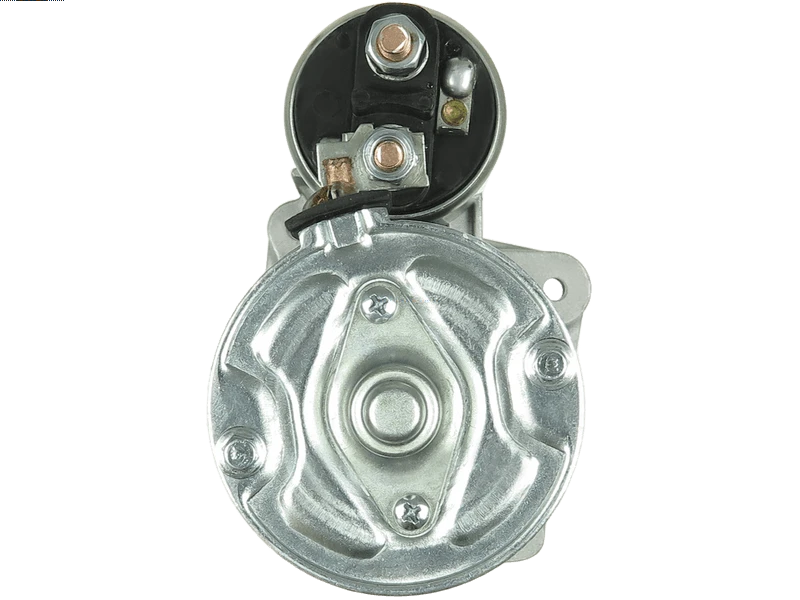

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 385.54 including GST
NZ$ 335.25 excluding GST
or four payments of $96.39
with
Learn More
each
S0667S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001110005Associated Numbers
0001110005 0001314026 063223332010 10286 11617 25-0271 3451 35258420 42014701 436008 500.010.093 6030144 63223203 63223236 63223237 7587118 77337430 88212826 8EA726049-001 944280108800 AES4153 CST30144 CST30144AS CST30144ES CST30144GS CST30144OS CST30144RS EAA-141281 LRS00453 STE0286 STR52036 UD14876S UNIT BOM 120-455 X03972657Specifications
| Kilowatt | 1.6 kW |
| Length (L.1) | 265 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Center - Center (O.2) | 74 mm |
| Mount Hole Center - Center (O.3) | 78 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Duna 1.7 D | [149B3.000] | 01.1986-12.1990 |
| FIAT | Duna DS 1.7 D | [149B3.000] | 01.1986-12.1990 |
| FIAT | Regata 60 1.7 D | [138B6.000] | 01.1983-12.1986 |
| FIAT | Ritmo 55 1.7 D | [138C.000] | 01.1985-12.1987 |
| SEAT | Ibiza 1.7 D | [022A.5000] | 01.1984-12.1993 |
| SEAT | Malaga 1.7 D | [138A5.000] | 01.1985-12.1993 |
Reference Information
CST30144 35258420 5933930 63223237 STR1813 7587118 CST30144RS 500.010.093.609 UD14876S LRS00453 220081 4392461 STX200464 63223203 AES4153 500.010.093 STR52036 STE0286 5996771 CST30144AS 25-0271 CST30144GS X03972657 BOM 436008 CST30144ES 944280108800 UNIT 6030144 CST30144OS 46231605 0001314026 3451 120-455 0001110005 46231603 063223332010 88212826 8EA726049-001 11617 STX200690 63223236 10286 MAV321440 7597118 77337430 LRS453Video/Publications
S0667SView your shopping basket or Browse other items in Starter Motors.
