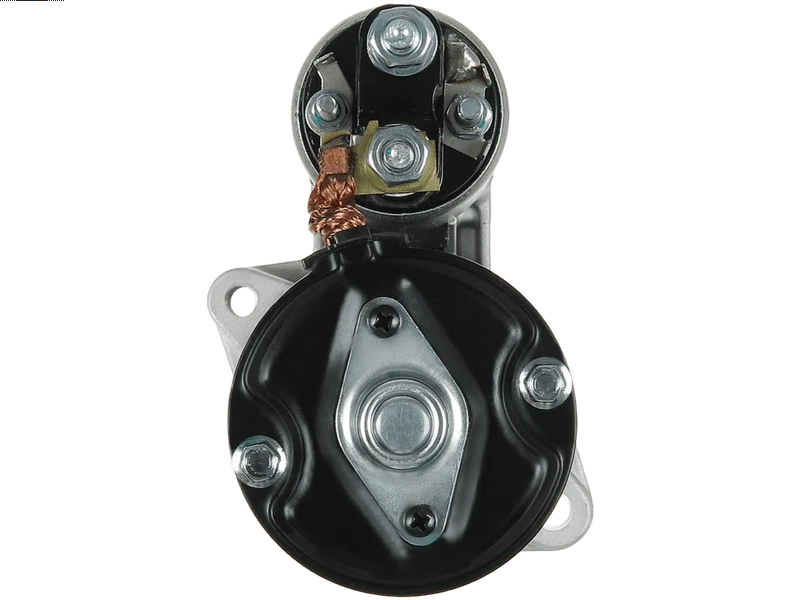

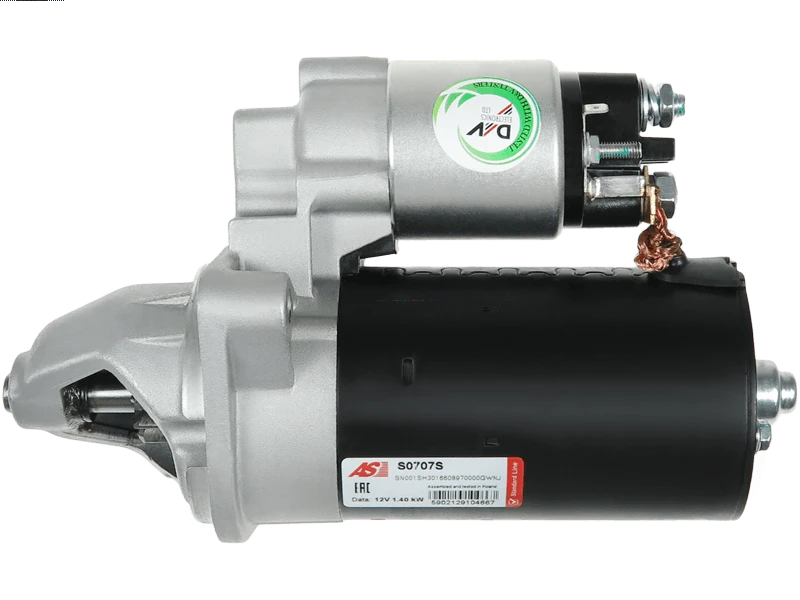

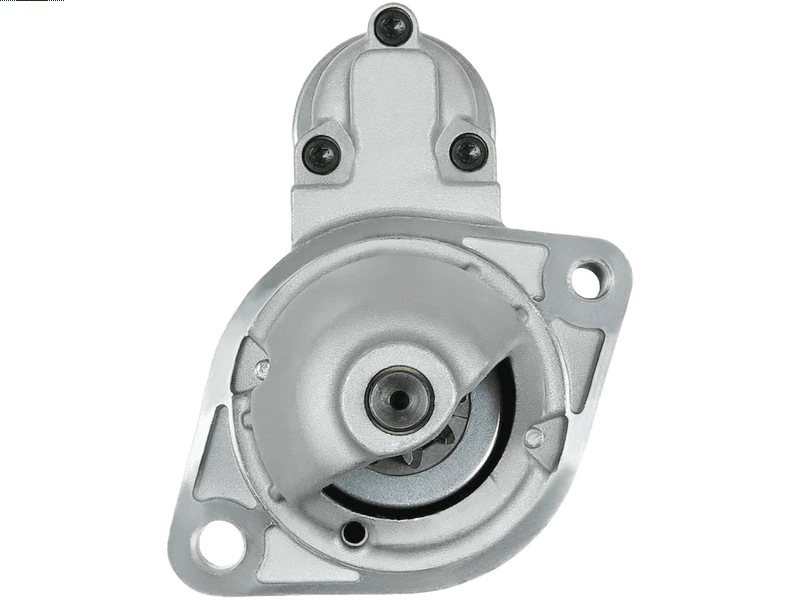

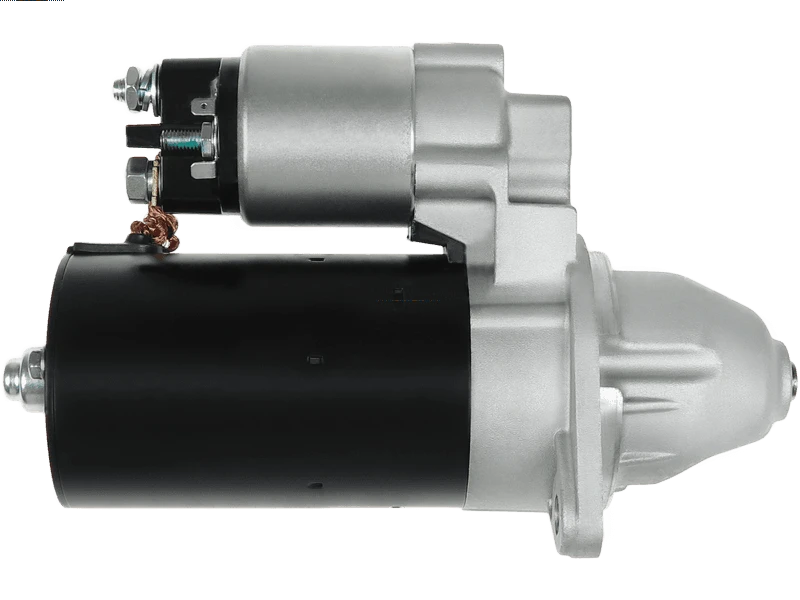

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 237.39 including GST
NZ$ 206.43 excluding GST
or four payments of $59.35
with
Learn More
each
S0707S
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108196Associated Numbers
0001108196 0001108245 063521081960 0986018890 101256 101256B 113292 116342 12077 12417505979 20401614 210.514.092 26-3147 3180 32799N 32799R 42018890 458475 6010416 7505979 88212598 8EA012527-891 8EA737979-001 943212561010 944280188900 AEU1256 BOS0001108196 BOS0001108245 CS1256 CST10416 CST10416AS CST10416ES CST10416GS CST10416OS CST10416RS DRS8890 DS0000 EAA-151826 LRS01799 MRS18890 MSN2201 MSRC1256 RAS39901 S1041B SG0674 STB1256 STM1080 STR50297 UD20342SSpecifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 231 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 316 1.6 Ci | (E46)[N45B16A] | 06.2002-07.2006 |
| BMW | 316 1.6 i | (E46)[N40B16A] | 06.2002-02.2005 |
| BMW | 316 1.6 i | (E46)[N45B16A] | 06.2002-02.2005 |
| BMW | 316 1.6 ti | (E46)[N40B16A] | 06.2002-02.2005 |
| BMW | 316 1.6 ti | (E46)[N45B16A] | 06.2002-02.2005 |
| BMW | 316 1.8 i | (E46)[N42B18A] | 02.2002-02.2005 |
| BMW | 316 1.8 i | (E46)[N42B18A] | 03.2002-02.2005 |
| BMW | 316 1.8 i | (E46)[N46B18A] | 02.2002-02.2005 |
| BMW | 316 1.8 i | (E46)[N46B18A] | 03.2002-02.2005 |
| BMW | 316 1.8 ti | (E46)[N42B18A] | 06.2001-02.2005 |
| BMW | 316 1.8 ti | (E46)[N46B18A] | 06.2001-02.2005 |
| BMW | 318 2.0 Ci | (E46)[N42B20A] | 09.2001-12.2007 |
| BMW | 318 2.0 Ci | (E46)[N42B20A] | 12.2000-05.2006 |
| BMW | 318 2.0 Ci | (E46)[N46B20A] | 02.2005-12.2007 |
| BMW | 318 2.0 Ci | (E46)[N46B20A] | 03.2005-07.2006 |
| BMW | 318 2.0 Ci | (E46)[N46B20A] | 09.2001-12.2007 |
| BMW | 318 2.0 Ci | (E46)[N46B20A] | 12.2000-05.2006 |
| BMW | 318 2.0 Ci | (E46)[N46B20B] | 02.2005-12.2007 |
| BMW | 318 2.0 Ci | (E46)[N46B20C] | 12.2000-05.2006 |
| BMW | 318 2.0 i | (E46)[N42B20A] | 09.2001-02.2005 |
| BMW | 318 2.0 i | (E46)[N46B20A] | 09.2001-02.2005 |
| BMW | 318 2.0 ti | (E46)[N42B20A] | 03.2001-12.2004 |
| BMW | 318 2.0 ti | (E46)[N46B20A] | 03.2001-12.2004 |
Reference Information
ST02407 101256B 210.514.092.461 210.514.092.460 F032113292 AC-CBS1256 12077 0001108196 CS1256 A18890 SBO416 CST10416AS 101256R 331384 BM9025 0986018890 SG0674 32799N S1041B 458475 26-3147CT 011-001-000754R STR50297 210.514.092.395 BOS0001108196 315136092 WOOSTR50297 10441174 943212561010 828101402 S-50297 063521081960 8EA012527-891 S12BH0235 STM1080 STB1256 6010416.1 12427505995 6010416.0 12417505979 10010416OV 7505979 LRS1799 944280188900 438498 113292 3180 063721256010 F032116342 8018890 077ST21 210.514.092.280 20401614BN S12BH0235A2 1986S00700 MRS18890 STX200360 11018890 88212598 SEG0001108245 20401614OE CST10416GS DRS8890 SBO416A 210.514.092.010 0001108245 26-3147 6.7005.1 STR1407 MSN2201 5010377G 210.514.092.211 116342 221067A 104729 UD20342S 7505995 12417505995 BST2156 3115102 10010416AV QRS1316 7515392 AI-80151 S512419 101256 CMA-651826 IR9747 42018890 LES0542 STRS868 BOS0001108245 LRS01799Video/Publications
