Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 252.51 including GST
NZ$ 219.57 excluding GST
or four payments of $63.13
with
Learn More
each
S0723S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001110071Associated Numbers
0001110071 0986017170 10792 10793B 12411729982 12411736922 17497N 20401005 210.529.092 26-3040 31234R 458473 6010500 88212704 AES2227 BOS0001110071 CST10500 CST10500AS CST10500ES CST10500GS CST10500OS CST10500RS DRS3685 DS4795 EAA-121769 LRT00227 S1050B STB0793 STR50341 UD20349S
50-516

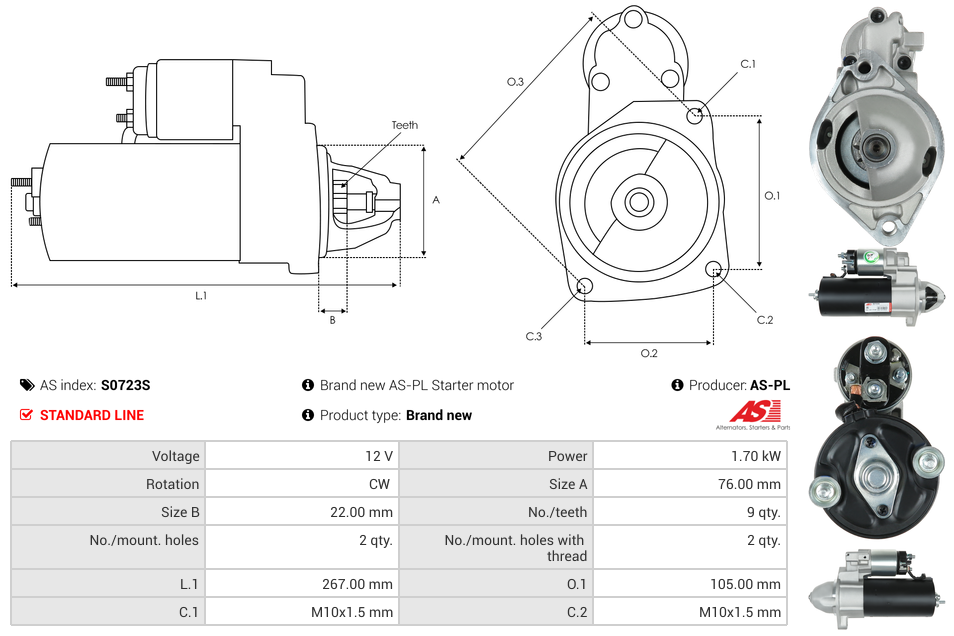

Specifications
For opposite mount check: S0394
| Kilowatt | 1.7 kW |
| Length (L.1) | 267 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 530 3.0 i | (E34)[M60B30(308S1)] | 09.1992-07.1996 |
| BMW | 530 3.0 i V8 | (E34)[M60B30(308S1)] | 09.1992-12.1995 |
| BMW | 535 3.5 i | (E39)[M62B35(358S1)] | 06.1996-08.1998 |
| BMW | 535 3.5 i | (E39)[M62B35(358S2)] | 09.1998-06.2003 |
| BMW | 540 4.0 i | (E34)[M60B40(408S1)] | 09.1993-07.1996 |
| BMW | 540 4.0 i V8 | (E34)[M60B40(408S1)] | 09.1992-12.1995 |
| BMW | 540 4.4 i | (E39)[M62B44(448S1)] | 03.1996-06.2003 |
| BMW | 540 4.4 i | (E39)[M62B44(448S1)] | 04.1997-12.2003 |
| BMW | 540 4.4 i | (E39)[M62B44(448S2)] | 03.1996-06.2003 |
| BMW | 540 4.4 i | (E39)[M62B44(448S2)] | 04.1997-12.2003 |
| BMW | 730 3.0 i | (E38)[M60B30(308S1)] | 03.1994-02.1996 |
| BMW | 730 3.0 i | (E38)[M60B30(308S1)] | 10.1994-11.2001 |
| BMW | 730 3.0 iL | (E38)[M60B30(308S1)] | 03.1994-02.1996 |
| BMW | 730 3.0 iL | (E38)[M60B30(308S1)] | 10.1994-11.2001 |
| BMW | 730 3.0 iL V8 | (E32)[M60B30(308S1)] | 04.1992-09.1994 |
| BMW | 730 3.0 i V8 | (E32)[M60B30(308S1)] | 04.1992-09.1994 |
| BMW | 735 3.5 i | (E38)[M62B35(358S1)] | 03.1996-08.1998 |
| BMW | 735 3.5 i | (E38)[M62B35(358S2)] | 09.1998-07.2001 |
| BMW | 735 3.5 iL | (E38)[M62B35(358S1)] | 03.1996-08.1998 |
| BMW | 735 3.5 iL | (E38)[M62B35(358S2)] | 09.1998-07.2001 |
| BMW | 740 4.0 i | (E38)[M60B40(408S1)] | 03.1994-02.1996 |
| BMW | 740 4.0 iL | (E38)[M60B40(408S1)] | 03.1994-02.1996 |
| BMW | 740 4.0 iL V8 | (E32)[M60B40(408S1)] | 05.1992-03.1994 |
| BMW | 740 4.0 i V8 | (E32)[M60B40(408S1)] | 05.1992-03.1994 |
| BMW | 740 4.4 i | (E38)[M62B44(448S1)] | 02.1996-07.2001 |
| BMW | 740 4.4 i | (E38)[M62B44(448S2)] | 02.1996-07.2001 |
| BMW | 740 4.4 iL | (E38)[M62B44(448S1)] | 02.1996-07.2001 |
| BMW | 740 4.4 iL | (E38)[M62B44(448S2)] | 02.1996-07.2001 |
| BMW | 840 4.0 i | (E31)[M60B40(408S1)] | 03.1993-02.1996 |
| BMW | 840 4.4 Ci | (E31)[M62B44(448S1)] | 03.1996-06.1999 |
| BMW | M5 5.0 | (E39)[S62B50(508S1)] | 10.1998-06.2003 |
Reference Information
12411736922 STRF116 CST10500AS 20401005 210.529.092 LRT00227 12411736921 CST10500ES 220332 UD20349S CST10500RS STB0793 10792 458473 STX200548 DRS3685 STX200549 DS4795 17497N ANM15905X 12411729981 330416 CST10500 STR1165 AES2227 BOS0001110071 10793B 31234R 12411729982 26-3040 CST10500OS 0001110071 0986017170 88212704 CST10500GS STX200548R 6010500 S1050B STR50341Video/Publications
