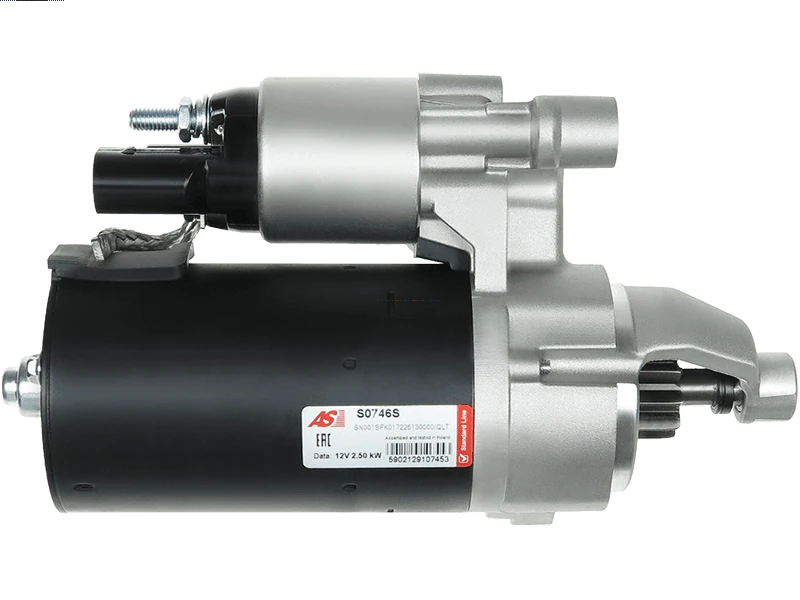

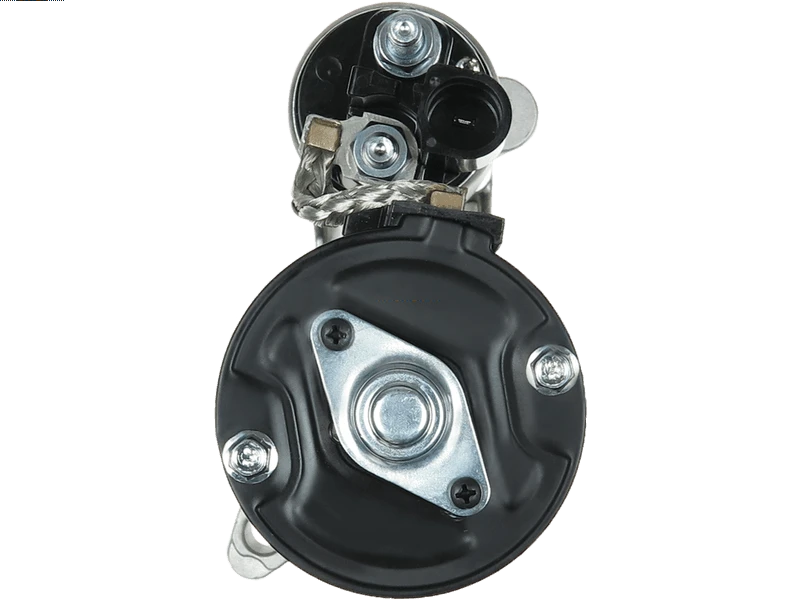

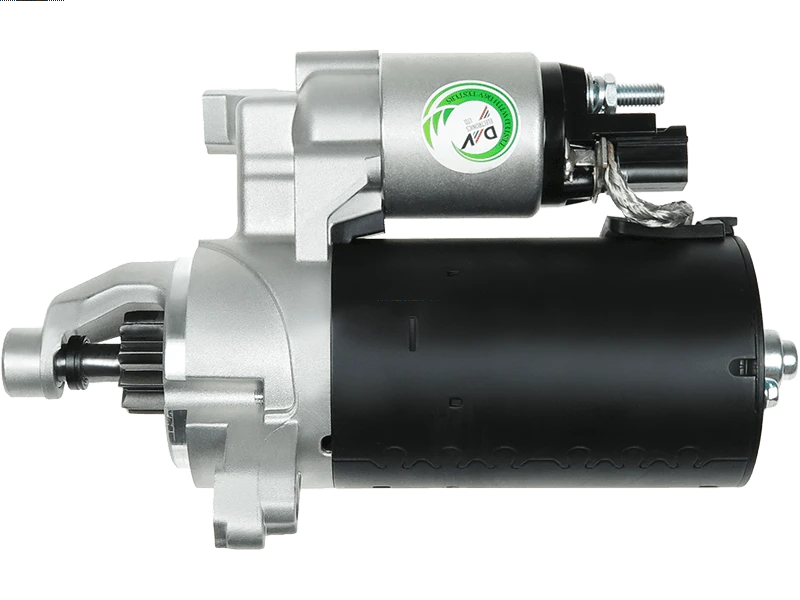

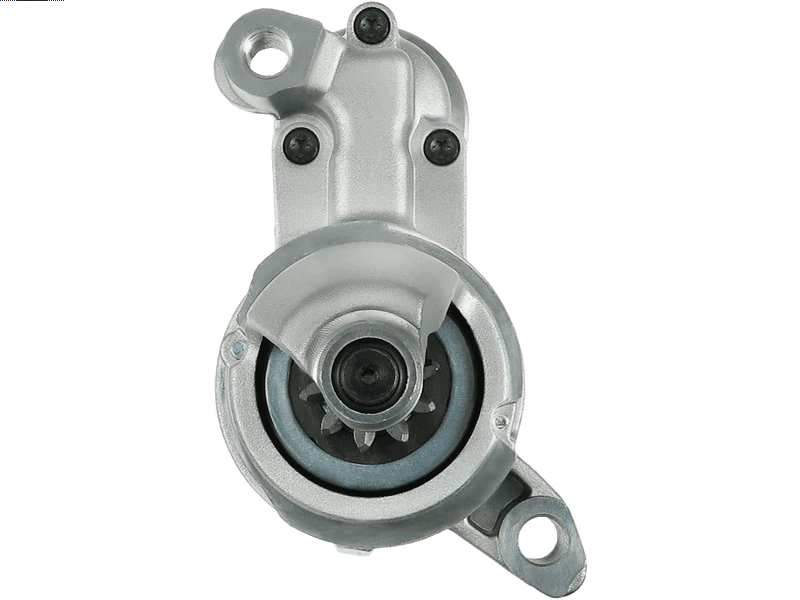

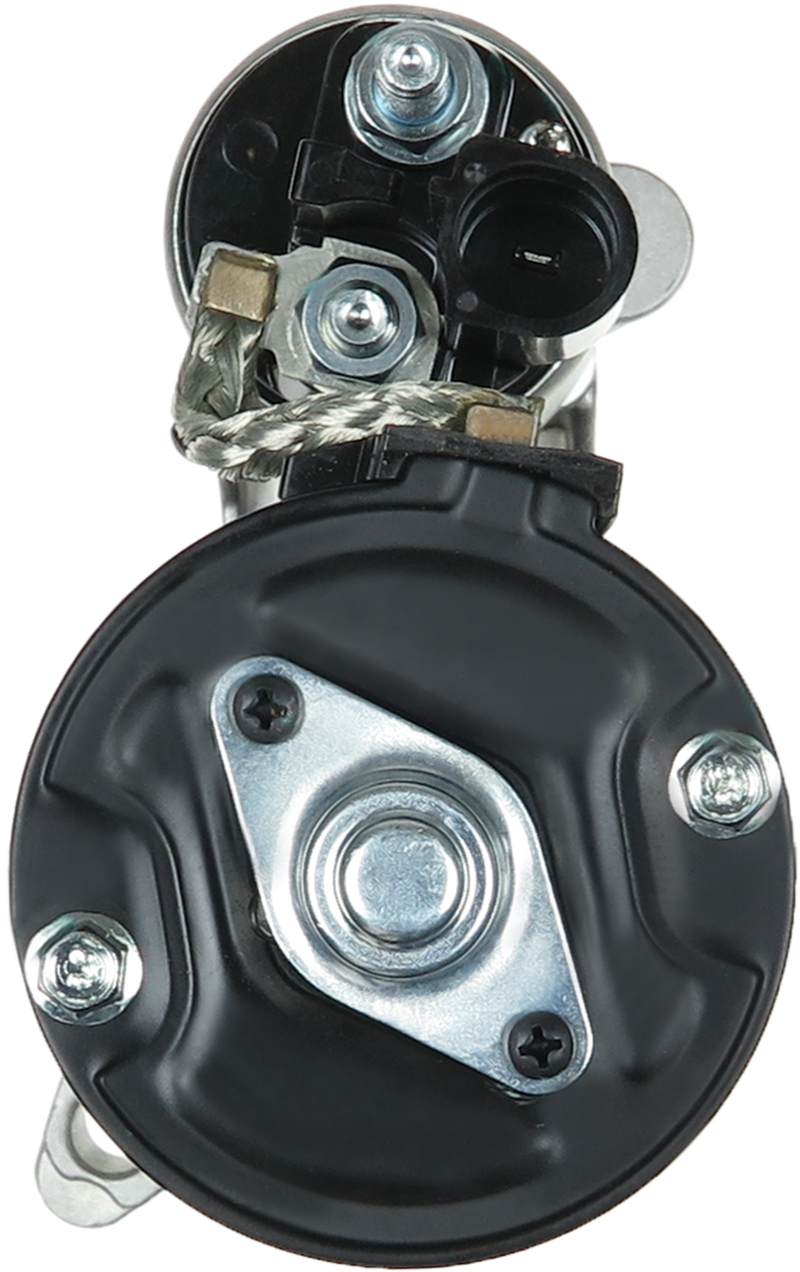

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 328.16 including GST
NZ$ 285.36 excluding GST
or four payments of $82.04
with
Learn More
each
S0746S
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001139041Associated Numbers
0001139041 0001139042 0001139045 0001139046 0001139073 0001139074 059911021G 059911021GX 059911021H 059911021HX 059911021K 059911021KX 059911021X 115735 12151 200.537.102 20401505 25-4288 254813 254813B 3078 33123N 42025160 6010505 88214311 8EA738259-361 CST10505 CST10505AS CST10505ES CST10505GS CST10505OS CST10505RS IR8551R LRS02615 S-6318 STB9041 STR50647 UD20324SSpecifications
| Kilowatt | 2.5 kW |
| Length (L.1) | 249 mm |
| Mount Hole Center - Center (O.1) | 133.5 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 3.0 TDi | [CLAB] | 11.2011-12.2015 |
| AUDI | A4 3.0 TDi Quattro | [CDUC] | 11.2011-12.2015 |
| AUDI | A4 3.0 TDi Quattro | [CKVB] | 11.2011-12.2015 |
| AUDI | A4 3.0 TDi Quattro | [CKVC] | 11.2011-12.2015 |
| AUDI | A4 Allroad 3.0 TDi Quattro | [CDUC] | 01.2012-05.2016 |
| AUDI | A4 Allroad 3.0 TDi Quattro | [CKVB] | 01.2012-05.2016 |
| AUDI | A4 Allroad 3.0 TDi Quattro | [CKVC] | 01.2012-05.2016 |
| AUDI | A5 3.0 TDi | [CLAB] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CDUC] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVB] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVC] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVD] | 05.2015-01.2017 |
| AUDI | A5 3.0 TDi Quattro Sportback | [CDUC] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro Sportback | [CKVB] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro Sportback | [CKVC] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro Sportback | [CKVD] | 05.2015-01.2017 |
| AUDI | A5 3.0 TDi Sportback | [CLAB] | 10.2011-01.2017 |
| AUDI | A6 3.0 TDi | [CLAB] | 05.2011-09.2018 |
| AUDI | A6 3.0 TDi | [CLAB] | 11.2010-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CDUC] | 03.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CDUC] | 05.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CDUD] | 03.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CDUD] | 05.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CGQB] | 11.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CKVB] | 03.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CKVB] | 05.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CKVC] | 03.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CKVC] | 05.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CLAA] | 03.2011-09.2018 |
| AUDI | A6 3.0 TDi Quattro | [CLAA] | 05.2011-09.2018 |
| AUDI | A6 Allroad 3.0 TDi Quattro | [CDUD] | 01.2012-06.2016 |
| AUDI | A6 Allroad 3.0 TDi Quattro | [CGQB] | 01.2012-12.2014 |
| AUDI | A6 Allroad 3.0 TDi Quattro | [CKVC] | 01.2012-06.2016 |
| AUDI | A6 Allroad 3.0 TDi Quattro | [CLAA] | 01.2012-12.2014 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CDUC] | 10.2010-06.2016 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CDUD] | 10.2010-06.2016 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CGQB] | 11.2011-03.2015 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CKVB] | 10.2010-06.2016 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CKVC] | 10.2010-06.2016 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CLAA] | 12.2010-03.2015 |
| AUDI | A7 3.0 TDi Quattro Sportback | [CPNB] | 05.2013-06.2017 |
| AUDI | A7 3.0 TDi Sportback | [CLAB] | 11.2010-03.2015 |
| AUDI | A8 3.0 TDi | [CLAB] | 09.2011-09.2013 |
| AUDI | A8 3.0 TDi Quattro | [CDTA] | 07.2010-01.2018 |
| AUDI | A8 3.0 TDi Quattro | [CDTB] | 08.2010-11.2015 |
| AUDI | A8 3.0 TDi Quattro | [CDTC] | 07.2010-01.2018 |
| AUDI | A8 3.0 TDi Quattro | [CMHA | 07.2010-01.2018 |
| AUDI | A8 3.0 TDi Quattro | [CPNA] | 11.2012-06.2016 |
| AUDI | A8 3.0 TDi Quattro | [CTBA] | 10.2013-01.2018 |
| AUDI | A8 3.0 TDi Quattro | [CTBB] | 08.2010-11.2015 |
| AUDI | Q5 3.0 TDi Quattro | [CDUD] | 06.2012- |
| AUDI | Q5 3.0 TDi Quattro | [CTBA] | 11.2013- |
| AUDI | Q5 3.0 TDi Quattro | [CTBC] | 06.2012- |
| AUDI | SQ5 3.0 TDi Quattro | [CGQB] | 12.2012- |
| AUDI | SQ5 3.0 TDi Quattro | [CVUB] | 04.2015- |
| AUDI | SQ5 3.0 TDi Quattro | [CVUC] | 12.2012- |
| AUDI | SQ5 3.0 TDi Quattro | [DEHA] | 11.2015- |
Reference Information
STX210264 12151 CST10505GS LRS2615 STX210263 220875 059911021KX 059911021GX 42025160 CST10505 88214311 220705 254813B RNL2516 200.537.102 UD20324S 059911021X 25-4288 STR50647 S12BH0340A2 254813 059911021FX 059911021K 059911021L 059911021F STX210264R 059911021G 059911021H 5010410 6010505 CST10505ES 8EA738259-361 0986025160 115735 STR1759 CST10505AS 33123N 0001139045 0001139042 IR8551R 0001139046 S0746S STRF580 0001139041 LRS02615 CST10505RS STX210263R 3078 S-6318 STB9041 UD102492S 059911021HX 0001139073 0001139074 CST10505OS 20401505Video/Publications
