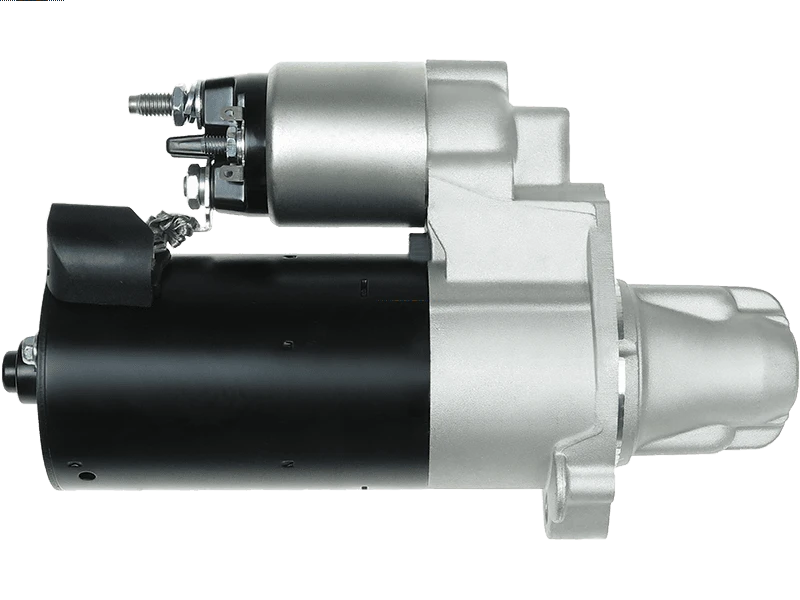

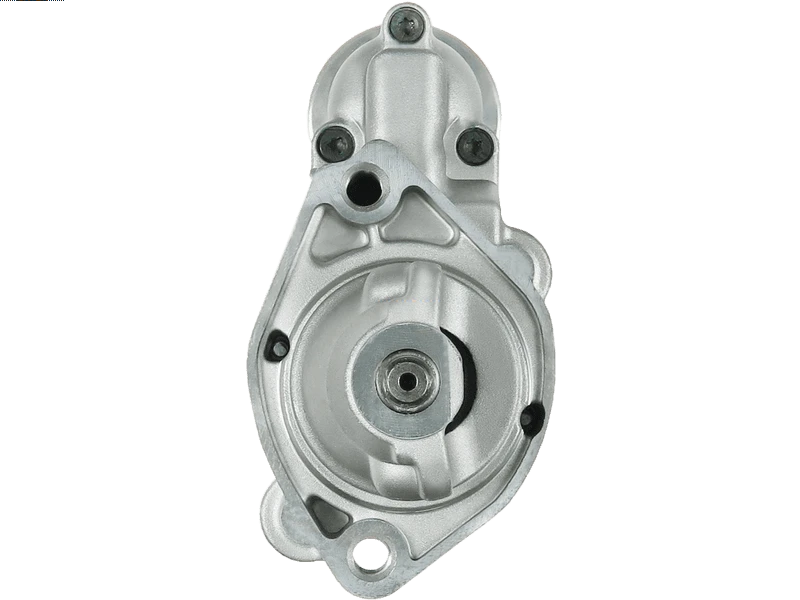

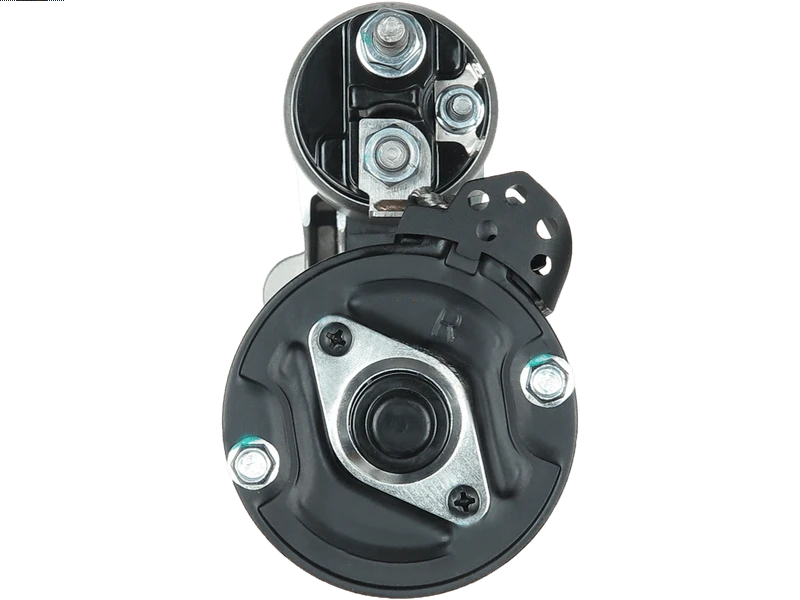

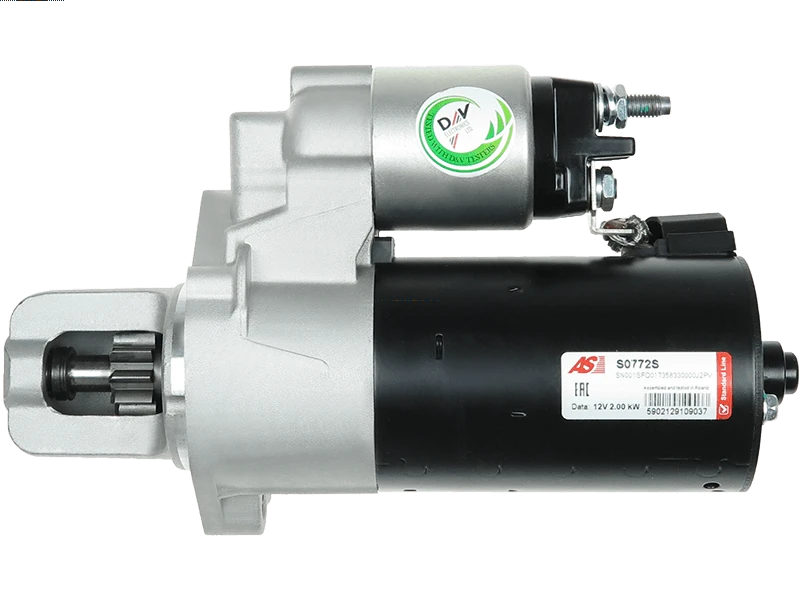

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 334.33 including GST
NZ$ 290.72 excluding GST
or four payments of $83.58
with
Learn More
each
S0772S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001147402Associated Numbers
0001147402 0001147403 0986023110 115734 25-4242 254729B 260-20110 2769061300 2769062400 32794N 550.560.102 88214610 91-15-7349 A2769061300 A2769062400 BOS0001147402 DRS0729 DS1839 LRS02570 RAS31830 STB7402 STM1290 UD20328S 1986S00854Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 248 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 60 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 300 3.5 | (W204)[M276.957] | 02.2011-01.2014 |
| MERCEDES BENZ | C 300 3.5 4-Matic | (W204)[M276.957] | 02.2011-01.2014 |
| MERCEDES BENZ | C 350 3.5 | (C204)[M276.957] | 06.2011- |
| MERCEDES BENZ | C 350 3.5 | (W204)[M276.957] | 01.2011-01.2014 |
| MERCEDES BENZ | C 350 3.5 4-Matic | (W204)[M276.957] | 01.2011-01.2014 |
| MERCEDES BENZ | C 350 CGi 3.5 | (S204)[M276.957] | 06.2011-08.2014 |
| MERCEDES BENZ | CLS 350 3.5 | (C218)[M276.952] | 01.2011-08.2014 |
| MERCEDES BENZ | CLS 350 3.5 | (X218)[M276.952] | 10.2012-08.2014 |
| MERCEDES BENZ | E 300 3.5 | (A207)[M276.957] | 04.2011-12.2016 |
| MERCEDES BENZ | E 300 3.5 | (C207)[M276.957] | 04.2011-06.2016 |
| MERCEDES BENZ | E 300 3.5 | (S212)[M276.952] | 07.2011-12.2016 |
| MERCEDES BENZ | E 300 3.5 | (W212)[M276.952] | 07.2011-12.2015 |
| MERCEDES BENZ | E 300 3.5 4-Matic | (S212)[M276.952] | 07.2011-12.2016 |
| MERCEDES BENZ | E 300 3.5 4-Matic | (W212)[M276.952] | 07.2011-12.2015 |
| MERCEDES BENZ | E 350 3.5 | (A207)[M276.957] | 04.2011-12.2014 |
| MERCEDES BENZ | E 350 3.5 | (C207)[M276.957] | 04.2011-12.2014 |
| MERCEDES BENZ | E 350 3.5 | (S212)[M276.952] | 09.2011-12.2014 |
| MERCEDES BENZ | E 350 3.5 | (W212)[M276.952] | 09.2011-12.2015 |
| MERCEDES BENZ | E 350 3.5 4-Matic | (C207)[M276.957] | 02.2013-12.2016 |
| MERCEDES BENZ | E 350 3.5 4-Matic | (S212)[M276.952] | 09.2011-12.2016 |
| MERCEDES BENZ | E 350 3.5 4-Matic | (W212)[M276.952] | 09.2011-12.2015 |
| MERCEDES BENZ | E 400 3.0 | (C207)[M276.820] | 06.2013-12.2016 |
| MERCEDES BENZ | GLK 350 3.5 4-Matic | (X204)[M276.957] | 06.2008-06.2015 |
| MERCEDES BENZ | S 350 CGi 3.5 | (W221)[M276.950] | 04.2011-12.2013 |
| MERCEDES BENZ | S 350 CGi 3.5 4-Matic | (W221)[M276.950] | 04.2011-12.2013 |
| MERCEDES BENZ | SL 350 3.5 | (R231)[M276.954] | 02.2012- |
| MERCEDES BENZ | SLK 350 3.5 | (R172)[M276.956] | 02.2011- |
Reference Information
STRE242 2040112AOE MAV12A210 6010A21.1 A2769062400 STR1839 115734 254729B 220953 0986023110 332132 STM1290 2769062400 260-20110 STB7402 LRS2570 88214610 BOS0001147402 A2769061300 LRS02570 91-15-7349 DRS0729 DS1839 RAS31830 0001147403 0001147402 550.560.102 2769061300 CST10A21GS 550.560.102.018 32794N 25-4242 UD20328SVideo/Publications
