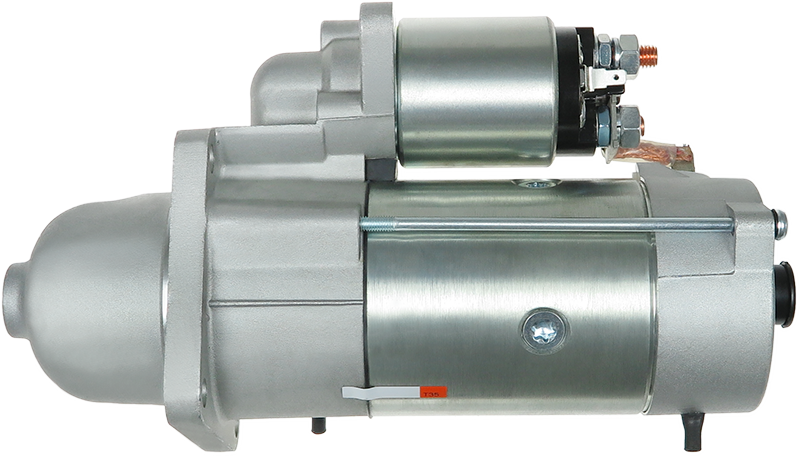

S0787S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0787S
Price: 546.94 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 546.94 including GST

NZ$ 475.60 excluding GST

UOM:

each

Product Code:

S0787S

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001263002 UD16565S 0001231045 0986021190 0001231017 0001263001 113760 CST10681AS CST10681GS 8166 1387383 1387383R 1704911 19084017 19084209 DRT1190 DT2300 EAA-121193 45-3350 SG0536 CS1382 8EA738258-081 8EA012586-341 6.7045.1 11.139.608 AZF4403 IS9460 STB1382 AELD021 AELF189 AELF405 LRS02176 MS766 72442886 860815 M93R3105SE 901.503.103 20401186BN 20401186OE 120-20146 6010681.0 6010681.1 458329 31284N 30129N BOS0001263002

Kilowatt	4 kW
Length (L.1)	316 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	27 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Make	Model	Type	Year
DAF	CF 65.180 5.9	[CE136C]	01.2001-05.2013
DAF	CF65.180 5.9	[CE136]	01.2001-12.2006
DAF	CF 65.220 5.9	[CE162C]	01.2001-05.2013
DAF	CF65.220 5.9	[CE162]	01.2001-12.2007
DAF	CF 65.220 6.7	[GR165S1]	05.2006-05.2013
DAF	CF65.220 9.7	[GR165]	01.2006-
DAF	CF 65.250 5.9	[CE184C]	01.2001-05.2013
DAF	CF65.250 5.9	[CE184C]	01.2001-12.2006
DAF	CF 65.250 6.7	[GR184S1]	05.2006-05.2013
DAF	CF65.250 9.7	[GR184]	01.2006-
DAF	CF 65.280 6.7	[GR210S1]	05.2006-05.2013
DAF	CF65.280 9.7	[GR210]	01.2007-
DAF	CF 65.300 6.7	[GR220]	01.2009-05.2013
DAF	CF65.300 6.7	[GR220]	01.2009-
DAF	LF 45.130 3.9	[BE99C]	12.2005-
DAF	LF 45.140 4.5	[FR103S1]	05.2006-
DAF	LF45.140 4.5	[FR103]	01.2006-
DAF	LF 45.150 3.9	[BE110C]	01.2001-
DAF	LF45.150 4.0	[BE110C]	01.2001-12.2007
DAF	LF 45.160 4.5	[FR118S1]	05.2006-
DAF	LF45.160 4.5	[FR118]	01.2006-
DAF	LF 45.170 3.9	[BE123C]	01.2001-
DAF	LF45.170 4.0	[BE123C]	01.2001-12.2007
DAF	LF 45.180 4.5	[FR136S1]	05.2006-
DAF	LF45.180 4.5	[FR136]	01.2006-
DAF	LF 45.180 5.9	[CE136C]	01.2001-
DAF	LF45.180 5.9	[CE136C]	01.2001-12.2008
DAF	LF 45.210 4.5	[FR152]	01.2009-
DAF	LF 45.220 5.9	[CE162C]	01.2001-
DAF	LF45.220 5.9	[CE162C]	01.2001-12.2009
DAF	LF 45.220 6.7	[GR165S1]	05.2006-
DAF	LF45.220 6.7	[GR165]	01.2006-
DAF	LF 45.250 6.7	[GR184S1]	03.2006-
DAF	LF45.250 6.7	[GR184]	01.2006-
DAF	LF 55.180 4.5	[FR136S1]	05.2006-
DAF	LF55.180 4.5	[FR136]	01.2006-
DAF	LF 55.180 5.9	[CE136C]	01.2001-
DAF	LF 55.180 5.9	[CE136C]	05.2006-
DAF	LF55.180 5.9	[CE136C]	01.2001-12.2008
DAF	LF 55.210 4.5	[FR152]	01.2009-
DAF	LF 55.220 5.9	[CE162C]	01.2001-
DAF	LF 55.220 5.9	[CE162C]	05.2006-
DAF	LF55.220 5.9	[CE162C]	01.2001-12.2008
DAF	LF 55.220 6.7	[GR165S1]	05.2006-
DAF	LF 55.250 5.9	[CE184C]	01.2001-
DAF	LF 55.250 5.9	[CE184C]	05.2006-
DAF	LF55.250 5.9	[CE184C]	01.2001-12.2008
DAF	LF 55.250 6.7	[GR184S1]	05.2006-
DAF	LF55.250 6.7	[GR184]	01.2006-
DAF	LF 55.280 6.7	[GR210S1]	05.2006-
DAF	LF55.280 6.7	[GR210]	01.2006-
DAF	LF 55.290 6.7	[GR210S1]	05.2006-
DAF	LF 55.300 6.7	[GR220]	01.2009-

45-3350 IS9460 AFLF189 A21190 105470 AELF189 STRL227 ANM23410 901.503.103.310 10010681OV 646009104 30129N 1528599 11.139.608 QRS2665 458329 901.503.103.280 19084209 1986S10074 2165364R 6010681.1 48969 DT2300 20401186OE 0986021190 2165363R MAV126810 AELF405 113760 BST32048 1387383R 6.7045.1 LES0457 8166 AC-CBS1382 1387383 1387381 31284N 1704911R ALEF189 901.503.103.213 DRT1190 901.503.103.216 BOS0001231017 CGB-91190 10010681AV 330527 1704911 STR10202 UD16565S 10439784 ANM23410X WG2045393 LRS2176 0001231017 438540 19084017 91201 STR79695 SBO681 CST10681AS PRSL227 STB1382 8821190 203036 11021190 MS766 S24BH0115A2 860815 120-20146 01.180.8504.000 901.503.103 S-22124 5.47008 8EA012586-341 EAA-121193 5110025 AZF4403 BOS0001263002 BOS0001263001 STR22124 AELD021 BOS0001231045 LRS02176 72442886 52.262 PTC-4023 20401186BN S24BH0115 SG0536 88212999 STR50673 CST10681GS 0001263002 1703434 0001263001 SBO681A 901.503.103.011 331788 WG2192611 ST02659 CS1382 8EA738258-081 0001263001-R 6010681 901.503.103.018 0001231045 M93R3105SE

S0787S
