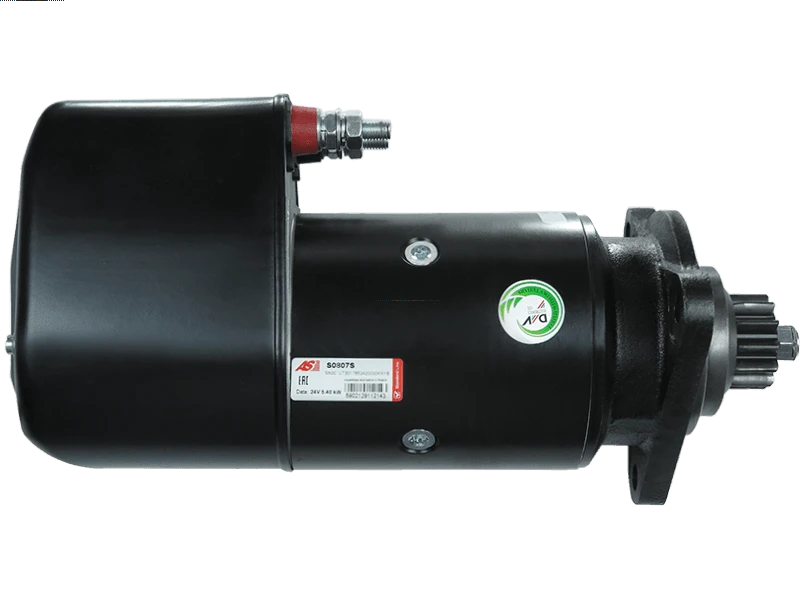

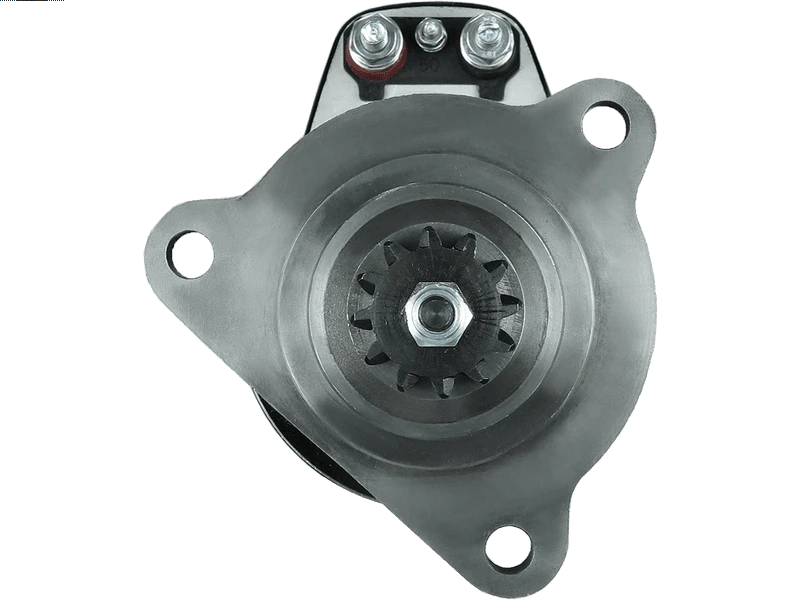

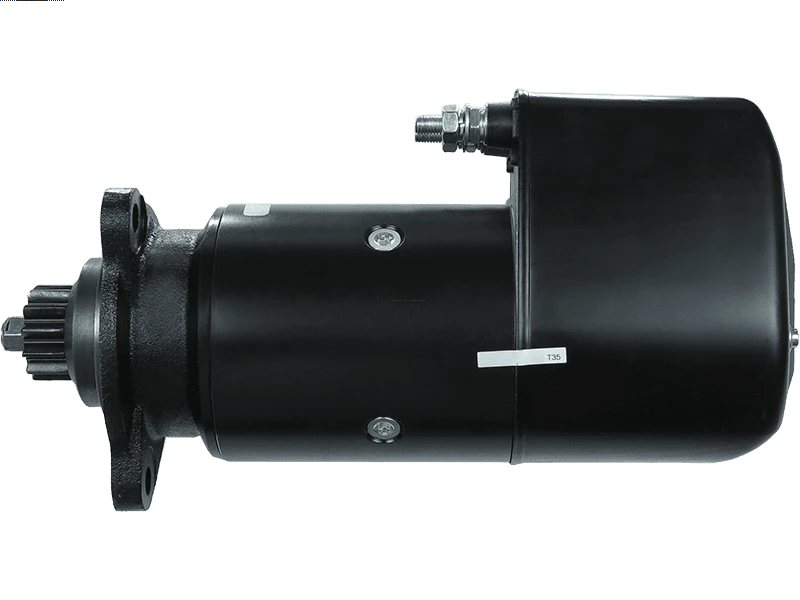

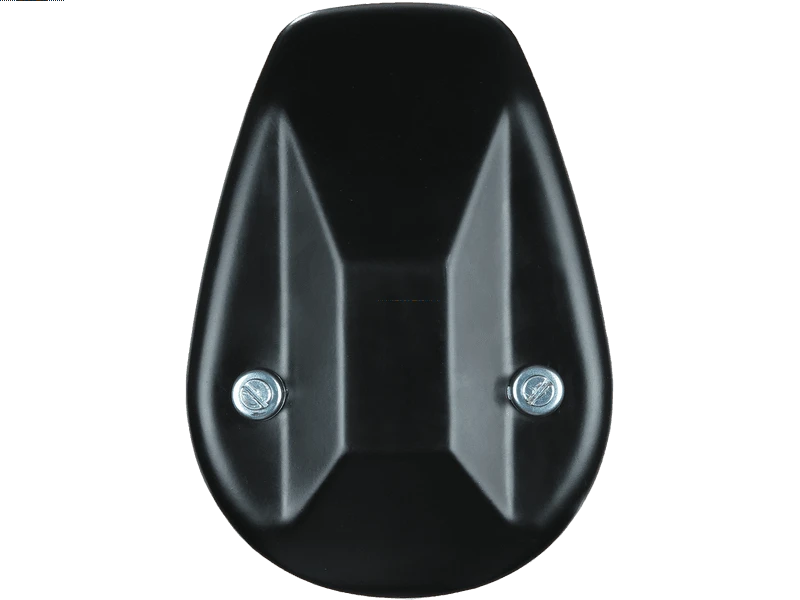

S0807S - Brand new AS-PL Starter motor

Specifications

Insulated Earth	Yes
Kilowatt	5.4 kW
Length (L.1)	388 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Center - Center (O.2)	126 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
OEM Product	No
Oil Sealed	Yes
Pinion at Rest (B)	47 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	FL 7/230 6.7	[D7B230]	09.1985-09.1998
VOLVO	FL 7/230 6.7	[TD71F]	09.1985-09.1998
VOLVO	FL 7/230 6.7	[TD71FQ]	09.1985-09.1998
VOLVO	FL 7/230 6.7	[TD73E]	09.1985-09.1998
VOLVO	FL 7/260 6.7	[D7A260]	12.1993-10.1999
VOLVO	FL 7/260 6.7	[D7B260]	11.1991-09.1998
VOLVO	FL 7/260 6.7	[D7B260]	12.1993-10.1999
VOLVO	FL 7/260 6.7	[TD73ES]	11.1991-09.1998
VOLVO	FL 7/285 6.7	[D7A285]	12.1993-10.1999
VOLVO	FL 7/290 6.7	[D7A285]	10.1993-09.1998
VOLVO	FM 7/250 7.3	[D7C250]	08.1998-12.2001
VOLVO	FM 7/290 7.3	[D7C290]	08.1998-12.2001
VOLVO	FS 718/260 6.7	[D7B230]	09.1994-03.1996
VOLVO	FS 718/260 6.7	[D7B260]	09.1994-03.1996

Reference Information

8113907 M9T081979 860512GB 110980 MAV126360 20401636BN MS574 8113230 STB0699 811.204.123 8192965 S24BH0103A2 471638 10699 EAA-121382 BOM 11.139.122 UNIT MS AZK5471 72736202 CS699 420731 CST10636ES 85000440 STRL650 5003312 M009T081979 CST10636AS 88212921 920-1293 0986015430 8EA012586-181 M009T81979 574 6010636.3 0001416065 6010636 8EA730215-001 20401636EL 874304 1516796R 220291 UD16625S IS9109 19024104 STR79547 260-46236 M9T81979 477049 1326960

Video/Publications

S0807S
