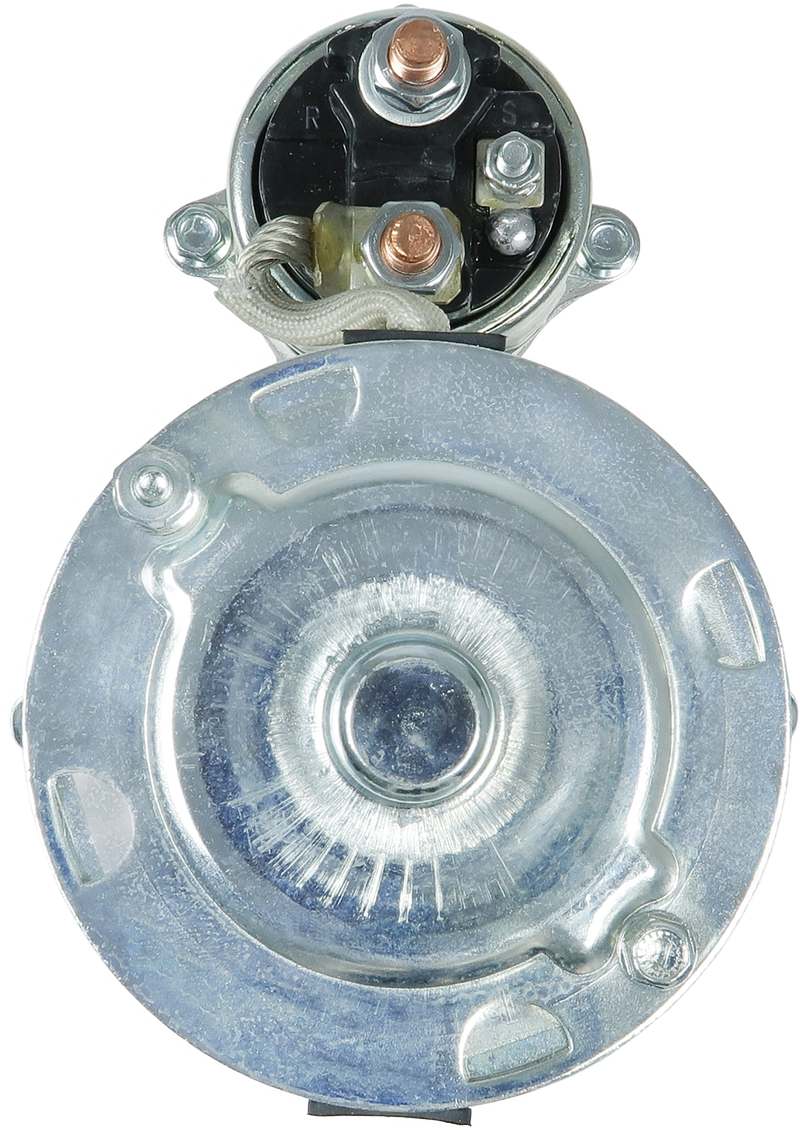

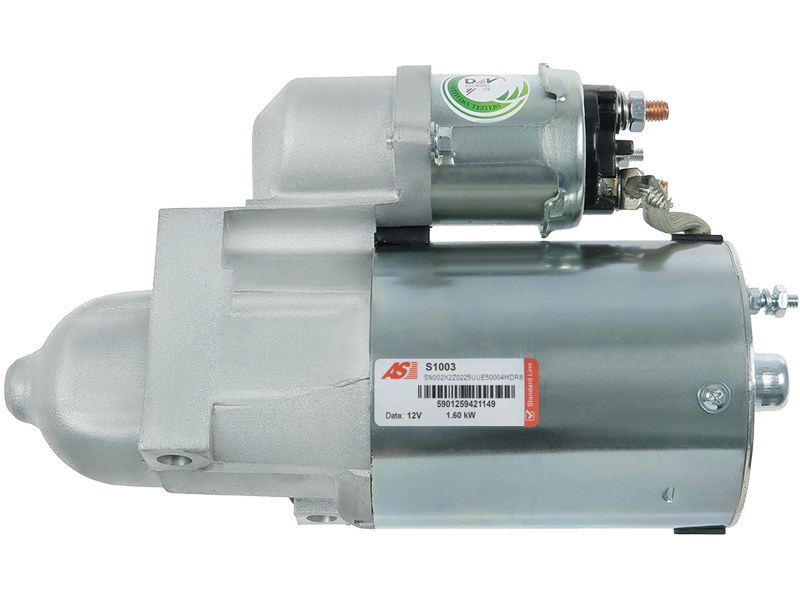

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 346.21 including GST
NZ$ 301.05 excluding GST
or four payments of $86.55
with
Learn More
each
S1003
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
10455011 10455013 10455016 10455042 10455050 10455054 10455070 10465065 111034 11832 12572716 1998427 1998524 22.0858 22.0858M 25-1483 60858 6313N 6313R 6416N 6416R 6419N 8213330 8982775013 8EA732681-001 9000910 DRZ5153 DRZ5155 LRS01275 S1094R STR80006 US858Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 267 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Center - Center (O.2) | 83 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| Mount Hole Diameter (C.4) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68.5 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Astre 4.3 | 01.1992-12.1998 | |
| CHEVROLET | Blazer 4.3 | 01.1995- | |
| CHEVROLET | C10 5.0 | 01.1985-12.1986 | |
| CHEVROLET | C1500 4.3 | 01.1988-12.1995 | |
| CHEVROLET | C20 5.0 | 01.1985-12.1986 | |
| CHEVROLET | C2500 4.3 | 01.1988-12.1995 | |
| CHEVROLET | Camaro 2.8 | 01.1985-12.1989 | |
| CHEVROLET | Camaro 3.1 RS | 01.1990-12.1992 | |
| CHEVROLET | Camaro 3.4 | 01.1993-12.1995 | |
| CHEVROLET | Camaro 3.4 V6 | [L32] | 12.1992-12.1995 |
| CHEVROLET | Camaro 5.0 | [LG4] | 01.1985-12.1986 |
| CHEVROLET | G10 4.3 | 01.1991-12.1997 | |
| CHEVROLET | G10 4.3 Express | 01.1996-12.1997 | |
| CHEVROLET | G10 4.3 Sportvan | 01.1991-12.1993 | |
| CHEVROLET | G10 5.0 | 01.1996-12.1997 | |
| CHEVROLET | G10 5.0 Express | 01.1996-12.1997 | |
| CHEVROLET | G20 4.3 | 01.1991-12.1997 | |
| CHEVROLET | G20 4.3 Sportvan | 01.1991-12.1995 | |
| CHEVROLET | G20 5.0 | 01.1996-12.1996 | |
| CHEVROLET | G20 5.0 Express | 01.1996-12.1997 | |
| CHEVROLET | G30 4.3 | 01.1991- | |
| CHEVROLET | K10 5.0 Suburban | 01.1985-12.1986 | |
| CHEVROLET | K1500 4.3 | 01.1988-12.1998 | |
| CHEVROLET | K1500 5.0 | 01.1996-12.1999 | |
| CHEVROLET | K2500 4.3 | 01.1988-12.1995 | |
| CHEVROLET | P30 4.3 | 01.1990-12.1995 | |
| CHEVROLET | S10 2.8 | 01.1984-12.1993 | |
| CHEVROLET | S10 2.8 Blazer | 01.1984-12.1990 | |
| CHEVROLET | S10 4.3 | 01.1988-12.1995 | |
| CHEVROLET | S10 4.3 Blazer | 01.1991-12.1994 | |
| CHEVROLET | Silverado 4.3 1500 | 01.1999-12.1999 | |
| GMC | C1500 4.3 | 01.1988-12.1988 | |
| GMC | C1500 4.3 SieRa | 01.1989-12.1995 | |
| GMC | C1500 4.3 SieRa XC | 01.1989-12.1997 | |
| GMC | C1500 5.0 SieRa | 01.1992-12.1997 | |
| GMC | C1500 5.0 SieRa XC | 01.1992-12.1997 | |
| GMC | C15/C1500 5.0 | 01.1985-12.1986 | |
| GMC | C2500 4.3 | 01.1988-12.1988 | |
| GMC | C2500 4.3 SieRa | 01.1989-12.1995 | |
| GMC | C2500 4.3 SieRa XC | 01.1989-12.1993 | |
| GMC | C2500 5.0 SieRa | 01.1992-12.1996 | |
| GMC | C2500 5.0 SieRa XC | 01.1992-12.1996 | |
| GMC | C25/C2500 5.0 | 01.1985-12.1986 | |
| GMC | G15/G1500 4.3 Rally | 01.1991-12.1993 | |
| GMC | G15/G1500 4.3 Savana | 01.1996-12.1997 | |
| GMC | G15/G1500 4.3 Vandura | 01.1991-12.1995 | |
| GMC | G15/G1500 5.0 | 01.1994- | |
| GMC | G15/G1500 5.0 Rally | 01.1992-12.1993 | |
| GMC | G15/G1500 5.0 Savana | 01.1996-12.1997 | |
| GMC | G15/G1500 5.0 Vandura | 01.1992-12.1995 | |
| GMC | G25/G2500 4.3 Rally | 01.1991-12.1995 | |
| GMC | G25/G2500 4.3 Vandura | 01.1991-12.1995 | |
| GMC | G25/G2500 5.0 Rally | 01.1992-12.1995 | |
| GMC | G25/G2500 5.0 Savana | 01.1996-12.1997 | |
| GMC | G25/G2500 5.0 Vandura | 01.1992-12.1995 | |
| GMC | G35/G3500 4.3 | 01.1992-12.1995 | |
| GMC | G35/G3500 4.3 | 01.1996-12.1996 | |
| GMC | G35/G3500 4.3 Rally | 01.1995-12.1996 | |
| GMC | G35/G3500 4.3 Savana | 01.1996-12.1996 | |
| GMC | G35/G3500 4.3 Vandura | 01.1991-12.1996 | |
| GMC | Jimmy 4.3 | 01.1995-12.1995 | |
| GMC | K1500 4.3 | 01.1988-12.1988 | |
| GMC | K1500 4.3 SieRa | 01.1989-12.1997 | |
| GMC | K1500 4.3 SieRa XC | 01.1989-12.1997 | |
| GMC | K1500 5.0 SieRa | 01.1991-12.1998 | |
| GMC | K1500 5.0 SieRa XC | 01.1991-12.1998 | |
| GMC | K15/K1500 5.0 | 01.1985-12.1986 | |
| GMC | K2500 4.3 | 01.1988-12.1988 | |
| GMC | K2500 4.3 SieRa | 01.1989-12.1995 | |
| GMC | K2500 4.3 SieRa XC | 01.1989-12.1993 | |
| GMC | K2500 5.0 SieRa | 01.1991-12.1995 | |
| GMC | K2500 5.0 SieRa XC | 01.1991-12.1995 | |
| GMC | P35/P3500 4.3 | 01.1990-12.1995 | |
| GMC | S15 2.8 | 01.1984-12.1990 | |
| GMC | S15 2.8 Jimmy | 01.1984-12.1989 | |
| GMC | S15 4.3 | 01.1988-12.1990 | |
| GMC | S15 4.3 Jimmy | 01.1988-12.1994 | |
| GMC | Safari 4.3 | 01.1990-12.1994 | |
| GMC | Safari 4.3 XT | 01.1991-12.1996 | |
| GMC | SieRa 4.3 1500 | 01.1999-12.1999 | |
| GMC | Sonoma 2.8 | 01.1991-12.1993 | |
| GMC | Sonoma 2.8 GT | 01.1992-12.1992 | |
| GMC | Sonoma 4.3 | 01.1991-12.1995 | |
| GMC | Sonoma 4.3 GT | 01.1992-12.1992 | |
| JEEP | Cherokee 2.8 | 01.1984-12.1986 | |
| JEEP | Cherokee 2.8 Chief | 01.1986-12.1986 | |
| JEEP | Cherokee 2.8 Laredo | 01.1986-12.1986 | |
| JEEP | Cherokee 2.8 Pioneer | 01.1986-12.1986 | |
| JEEP | Comanche 2.8 Custom | 01.1986-12.1986 | |
| JEEP | Comanche 2.8 X | 01.1986-12.1986 | |
| JEEP | Comanche 2.8 XLS | 01.1986-12.1986 | |
| PONTIAC | Firebird 2.8 | 01.1985-12.1989 | |
| PONTIAC | Firebird 2.8 S/E | 01.1985-12.1986 | |
| PONTIAC | Firebird 3.4 | 01.1993-12.1995 |
Reference Information
1998427 STR2700 1998524 6313R CST60127AS 111034 9000910 12572716 8213330 S1094R 10455070 25-1483 10455050 20409721BN 10455013 8982775013 ANM97373X 6416N S1003 E4TF11000A 10455054 6416R 10455011 6313N LRS1275 10455016 DRZ5153 10465065 US858 DRZ5155 STR80006 60858 STRW062 6060127.0 22.0858 LRS01275 6419N 8EA732681-001 22.0858M 10455042 11832Video/Publications
