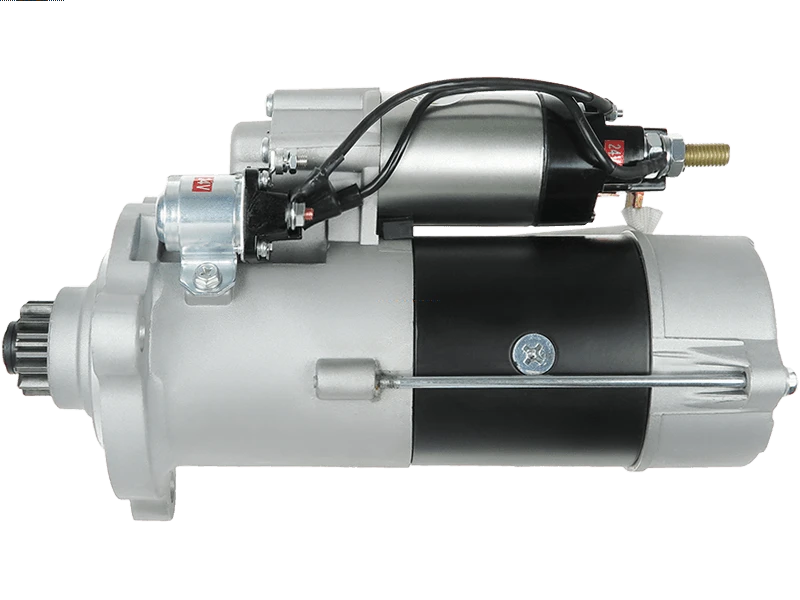

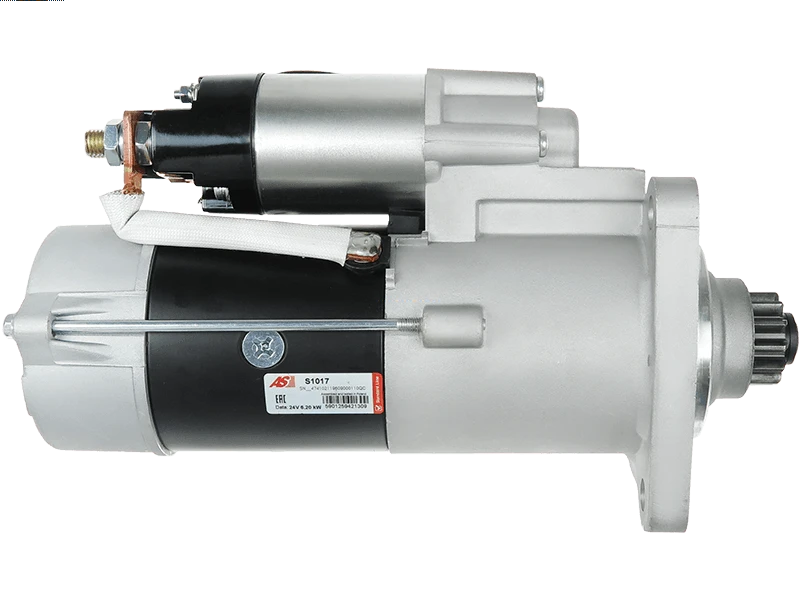

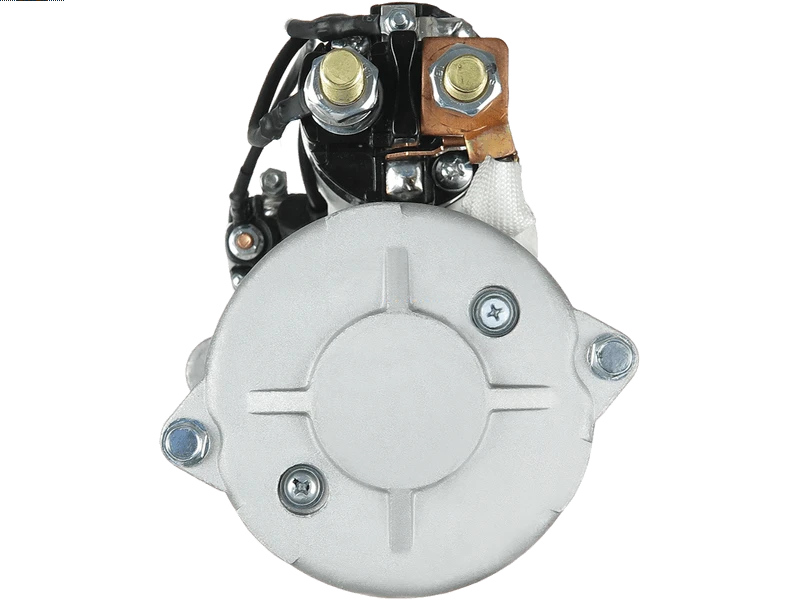

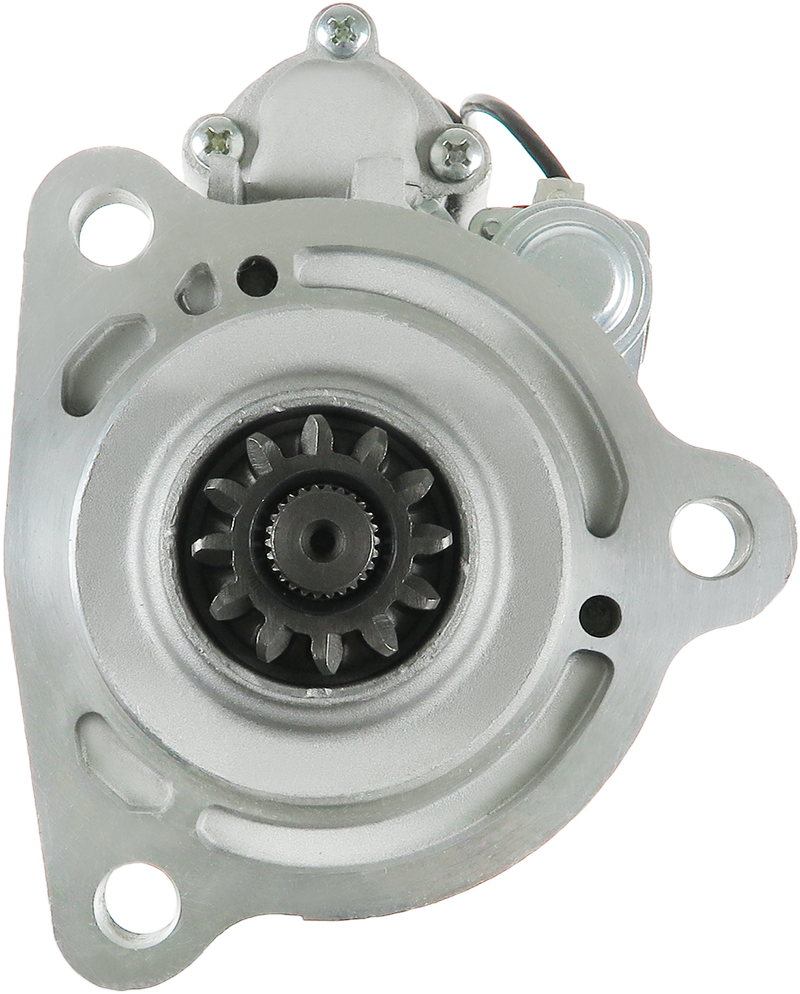

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 841.73 including GST
NZ$ 731.94 excluding GST
or four payments of $210.43
with
Learn More
each
S1017
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
19011501Associated Numbers
0001372006 0051515001 0051516401 0061511501 0986018370 101269 101269K 101269P 101463 101463B 101463M 101463P 11.139.160 113609 19011501 45-3281 458198 8EA738038-001 A0051515001 A0051516401 A0061511501 AZJ3440 CS1269 DRS8370 EAA-121272 IS9144 LRS01961 M105R3031SE M9T80472 RNL1837D S1017 STR50496Specifications
| Kilowatt | 6.2 kW |
| Length (L.1) | 347 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 14.5 mm |
| Mount Hole Diameter (C.2) | 14.5 mm |
| Mount Hole Diameter (C.3) | 14.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 11. 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ TRUCKS & BUSES | 1831 11.9 | [OM541.920] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1831 11.9 | [OM541.926] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1832 11.9 | [OM541.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1835 11.9 | [OM541.922][OM541.927] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1835 12.0 | [OM457.937] | 01.2002-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1836 11.9 | [OM541.942] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1840 11.9 | [OM541.923][OM541.924] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1840 12.0 | [OM457.937] | 01.2002-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1841 11.9 | [OM541.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1843 11.9 | [OM541.921][OM541.925] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1843 12.0 | [OM457.937] | 01.2002-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1844 11.9 | [OM541.921][OM541.946] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1846 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1848 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1848 12.0 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1848 15.9 | [OM542.921][OM542.925] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1850 15.9 | [OM542.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1853 15.9 | [OM542.920] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1854 15.9 | [OM542.942] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1857 15.9 | [OM542.922] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 1858 15.9 | [OM542.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 1860 16.0 | [OM542.964] | 05.2005- |
| MERCEDES BENZ TRUCKS & BUSES | 2031 11.9 | [OM541.920][OM541.926] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2032 11.9 | [OM541.920][OM541.926][OM541.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2035 11.9 | [OM541.922] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2035 11.9 | [OM541.927] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2036 11.9 | [OM541.922][OM541.927][OM541.942][OM541.943] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2040 11.9 | [OM541.923] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2040 11.9 | [OM541.924] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2041 11.9 | [OM541.923] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2041 11.9 | [OM541.924][OM541.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2043 11.9 | [OM541.925] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2044 11.9 | [OM541.921][OM541.925][OM541.946] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2046 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2048 12.0 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2048 15.9 | [OM542.925] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2050 15.9 | [OM542.940][OM542.941] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2531 11.9 | [OM541.920][OM541.922][OM541.940][OM541.942] | 09.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2532 11.9 | [OM541.920][OM541.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2535 11.9 | [OM541.922] | 09.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2535 12.0 | [OM457.937] | 01.2002- |
| MERCEDES BENZ TRUCKS & BUSES | 2536 11.9 | [OM541.922][OM541.943][OM541.942] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2540 11.9 | [OM541.923][OM541.944] | 09.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2540 12.0 | [OM457.937] | 01.2002-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 2541 11.9 | [OM541.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2543 11.9 | [OM541.925][OM541.946] | 09.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2543 12.0 | [OM457.937] | 01.2002-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 2544 11.9 | [OM541.946] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2546 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2557 15.9 | [OM542.922] | 09.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2631 11.9 | [OM541.920] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2632 11.9 | [OM541.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2635 11.9 | [OM541.922] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2636 11.9 | [OM541.942] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2640 11.9 | [OM541.923] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2641 11.9 | [OM541.944] | 06.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2643 11.9 | [OM541.925] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2644 11.9 | [OM541.946] | 06.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2646 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2648 15.9 | [OM542.921] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2650 15.9 | [OM542.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2653 15.9 | [OM542.920] | 04.1996-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2654 15.9 | [OM542.942] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 2657 15.9 | [OM542.922] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 2658 15.9 | [OM542.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3231 11.9 | [OM541.920][OM541.940] | 04.1997- |
| MERCEDES BENZ TRUCKS & BUSES | 3232 11.9 | [OM541.920][OM541.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3235 11.9 | [OM541.922][OM541.942] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3240 11.9 | [OM541.923] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3241 11.9 | [OM541.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3243 11.9 | [OM541.924][OM541.925] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3331 11.9 | [OM541.920][OM541.940][OM541.970][OM541.926] | 04.1997- |
| MERCEDES BENZ TRUCKS & BUSES | 3332 11.9 | [OM541.920][OM541.940][OM541.970] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3332 12.0 | [OM541.970] | 02.2005- |
| MERCEDES BENZ TRUCKS & BUSES | 3335 11.9 | [OM541.922] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3336 11.9 | [OM541.942] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3340 11.9 | [OM541.923][OM541.924] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3341 11.9 | [OM541.923][OM541.944] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3343 11.9 | [OM541.921][OM541.925] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3344 11.9 | [OM541.946][OM541.947] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3346 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3348 15.9 | [OM542.921][OM542.925] | 04.1997- |
| MERCEDES BENZ TRUCKS & BUSES | 3350 15.9 | [OM542.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3351 15.9 | [OM542.940] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3353 15.9 | [OM542.920] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 3354 15.9 | [OM542.942][OM542.962] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3355 15.9 | [OM542.942][OM542.962] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 3357 15.9 | [OM542.922] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 4140 11.9 | [OM541.923][OM541.944] | 04.1997- |
| MERCEDES BENZ TRUCKS & BUSES | 4143 11.9 | [OM541.921][OM541.925] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | 4144 11.9 | [OM541.925][OM541.946][OM541.976] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 4146 11.9 | [OM541.948] | 04.2003- |
| MERCEDES BENZ TRUCKS & BUSES | 4148 15.9 | [OM542.921][OM542.925] | 04.1997-10.2002 |
| MERCEDES BENZ TRUCKS & BUSES | O 500 12.0 | [OM457.944] | 10.2001- |
| MERCEDES BENZ TRUCKS & BUSES | O 580-17 RHD 15.9 | [OM542.948] | 02.2001-02.2006 |
Reference Information
19011501 A0051515001 RNL1837D A0061511501 CGB-28370 CGB-1708-24 MAV126760 LRS01961 0051515001 A005151500180 0986018370 8EA738038-001 005151500180 S24BH0057A2 458198 558 0061511501 DRS8370 101269 STR50496 LRS1961 0001372006 45-3281 MS STR2013 220265 101269P 11.139.160 CS1269 113609 101269K A0051516401 MAV123110 S1017 0051516401 STRL830 IS9144 1518391R AZJ3440Video/Publications
