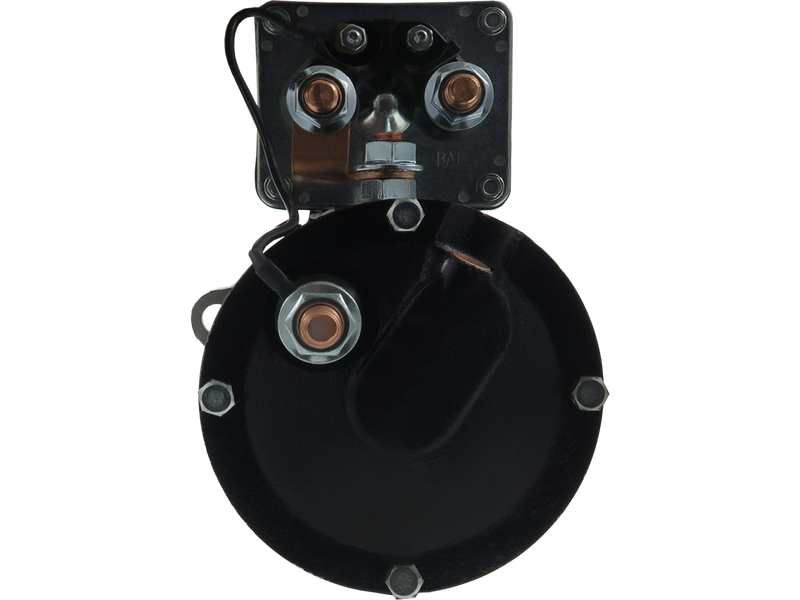

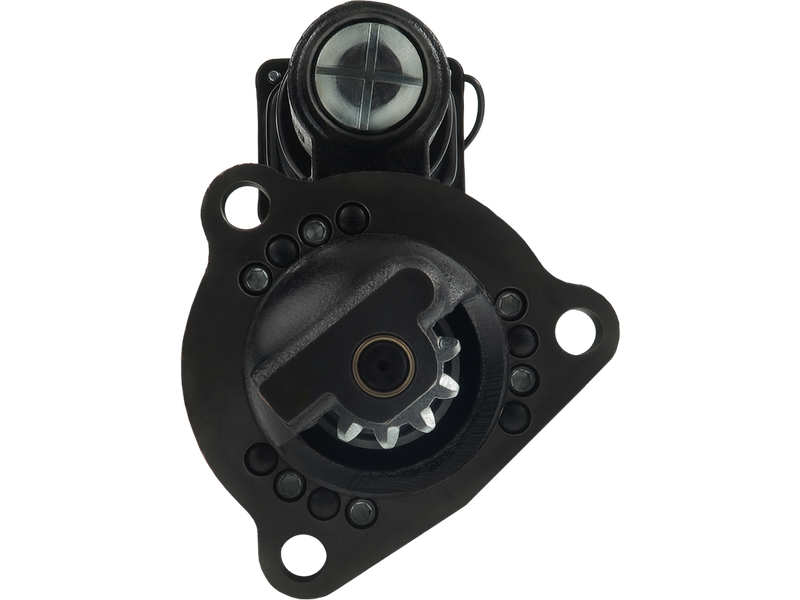

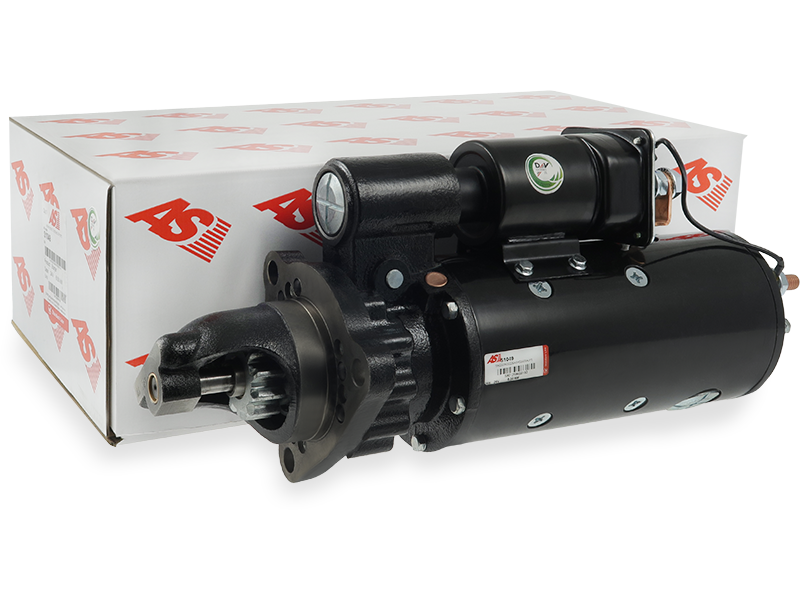

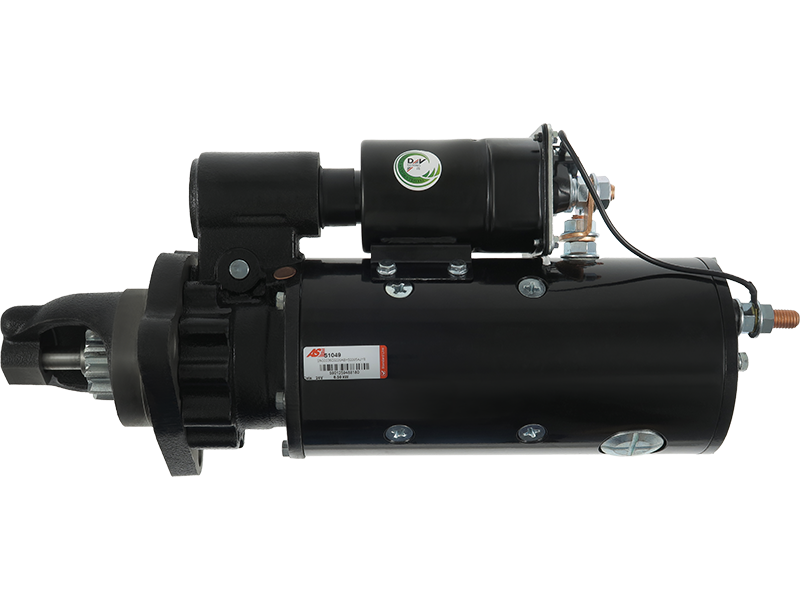

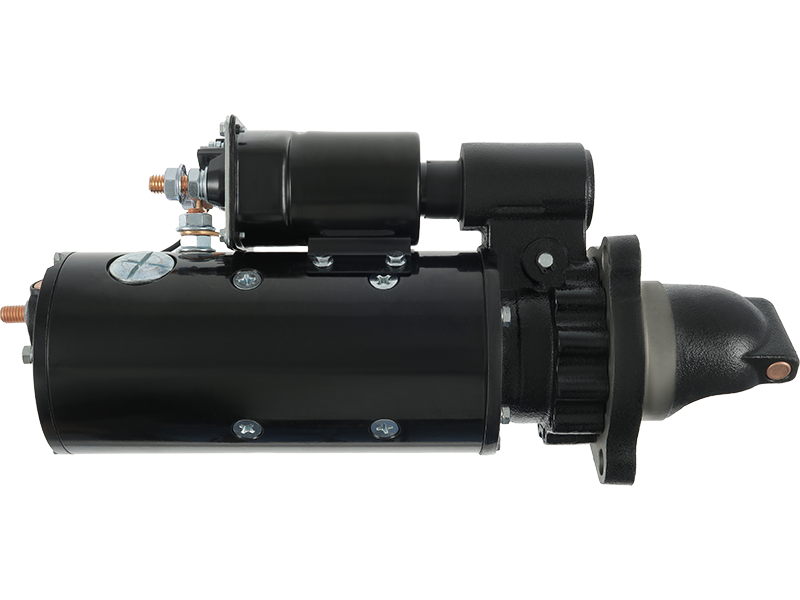

S1049 - Brand new AS-PL Starter motor

Specifications

Kilowatt	6.5 kW
Length (L.1)	510 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	16.5 mm
Mount Hole Diameter (C.2)	16.5 mm
Mount Hole Diameter (C.3)	16.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
OEM Product	No
Pinion at Rest (B)	48 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	DELCO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	Various Models	[3204]
CATERPILLAR	Various Models		01.1983-
CLARK	Various Models		01.1968-
CUMMINS	Various Models		01.1987-

Reference Information

10R0400 8H1813 9L6691 121555C91 0R5209 106-8554 5L637 9G5585 9G5584 CGB-1083 UD02183S 7T0800 2871253 M4T95481 7T0801 4N0957 111000 STR2642A 7T0806 6V5539 3103952 0R2187 5L2537 3021036 4N1062 60864K 60864D 207-1548 MAV626040 60864P 1443674 60864M 1L8174 1990456 0R2190 9N0435 60864W M004T95481 0R4259 4N957 3T3152 3T3153 STR2642 6N1889 207-1556 5L537 US864 7T0794 M125R3001SEP CH12807 3603862RX 3T2654 4N8118 3T2650 3604321RX 1114848 MS1-401A 8C3649 207-1564 5L2637 50-104 7L8797 9N0453 60864 3T2649 6N3160 8C3645 3T2646 8C3644 MS1-453 104-7041 STX201301 135161 6N3122
