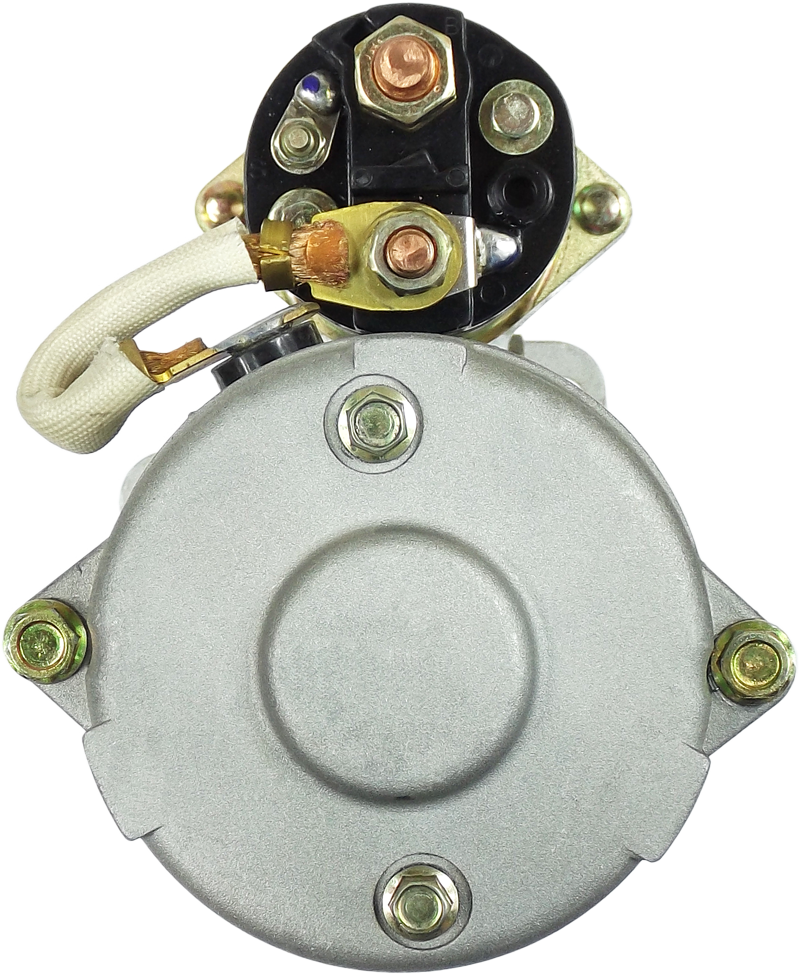

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 460.53 including GST
NZ$ 400.46 excluding GST
or four payments of $115.13
with
Learn More
each
S1057
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0-23000-1850 0-23000-2010 0-23000-2140 10461463 10465295 10479607 1107540 111255 1113274 1113290 1113597 112268 140-28144 1998340 1998350 1998357 1998373 1998468 1998484 201-28112 20409011BN 23438A 254053 254053N 254219 254219N 3010514 3042508 306727 3136124 35259620 35259690 50-8417 50-8431 6060110 6060134 6572 6572N 6587 6587N 6588 6588N 676372 8854 CST60110 CST60110AS CST60110ES CST60110GS CST60110OS CST60110RS CST60134 CST60134AS CST60134ES CST60134GS CST60134OS CST60134RS EAA-121644 UD02195S UD02196S UD02198SSpecifications
| Kilowatt | 2.8 kW |
| Length (L.1) | 337 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
| Wet Clutch | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALLIS CHALMERS | 640 3.3 | [4-203] | 01.1981-12.1986 |
| ALLIS CHALMERS | 700 3.3 | [4-203] | 01.1974-12.1979 |
| ALLIS CHALMERS | 700 3.3 | [4-203] | 01.1979-12.1979 |
| ALLIS CHALMERS | 700 3.9 | [4-236] | 01.1972-12.1974 |
| ALLIS CHALMERS | 705C | 01.1979-12.1981 | |
| ALLIS CHALMERS | 706C 3.3 | [4-203] | 01.1980-12.1982 |
| ALLIS CHALMERS | 706C 3.9 | [4-236] | 01.1980-12.1982 |
| ALLIS CHALMERS | 714B 3.9 | [4-236] | 01.1980-12.1985 |
| ALLIS CHALMERS | 715 3.9 | [4-236] | 01.1972-12.1979 |
| ALLIS CHALMERS | 715B 3.9 | [4-236] | 01.1980-12.1982 |
| ALLIS CHALMERS | 800 3.3 | [4-203] | 01.1974-12.1974 |
| ALLIS CHALMERS | 800 3.9 | [4-236] | 01.1972-12.1974 |
| ALLIS CHALMERS | TL 640 3.3 | [4-203] | 01.1981-12.1986 |
| ALLIS CHALMERS | Various Models | ||
| HYSTER | H-150-275H 5.8 | [6-354] | 01.1985-12.1986 |
| HYSTER | H-350A 5.8 | [6-354] | 01.1985-12.1988 |
| HYSTER | H-350B 5.8 | [6-354] | 01.1985-12.1988 |
| HYSTER | M-300H | 01.1963-12.1968 | |
| HYSTER | M-400H | 01.1963-12.1968 | |
| HYSTER | S-30CD 2.5 | [3-152] | 01.1965-12.1966 |
| HYSTER | S-40C 2.5 | [3-152] | 01.1967-12.1969 |
| HYSTER | S-40CD 2.5 | [3-152] | 01.1965-12.1966 |
| HYSTER | S-50C 2.5 | [3-152] | 01.1967-12.1969 |
| HYSTER | S-50CD 2.5 | [3-152] | 01.1965-12.1966 |
| HYSTER | Various Models | ||
| MASSEY FERGUSON | 200 2.5 | [3-152] | 01.1972-12.1977 |
| MASSEY FERGUSON | 2244 2.5 | [3-152] | 01.1966-12.1971 |
| MASSEY FERGUSON | 245 2.5 | 01.1977-12.1988 | |
| MASSEY FERGUSON | 254 2.5 | 01.1973-12.1988 | |
| MASSEY FERGUSON | 255 2.5 | 01.1977-12.1988 | |
| MASSEY FERGUSON | MF-200 2.5 | [3-152] | 01.1972-12.1977 |
| MASSEY FERGUSON | MF-2244 2.5 | [3-152] | 01.1966-12.1971 |
| NEW HOLLAND | L779D 3.3 | [4-203] | 01.1980-12.1984 |
| NEW HOLLAND | L783 3.3 | [4-203] | 01.1988-12.1988 |
| NEW HOLLAND | L785 3.3 | [4-203] | 01.1984-12.1988 |
| NEW HOLLAND | L85 3.9 | [Fiat] | 09.1995-12.1998 |
| NEW HOLLAND | L85 3.9 | [FIAT] | 09.1995-12.1998 |
| OLIVER | OC-4-3D | [DD-130] | 01.1957-12.1958 |
| WHITE | MA-60HD 3.9 | [4-236] | 01.1979-12.1981 |
| WHITE | MY-40B 3.9 | [4-236] | 01.1973-12.1981 |
| WHITE | MY-50B 3.9 | [4-236] | 01.1973-12.1981 |
| WHITE | MY-60B 3.9 | [4-236] | 01.1973-12.1981 |
| WHITE | MY-70B 3.9 | [4-236] | 01.1973-12.1981 |
| WHITE | MY-80B | [4-236] | 01.1975-12.1981 |
| WHITING | 7TM Hercules | [G3400-X108] | 01.1967-12.1968 |
| WHITING | 7TM Hercules | [G3400-X222] | 01.1969-12.1972 |
Reference Information
220007375 0-23000-2010 8854 830.931.103.030 104198A1 254053 MAV621100 830.931.103.515 STR80113 STR2669 339812 2743536 CST60110GS SG0199 830.931.103.519 UD02195S 0-61000-0270 0-23000-1850 916556 20409011BN 0-23000-2140 140-28144 STRS844 91-01-4364N 3136124 909785 6060110.0 6060110.1 1335407 3042508 STR2670 1113290 201-28112 6588N UD02198S 6572 112268 111255 254053N STRS791 10461485 3010514 20409011OE 88213606 STD2268 1383779 1998340 1998468 345434 676372 6588 306727 6587 CGB-1576 CST60110AS STR7066 91-01-4364 UD02196SVideo/Publications
