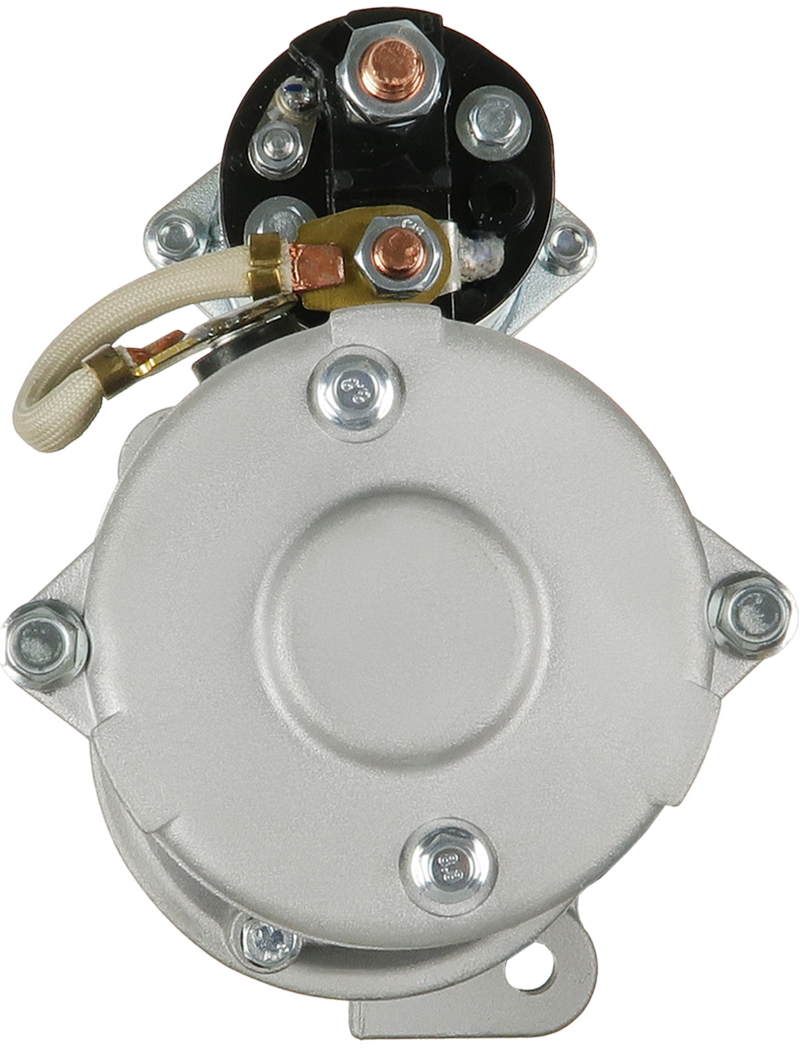

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 383.99 including GST
NZ$ 333.90 excluding GST
or four payments of $96.00
with
Learn More
each
S1059
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0-23000-2230 0-23000-2234 0-23000-2380 0-23000-2440 0-23000-2444 0-23000-2480 0-24000-3200 10465151 10465314 10479615 10479618 10479625 10479638 10479641 112253 140-28102 254216 35259630 3924410 3935071 50-8425 6060115 6585 6585N 6585R CST60115 CST60115AS CST60115ES CST60115GS CST60115OS CST60115RS F3HT11001DB F3HT11001DC F3HZ11001B F3HZ11002B F4HT11001BA F7HT11001FA F7HT11002FH STR80109 TS-1625 UD02203SSpecifications
| Kilowatt | 2.8 kW |
| Length (L.1) | 339 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 45 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | F 600 5.9 | [Cummins] | 01.1992- |
| FORD | F 700 5.9 | [Cummins] | 01.1992- |
| FORD | F 800 5.9 | [Cummins] | 01.1992- |
| FORD | F 900 5.9 | [Cummins] | 01.1992- |
| FORD | L 6000 5.9 | [Cummins] | 01.1992- |
| FORD | L 7000 5.9 | [Cummins] | 01.1992- |
| FORD | L 8000 5.9 | [Cummins] | 01.1992- |
| FORD | L 9000 5.9 | [Cummins] | 01.1992- |
| INGERSOLL RAND | VR 1044 5.9 | [4BT3.9] | 01.1999- |
| INGERSOLL RAND | VR 1056 5.9 | [4BT3.9] | 01.1999- |
| INGERSOLL RAND | VR 843 5.9 | [4BT3.9] | 01.1999- |
Reference Information
F3HT11001DB 10479615 F3HT11001DC 35259630 0-23000-2230 6585N 10479618 0-24000-3200 10479638 0-23000-2234 6585R TS-1625 3935071 10465151 F3HZ11002B CST60115 3924410 3134772 CST60115OS 50-8425 112253 10479641 10479625 UD02203S 0-23000-2440 3675172RX 6585 STR2651 CST60115AS 0-23000-2444 F4HT11001BA 6060115 CST60115ES 140-28102 F7HT11002FH CST60115GS 0-23000-2380 0-23000-2480 MAV621150 10465314 F3HZ11001B 254216 F7HT11001FA CST60115RS 339807 STR80109 STRS626 S1059Video/Publications
