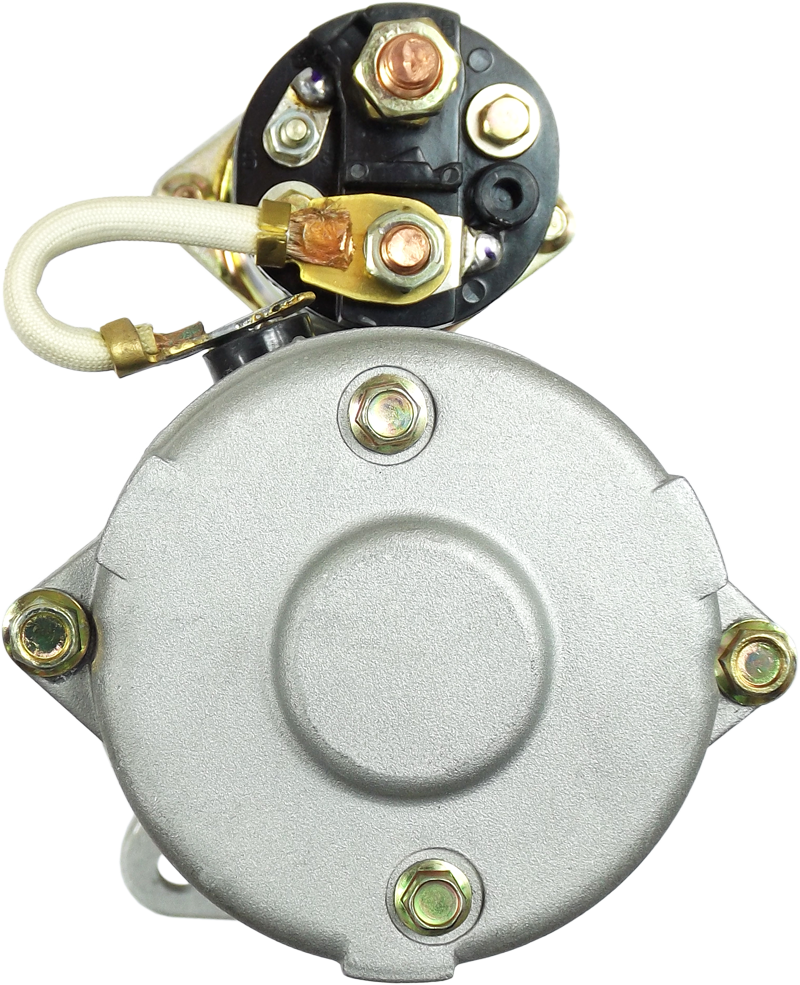

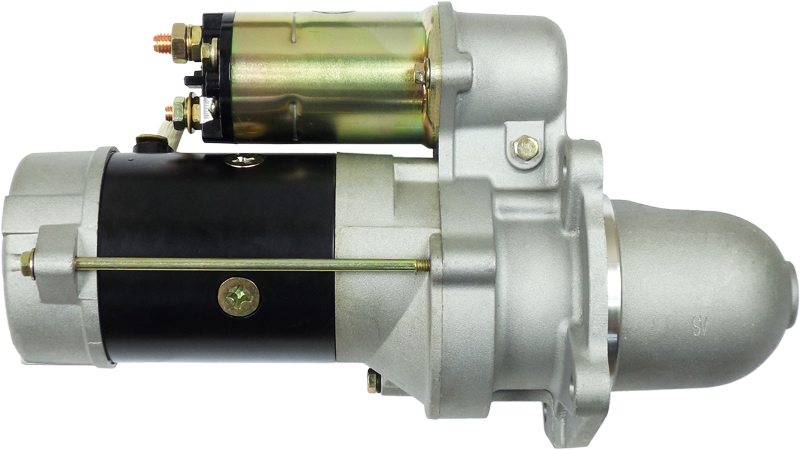

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 522.24 including GST
NZ$ 454.12 excluding GST
or four payments of $130.56
with
Learn More
each
S1061
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
10479614Associated Numbers
10465402 10479614 112667 140-28118 20409811BN 20409811OE 254241 323-1188 35259620 50-8428 6060118 6595 6595N 6595R CST60118AS CST60118GS F3HT11001AB F3HT11001AC F4HT11001AA SA802 STR80070 UD02206SSpecifications
| Kilowatt | 2.8 kW |
| Length (L.1) | 338 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BLUE BIRD | Engine 5.9 | [6B] | 01.1994-12.1996 |
| FORD | F 600 5.9 | [Cummins] | 01.1992- |
| FORD | F 600 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 650 5.9 | [Cummins] | |
| FORD | F 650 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 700 5.9 | [Cummins] | 01.1992- |
| FORD | F 700 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 750 5.9 | [Cummins] | |
| FORD | F 750 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 800 5.9 | [Cummins] | 01.1992- |
| FORD | F 800 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 900 5.9 | [Cummins] | 01.1992- |
| FORD | F 900 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 6000 5.9 | [Cummins] | 01.1992- |
| FORD | L 6000 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 7000 5.9 | [Cummins] | 01.1992- |
| FORD | L 7000 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 8000 5.9 | [Cummins] | 01.1992- |
| FORD | L 8000 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 9000 5.9 | [Cummins] | 01.1992- |
| FORD | L 9000 5.9 | [FD1060] | 01.1992-12.1999 |
Reference Information
10479614 20409811BN MAV621180 UD02206S F3MZ11002A 112667 6595 6595N S1061 6595R CST50114GS STR80070 F4HT11001AA 10465150 20409811OE 6060118.0 6060118.1 F3HZ11002A 10465402 50-8428 140-28118 STD2667 SA802 35259620 880.543.103.030 CST60118AS 6050114.1 3675173RX CST60118GS 254241 6060118 F3HT11001AC F3HT11001AB 323-1188 20446411OE 339806 STR2054Video/Publications
