Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 439.86 including GST
NZ$ 382.49 excluding GST
or four payments of $109.97
with
Learn More
each
S2052
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S13-111Associated Numbers

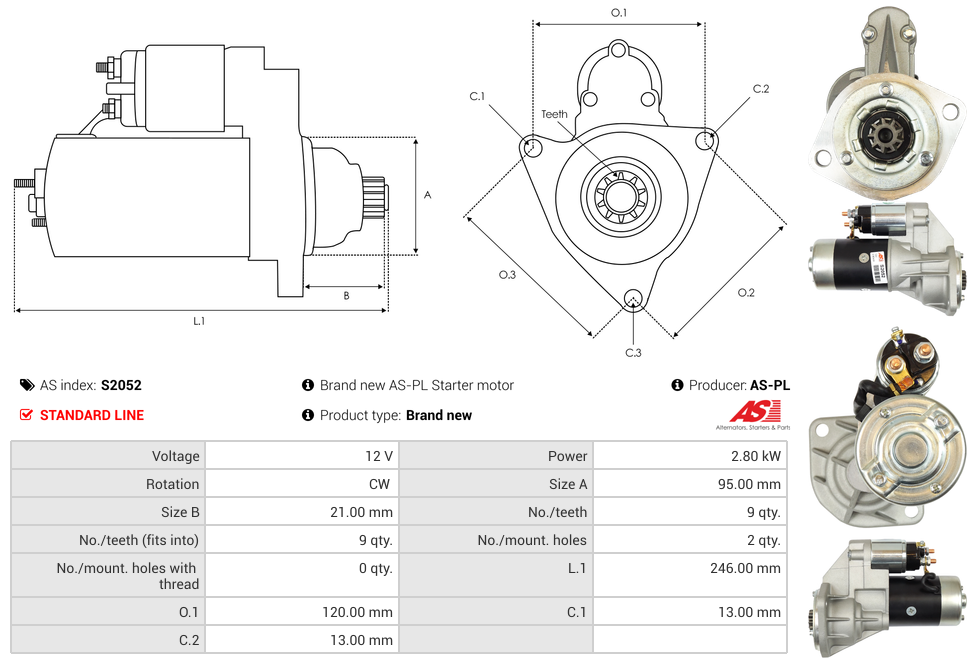

18299 18299N 20445332BN 25-1151 251151 254055 254824 6020233 8944104090 CST20233AS DRS3144 LRS01163 S13-111 S13-136 S2052 UD02163SSpecifications
| Kilowatt | 2.8 kW |
| Length (L.1) | 246 mm |
| Mount Hole Center - Center (O.1) | 120 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 95 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MUSTANG | 552 Mini Loader 2.7 | [4JB1] | 01.1985-12.1988 |
| MUSTANG | 960 2.7 | [4JB1] | 01.1994-12.1998 |
Reference Information
20445332BN LRS1163 S13-06A 18299 S2052 254055 6020233 MAV5190 220577 S13-33 LRS01163 JS679 S13-136 STR3010 8944104090 254824 DRS3144 UD02163S S13-111 STX200820 8941365070 MAV5000 S13-27A 110412 CST20233AS 18299N 251151 S13-33B 336359 MTU111 S13-33A 5811000800 8970848770 S13-27 S13-06 S13-28 5811000801 S13-25 5811001111 5811001331 3U111 003-U111 S13-123 25-1151 5811001112Video/Publications
S2052View your shopping basket or Browse other items in Starter Motors.
