Associated Numbers
S114-951 S2070S UD13783SSpecifications

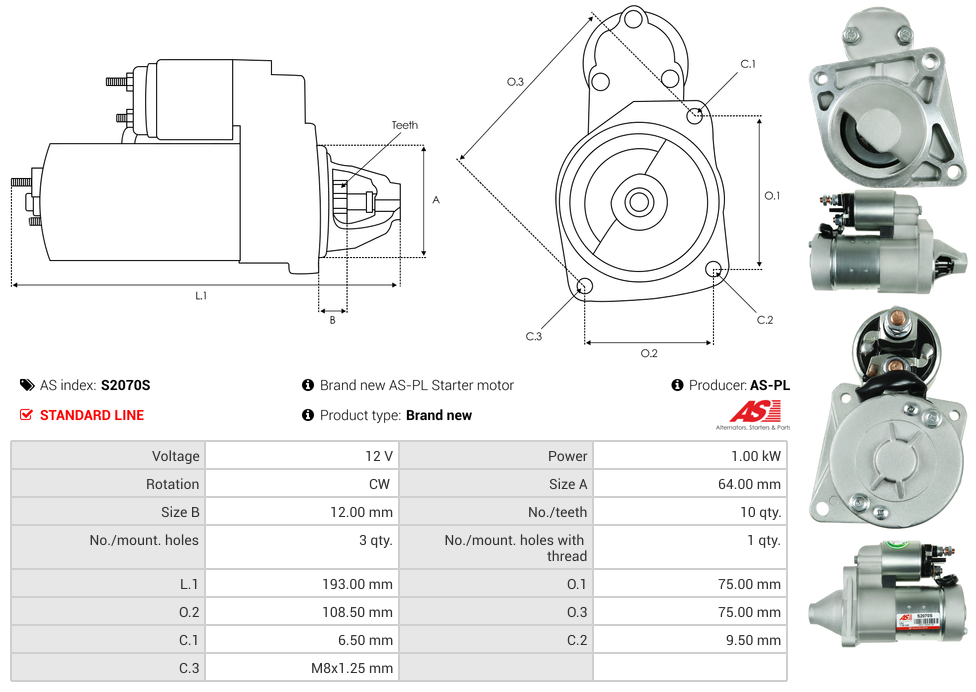

| Kilowatt | 1 kW |
| Length (L.1) | 193 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 108.5 mm |
| Mount Hole Center - Center (O.3) | 75 mm |
| Mount Hole Diameter (C.1) | 6.5 mm |
| Mount Hole Diameter (C.2) | 9.5 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 12 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Various Models |
Reference Information
S2070S UD13783S S114-951Video/Publications
