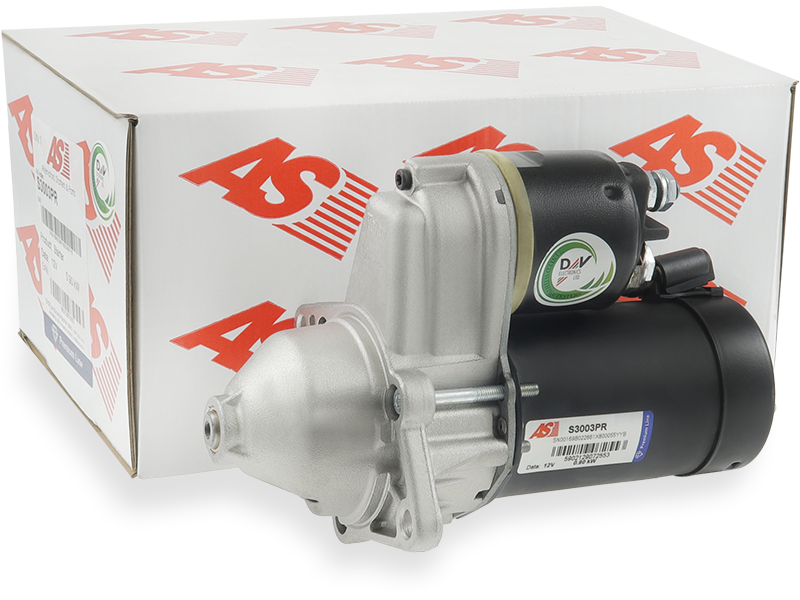

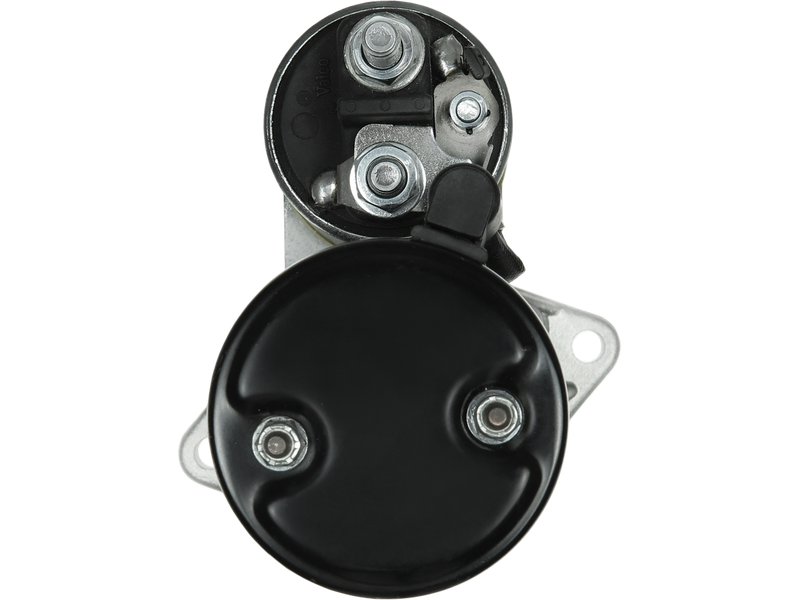

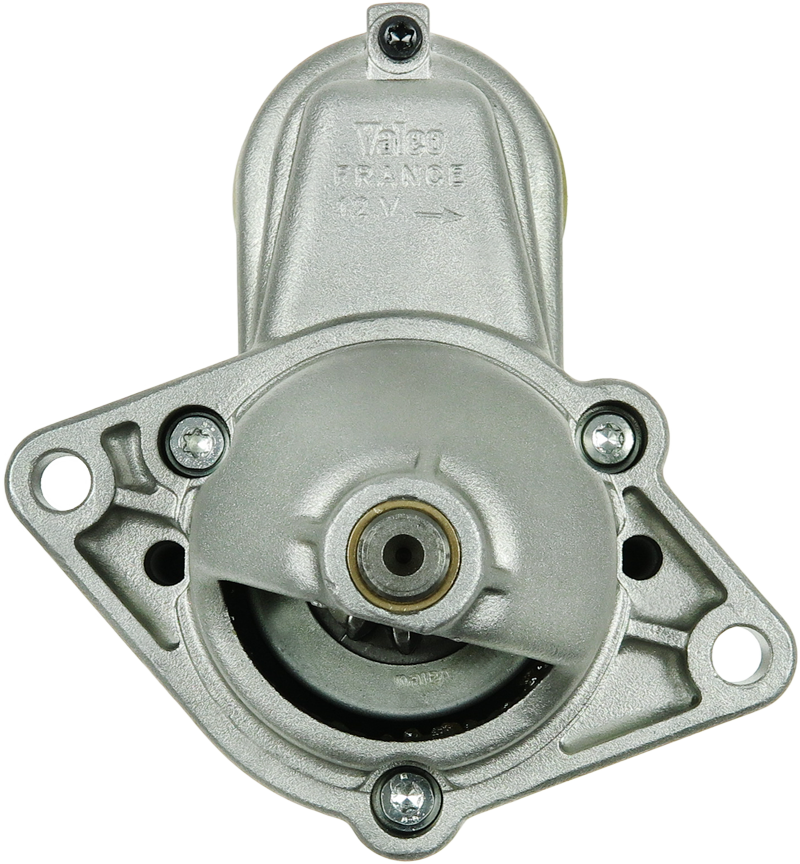

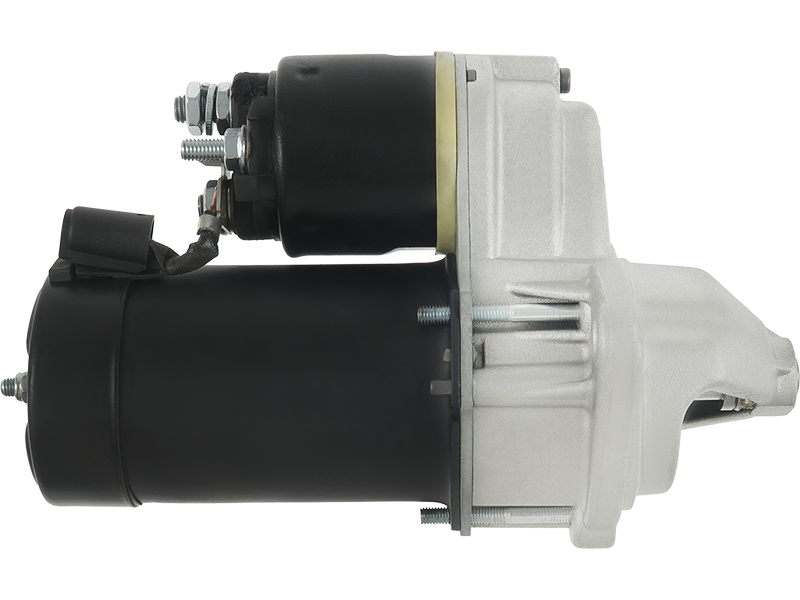

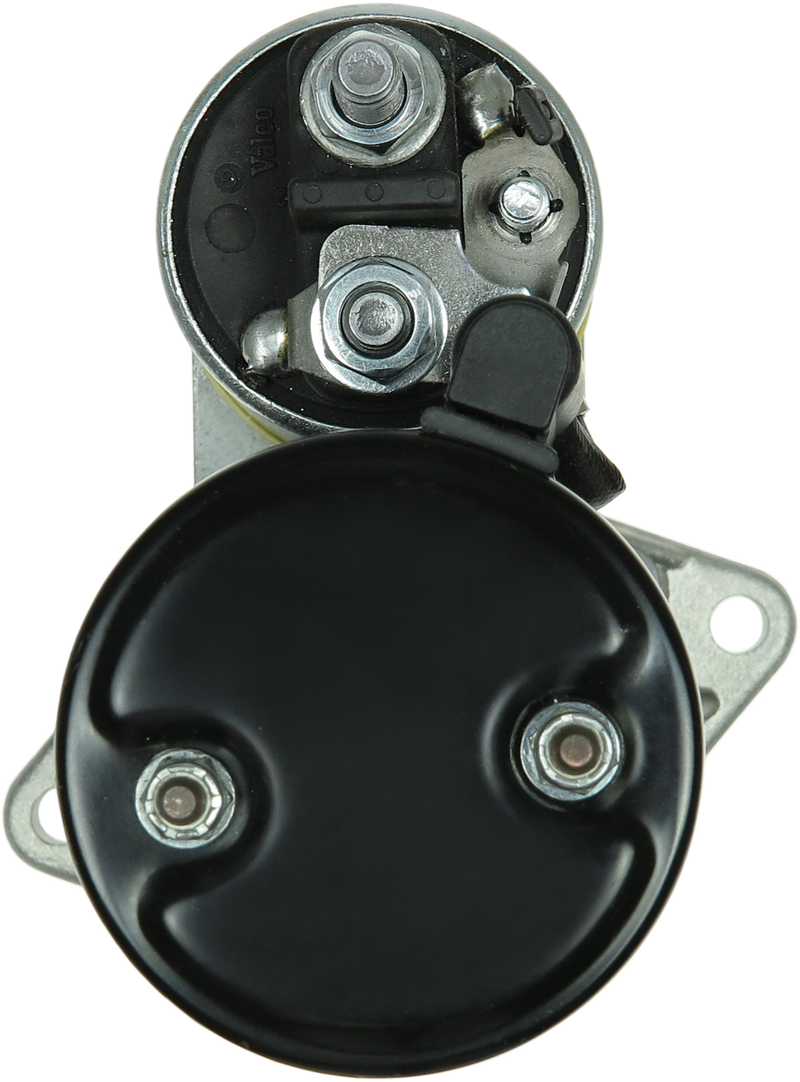

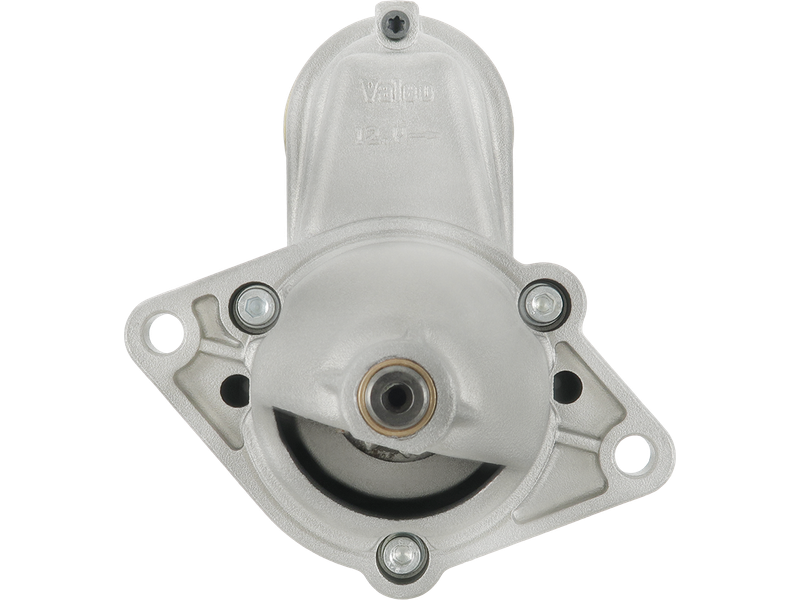

S3003PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	208 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	8.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	18.5 mm
Product Line	Premium Line
Product Type	Remanufactured
Rotation	CW
Spigot Diameter (A)	68 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CHEVROLET	Aveo 1.4		03.2006-
CHEVROLET	Espero 1.5 16V	[A15MF]	02.1995-
CHEVROLET	Kalos 1.4	[F14S3]	09.2002-
CHEVROLET	Kalos 1.4 16V	[F14D3]	04.2003-
CHEVROLET	Lacetti 1.4		03.2004-01.2005
CHEVROLET	Lacetti 1.4 16V	[F14D3]	03.2005-
CHEVROLET	Lacetti 1.6	[F16D3]	02.2004-
CHEVROLET	Lacetti 1.8	[T18SED]	08.2005-
CHEVROLET	Lanos 1.4	[A14SMS]	05.1997-
CHEVROLET	Lanos 1.5	[A15SMS]	05.1997-
CHEVROLET	Lanos 1.6 16V	[A16DMS]	05.1997-
CHEVROLET	Nexia 1.5	[G15MF]	02.1995-08.1997
CHEVROLET	Nexia 1.5 16V	[A15MF]	02.1995-08.1997
CHEVROLET	Nubira 1.6	[F16D3]	07.2003-
CHEVROLET	Nubira 1.6 16V	[A16DMS]	05.1997-
CHEVROLET	Nubira 1.8	[T18SED]	07.2003-
CHEVROLET	Nubira 2.0 16V	[T20SED]	12.2000-
CHEVROLET	Rezzo 1.6		08.2005-
CHEVROLET	Tacuma 1.8	[A18DMS]	09.2000-01.2005
CHEVROLET	Tacuma 1.8	[F18D2]	09.2000-01.2005
DAEWOO	Espero 1.5 16V	[A15MF]	02.1995-
DAEWOO	Kalos 1.4	[F14S3]	09.2002-
DAEWOO	Kalos 1.4 16V	[F14D3]	04.2003-
DAEWOO	Lacetti 1.4		03.2004-01.2005
DAEWOO	Lacetti 1.4 16V	[F14D3]	03.2005-
DAEWOO	Lacetti 1.6	[F16D3]	02.2004-
DAEWOO	Lacetti 1.8	[T18SED]	08.2005-
DAEWOO	Lanos 1.4	[A14SMS]	05.1997-
DAEWOO	Lanos 1.5	[A15SMS]	05.1997-
DAEWOO	Lanos 1.6 16V	[A16DMS]	05.1997-
DAEWOO	Nexia 1.5	[G15MF]	02.1995-08.1997
DAEWOO	Nexia 1.5 16V	[A15MF]	02.1995-08.1997
DAEWOO	Nubira 1.6	[F16D3]	07.2003-
DAEWOO	Nubira 1.6 16V	[A16DMS]	05.1997-
DAEWOO	Nubira 1.8	[T18SED]	07.2003-
DAEWOO	Nubira 2.0 16V	[T20SED]	12.2000-
DAEWOO	Rezzo 1.6		08.2005-
DAEWOO	Rezzo 1.8	[A18DMS]	09.2000-01.2005
DAEWOO	Rezzo 1.8	[F18D2]	09.2000-01.2005
OPEL	Agila 1.0 i 12V	[Z10XE]	09.2000-08.2003
OPEL	Agila 1.2 16V Twinport	[Z12XEP]	07.2004-
OPEL	Agila 1.2 i 16V	[Z12XE]	09.2000-06.2004
OPEL	Ascona C 1.6	[16SV]	09.1986-08.1988
OPEL	Ascona C 1.6 i	[C16LZ]	09.1986-08.1987
OPEL	Ascona C 1.6 i	[C16NZ]	09.1987-08.1988
OPEL	Ascona C 1.6 i	[E16NZ]	09.1987-08.1988
OPEL	Astra F 1.4 i	[C14NZ]	03.1992-09.1998
OPEL	Astra F 1.4 i	[C14NZ]	09.1991-01.1998
OPEL	Astra F 1.4 i	[C14SE]	03.1992-09.1998
OPEL	Astra F 1.4 i	[X14NZ]	09.1997-08.2000
OPEL	Astra F 1.4 i 16V	[X14NZ]	09.1997-08.2000
OPEL	Astra F 1.4 i 16V	[X14XE]	04.1996-02.1998
OPEL	Astra F 1.4 Si	[C14SE]	03.1992-01.1998
OPEL	Astra F 1.6 i	[16NZR]	09.1995-01.1998
OPEL	Astra F 1.6 i	[C16NZ]	02.1993-07.1996
OPEL	Astra F 1.6 i	[C16NZ]	03.1992-02.1998
OPEL	Astra F 1.6 i	[C16NZ]	08.1996-01.1998
OPEL	Astra F 1.6 i	[C16NZ]	09.1991-08.1994
OPEL	Astra F 1.6 i	[C16SE]	02.1993-07.1996
OPEL	Astra F 1.6 i	[C16SE]	03.1992-02.1998
OPEL	Astra F 1.6 i	[C16SE]	08.1996-01.1998
OPEL	Astra F 1.6 i	[X16SZ]	02.1993-07.1996
OPEL	Astra F 1.6 i	[X16SZ]	08.1996-01.1998
OPEL	Astra F 1.6 i	[X16SZR]	08.1996-01.1998
OPEL	Astra F 1.6 i 16V	[X16XEL]	09.1994-08.2000
OPEL	Astra G 1.2 16V	[X12XE]	09.1997-09.2003
OPEL	Astra G 1.2 i 16V	[X12XE]	09.1997-09.2003
OPEL	Astra G 1.4 i 16V	[X14XE]	09.1997-09.2000
OPEL	Astra G 1.4 i 16V	[X14XE]	09.2000-01.2004
OPEL	Astra G 1.4 i 16V	[Z14XE]	09.2000-01.2004
OPEL	Astra G 1.6	[Z16XEP]	03.2003-08.2005
OPEL	Astra G 1.6 16V	[X16XEL]	03.2000-02.2005
OPEL	Astra G 1.6 16V	[X16XEL]	09.1997-08.2000
OPEL	Astra G 1.6 16V	[Z16XEP]	03.2000-02.2005
OPEL	Astra G 1.6 i	[X16SZR]	02.1998-09.2000
OPEL	Astra G 1.6 i 16V	[X16XEL]	09.1997-08.2000
OPEL	Astra G 1.6 i 16V	[X16XEL]	09.1998-01.2005
OPEL	Astra G 1.6 i 16V	[Z16XE]	09.1998-01.2005
OPEL	Astra G 1.6 Twinport	[Z16XEP]	03.2003-01.2004
OPEL	Astra H 1.4	[Z14XEP]	03.2004-
OPEL	Astra H 1.4 Twinport GTC	[Z14XEP]	03.2005-
OPEL	Combo 1.2 i	[C12NZ]	07.1994-09.1997
OPEL	Combo 1.2 i	[X12SZ]	07.1994-08.1997
OPEL	Combo 1.4	[C14NZ]	07.1994-03.1996
OPEL	Combo 1.4 16V	[X14XE]	08.1999-10.2001
OPEL	Combo 1.4 16V	[Z14XEP]	08.2005-
OPEL	Combo 1.4 i	[C14SE]	07.1994-08.1997
OPEL	Combo 1.4 Tour	[Z14XEP]	10.2004-
OPEL	Corsa A 1.2	[12NV]	09.1986-03.1993
OPEL	Corsa A 1.2	[12ST]	02.1986-04.1989
OPEL	Corsa A 1.2 i	[C12NZ]	09.1989-03.1993
OPEL	Corsa A 1.2 S	[12S]	09.1982-08.1994
OPEL	Corsa A 1.2 S	[12ST]	09.1982-03.1993
OPEL	Corsa A 1.3	[13NB]	03.1986-10.1999
OPEL	Corsa A 1.3	[13SB]	09.1982-03.1993
OPEL	Corsa A 1.3 i	[13NB]	09.1985-03.1993
OPEL	Corsa A 1.3 i	[C13N]	09.1985-12.1992
OPEL	Corsa A 1.3 S	[13SB]	09.1982-09.1994
OPEL	Corsa A 1.4 i	[C14NZ]	01.1990-03.1993
OPEL	Corsa A 1.4 i	[C14SE]	09.1991-03.1993
OPEL	Corsa A 1.4 S	[14NV]	09.1989-03.1993
OPEL	Corsa A 1.6 GSi	[C16NZ]	08.1988-09.1992
OPEL	Corsa A 1.6 GSi	[C16SE]	05.1988-03.1993
OPEL	Corsa A 1.6 GSi	[C16SEI]	09.1989-03.1993
OPEL	Corsa A 1.6 GSi	[E16SE]	05.1988-03.1993
OPEL	Corsa B 1.0 i 12V	[X10XE]	09.1996-08.1999
OPEL	Corsa B 1.2 i	[12NZ]	03.1993-09.2000
OPEL	Corsa B 1.2 i	[C12NZ]	03.1993-09.2000
OPEL	Corsa B 1.2 i	[X12SZ]	03.1993-09.2000
OPEL	Corsa B 1.2 i 16V	[X12XE]	09.1997-09.2000
OPEL	Corsa B 1.4 i	[C14NZ]	03.1993-09.2000
OPEL	Corsa B 1.4 i	[X14SZ]	08.1999-09.2000
OPEL	Corsa B 1.4 i 16V	[C14SEL]	08.1997-09.2000
OPEL	Corsa B 1.4 i 16V	[X14XE]	09.1994-08.1999
OPEL	Corsa B 1.4 Si	[C14SE]	03.1993-09.2000
OPEL	Corsa B 1.6 GSi 16V	[C16XE]	03.1993-09.2000
OPEL	Corsa B 1.6 i 16V	[C16SEL]	08.1997-09.2000
OPEL	Corsa B 1.6 i 16V	[X16XE]	03.1993-09.2000
OPEL	Corsa C 1.0 i 12V	[Z10XE]	09.2000-
OPEL	Corsa C 1.0 Twinport	[Z10XEP]	06.2003-
OPEL	Corsa C 1.2 i 16V	[Z12XE]	09.2000-
OPEL	Corsa C 1.2 Twinport	[Z12XEP]	07.2004-
OPEL	Corsa C 1.4 i 16V	[Z14XE]	09.2000-
OPEL	Corsa C 1.4 i 16V	[Z14XEP]	09.2003-
OPEL	Corsa C 1.4 Twinport	[Z14XEP]	06.2003-
OPEL	Corsa D 1.0	[Z10XEP]	07.2006-
OPEL	Corsa D 1.2	[Z12XEP]	07.2006-
OPEL	Corsa D 1.4	[Z14XEP]	07.2006-
OPEL	Kadett E 1.4 i	[C14NZ]	01.1990-08.1991
OPEL	Kadett E 1.6	[16SV]	09.1986-08.1991
OPEL	Kadett E 1.6 Combo	[16SV]	09.1986-12.1991
OPEL	Kadett E 1.6 i	[C16LZ]	09.1988-08.1991
OPEL	Kadett E 1.6 i	[C16NZ]	09.1988-08.1991
OPEL	Kadett E 1.6 i	[E16NZ]	09.1988-08.1991
OPEL	Kadett E 1.6 S	[16SV]	09.1986-08.1991
OPEL	Meriva 1.4 16V Twinport	[Z14XEP]	07.2004-
OPEL	Meriva 1.6	[Z16XEP]	01.2006-
OPEL	Tigra 1.4 i	[Z14XEP]	06.2004-
OPEL	Tigra 1.4 i 16V	[X14XE]	07.1994-08.1999
OPEL	Tigra 1.6 i 16V	[C16SEL]	08.1997-
OPEL	Tigra 1.6 i 16V	[X16XE]	07.1994-09.1997
OPEL	Vectra A 1.4 S	[14NV]	04.1988-06.1992
OPEL	Vectra A 1.6	[16SV]	09.1988-08.1995
OPEL	Vectra A 1.6 i	[16LZ2]	09.1993-11.1995
OPEL	Vectra A 1.6 i	[C16NZ]	09.1988-08.1995
OPEL	Vectra A 1.6 i	[C16NZ2]	09.1993-08.1995
OPEL	Vectra A 1.6 i	[E16NZ]	09.1988-08.1995
OPEL	Vectra A 1.6 i	[X16SZ]	09.1993-11.1995
OPEL	Vectra A 1.6 S	[16SV]	09.1988-08.1995
OPEL	Vectra B 1.6 i	[X16SZR]	09.1996-07.2003
OPEL	Vectra B 1.6 i 16V	[X16XEL]	09.1995-07.2002
OPEL	Vectra B 1.6 i 16V	[Y16XE]	09.1995-09.2002
OPEL	Vectra B 1.6 i 16V	[Z16XE]	09.2000-09.2002
OPEL	Vectra C 1.6	[Z16XEP]	01.2006-
OPEL	Vectra C 1.6 GTS	[Z16XEP]	01.2006-
OPEL	Zafira A 1.6 16V	[X16XEL]	04.1999-07.2005
OPEL	Zafira A 1.6 16V	[Z16XE]	04.1999-07.2005
OPEL	Zafira A 1.6 i	[Z16YNG]	09.2001-
OPEL	Zafira B 1.6	[Z16XEP]	07.2005-
VAUXHALL	Agila 1.0 12V	[Z10XE]	09.1999-08.2003
VAUXHALL	Agila 1.2 16V Twinport	[Z12XEP]	07.2004-
VAUXHALL	Astra E 1.4 i	[C14NZ]	01.1990-08.1991
VAUXHALL	Astra E 1.4 S	[14NV]	01.1990-08.1991
VAUXHALL	Astra F 1.4 i	[C14NZ]	09.1991-09.1998
VAUXHALL	Astra F 1.4 i	[C14SE]	03.1991-02.1998
VAUXHALL	Astra F 1.4 i	[X14XE]	01.1996-03.2001
VAUXHALL	Astra F 1.4 i 16V	[X14XE]	02.1996-09.1998
VAUXHALL	Astra F 1.4 S	[14NV]	09.1991-02.1998
VAUXHALL	Astra F 1.6 i	[C16NZ]	09.1991-02.1998
VAUXHALL	Astra F 1.6 i	[C16SE]	03.1992-02.1998
VAUXHALL	Astra F 1.6 i	[E16NZ]	09.1991-02.1998
VAUXHALL	Astra F 1.6 i	[X16SZ]	07.1994-02.1998
VAUXHALL	Astra F 1.6 i	[X16SZR]	03.1992-08.1997
VAUXHALL	Astra G 1.2 16V	[X12XE]	09.1997-09.2000
VAUXHALL	Astra G 1.4 16V	[X14XE]	09.1997-08.2000
VAUXHALL	Astra G 1.4 16V	[Z14XE]	09.2000-08.2005
VAUXHALL	Astra G 1.6	[X16SZR]	09.1997-08.2005
VAUXHALL	Astra G 1.6 16V	[X16XEL]	09.1997-08.2000
VAUXHALL	Astra G 1.6 16V	[Z16XE]	09.2000-08.2005
VAUXHALL	Astra MK III 1.4 i 16V	[X14XE]	02.1996-02.1998
VAUXHALL	Astra MK III 1.6 i 16V	[X16XEL]	01.1994-02.1998
VAUXHALL	Astra MK IV 1.2 16V	[Z12XE]	09.2000-08.2005
VAUXHALL	Astra MK IV 1.6	[Z16SE]	09.2000-08.2005
VAUXHALL	Astra MK IV 1.6 16V	[Z16XE]	09.2000-
VAUXHALL	Astra MK V 1.4	[Z14XEP]	08.2004-
VAUXHALL	Astravan MK IV 1.6 i	[X16SZR]	08.1998-09.2000
VAUXHALL	Astravan MK IV 1.6 i	[Z16SE]	09.2000-
VAUXHALL	Belmont 1.6	[16SH]	01.1988-09.1993
VAUXHALL	Cavalier 1.4 S	[14NV]	09.1988-11.1995
VAUXHALL	Cavalier 1.6	[16SV]	09.1988-05.1993
VAUXHALL	Cavalier 1.6 i	[X16SZ]	09.1994-11.1995
VAUXHALL	Combo 1.2	[C12NZ]	07.1994-08.1997
VAUXHALL	Combo 1.2	][X12SZ]	07.1994-08.1997
VAUXHALL	Combo 1.4	[C14NZ]	07.1994-10.2001
VAUXHALL	Combo 1.4	[C14SE]	07.1994-10.2001
VAUXHALL	Combo 1.4	[Z14XEP]	01.2004-
VAUXHALL	Combo 1.6	[Z16SE]	10.2001-
VAUXHALL	Corsa 1.4 i 16V	[X14XE]	09.1994-08.1999
VAUXHALL	Corsa B 1.0 i 12V	[X10XE]	09.1996-09.2000
VAUXHALL	Corsa B 1.2 i 16V	[X12XE]	03.1998-09.2000
VAUXHALL	Corsa B 1.4 i	[C14NZ]	03.1993-09.2000
VAUXHALL	Corsa B 1.4 i	[C14SE]	04.1994-09.2000
VAUXHALL	Corsa B 1.4 i	[X14SZ]	09.1996-08.1998
VAUXHALL	Corsa B 1.4 i 16V	[X14XE]	09.1994-09.2000
VAUXHALL	Corsa B 1.6 GSi 16V	[C16XE]	09.1994-09.2000
VAUXHALL	Corsa B 1.6 i 16V	[X16XE]	09.1994-09.2000
VAUXHALL	Corsa MK II 1.0 12V	[Z10XE]	09.2000-08.2003
VAUXHALL	Corsa MK II 1.2 16V	[Z12XE]	09.2000-
VAUXHALL	Corsa MK II 1.2 Dualfuel 16V	[Z12XE]	08.2001-08.2004
VAUXHALL	Corsa MK II 1.4 16V	[Z14XE]	09.2000-
VAUXHALL	Corsa Mk III 1.2	[Z12XEP]	07.2006-
VAUXHALL	Corsa Mk III 1.4	[Z14XEP]	07.2006-
VAUXHALL	Corsavan MK II 1.2 Dualfuel 16V	[Z12XE]	08.2001-
VAUXHALL	Meriva 1.4 16V Twinport	[Z14XEP]	07.2004-
VAUXHALL	Meriva 1.6 i 16V Twinport	[Z16XEP]	01.2006-
VAUXHALL	Nova 1.4 S	[14NV]	01.1990-02.1993
VAUXHALL	Nova A 1.2 i	[C12NZ]	09.1990-03.1993
VAUXHALL	Nova A 1.2 N	[12NV]	01.1990-03.1993
VAUXHALL	Nova A 1.3 i	[C13N]	09.1990-03.1993
VAUXHALL	Nova A 1.4 i	[C14NZ]	01.1990-03.1993
VAUXHALL	Nova A 1.4 i	[C14SE]	09.1991-03.1993
VAUXHALL	Nova A 1.4 S	[14NV]	01.1990-03.1993
VAUXHALL	Nova A 1.6 GSi	[C16SE]	02.1992-03.1993
VAUXHALL	Nova A 1.6 GSi	[C16SEI]	09.1989-03.1993
VAUXHALL	Nova A 1.6 GSi	[E16SE]	05.1988-03.1992
VAUXHALL	Novavan 1.2	[12NV]	01.1990-10.1994
VAUXHALL	Tigra 1.4	[Z14XEP]	09.2004-
VAUXHALL	Tigra 1.4 16V	[X14XE]	09.1994-08.1999
VAUXHALL	Vectra B 1.6 i	[X16SZR]	10.1995-
VAUXHALL	Vectra B 1.6 i 16V	[X16XEL]	10.1995-
VAUXHALL	Vectra B 1.6 i 16V	[Y16XE]	10.1995-
VAUXHALL	Vectra B 1.6 i 16V	[Z16XE]	10.1995-
VAUXHALL	Vectra Mk II 1.6	[Z16XEP]	01.2006-
VAUXHALL	Vectra Mk II 1.6 16V	[Z16XE]	06.2004-
VAUXHALL	Vectra Mk II 1.6 GTS	[Z16XEP]	01.2006-
VAUXHALL	Zafira 1.6 16V	[X16XEL]	04.1998-
VAUXHALL	Zafira MK II 1.8	[Z18XEP]	07.2005-
VAUXHALL	Zafira MK II 1.8	[Z18XER]	07.2005-

Reference Information

STX200083R 6202079 220354 6202077 25192447 PRSL137 6202075 DRS7120X 1202174 9190838 1202173 GS438183-A 1202172 30899N 93374341 DRS7120N 93175885 93175884 9000700 93176051 0986017120 90535261 MAV122050 STX200441R 25198414 CST15105AS 0001102035 455699 11.130.969 STR50001 93175996 STV0519 3.59001E+11 6202094 STX200083 10519 9133598 DRS7120 220129 9000801 9199321 220001 PRSL049 S1073R 20513050 11.131.622 96550792 436056 24436877 10455506 EAA-121653 MS47 MAV122480 MAV7060 66925321 8EA011610-411 6202049 93189228 9.4428E+11 1516766R STX200009R STRL137 93189230 MAV6300 95524893 96952005 96952006 9130838 EAA-121872 95524894 STX200006R 130.519.102.000 STX200441 32648N 6202050 32648R STRL049 130.519.102.008 25196021 130.519.102.009 25186107 AZE1216 S-6551 111123 6202064 LRS898 MO0016MA 6202061 93171936 93604828 88212504 458228 D6RA163 D6RA162 STR0001 25182244 90348292 9.43252E+11 1202217 STM505 9163860 20479501BN 9512055 96208782 9512051 9163856 96208781 SG0398 LRS00898 STR79099 10519V 55556130 MRS17125 93184533 96843578 90337028 726802 MSR914 95524203 93184535 CGB-23549 DRS3837 10519H 90508036 STX200152 96469960 STM1088 9117031 455973 96469963 STRW234 90543872 90543871 RNL1712 6202016 8EA012140-201 6202013 96430344 6202011 220656 1200172 MAV171940 STX200009 MRS17120 STX200006 6015105.1 D6RA32 1202128 0001112008 1202127 1202003 90341777 90421876 CS519 90421877 42017120 ANM19340 STM1317 MSN2172 9000756 R1540011 1202137 20479501OE 55568572 50199 55578921 130.519.102.505 D6RA249 DRS3837N 11665 6015105 455700 130.519.102.502 9512766 8EA726164-001 R1540021 R1540023 72735675 25200067 1202142 D6RA62 GS438183V-R 55351608 93174025 MAV4560 915191 6.0001.9 CST15105GS 3491342 71739718 92089899 R1540024 AES8198 93175902 STX200601 91-20-3526 EAA-111346 9000981 25187957 S12VA0025A2 9115192 9115191 R1040008 R1040004 63524160010 1202962 1203137 1202961 25-2128 3620 1202281 9115197 MAV7010 MAV3210
