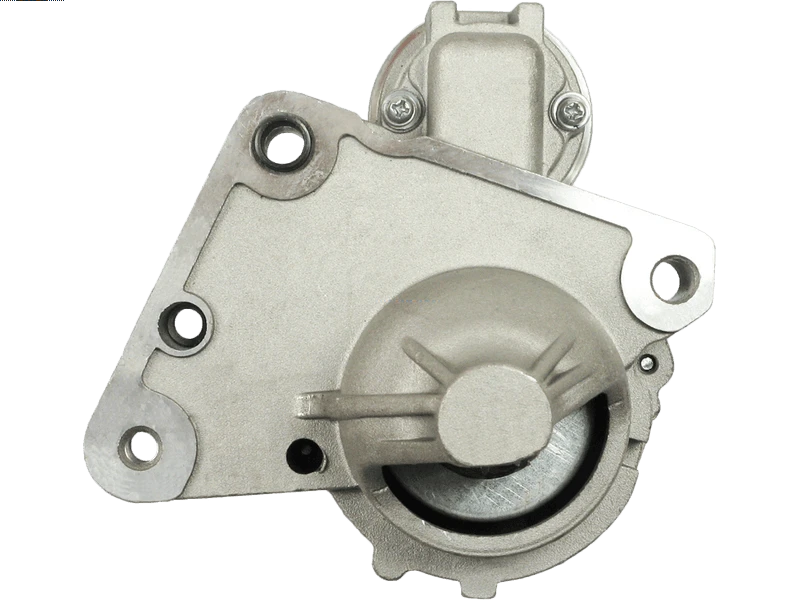

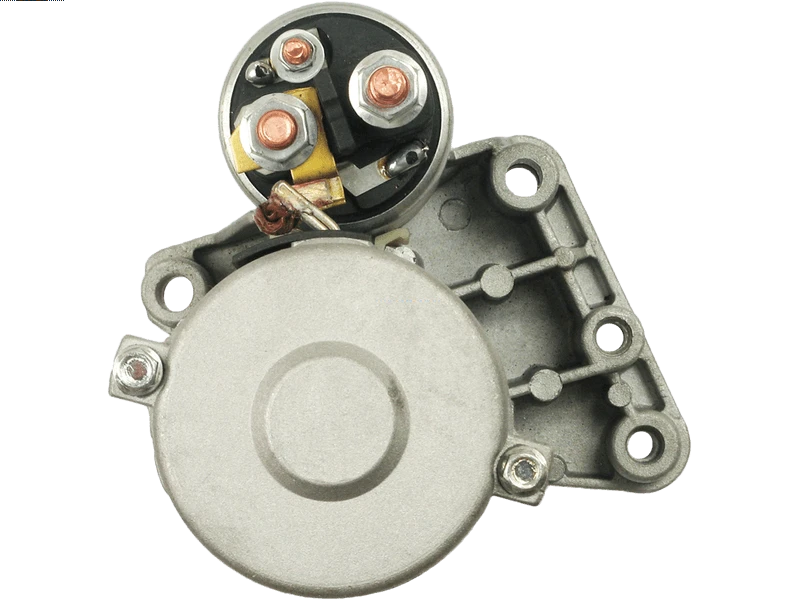

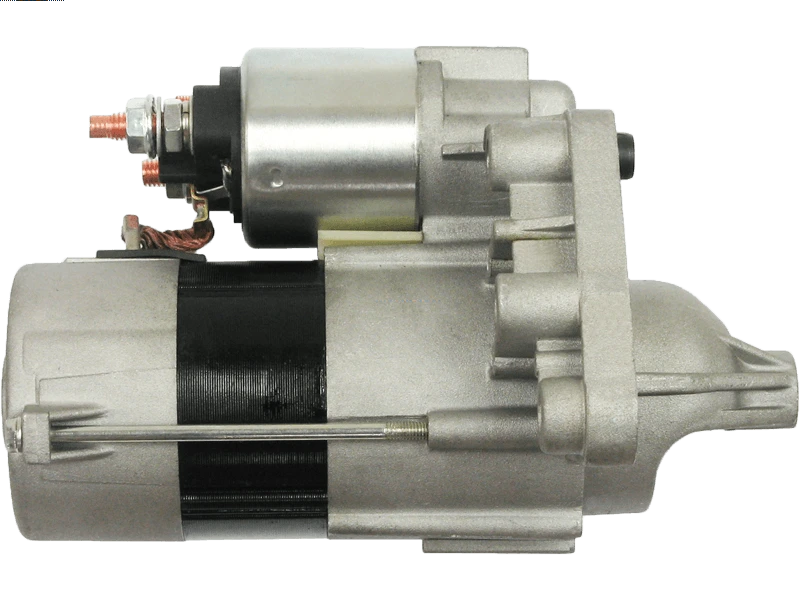

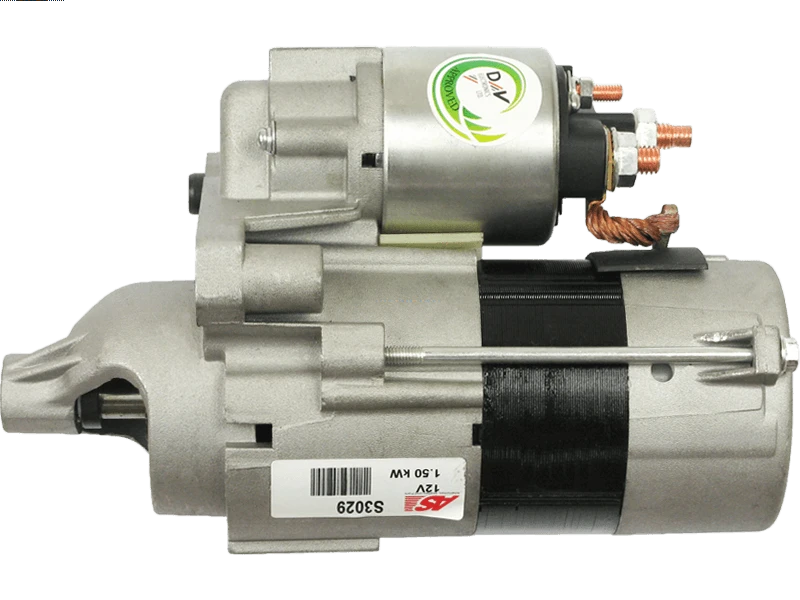

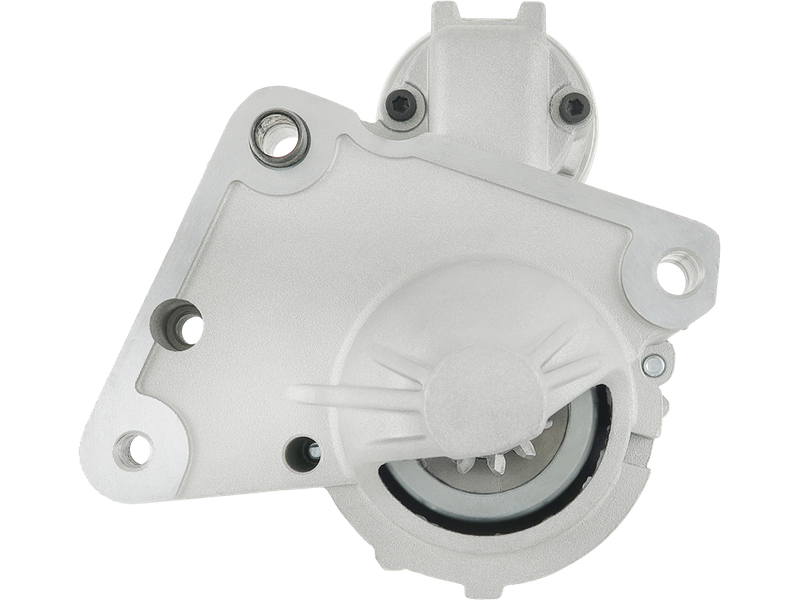

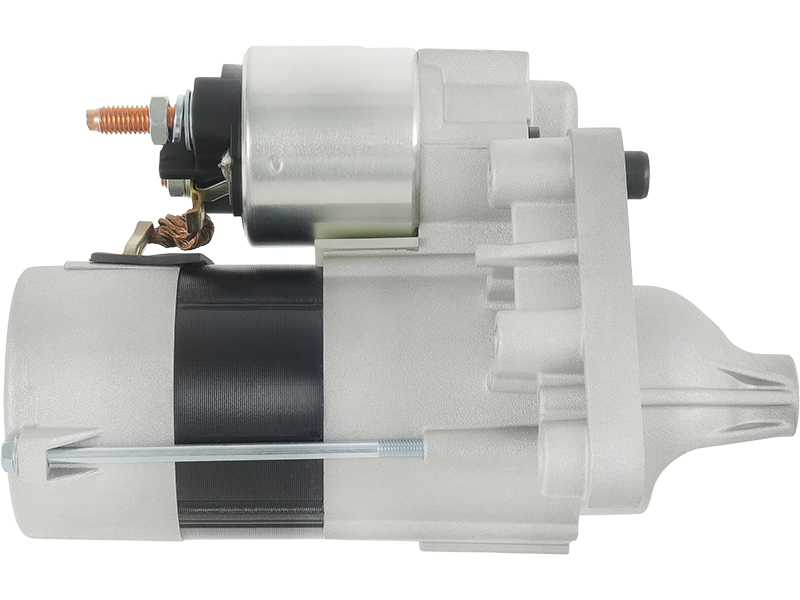

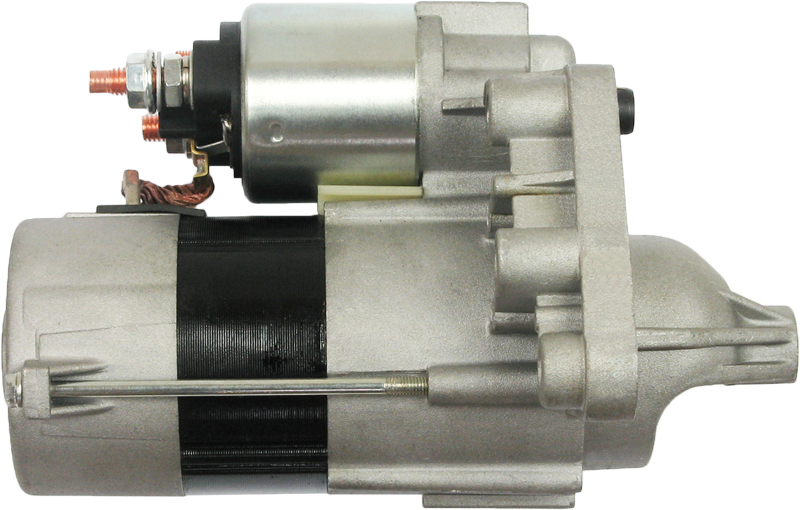

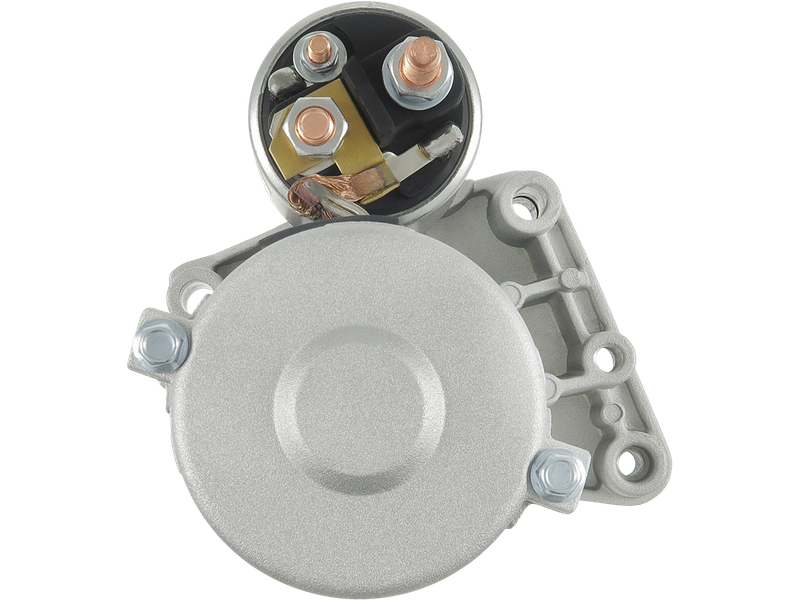

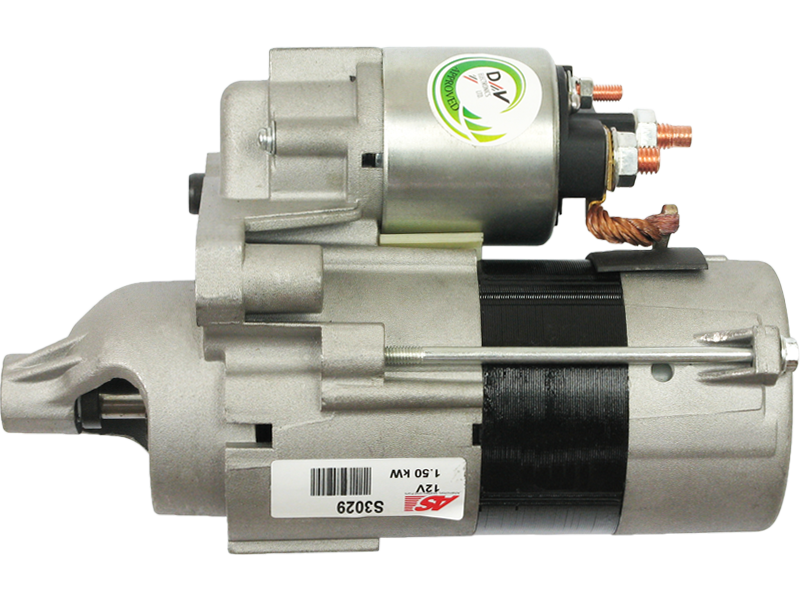

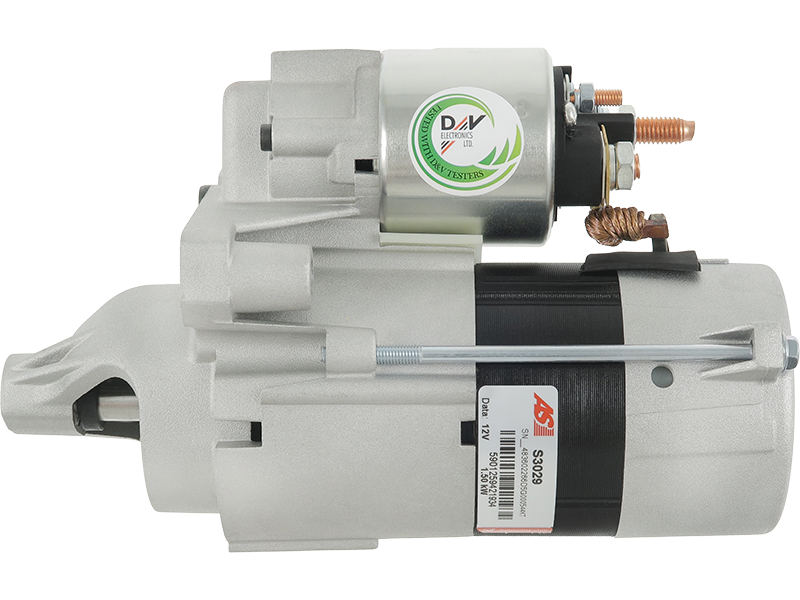

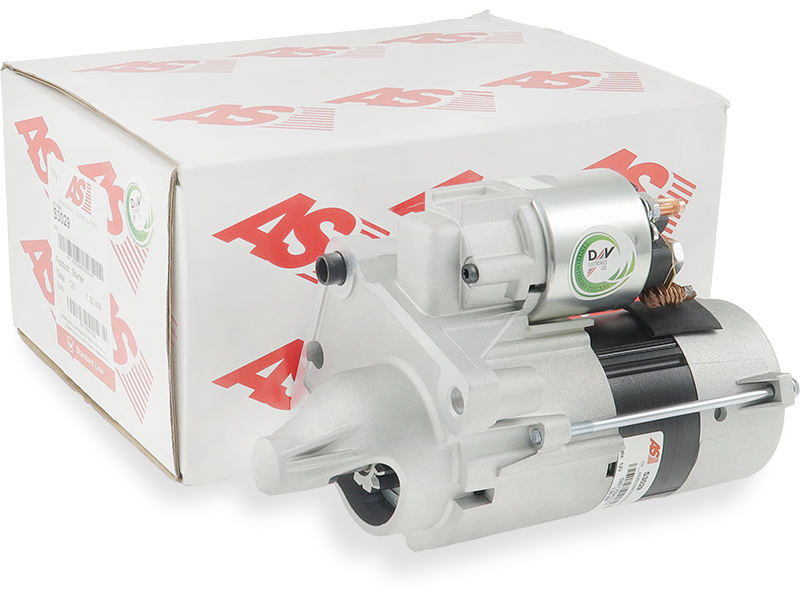

S3029 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 337.34 including GST

NZ$ 293.34 excluding GST
each
S3029
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0986022790 101329M 101329V 113933 11997 12417803514 20479512 220.524.113 220429 25-3296 28100-YV020 3105 32737N 3647959 42455982 438166 458185 495107 5802AA 5802EG 5802Z8 5802Z9 5802ZB 6.0155.9 6015215 726065 88212646 8EA011610-981 8EA738198-001 944280801170 95526025 9645100680 9662854080 9663528880 9801667780 AEX1299 CS1329 CST15215 CST15215AS CST15215ES CST15215GS CST15215OS CST15215RS D7G3 DRS3976 DS5086 EAA-121078 G201329MI-R GS438166-A J5218023 LRS01737 M000T22471 M000T22472 M000T22473 M0T22471 M0T22472 M0T22473 MRS80117 RAS34087 S3029 SG0580 STM1329 STM965 STR54044 STV1329 STV9329 TS18E13 UD01488S VAL438166
Kilowatt1.5 kW
Length (L.1)211 mm
Mount Hole Center - Center (O.1)123.5 mm
Mount Hole Center - Center (O.2)29.5 mm
Mount Hole Center - Center (O.3)45.5 mm
Mount Hole Center - Center (O.4)92 mm
Mount Hole Diameter (C.1)9 mm
Mount Hole Diameter (C.2)M8x1.25 mm
Mount Hole Diameter (C.3)M8x1.25 mm
Mount Hole Diameter (C.4)9 mm
No./Mount holes4 qty
No./Mount holes with thread2 qty
No./Teeth11 qty
No./Teeth (Replaces)11.12 qty
OEM ProductNo
Pinion at Rest (B)14 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)65 mm
Unit TypeVALEO
Voltage12 V
Make Model Type Year
CITROEN C1 1.4 HDi [8HT(DV4TD)] 06.2005-09.2014
CITROEN C2 1.4 HDi [8HX(DV4TD)] 09.2003-12.2009
CITROEN C2 1.4 HDi [8HZ(DV4TD)] 09.2003-12.2009
CITROEN C3 1.4 16V HDi [8HY(DV4TED4)] 02.2002-
CITROEN C3 1.4 HDi [8HX(DV4TD)] 02.2002-
CITROEN C3 1.4 HDi [8HX(DV4TD)] 04.2004-
CITROEN C3 1.4 HDi [8HZ(DV4TD)] 02.2002-
CITROEN C3 1.6 16V HDi [9HX(DV6ATED4)] 10.2005-
CITROEN C3 1.6 16V HDi [9HZ(DV6TED4)] 09.2005-
CITROEN C4 1.6 HDi [9HX(DV6ATED4)] 11.2004-07.2011
CITROEN C4 1.6 HDi [9HY(DV6TED4)] 11.2004-07.2011
CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 11.2004-07.2011
CITROEN C4 Grand Picasso 1.6 HDi [9HY(DV6TED4)] 10.2006-06.2011
CITROEN C4 Grand Picasso 1.6 HDi [9HZ(DV6TED4)] 10.2006-06.2011
CITROEN C4 Picasso 1.6 HDi [9HY(DV6TED4)] 02.2007-08.2013
CITROEN C4 Picasso 1.6 HDi [9HZ(DV6TED4)] 02.2007-08.2013
CITROEN C5 1.6 HDi [9HY(DV6TED4)] 09.2004-
CITROEN C5 1.6 HDi [9HZ(DV6TED4)] 09.2004-
CITROEN C5 1.6 HDi 110 [9HZ(DV6TED4)] 02.2008-
CITROEN C5 2.2 HDi [4HT(DW12BTED4)] 04.2006-
CITROEN Xsara Picasso 1.6 HDi [9HY(DV6TED4)] 05.2004-12.2011
CITROEN Xsara Picasso 1.6 HDi [9HZ(DV6TED4)] 05.2004-12.2011
PEUGEOT 1007 1.4 HDi [8HX(DV4TD)] 04.2005-
PEUGEOT 1007 1.4 HDi [8HZ(DV4TD)] 04.2005-
PEUGEOT 1007 1.6 HDi [9HZ(DV6TED4)] 06.2007-
PEUGEOT 107 1.4 HDi [8HT(DV4TD)] 06.2005-05.2014
PEUGEOT 206 1.4 HDi eco 70 [8HX(DV4TD)] 09.2001-04.2009
PEUGEOT 206 1.4 HDi eco 70 [8HZ(DV4TD)] 09.2001-04.2009
PEUGEOT 206 SW 1.4 HDi [8HX(DV4TD)] 07.2002-
PEUGEOT 207 1.4 HDi [8HR(DV4C)] 02.2006-12.2015
PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 02.2006-12.2015
PEUGEOT 207 1.6 HDi [9HV(DV6TED4B)] 02.2006-10.2013
PEUGEOT 207 1.6 HDi [9HV(DV6TED4BU)] 02.2006-10.2013
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 02.2006-10.2013
PEUGEOT 207 1.6 HDi [9HY(DV6TED4)] 02.2006-10.2013
PEUGEOT 207 1.6 HDi [9HZ(DV6TED4)] 02.2006-10.2013
PEUGEOT 207 CC 1.6 HDi [9HZ(DV6TED4)] 02.2007-01.2015
PEUGEOT 207 SW 1.6 HDi [9HV(DV6TED4B)] 06.2007-12.2012
PEUGEOT 207 SW 1.6 HDi [9HV(DV6TED4BU)] 06.2007-12.2012
PEUGEOT 207 SW 1.6 HDi [9HZ(DV6TED4)] 06.2007-12.2012
PEUGEOT 208 1.4 HDi [8HP(DV4C)] 03.2012-
PEUGEOT 208 1.4 HDi [8HR(DV4C)] 03.2012-
PEUGEOT 307 1.6 HDi 110 [9HY(DV6TED4)] 02.2004-03.2009
PEUGEOT 307 1.6 HDi 110 [9HY(DV6TED4)] 02.2004-04.2008
PEUGEOT 307 1.6 HDi 110 [9HZ(DV6TED4)] 02.2004-03.2009
PEUGEOT 307 1.6 HDi 110 [9HZ(DV6TED4)] 02.2004-04.2008
PEUGEOT 307 SW 1.6 HDi 110 [9HY(DV6TED4)] 11.2003-12.2007
PEUGEOT 307 SW 1.6 HDi 110 [9HZ(DV6TED4)] 11.2003-12.2007
PEUGEOT 308 1.6 HDi [9HZ(DV6TED4)] 09.2007-10.2014
PEUGEOT 308 SW 1.6 HDi [9HZ(DV6TED4)] 09.2007-10.2014
PEUGEOT 407 1.6 HDi 110 [9HZ(DV6TED4)] 05.2004-12.2010
PEUGEOT 407 SW 1.6 HDi 110 [9HZ(DV6TED4)] 05.2004-12.2010
PEUGEOT Partner 1.6 HDi Tepee [9HZ(DV6TED4)] 04.2008-
TOYOTA Aygo 1.4 HDi [2WZ-TV] 07.2005-08.2010
M000T22472 M000T22473 8EA011610-981 J5218023 M000T22471 ANM16196X MT130028 M0T22473ZZ9 113933 331454 193767 CST15215OS 9662854080 5645100680 S3029 CST15215GS 95526025 220429 220.524.113.505 STA0292R CS1329 220.524.113.508 CST15215AS M0T22473AM M000T22472AM M0T22471AM 220.524.113.265 STR00195 M0T22471 CST15215RS M0T22472 8EA738198-001 M0T22473 9801667780 220.524.113.500 0986022790 SG0580 F042S0H117 003-130028 RAS34087 STR00145 6.0155.9 220.524.113.395 3130028 M000T22473ZZ9 STX200013R S12VA0014A2 9.66353E+11 STM965 EAA-121078 3647959 5802ZB 32737N MRS80117 5802Z9 CST15215ES 5802AA DS5086 5802EG 9663528880 5802Z8 28100-YV020 220.524.113.009 726065 D7G3 220.524.113.008 M000T22471AM M0T22472AM M000T22473AM 220.524.113.000 STX200099 9645100680 STX200013 DRS3976 220.524.113.372 CST15215 STX200099R 6015215 20479512 STRL117
S3029
