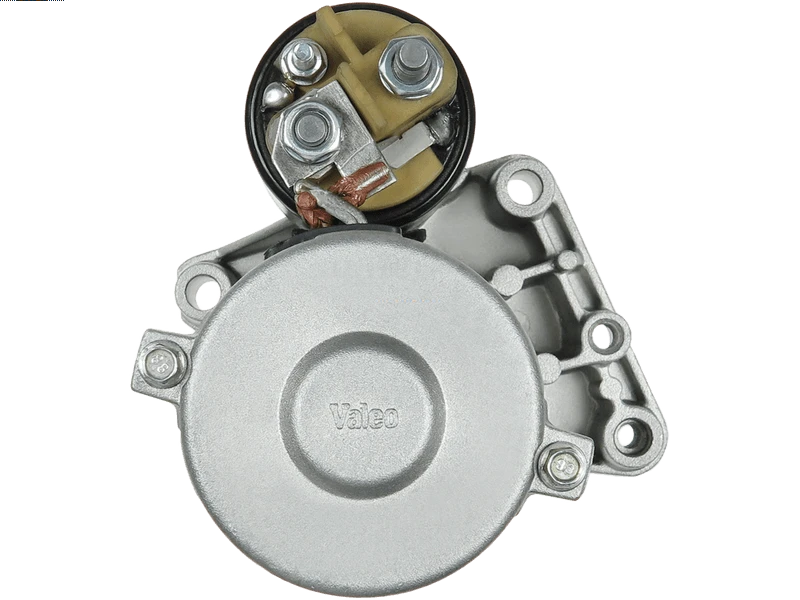

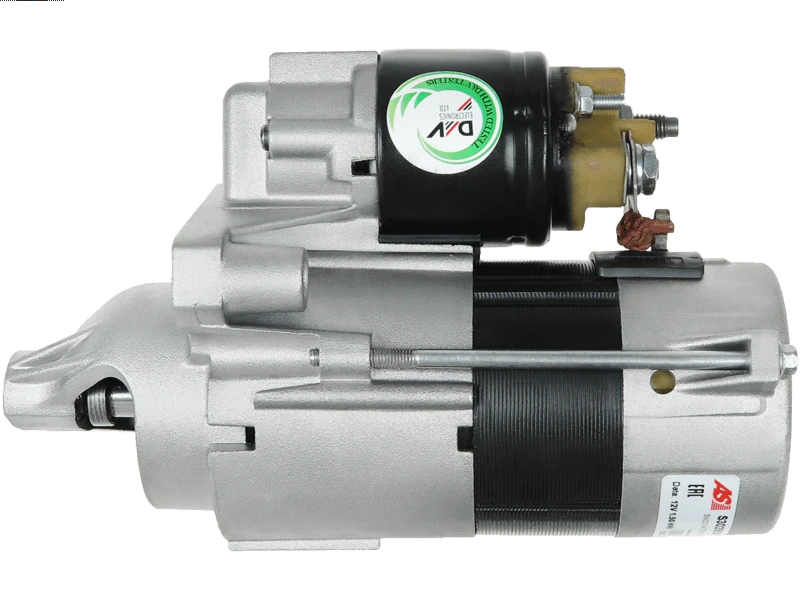

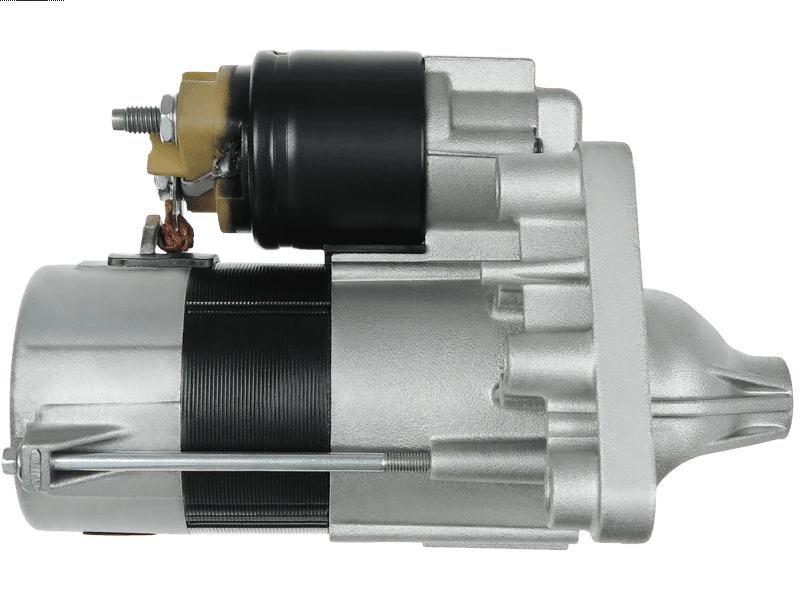

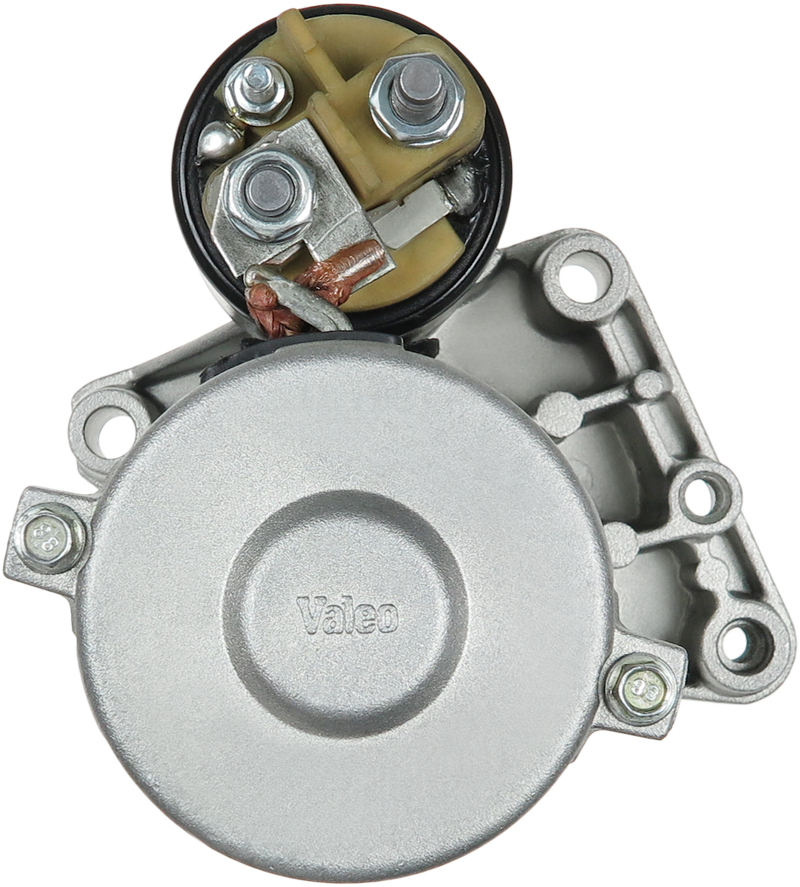

S3029SR - Remanufactured AS-PL Starter motor

Name: Remanufactured AS-PL Starter motor
Brand: AS-PL
SKU: S3029SR
Price: 239.09 NZD
Availability: SoldOut

Remanufactured AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 239.09 including GST

NZ$ 207.90 excluding GST

UOM:

each

Product Code:

S3029SR

Quantity In Stock Nationally:

No stock in NZ

Availability:

No stock in NZ

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0986022790 101329M 101329V 113933 11997 12417803514 20479512 220.524.113 220429 25-3296 28100-YV020 3105 32737N 3647959 42455982 438166 458185 495107 5802AA 5802EG 5802Z8 5802Z9 5802ZB 6.0155.9 6015215 726065 88212646 8EA011610-981 8EA738198-001 944280801170 95526025 9645100680 9662854080 9663528880 9801667780 AEX1299 CS1329 CST15215 CST15215AS CST15215ES CST15215GS CST15215OS CST15215RS D7G3 DRS3976 DS5086 EAA-121078 G201329MI-R GS438166-A J5218023 LRS01737 M000T22471 M000T22472 M000T22473 M0T22471 M0T22472 M0T22473 MRS80117 RAS34087 SG0580 STM1329 STM965 STR54044 STV1329 STV9329 TS18E13 VAL438166

Kilowatt	1.5 kW
Length (L.1)	210 mm
Mount Hole Center - Center (O.1)	70 mm
Mount Hole Center - Center (O.2)	108 mm
Mount Hole Center - Center (O.3)	11 mm
Mount Hole Center - Center (O.4)	23 mm
Mount Hole Diameter (C.1)	12 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
Mount Hole Diameter (C.4)	M8x1.25 mm
No./Mount holes	4 qty
No./Mount holes with thread	2 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11, 12 qty
OEM Product	No
Pinion at Rest (B)	13 mm
Product Line	Standard Line
Product Type	Remanufactured
Rotation	CW
Unit Type	VALEO
Voltage	12 V

Make	Model	Type	Year
CITROEN	C1 1.4 HDi	[8HT(DV4TD)]	06.2005-09.2014
CITROEN	C2 1.4 HDi	[8HX(DV4TD)]	09.2003-12.2009
CITROEN	C2 1.4 HDi	[8HZ(DV4TD)]	09.2003-12.2009
CITROEN	C3 1.4 16V HDi	[8HY(DV4TED4)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	04.2004-
CITROEN	C3 1.4 HDi	[8HZ(DV4TD)]	02.2002-
CITROEN	C3 1.6 16V HDi	[9HX(DV6ATED4)]	10.2005-
CITROEN	C3 1.6 16V HDi	[9HZ(DV6TED4)]	09.2005-
CITROEN	C4 1.6 HDi	[9HX(DV6ATED4)]	11.2004-07.2011
CITROEN	C4 1.6 HDi	[9HY(DV6TED4)]	11.2004-07.2011
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	11.2004-07.2011
CITROEN	C4 Grand Picasso 1.6 HDi	[9HY(DV6TED4)]	10.2006-06.2011
CITROEN	C4 Grand Picasso 1.6 HDi	[9HZ(DV6TED4)]	10.2006-06.2011
CITROEN	C4 Picasso 1.6 HDi	[9HY(DV6TED4)]	02.2007-08.2013
CITROEN	C4 Picasso 1.6 HDi	[9HZ(DV6TED4)]	02.2007-08.2013
CITROEN	C5 1.6 HDi	[9HY(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi 110	[9HZ(DV6TED4)]	02.2008-
CITROEN	C5 2.2 HDi	[4HT(DW12BTED4)]	04.2006-
CITROEN	Xsara Picasso 1.6 HDi	[9HY(DV6TED4)]	05.2004-12.2011
CITROEN	Xsara Picasso 1.6 HDi	[9HZ(DV6TED4)]	05.2004-12.2011
PEUGEOT	1007 1.4 HDi	[8HX(DV4TD)]	04.2005-
PEUGEOT	1007 1.4 HDi	[8HZ(DV4TD)]	04.2005-
PEUGEOT	1007 1.6 HDi	[9HZ(DV6TED4)]	06.2007-
PEUGEOT	107 1.4 HDi	[8HT(DV4TD)]	06.2005-05.2014
PEUGEOT	206 1.4 HDi eco 70	[8HX(DV4TD)]	09.2001-04.2009
PEUGEOT	206 1.4 HDi eco 70	[8HZ(DV4TD)]	09.2001-04.2009
PEUGEOT	206 SW 1.4 HDi	[8HX(DV4TD)]	07.2002-
PEUGEOT	207 1.4 HDi	[8HR(DV4C)]	02.2006-12.2015
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	02.2006-12.2015
PEUGEOT	207 1.6 HDi	[9HV(DV6TED4B)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HV(DV6TED4BU)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HX(DV6ATED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HY(DV6TED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2006-10.2013
PEUGEOT	207 CC 1.6 HDi	[9HZ(DV6TED4)]	02.2007-01.2015
PEUGEOT	207 SW 1.6 HDi	[9HV(DV6TED4B)]	06.2007-12.2012
PEUGEOT	207 SW 1.6 HDi	[9HV(DV6TED4BU)]	06.2007-12.2012
PEUGEOT	207 SW 1.6 HDi	[9HZ(DV6TED4)]	06.2007-12.2012
PEUGEOT	208 1.4 HDi	[8HP(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	03.2012-
PEUGEOT	307 1.6 HDi 110	[9HY(DV6TED4)]	02.2004-03.2009
PEUGEOT	307 1.6 HDi 110	[9HY(DV6TED4)]	02.2004-04.2008
PEUGEOT	307 1.6 HDi 110	[9HZ(DV6TED4)]	02.2004-03.2009
PEUGEOT	307 1.6 HDi 110	[9HZ(DV6TED4)]	02.2004-04.2008
PEUGEOT	307 SW 1.6 HDi 110	[9HY(DV6TED4)]	11.2003-12.2007
PEUGEOT	307 SW 1.6 HDi 110	[9HZ(DV6TED4)]	11.2003-12.2007
PEUGEOT	308 1.6 HDi	[9HZ(DV6TED4)]	09.2007-10.2014
PEUGEOT	308 SW 1.6 HDi	[9HZ(DV6TED4)]	09.2007-10.2014
PEUGEOT	407 1.6 HDi 110	[9HZ(DV6TED4)]	05.2004-12.2010
PEUGEOT	407 SW 1.6 HDi 110	[9HZ(DV6TED4)]	05.2004-12.2010
PEUGEOT	Partner 1.6 HDi Tepee	[9HZ(DV6TED4)]	04.2008-
TOYOTA	Aygo 1.4 HDi	[2WZ-TV]	07.2005-08.2010

M000T22472 M000T22473 8EA011610-981 J5218023 M000T22471 MT130028 M0T22473ZZ9 113933 193767 CST15215OS 9662854080 5645100680 CST15215GS 95526025 220429 220.524.113.505 CS1329 220.524.113.508 CST15215AS M0T22473AM M000T22472AM M0T22471AM 220.524.113.265 STR00195 M0T22471 CST15215RS M0T22472 8EA738198-001 M0T22473 9801667780 220.524.113.500 0986022790 SG0580 F042S0H117 003-130028 RAS34087 STR00145 6.0155.9 220.524.113.395 3130028 M000T22473ZZ9 STX200013R S12VA0014A2 9.66353E+11 STM965 EAA-121078 3647959 5802ZB 32737N MRS80117 5802Z9 CST15215ES 5802AA DS5086 5802EG 9663528880 5802Z8 28100-YV020 220.524.113.009 726065 D7G3 220.524.113.008 220.524.113 M000T22471AM M0T22472AM M000T22473AM 220.524.113.000 STX200099 9645100680 STX200013 DRS3976 220.524.113.372 CST15215 STX200099R 6015215 20479512

S3029SR
