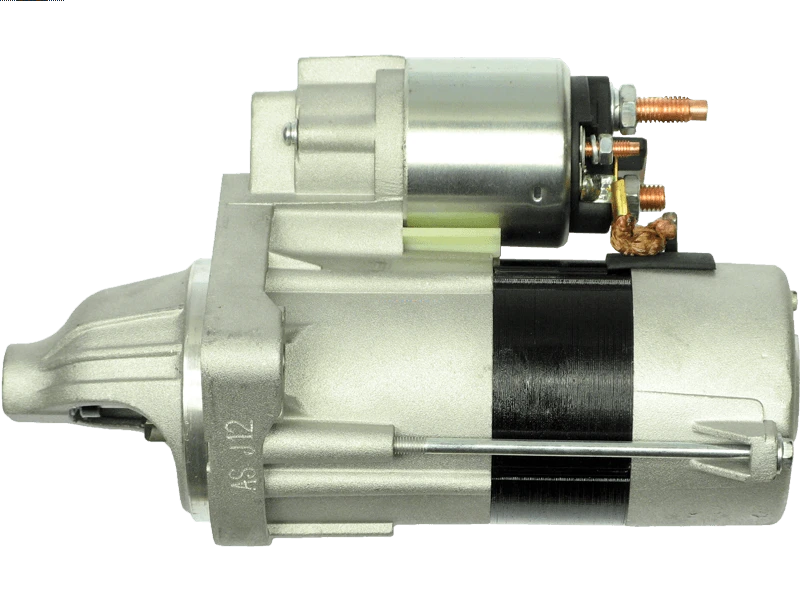

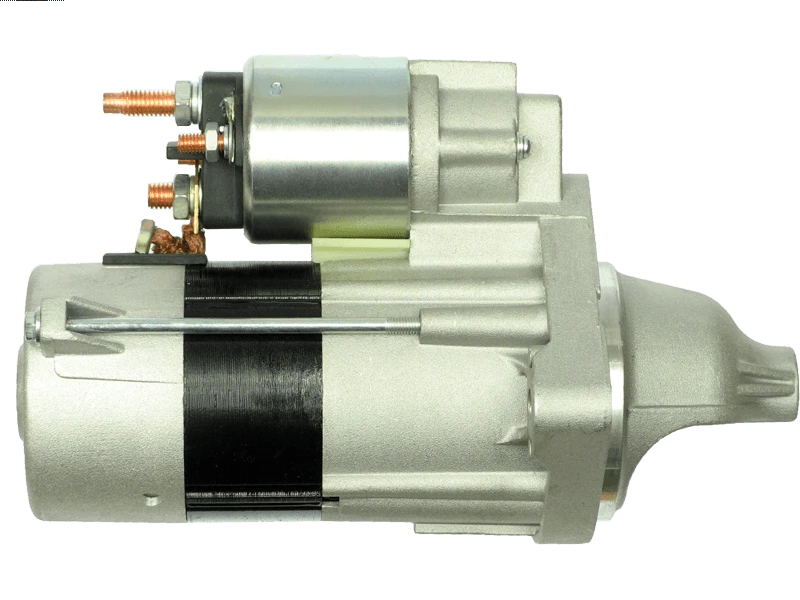

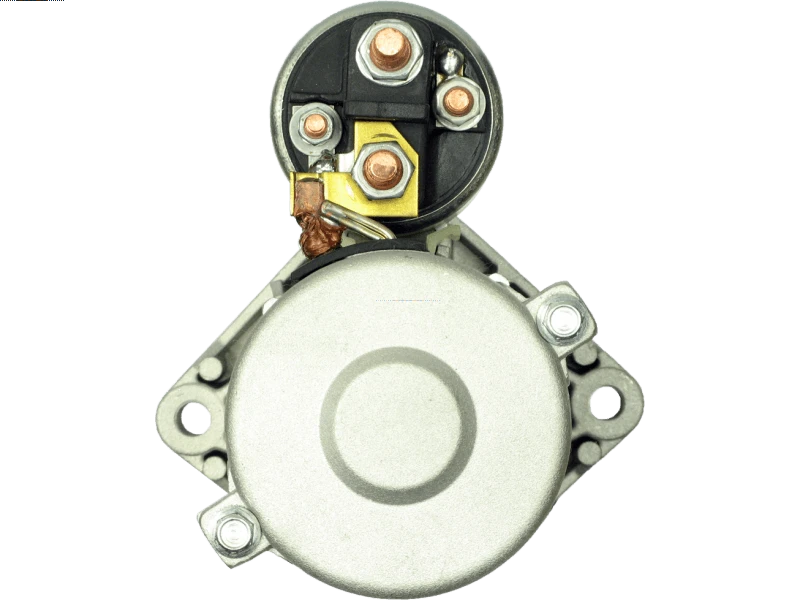

S3074 - Brand new AS-PL Starter motor

Associated Numbers

0986022930 101328 101328V 114127 116160 11980 12417787354 20479761OE 20513030 210.515.103 220443 26-3201 3183 32801N 32801R 438151 458166 6.0160.9 6015167 7787354 88212399 8EA012528-241 8EA738184-001 91-20-3561 AEU1328 CS1328 CST15167 CST15167AS CST15167ES CST15167GS CST15167OS CST15167RS D7G4 D7GP008 DRS3958 DS5068 EAA-121488 GS438151-A S-6577 S3074 SG0582 SS491 STR54096 STV1328 VAL438151

Specifications

Kilowatt	1.6 kW
Length (L.1)	221 mm
Mount Hole Center - Center (O.1)	75 mm
Mount Hole Center - Center (O.2)	105 mm
Mount Hole Center - Center (O.3)	75 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	20.5 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	118 2.0 D	(E81)[M47D20(204D4)]	09.2006-09.2012
BMW	118 2.0 D	(E81)[N47D20A]	09.2006-09.2012
BMW	118 2.0 D	(E81)[N47D20C]	09.2006-09.2012
BMW	118 2.0 D	(E87)[M47D20(204D4)]	06.2004-02.2007
BMW	120 2.0 D	(E81)[N47D20A]	03.2007-12.2011
BMW	120 2.0 D	(E81)[N47D20C]	03.2007-12.2011
BMW	120 2.0 D	(E87)[M47D20(204D4)]	06.2004-06.2011
BMW	120 2.0 D	(E87)[N47D20A]	03.2007-06.2011
BMW	120 2.0 D	(E87)[N47D20A]	06.2004-06.2011
BMW	120 2.0 D	(E87)[N47D20C]	03.2007-06.2011
BMW	318 2.0 D	(E46)[M47D20(204D4)]	03.2003-02.2005
BMW	318 2.0 TD	(E46)[M47D20(204D4)]	03.2003-02.2005
BMW	318 2.0 Ti	(E46)[N42B20A]	03.2001-12.2004
BMW	318 2.0 Ti	(E46)[N46B20A]	03.2001-12.2004
BMW	320 2.0 CD	(E46)[M47D20(204D4)]	02.2005-12.2007
BMW	320 2.0 CD	(E46)[M47D20(204D4)]	11.2003-07.2006
BMW	320 2.0 D	(E46)[M47D20(204D1)]	04.1998-09.2001
BMW	320 2.0 D	(E46)[M47D20(204D4)]	09.2001-02.2005
BMW	320 2.0 D	(E46)[M47D20(204D4)]	09.2001-05.2005
BMW	320 2.0 TD	(E46)[M47D20(204D4)]	09.2001-02.2005
BMW	520 2.0 D	(E60)[M47D20(204D4)]	09.2005-12.2009
BMW	520 2.0 D	(E60)[N47D20A]	09.2007-12.2009
BMW	520 2.0 D	(E60)[N47D20C]	09.2005-12.2009
BMW	520 2.0 D	(E60)[N47D20C]	09.2007-12.2009
BMW	520 2.0 D	(E61)[M47D20(204D4)]	04.2005-05.2010
BMW	520 2.0 D	(E61)[N47D20A]	09.2007-05.2010
BMW	520 2.0 D	(E61)[N47D20C]	04.2005-05.2010
BMW	520 2.0 D	(E61)[N47D20C]	09.2007-05.2010
BMW	X3 2.0 D	(E83)[M47D20(204D4)]	09.2004-08.2007
BMW	X3 2.0 D	(E83)[N47D20A]	03.2007-03.2009
BMW	X3 2.0 D	(E83)[N47D20C]	03.2007-03.2009
BMW	X3 2.0 SD	(E83)[N47D20A]	09.2007-08.2008
BMW	X3 2.0 xDrive 20 D	(E83)[N47D20A]	09.2008-08.2010
BMW	X3 2.0 xDrive 20 D	(E83)[N47D20C]	09.2008-08.2010

Reference Information

8022930 311495 331453 PRSS310V CST15167GS MAV171670A DRS3958X 42022930 8EA738184-001 D7GP008 STX200141 11980 STX200141R LRS1801 8EA012528-241 DS5068 D7G4 STR54096 6015167.1 20479761BN 6015167.0 CS1328 26-3201 12417787356 12417787354 6.0160.9 DRS3958 SG0582 STV1328 CGB-63201 20479761OE 201097 16008 S12VA0081A2 210.515.103.500 STM1165 458166 116160 210.515.103.505 VAL438151 NPANSM1079 ANM16178X STRS310V CST15167AS 114127 3183 944280229300 7787354 7787356 STRS310 88212399 LRS01801 101328 AEU1328 S3074 STR0076 EZ0082 PRSS310 220443 101328V 91-20-3561 RAS34069 438151 MAV171670 32801N 210.515.103.000 GS438151-A ASM1079 0986022930 32801R MRS22930 STRS310NE

Video/Publications

S3074
