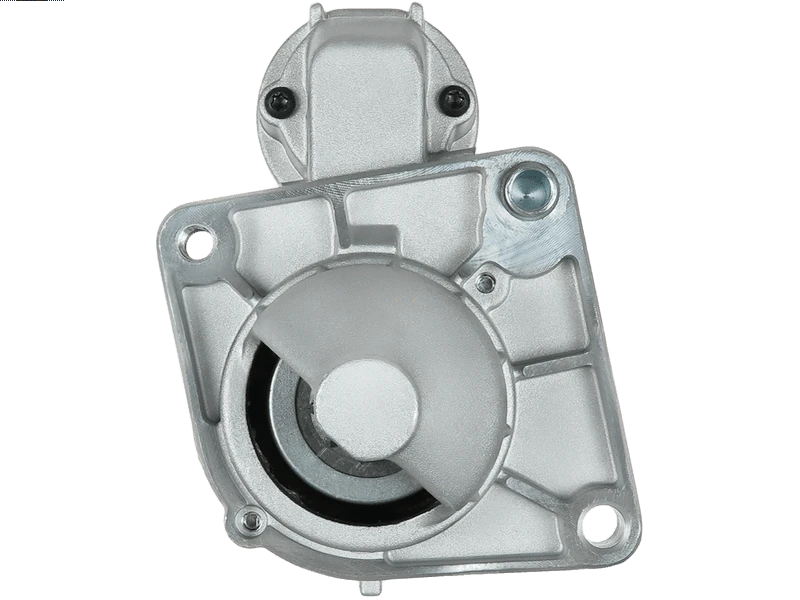

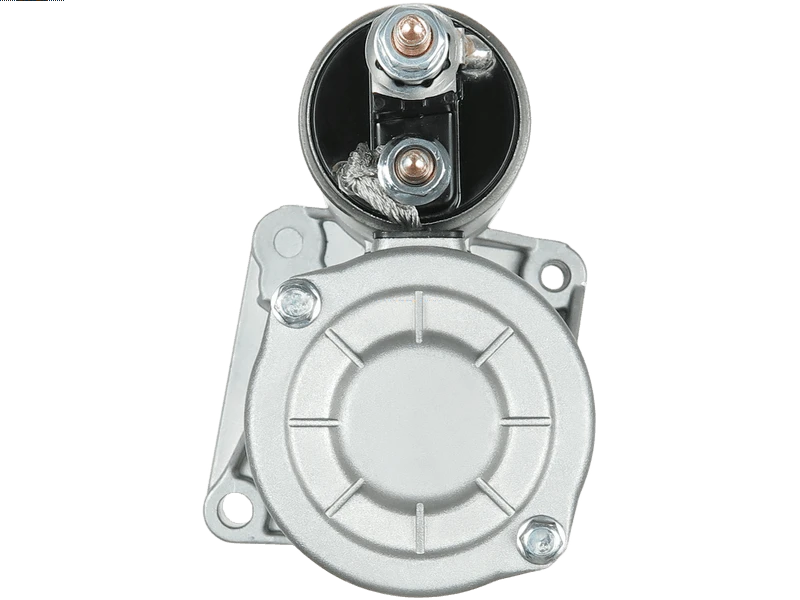

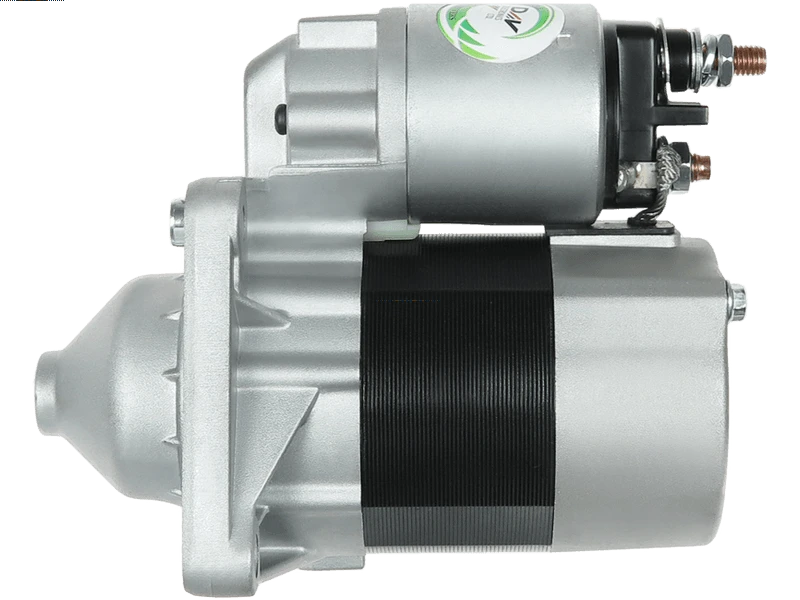

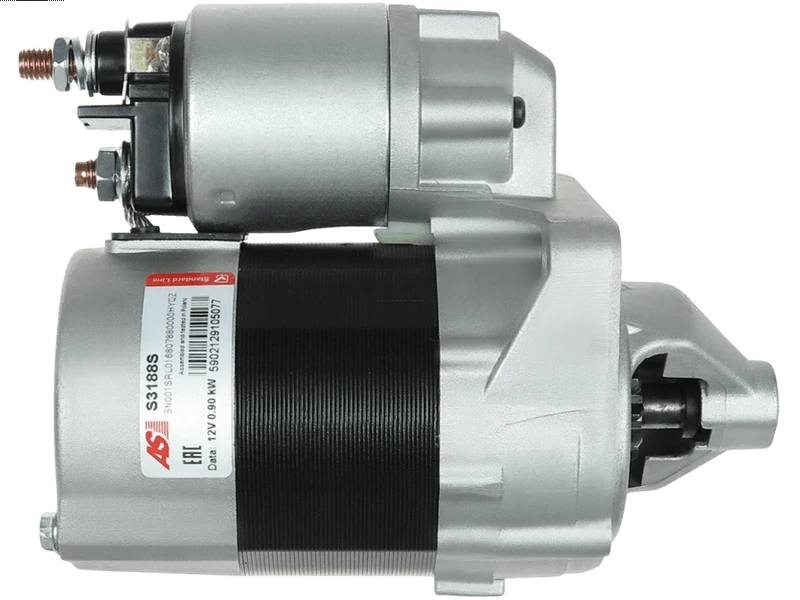

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 195.74 including GST
NZ$ 170.21 excluding GST
or four payments of $48.94
with
Learn More
each
S2053
S3188S
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
D7E52Associated Numbers
0986021590 101379H 101379K 101379V 10796 10796H 10796V 113962 1202291 1202503 1542468 1567033 1726802 20479261 220376 25-3283 255621H 3160 32726N 32726R 42114905 438144 458162 46813058 46813064 46816793 51772325 51812501 51832950 51832951 51832952 51890631 51890632 55192483 55193355 55193356 6015162 63101021 63102022 63103031 63280042 63280044 63280046 71784985 71789051 71789435 71789437 71793620 71794760 88212885 8EA012526-471 8EA738258-101 944280802020 95512962 95520336 95523328 95523405 95523407 95524454 9S51-11000-AA AEY1726 AM114-943A BS51-11000-CA CST15162 CST15162AS CST15162ES CST15162GS CST15162OS CST15162RS CST20151AS D7E52 DRT2411 DRT2411N DT3521 DT3521N EAA-121530 F000AL0320 LRS01726 MRS80202 NEY1726 RAS43522 S114-905 S114-906 S114-938 S114-943 S114-943A S114-947 S114-947A S114-948 SG0136 STH1379 STV1379 UD20498S VAL438144Specifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 169 mm |
| Mount Hole Center - Center (O.1) | 74 mm |
| Mount Hole Center - Center (O.2) | 107 mm |
| Mount Hole Center - Center (O.3) | 72.5 mm |
| Mount Hole Diameter (C.1) | 8.5 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 8. 9. 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 10.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ABARTH | 500 1.4 | [312A1.000] | 08.2008- |
| ABARTH | 500 1.4 | [312A3.000] | 05.2010- |
| ABARTH | 500 1.4 | [312A3.000] | 08.2008- |
| ABARTH | 500C 1.4 | [312A1.000] | 09.2009- |
| ABARTH | 500C 1.4 | [312A3.000] | 06.2010- |
| ABARTH | 500C 1.4 | [312A3.000] | 09.2009- |
| ABARTH | 595 1.4 | [312A1.000] | 08.2008- |
| ABARTH | 595 1.4 | [312A3.000] | 05.2010- |
| ABARTH | 595 1.4 | [312A3.000] | 08.2008- |
| ABARTH | 595C 1.4 | [312A1.000] | 09.2009- |
| ABARTH | 595C 1.4 | [312A3.000] | 06.2010- |
| ABARTH | 595C 1.4 | [312A3.000] | 09.2009- |
| ABARTH | 695 1.4 | [312A1.000] | 08.2008- |
| ABARTH | 695 1.4 | [312A3.000] | 05.2010- |
| ABARTH | 695 1.4 | [312A3.000] | 08.2008- |
| ABARTH | 695C 1.4 | [312A1.000] | 09.2009- |
| ABARTH | 695C 1.4 | [312A3.000] | 06.2010- |
| ABARTH | 695C 1.4 | [312A3.000] | 09.2009- |
| ABARTH | Grande Punto 1.4 | [199A8.000] | 12.2007-06.2010 |
| ALFA ROMEO | Mito 1.4 | [199A6.000] | 09.2008-08.2013 |
| ALFA ROMEO | Mito 1.4 | [955A1.000] | 08.2008-08.2013 |
| ALFA ROMEO | Mito 1.4 | [955A9.000] | 05.2011- |
| ALFA ROMEO | Mito 1.4 Bifuel | [198A4.000] | 01.2009- |
| ALFA ROMEO | Mito 1.4 Tjet | [198A1.000] | 09.2008-06.2011 |
| ALFA ROMEO | Mito 1.4 Tjet | [198A4.000] | 08.2008- |
| ALFA ROMEO | Mito 1.4 Tjet | [199A8.000] | 08.2008-06.2011 |
| FIAT | 500 1.2 | [169A4.000] | 07.2007- |
| FIAT | 500 1.4 | [169A3.000] | 10.2007- |
| FIAT | 500 C 1.2 | [169A4.000] | 09.2009- |
| FIAT | 500 C 1.4 | [169A3.000] | 09.2009- |
| FIAT | Bravo 1.4 | [192B2.000] | 04.2007-12.2014 |
| FIAT | Bravo 1.4 16V | [198A7.000] | 04.2010-12.2014 |
| FIAT | Bravo 1.4 LPG | [192B2.000] | 12.2008-12.2014 |
| FIAT | Bravo 1.4 T-Jet | [198A1.000] | 09.2007-12.2014 |
| FIAT | Bravo 1.4 T-Jet | [198A4.000] | 10.2007-12.2014 |
| FIAT | Doblo 1.4 | [350A1.000] | 10.2005- |
| FIAT | Doblo 1.4 | [843A1.000] | 02.2010- |
| FIAT | Doblo 1.4 | [843A1.000] | 04.2010- |
| FIAT | Doblo 1.4 Natural Power | [198A4.000] | 02.2010- |
| FIAT | Doblo 1.4 Natural Power | [198A4.000] | 06.2010- |
| FIAT | Doblo Cargo 1.4 | [350A1.000] | 10.2005- |
| FIAT | Fiorino 1.4 Natural Power | [350A1.000] | 06.2008- |
| FIAT | Grande Punto 1.2 | [169A4.000] | 09.2010- |
| FIAT | Grande Punto 1.2 | [199A4.000] | 10.2005- |
| FIAT | Grande Punto 1.4 | [199A7.000] | 10.2005-07.2007 |
| FIAT | Grande Punto 1.4 | [350A1.000] | 06.2005-12.2015 |
| FIAT | Grande Punto 1.4 16V | [198A1.000] | 09.2007-07.2012 |
| FIAT | Grande Punto 1.4 16V | [199A6.000] | 10.2005- |
| FIAT | Grande Punto 1.4 LPG | [350A1.000] | 12.2008- |
| FIAT | Grande Punto 1.4 T-Jet | [198A4.000] | 09.2007- |
| FIAT | Idea 1.2 16V | [188A5.000] | 01.2004- |
| FIAT | Idea 1.4 | [192B2.000] | 12.2003- |
| FIAT | Idea 1.4 | [350A1.000] | 10.2005- |
| FIAT | Idea 1.4 16V | [843A1.000] | 01.2004- |
| FIAT | Idea 1.4 LPG | [350A1.000] | 03.2009- |
| FIAT | Linea 1.4 | [350A1.000] | 06.2007- |
| FIAT | Linea 1.4 T-Jet | [198A4.000] | 09.2007- |
| FIAT | Panda 1.1 | [187A1.000] | 09.2003- |
| FIAT | Panda 1.1 | [187A1.000] | 09.2004- |
| FIAT | Panda 1.2 | [169A4.000] | 02.2012- |
| FIAT | Panda 1.2 | [169A4.000] | 03.2010-08.2013 |
| FIAT | Panda 1.2 | [169A4.000] | 09.2010- |
| FIAT | Panda 1.2 | [188A4.000] | 09.2003- |
| FIAT | Panda 1.2 | [188A4.000] | 09.2004- |
| FIAT | Panda 1.2 4x4 | [188A4.000] | 09.2004- |
| FIAT | Panda 1.2 4x4 | [188A4.000] | 10.2004- |
| FIAT | Panda 1.2 LPG | [169A4.000] | 09.2010- |
| FIAT | Panda 1.2 LPG | [169A4.000] | 11.2010-08.2013 |
| FIAT | Panda 1.2 LPG | [188A4.000] | 04.2009- |
| FIAT | Panda 1.2 Natural Power | [188A4.000] | 01.2007-12.2011 |
| FIAT | Panda 1.4 | [169A3.000] | 10.2006- |
| FIAT | Panda 1.4 Natural Power | [350A1.000] | 10.2009- |
| FIAT | Punto 1.4 | [350A1.000] | 04.2008- |
| FIAT | Punto 1.4 | [843A1.000] | 09.2003-03.2012 |
| FIAT | Punto 1.4 LPG | [350A1.000] | 03.2009- |
| FIAT | Punto Evo 1.2 | [169A4.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.2 | [199A4.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.4 | [199A7.000] | 07.2009-02.2012 |
| FIAT | Punto Evo 1.4 | [350A1.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.4 16V | [955A2.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.4 16V | [955A6.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.4 LPG | [350A1.000] | 06.2009-02.2012 |
| FIAT | Punto Evo 1.4 Natural Power | [350A1.000] | 10.2009-02.2012 |
| FIAT | Qubo 1.4 Natural Power | [350A1.000] | 10.2009- |
| FIAT | Siena 1.4 | [178F3.011] | 01.2007-12.2009 |
| FIAT | Siena 1.4 | [350A1.000] | 01.2007-12.2009 |
| FIAT | Stilo 1.2 16V | [188A5.000] | 02.2002-11.2006 |
| FIAT | Stilo 1.4 16V | [192B2.000] | 03.2005-08.2008 |
| FIAT | Stilo 1.4 16V | [192B2.000] | 03.2005-11.2006 |
| FIAT | Stilo 1.4 16V | [843A1.000] | 01.2004-08.2008 |
| FIAT | Stilo 1.4 16V | [843A1.000] | 10.2003-12.2006 |
| FORD | KA 1.2 | [169A4.000] | 10.2008- |
| FORD | KA 1.2 | [AAAA] | 10.2008- |
| FORD | KA 1.2 | [FP4] | 10.2008- |
| LANCIA | Delta 1.4 | [198A1.000] | 09.2008-08.2014 |
| LANCIA | Delta 1.4 | [198A4.000] | 09.2008-08.2014 |
| LANCIA | Delta 1.4 16V | [198A7.000] | 07.2010-08.2014 |
| LANCIA | Delta 1.4 Bifuel | [198A4.000] | 07.2011-08.2014 |
| LANCIA | Musa 1.4 | [192B2.000] | 10.2007-09.2012 |
| LANCIA | Musa 1.4 | [350A1.000] | 09.2005-09.2012 |
| LANCIA | Musa 1.4 | [843A1.000] | 10.2004-09.2012 |
| LANCIA | Musa 1.4 LPG | [350A1.000] | 11.2010-09.2012 |
| LANCIA | Ypsilon 1.2 | [169A4.000] | 08.2010-12.2011 |
| LANCIA | Ypsilon 1.2 | [188A4.000] | 10.2003-12.2011 |
| LANCIA | Ypsilon 1.2 | [188A5.000] | 10.2003-12.2011 |
| LANCIA | Ypsilon 1.4 | [350A1.000] | 02.2006-12.2011 |
| LANCIA | Ypsilon 1.4 16V | [843A1.000] | 10.2003-12.2011 |
Reference Information
AC-CBS1379 2-0018 71782367 71789435 1638122880 71789436 71789437 MAV221510 CS1379 11439832 CST15162AS 3122923 IR9381 32727R H5020282 UD20498S EZ0339 LRS1726 1202291 500.542.093.270 STX200032R 2S0115R 63280042 51832950 71793783 25-3283 517723250 51832952 SKSTR-03330735 51832951 1567033 20479261BN 220904 71784019 71785105 MAV221520 8EA738258-101 255621H 1202503 63102022 S114-943 10438883 STX200032 71794760 S114-947 S114-948 32726N 10020151AV DRS0443 32726R 20479261RC ST01342 V24-12-50001 A77960 88212885 WG2174906 2S0115 S12HT0019 SKSTR-0330114 CST15162RS 101379H AZMT-53-010-1479 5015028 95523405 S3188S 220376 101379R ASM1237 101379K WG2012919 969ST11 WG2012918 0986021590 STRL089 11969 101379V DRT2411N LRS01726 8EA012526-471 MSN8060 TT16327 318092082 1542468 10020151OV 6015162.0 MAV221500 6015162.2 71789526 LES0618 6015162.1 51772325 MRS80202 55201360 S114-965 500.542.093.000 SHI151A 42114905 10439832 71722351 71722352 51890631 51890632 51890634 4721640 71784985 46548653 10796H 46548654 63101021 STM302 3160 51812501 20479261OE 9S51-11000-AA DRS3887 9S51-11000-AB D7E52 5020282 71793620 STA0124R 46813058 438144 S114-943A 63103031 DRT2411 55192483 55192484 106377 136908 113962 220421 F000AL0320 F042200132 F032113962 RE83585N S114-905 S114-906 8080202 11021590 500.542.093.500 458162 011-001-000347R 10796V 101379B 500.542.093.461 STR52064 2S0710 46816793 SHI151 8212885 726079 NPANSM1237 BS51-11000-CA 944280802020 CST15162GS 95523328 71723371 95520336 726879 71789053 331794 STR3219 S114-938 71789051 SG0131 71789052 1726802 SG0136 10796 71796990 PRSL089 CMA-621124 FI9073 55193356 55193355 S12HT0019A2 46813064 46816973 063280060010 95512962 500.542.093.280 2506908 2506909Video/Publications
