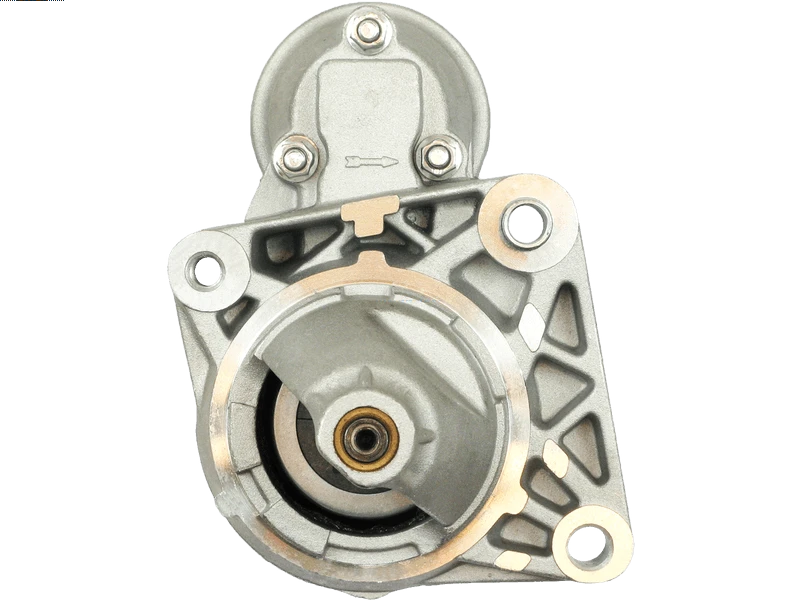

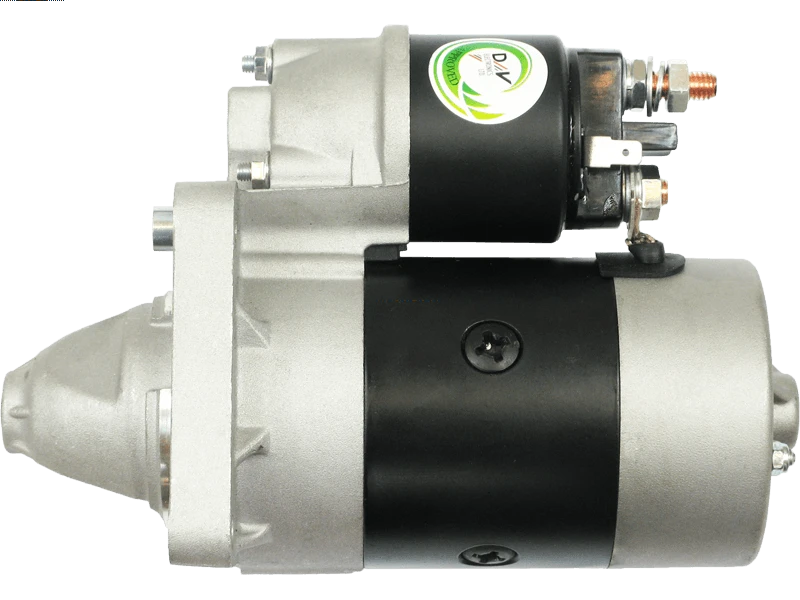

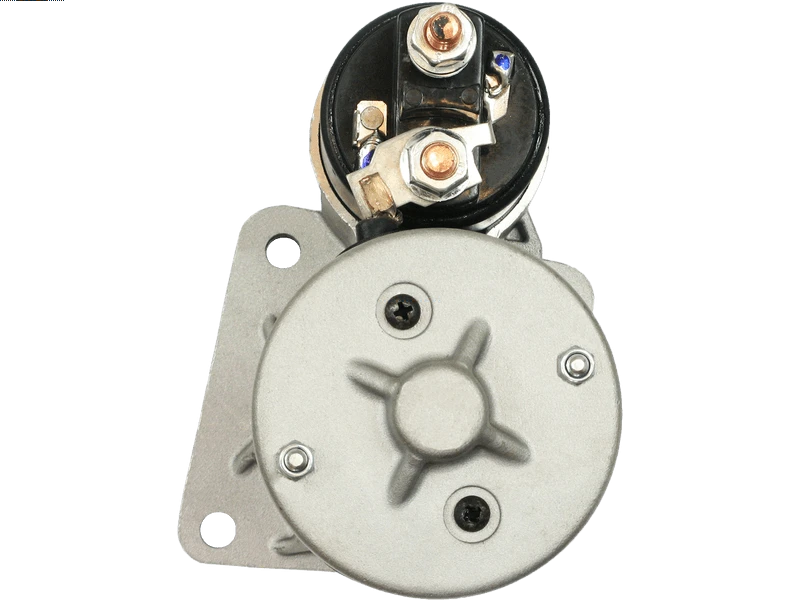

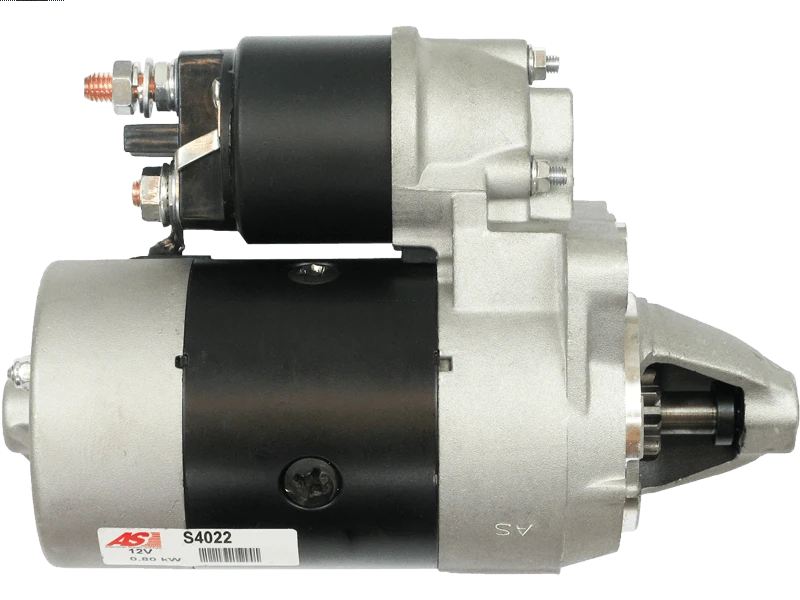

S4022 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 243.13 including GST

NZ$ 211.42 excluding GST
each
S3155S
S4022
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001113006 0001116005 063521130060 0986017030 0986017031 10796 10796H 10796V 11.130.421 111422 11679 11883 20404701RE 20500989 20513002 22.0796 22.0796M 220182 25-1480 25-2419 25-3055 25-3096 30989N 30989R 3829 42017030 42114903 432643 455553 46429594 46476785 46518059 500.514.093 55196400 6010331 6015125 6030107 6030162 63101002 63101015 63102007 63201002 63222880 63222888 63222889 63222890 63222936 63223200 71721252 71721253 71721308 71782353 726020 7772456 7772459 7785449 7796598 8017030 8212205 88212205 8EA012526-931 8EA732651-001 943201015010 944280170300 AES1298 AES9189 AEU1192 AZE1202 AZE1511 CS796 CST10331 CST10331AS CST10331ES CST10331GS CST10331OS CST10331RS CST15125 CST15125AS CST15125ES CST15125GS CST15125OS CST15125RS CST30107OS CST30162 CST30162AS CST30162ES CST30162GS CST30162OS CST30162RS D6RA59 DRS2555 DRS3274 DRS3555 EAA-121181 F000AL0319 GS223200-A IS0763 LRS00989 LRS01586 LRS02095 LRS02104 LRT00198 ND159 RNL1703 S4022 SG0139 SS221 STE0796 STR52007 UD13970S VALD6RA59 VS287
Kilowatt0.8 kW
Length (L.1)208 mm
Mount Hole Center - Center (O.1)75 mm
Mount Hole Center - Center (O.2)108 mm
Mount Hole Center - Center (O.3)74 mm
Mount Hole Diameter (C.1)8.5 mm
Mount Hole Diameter (C.2)8.5 mm
Mount Hole Diameter (C.3)M8x1.25 mm
No./Mount holes3 qty
No./Mount holes with thread1 qty
No./Teeth9 qty
No./Teeth (Replaces)9. 10 qty
OEM ProductNo
Pinion at Rest (B)10 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)64 mm
Unit TypeMAGNETI MARELLI
Voltage12 V
Make Model Type Year
FIAT Albea 1.3 [178B5.000] 09.1998-12.2002
FIAT Brava 1.2 16V [182B2.000] 12.1998-10.2000
FIAT Brava 1.2 16V [188A5.000] 12.1998-
FIAT Brava 1.2 16V 80 [182B2.000] 12.1998-12.2002
FIAT Brava 1.2 16V 80 [188A5.000] 10.2000-10.2001
FIAT Bravo 1.2 16V [182B2.000] 12.1998-10.2000
FIAT Bravo 1.2 16V [188A5.000] 12.1998-
FIAT Bravo 1.2 16V 80 [182B2.000] 12.1998-10.2000
FIAT Bravo 1.2 16V 80 [188A5.000] 10.2000-10.2001
FIAT Cinquecento 1.1 Sporting [176B2.000] 10.1994-01.1998
FIAT Marea 1.2 16V [182B2.000] 10.1998-
FIAT Marea 1.2 16V [182B2.000] 10.1998-05.2002
FIAT Marea Weekend 1.2 16V [182B2.000] 10.1998-05.2002
FIAT Palio 1.2 [178B7.045] 07.1997-08.2002
FIAT Palio 1.2 [178C4.066] 07.1997-08.2002
FIAT Palio 1.2 [188A4.000] 07.1997-08.2002
FIAT Palio Weekend 1.2 [178B5.000] 04.1996-02.2004
FIAT Palio Weekend 1.2 [188A5.000] 09.2001-10.2004
FIAT Palio Weekend 1.3 [178D6.011] 03.2000-02.2003
FIAT Palio Weekend 1.3 [188A5.000] 03.2000-02.2003
FIAT Punto 1.1 [176B2.000] 01.1995-08.1999
FIAT Punto 1.1 i.e. [176A6.000] 09.1993-09.1999
FIAT Punto 1.1 i.e. [176B2.000] 05.1997-09.1999
FIAT Punto 1.2 [176A7.000] 01.1994-
FIAT Punto 1.2 [176A8.000] 01.1994-09.1999
FIAT Punto 1.2 [176B1.000] 05.1995-
FIAT Punto 1.2 [176B4.000] 06.1995-09.1999
FIAT Punto 1.2 [188A4.000] 07.1999-
FIAT Punto 1.2 16V [176B9.000] 04.1997-
FIAT Punto 1.2 16V [188A5.000] 09.1999-
FIAT Punto 1.2 16V 80 [188A5.000] 09.1999-04.2006
FIAT Punto 1.2 60 [188A4.000] 02.2000-10.2009
FIAT Punto 1.2 60 [188A4.000] 09.1999-12.2010
FIAT Punto 1.2 Bifuel [188A4.000] 08.2007-03.2012
FIAT Punto 1.2 Bipower [188A4.000] 08.2001-05.2003
FIAT Punto 1.2 Natural Power [188A4.000] 01.2003-12.2010
FIAT Punto 1.2 Natural Power [188A4.000] 04.2004-04.2006
FIAT Punto 1.2 Natural Power [188A4.000] 09.2003-
FIAT Punto 1.2 Natural Power [188A4.000] 09.2003-03.2012
FIAT Punto 1.4 [843A1.000] 09.2003-03.2012
FIAT Punto 1.8 130 HGT [183A1.000] 09.1999-03.2012
FIAT Punto 1.8 130 HGT [188A6.000] 09.1999-03.2012
FIAT Punto 1.9 JTD [188A7.000] 02.2000-10.2009
FIAT Punto 1.9 JTD [188A7.000] 10.2001-03.2012
FIAT Punto 1.9 JTD [188B2.000] 06.2003-03.2012
FIAT Seicento 1.1 [176B2.000] 01.1998-
FIAT Seicento 600 1.1 [176B2.000] 01.1998-01.2010
FIAT Seicento 600 1.1 [187A1.000] 01.1998-01.2010
FIAT Siena 1.2 [178B5.000] 09.1998-
LANCIA Y10 1.1 Avenue [176B2.000] 09.1995-12.1995
LANCIA Y10 1.1 Avenue 4WD [176B2.000] 09.1995-12.1995
LANCIA Y10 1.1 i.e. Fire [156C.046] 10.1992-
LANCIA Y10 1.1 i.e. Fire 4WD [156C.046] 09.1992-12.1995
LANCIA Y 1.1 [176B2.000] 11.1995-06.2000
LANCIA Y 1.1 [176B2.000] 11.1995-09.2003
LANCIA Y 1.2 [188A4.000] 03.1996-09.2003
LANCIA Y 1.2 [188A4.000] 03.2000-06.2000
LANCIA Y 1.2 [840A3.000] 03.1996-09.2003
LANCIA Y 1.2 16V [176B9.000] 04.1997-06.2000
LANCIA Y 1.2 16V [176B9.000] 04.1997-09.2003
LANCIA Y 1.2 16V [188A5.000] 10.2000-09.2003
PRSS169 PRSL014 7735162 IS0763 22.0796M 9.43201E+11 71721252 LRS989 STX200032R CST30162AS 55196400 S4022 RNL1703 EAA-121181 SS221 STX200032 VS287 500.514.093.311 STX200558 MAV321620 STX200057R DRS3274 UD13970S 8212205 331115 63101002 46473785 500.514.093.050 7772459 46429594 63223200 7772456 25-1480 STR90057 500.514.093.605 432643 726020 63521130060 63103015 VALD6RA59 CST30162OS 331344 726820 3829 500.514.093.215 11.130.421 ND159 STR52007 0986017031 LRS00989 DS4384 7796598 71721308 42114903 63222880 455553 63222889 63222888 500.514.093.500 AES9189 AZE1511 63222890 63222936 111422 8EA012526-931 46476785 500.514.093.000 46430785 D6RA59 9.4428E+11 11679 46518059 30989R STRS169 STR00100 STE0796 30989N STX200053R 22.0796 STRL014 F000AL0319 8EA732651-001 8017030 S12MA0044A2 88212205 46231531 6030162.2 7785449 20404261RE 0001113006 220182 20404261BN 63102007 71752055 SG0139 807000 STA0005R GS223200-A AZE1202 500.514.093.266 6030162 500.514.093.265 CS796 20500989 STX200057 63201002 STX200053
S4022
