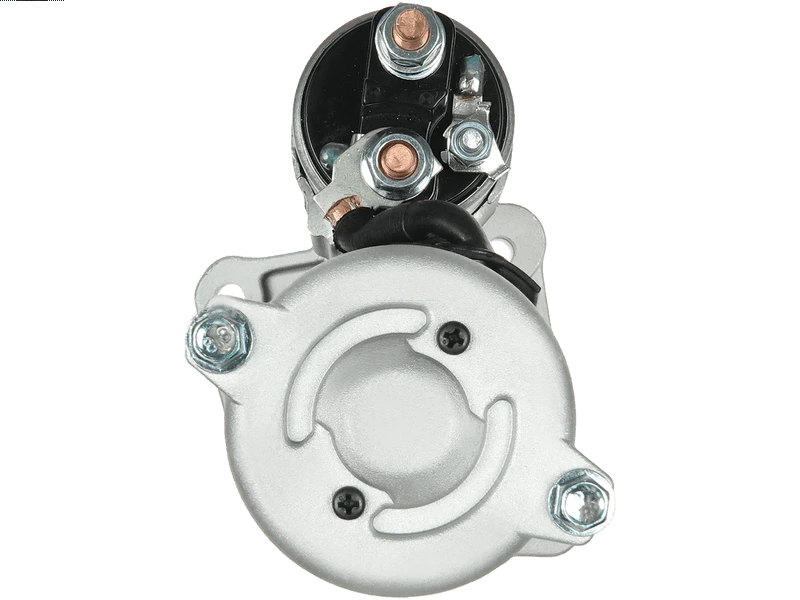

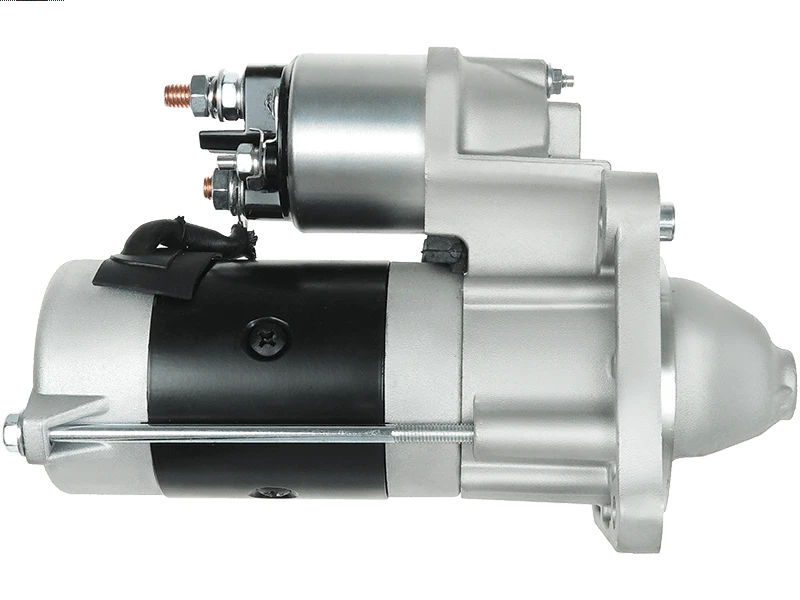

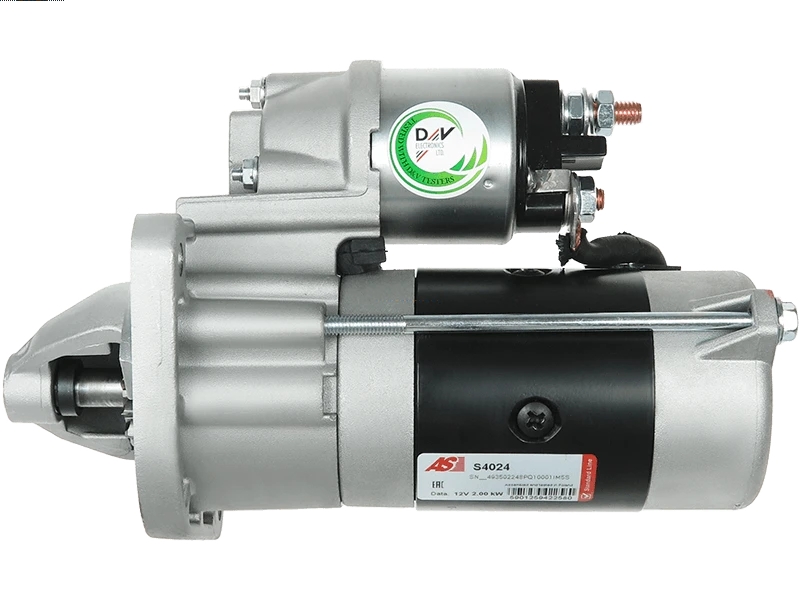

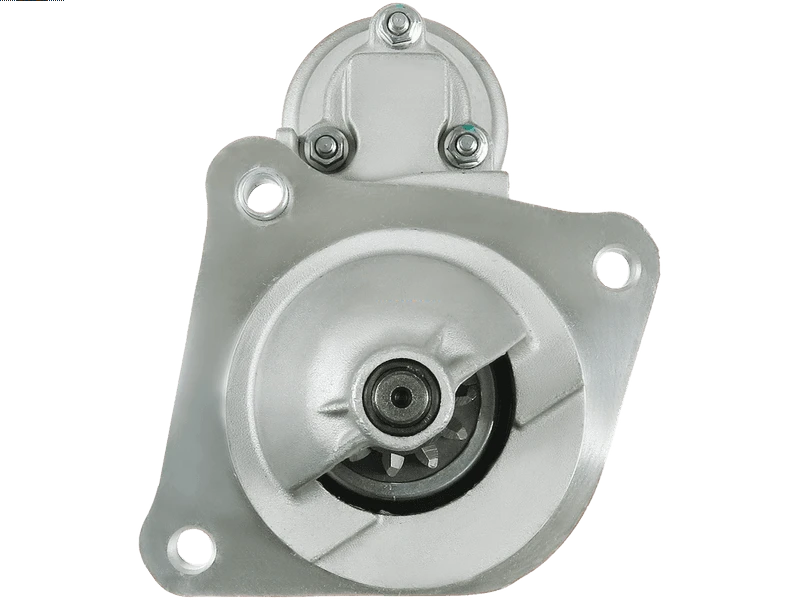

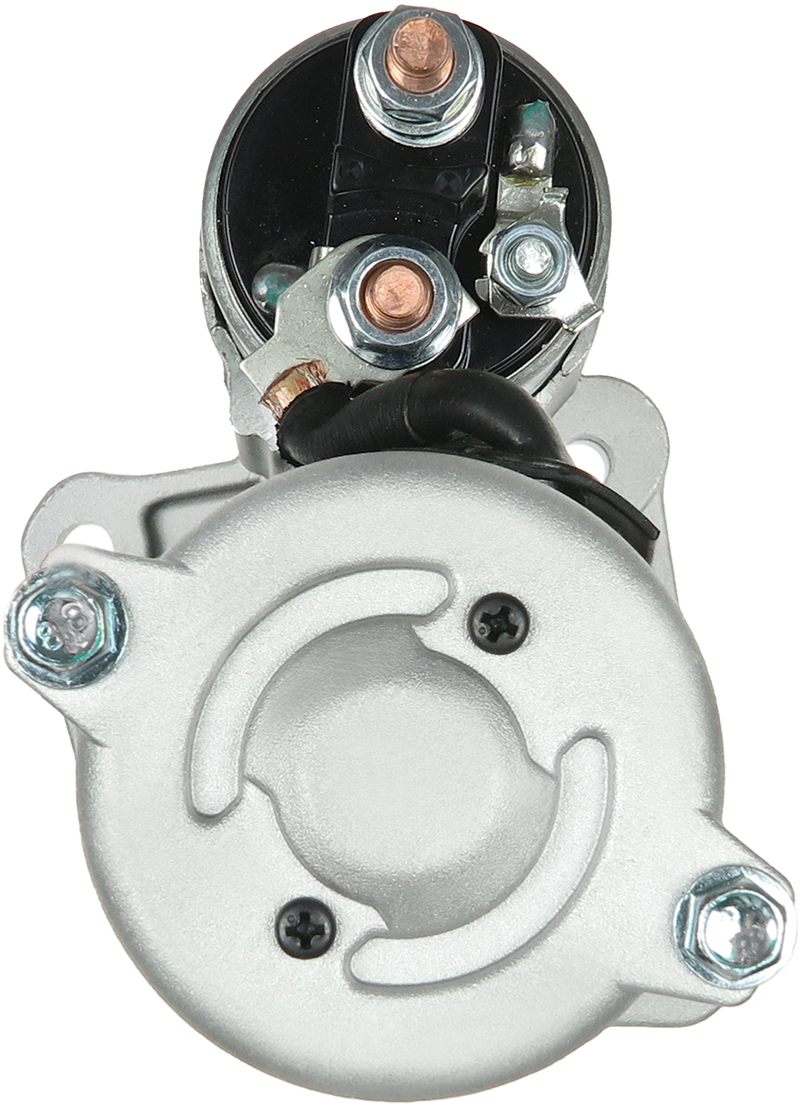

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 333.99 including GST
NZ$ 290.43 excluding GST
or four payments of $83.50
with
Learn More
each
S4024
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63113002Associated Numbers
0001109030 0001115021 0001115025 0986017790 0986021830 101045 101045B 101045M 101264 101264B 101264M 11.130.997 113430 20404111RC 20510199 22.1045 25-3002 42018900 458212 46430784 46473784 46478945 551952110 6030111 60814911 63113002 726043 726843 8EA011610-011 AES1299 AZE2111 CS1045 CST10425GS CST30111RS DRS3314 EAA-121039 EAA-121150 GS109030-A GS109030B-R LRT00199 RNL109030 STR52046Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 226 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Center - Center (O.2) | 81 mm |
| Mount Hole Center - Center (O.3) | 81 mm |
| Mount Hole Diameter (C.1) | 8.5 mm |
| Mount Hole Diameter (C.2) | 8.5 mm |
| Mount Hole Diameter (C.3) | 8.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 9. 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 10 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 145 1.9 JTD | [AR32302] | 02.1999-01.2001 |
| ALFA ROMEO | 147 1.9 JTD | [937A2.000] | 11.2000-05.2002 |
| ALFA ROMEO | 147 1.9 JTD 16V | [192A5.000] | 04.2005- |
| ALFA ROMEO | 147 1.9 JTDM 16V | [937A5.000] | 07.2005- |
| ALFA ROMEO | 156 1.9 JTD | [937A2.000] | 05.2001-05.2006 |
| ALFA ROMEO | 156 1.9 JTD | [AR32302] | 09.1997-10.2000 |
| ALFA ROMEO | 156 1.9 JTD | [AR37101] | 10.2000- |
| ALFA ROMEO | 159 1.9 JTDM 16V | [937A8.000] | 03.2006- |
| ALFA ROMEO | 159 1.9 JTDM 16V | [939A2.000] | 09.2005- |
| ALFA ROMEO | 159 1.9 JTDM 16V | [939A8.000] | 09.2005- |
| ALFA ROMEO | 159 1.9 JTDM 8V | [939A7.000] | 09.2005- |
| ALFA ROMEO | Alfa 146 1.9 JTD | [AR32302] | 02.1999-01.2001 |
| FIAT | Brava 1.9 JTD | [182B4.000] | 12.1998-10.2001 |
| FIAT | Brava 1.9 JTD | [182B9.000] | 09.2000-10.2001 |
| FIAT | Brava 1.9 TD | [182A7.000] | 03.1996-10.2001 |
| FIAT | Brava 1.9 TD | [182A8.000] | 03.1996-10.2001 |
| FIAT | Bravo 1.9 Diesel Multijet | 04.2007- | |
| FIAT | Bravo 1.9 JTD | [182B4.000] | 12.1998-10.2001 |
| FIAT | Bravo 1.9 JTD | [182B9.000] | 09.2000-10.2001 |
| FIAT | Bravo 1.9 TD | [182A7.000] | 03.1996-10.2001 |
| FIAT | Croma 1.9 Diesel Multijet | [939A2.000] | 06.2005- |
| FIAT | Doblo 1.9 JTD | [182B9.000] | 10.2001-01.2002 |
| FIAT | Doblo 1.9 JTD | [223A7.000] | 11.2002-09.2005 |
| FIAT | Doblo 1.9 JTD | [223B1.000] | 11.2002-09.2005 |
| FIAT | Doblo 1.9 JTD | [223B2.000] | 10.2001- |
| FIAT | Grande Punto 1.9 Diesel Multijet | 10.2005- | |
| FIAT | Marea 1.9 JTD | [182B4.000] | 04.1999-01.2001 |
| FIAT | Marea 1.9 JTD | [186A6.000] | 01.2001- |
| FIAT | Marea 1.9 TD | [182A7.000] | 09.1996- |
| FIAT | Marea 1.9 TD | [182A8.000] | 09.1996- |
| FIAT | Marea 1.9 TDi | [182A7.000] | 09.1996- |
| FIAT | Marengo 1.9 JTD | [182B4.000] | 03.1999-09.2002 |
| FIAT | Marengo 1.9 JTD | [186A6.000] | 08.2000-09.2002 |
| FIAT | Marengo 1.9 TD | [182A7.000] | 01.1997-02.1999 |
| FIAT | Marengo 1.9 TD | [182A8.000] | 03.1999-09.2002 |
| FIAT | Multipla 1.9 JTD | [182B4.000] | 04.1999- |
| FIAT | Multipla 1.9 JTD | [186A6.000] | 03.2001- |
| FIAT | Multipla 1.9 JTD | [186A8.000] | 07.2002- |
| FIAT | Punto 1.9 JTD | [188A2.000] | 09.1999- |
| FIAT | Punto 1.9 JTD | [188A7.000] | 06.2001-06.2003 |
| FIAT | Stilo 1.9 Diesel Multijet | [192A8.000] | 09.2005- |
| FIAT | Stilo 1.9 Diesel Multijet | [192A9.000] | 09.2005- |
| FIAT | Stilo 1.9 Diesel Multijet | [937A5.000] | 09.2005- |
| FIAT | Stilo 1.9 JTD | [192A1.000] | 10.2001- |
| FIAT | Stilo 1.9 JTD | [192A3.000] | 10.2001- |
| FIAT | Stilo 1.9 JTD | [192B5.000] | 09.2004- |
| FIAT | Stilo 1.9 JTD | [937A7.000] | 07.2005- |
| FIAT | Strada 1.9 JTD | [188A2.000] | 04.2003- |
| LANCIA | Lybra 1.9 JTD | [937A2.000] | 05.2001- |
| LANCIA | Lybra 1.9 JTD | [AR32302] | 07.1999-09.2000 |
| LANCIA | Lybra 1.9 JTD | [AR37101] | 09.2000- |
| LANCIA | Lybra 1.9 JTD SW | [AR37101] | 09.2000- |
| LANCIA | Lybra 2.4 JTD | [839A5.000] | 10.1999-09.2000 |
| LANCIA | Lybra 2.4 JTD | [839A6.000] | 09.2000-05.2002 |
| LANCIA | Lybra 2.4 JTD | [AR32501] | 10.1999-09.2000 |
| LANCIA | Lybra 2.4 JTD SW | [839A6.000] | 09.2000-05.2002 |
| LANCIA | Thesis 2.4 JTD | [841C.000] | 04.2002- |
Reference Information
101264B RNL1779 101264M 51782321 31100-H79J0-0000 46451895 6202074 20404111RC 25-3002 51832954 51832953 60814911 71721774 71722349 726043 55192482 MAV3480 AZE2111 MS 101045 22.1045 8EA011610-011 726843 31100-79J00 46748351 71789267 42018900 46430784 551952110 CST30111RS CS1045 0001115025 DRS3314 71721240 0001115021 2035 71723462 S4024 STX200037 46817002 STX200037R MAV2020 71782384 6030111 GS109030B-R 46800159 55195029 60817002 S12BH0020A2 31100-79J00-000 46473784 373 STX200200 0001109030 0986021830 11.130.997 71792037 CGB-23314 STX200200R 458212 RNL109030 STRL008 101045B GS109030-A 55585237 20510199 SX 101264 55195211 71782379 46823543 LRT00199 AES1299 101045M 46478945 60816083 STX200011 0986017790 1202282 STR52046 71746669 113430 63113002 STX200011R 55832954Video/Publications
