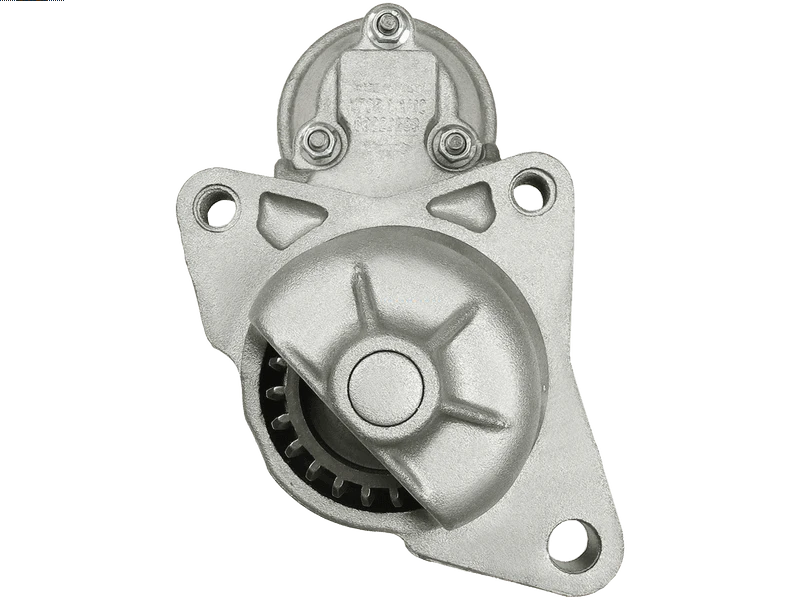

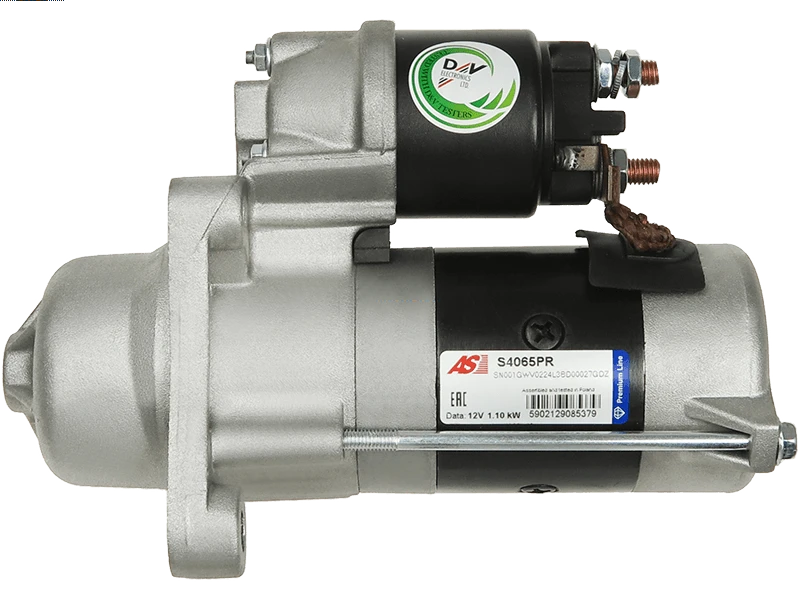

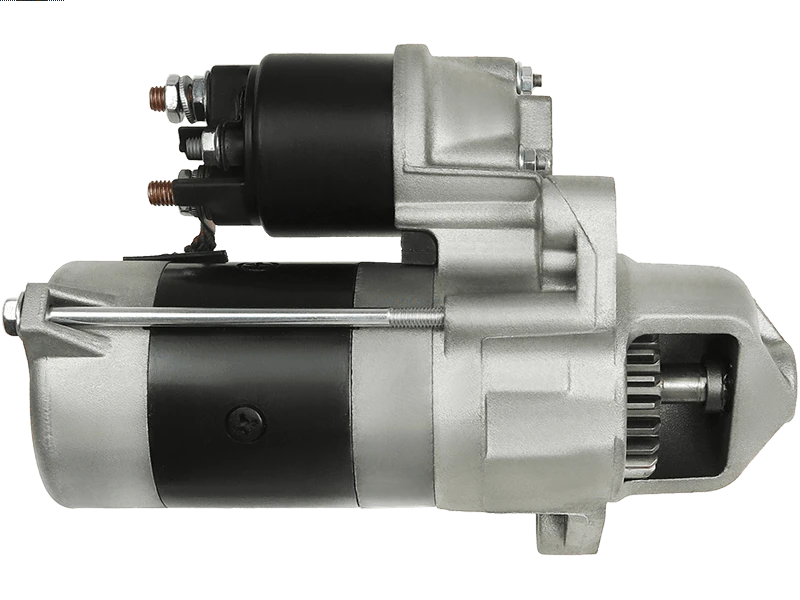

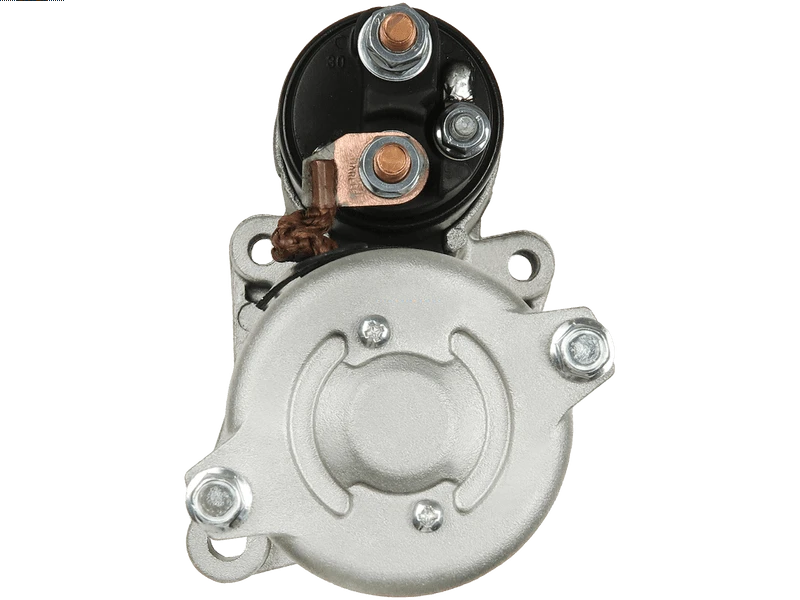

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 209.74 including GST
NZ$ 182.38 excluding GST
or four payments of $52.44
with
Learn More
each
S4065PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
10971 10971V 10986 10986V 113701 11775 1E03-18-400 1E08-18-400 1E08-18-400A 20-100-01006 20500978 20510165 25-2084 3848 590.521.233 6030173 63223538 63293538 8EA737112-001 95FB-11000-BC 95FB-11000-BD 95FB-11000-BG 96FB-11000-MD CS971 CST30173 CST30173AS CST30173ES CST30173GS CST30173OS CST30173RS DRS3799 DRS3799N DS4909 DS4909N J5213041 LRS00978 LRS978 RAS34800 STF0971 STR52006Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 84 mm |
| Mount Hole Center - Center (O.2) | 116 mm |
| Mount Hole Center - Center (O.3) | 75 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 23 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 72 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Escort 1.3 | [J4B] | 01.1995-10.1998 |
| FORD | Escort 1.3 | [J4B] | 09.1992-01.1995 |
| FORD | Escort 1.3 | [J6A] | 01.1995-02.1999 |
| FORD | Escort 1.3 | [J6A] | 01.1995-10.1998 |
| FORD | Fiesta 1.3 | [J4C] | 02.1996- |
| FORD | Fiesta 1.3 | [J6B] | 09.1991-02.1996 |
| FORD | Fiesta 1.3 i | [J4C] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4J] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4L] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4Q] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4R] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [J4T] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JBC] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJA] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJC] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJE] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJJ] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJK] | 08.1995-01.2002 |
| FORD | Fiesta 1.3 i | [JJM] | 08.1995-01.2002 |
| MAZDA | 121 1.2 | [DHF] | 03.1996- |
| MAZDA | 121 1.2 | [DHG] | 03.1996- |
| MAZDA | 121 1.3 | [J4T] | 03.1996- |
| MAZDA | 121 1.3 | [JHC] | 03.1996- |
| MAZDA | 121 1.3 | [JJK] | 03.1996- |
| MAZDA | 121 1.3 | [JJM] | 03.1996- |
Reference Information
6014106.0 6014106.1 95VB-11000-BD 95FB-11000-MD 331138 1E03-18-400A 63223538 ANM16019X SS223538M-R S12VS0192A2 20450601OE 943253111010 20-100-01006 590.521.233.265 LRS00978 CST14106GS 10971 20450601BN 6030173.2 CST14106AS STA0474R 063280006010 590.521.233.608 590.521.233.605 RAS34800 R95FB-11000-BD 590.521.233.018 3848 R91AX-11000-KB1 590.521.233.215 95FB-11000-BC 95FB-11000-BB 95FB-11000-BD CS971 95FB-11000-BG MRS17530 DRS3799 R97KB-11000-AC1 0986025500 F6FU-11131-BC STF0971 1E08-18-400A 97KB-11000-AA 97KB-11000-AB 97KB-11000-AC DS4909N STRS119 95FBBG 20500978 30978R 96FB-11000-MC MSR5311 96FB-11000-MB 95FBBC 95FBBB 1E08-18-400 96FB-11000-ME 96FB-11000-MD 10971V 88213328 PRSS119 944280175300 63293538 S12VS0192 113701 8EA737112-001 1E03-18-400 220365 63223528 DS4909 CST30173RS STR52006 LRS978 590.521.233.550 AI-80031 590.521.233.230 590.521.233.395 STR90049 DRS3799N 11775 458466 20404371RC 25-2084Video/Publications
