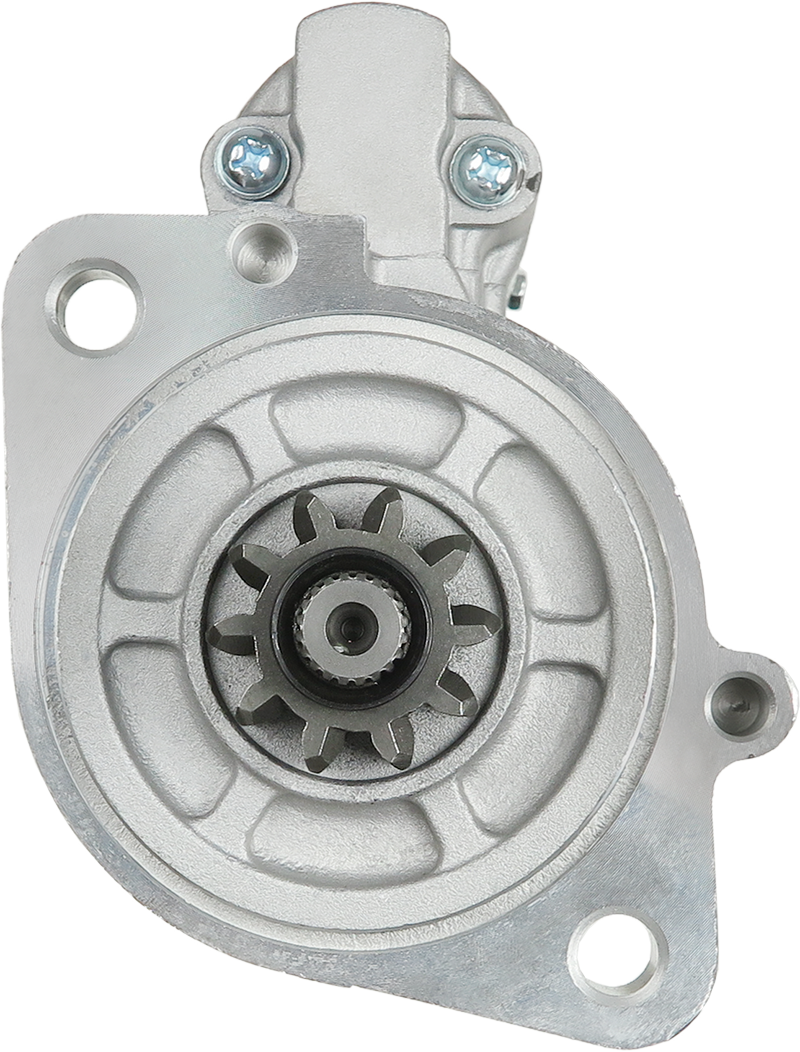

S5004 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	258 mm
Mount Hole Center - Center (O.1)	115 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
OEM Product	No
Pinion at Rest (B)	22 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MITSUBISHI	Engine	[S4S]
MITSUBISHI	Engine	[S6S]
MITSUBISHI	FG20		01.1980-12.1987

Alternatives >>>

S5194 OSGR Style

Reference Information

F032111272 32A66-10101 32A66-10300 011-001-000803R WOOSTR71240 LRS2218 STR7314 335859 32A66-10100 6035161.0 32A66-20100 6035161.1 M002T74371 MAV371610 STRS894 S-71240 STR5531 S5004 10035161AV 32A66-01100 150.523.102.360 M008T71571 SMI161 M008T75171 M008T75172 91-27-3302N IS9571 SG0318 M8T71571 STM1009 11.139.285 M8T75171 201009 M8T75172 32A66-11100 M2TS0071 ST01428 DRS0965 TT15926 10440477 72555951 150.523.102.370 150.523.102.371 2S0474 A90720 150.523.102.130 111272 32A66-00100 150.523.102.373 STR71240 CST35161AS 150.523.102.138 LES0208 M002TS0071 20437161OE M8T70371 STR5114 AZD2618 2803784 M8T75181 201009M 3111893 25-3389 STX200321R 10035161OV 32A66-20601 88212874 91-27-3302 UD15038S 626039102 LRS02218 0986024300 JS1009 SMI161A 8088 920670 107128 M8T50271 WG2196736 MS1153 M2T74371 AEY1468 S511257 18394N 32C66-01200 20437161BN CST35161GS 32A66-00600 MAV371610A 1039827 M008T75181 150.523.102.310 SKSTR-0330499 M008T70371
