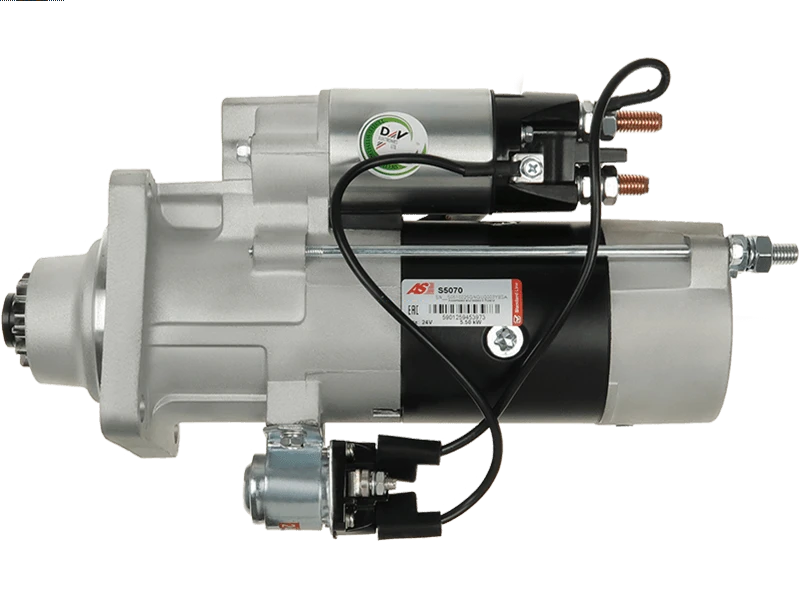

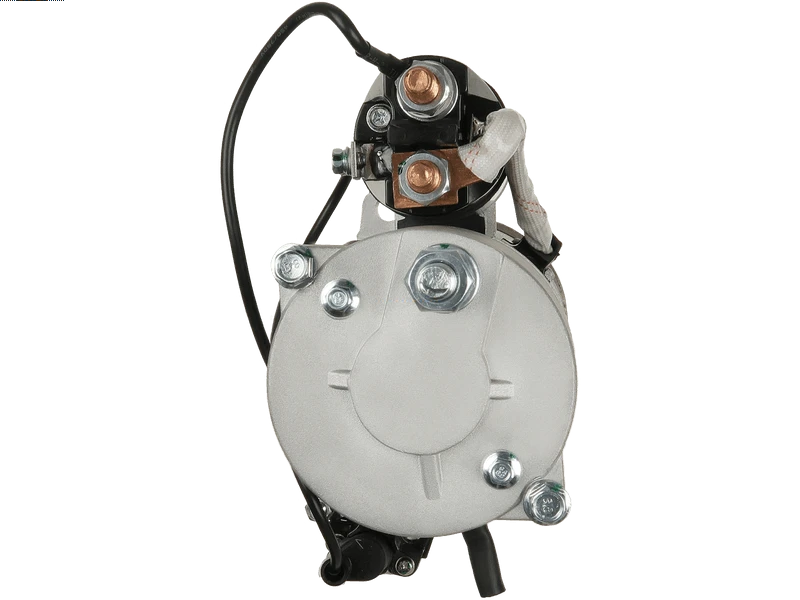

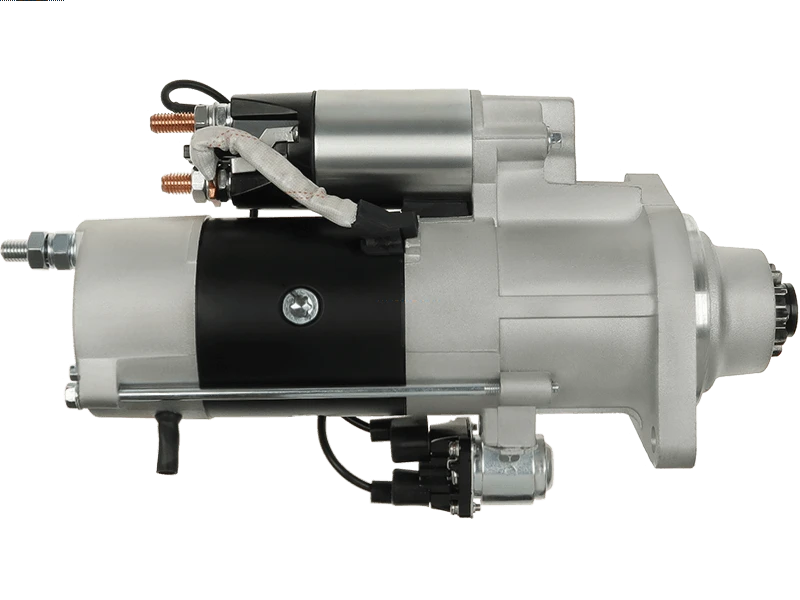

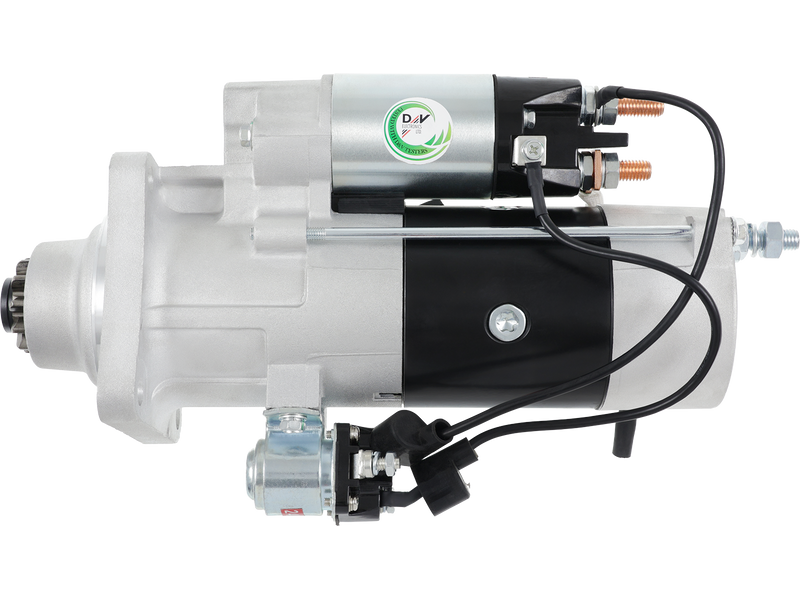

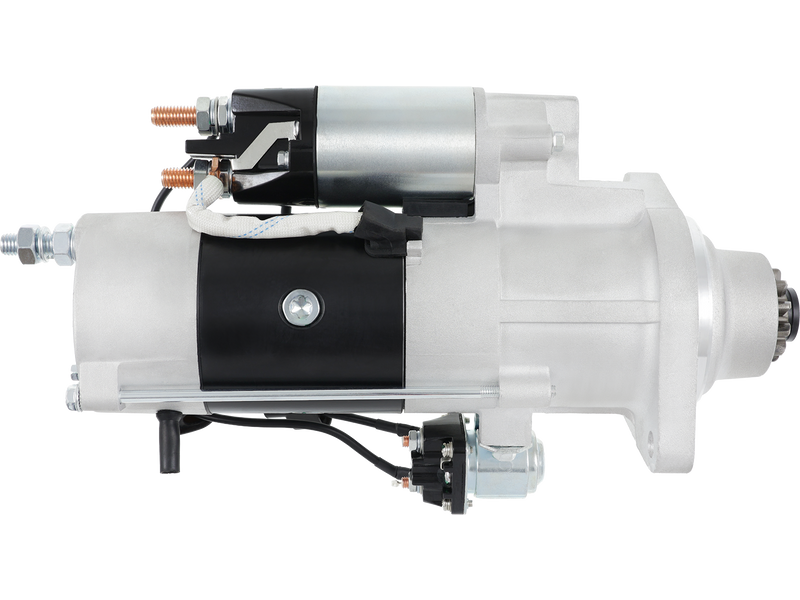

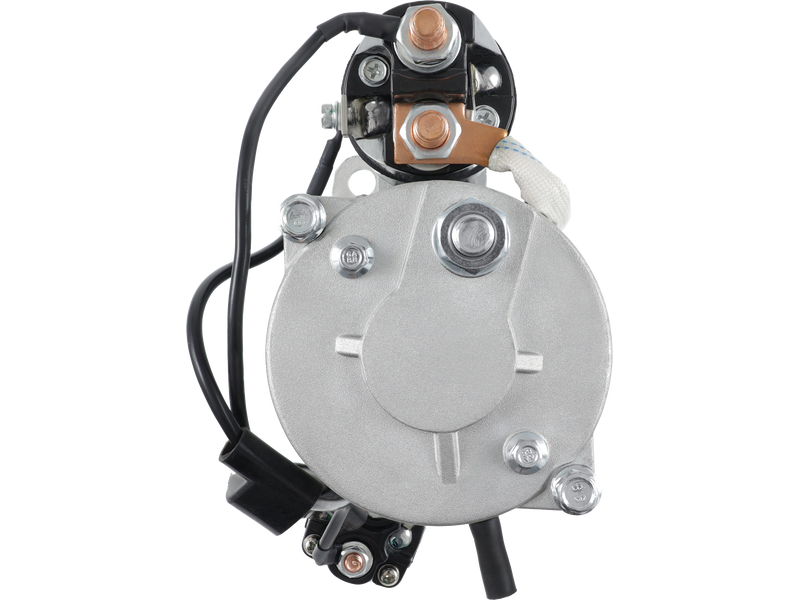

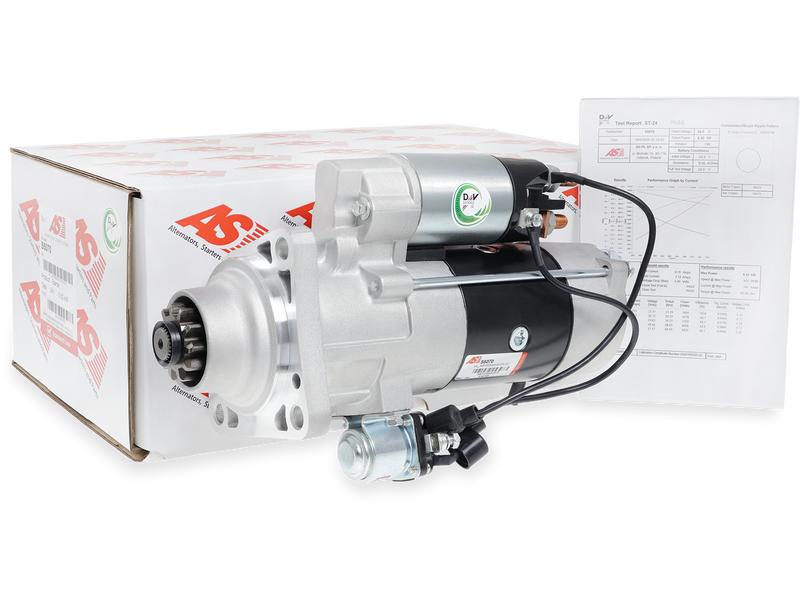

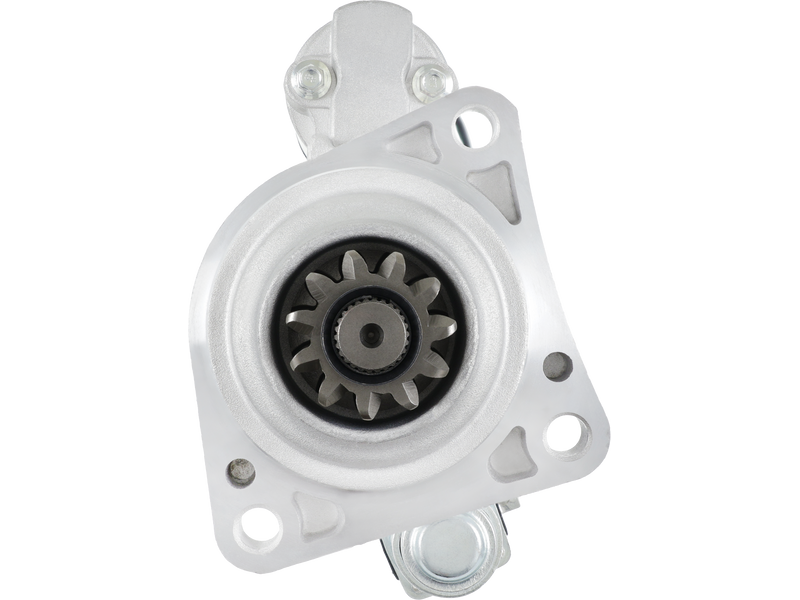

S5070 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S5070
Price: 573.52 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MITSUBISHI

Price:

NZ$ 573.52 including GST

NZ$ 498.71 excluding GST

UOM:

each

Product Code:

S5070

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

114193 20397219 20437446OE 20732977 21025968 22807178 254401M 254401P 255499M 255499P 28.1495 28.2013 28.2013M 33311N 45-4135 5001866702 561.504.113 6035644 7420732977 8151 8213886 85000148 85013135 860822 88213886 8824670 CS1495 CST35644 CST35644AS CST35644ES CST35644GS CST35644OS CST35644RS EAA-121206 LRS02463 M009T61471 M009T61471AM M009T61472 M009T61473 M009T61474 M009T64972 M009T64973 M90R3538SE M90R3555SE M90R3556SE M9T61471 M9T61471AM M9T61472 M9T61473 M9T61474 M9T64971 M9T64972 M9T64973 RNLM9T61471 S5070 STM4193 STR71072

Kilowatt	5.5 kW
Length (L.1)	354 mm
Mount Hole Center - Center (O.1)	89.5 mm
Mount Hole Center - Center (O.2)	89.5 mm
Mount Hole Center - Center (O.3)	126.5 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
OEM Product	No
Pinion at Rest (B)	48 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	MITSUBISHI
Voltage	24 V

Make	Model	Type	Year
RENAULT	370.18 10.8	[DXi11]	10.2005-
RENAULT	370.26 10.8	[DXi11]	10.2005-
RENAULT	370.32 10.8	[DXi11]	10.2005-
RENAULT	380.18 10.8	[DXi11]	02.2013-
RENAULT	410.18 10.8	[DXi11]	10.2005-
RENAULT	410.24 10.8	[DXi11]	10.2005-
RENAULT	410.25 10.8	[DXi11]	10.2005-
RENAULT	410.26 10.8	[DXi11]	10.2005-
RENAULT	410.32 10.8	[DXi11]	10.2005-
RENAULT	450.18 10.8	[DXi11]	10.2005-
RENAULT	450.24 10.8	[DXi11]	10.2005-
RENAULT	450.25 10.8	[DXi11]	10.2005-
RENAULT	450.26 10.8	[DXi11]	10.2005-
RENAULT	450.32 10.8	[DXi11]	10.2005-
RENAULT V.I.	Kerax 370.18 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 370.26 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 370.32 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 410.18 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 410.26 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 410.32 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 450.18 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 450.26 10.8	[DXI11]	01.2005-12.2009
RENAULT V.I.	Kerax 450.32 10.8	[DXI11]	01.2005-12.2009
VOLVO	7700 9.4	[D9B260]	06.2006-
VOLVO	7700 9.4	[D9B310]	06.2006-
VOLVO	7700 9.4	[D9B360]	06.2006-
VOLVO	B9 9.4	[D9B260]	09.2005-
VOLVO	B9 9.4	[D9B310]	09.2005-
VOLVO	B9 9.4	[D9B360]	09.2005-
VOLVO	FM 300 9.4	[D9A300]	09.2005-
VOLVO	FM 300 9.4	[D9B300]	09.2005-
VOLVO	FM 330 10.8	[D11C330]	04.2012-
VOLVO	FM 330 10.8	[D11K330]	04.2012-
VOLVO	FM 340 9.4	[D9A340]	09.2005-
VOLVO	FM 340 9.4	[D9B340]	09.2005-
VOLVO	FM 370 10.8	[D11C370]	04.2012-
VOLVO	FM 370 10.8	[D11K370]	04.2012-
VOLVO	FM 380 9.4	[D9B380]	09.2005-
VOLVO	FM 410 10.8	[D11C410]	04.2012-
VOLVO	FM 410 10.8	[D11K410]	04.2012-
VOLVO	FM 450 10.8	[D11C450]	04.2012-
VOLVO	FM 450 10.8	[D11K450]	04.2012-
VOLVO	FM 9/260 9.4	[D9A260]	12.2001-09.2005
VOLVO	FM 9/300 9.4	[D9A300]	12.2001-09.2005
VOLVO	FM 9/340 9.4	[D9A340]	12.2001-08.2005
VOLVO	FM 9/340 9.4	[D9A340]	12.2001-09.2005
VOLVO	FM 9/380 9.4	[D9A380]	12.2001-09.2005
VOLVO	FM9 9/260 9.4	[D9A260]	12.2001-09.2005
VOLVO	FM9 9/300 9.4	[D9A300]	12.2001-09.2005
VOLVO	FM9 9/300 9.4	[D9B300]	12.2001-09.2005
VOLVO	FM9 9/340 9.4	[D9A340]	12.2001-09.2005
VOLVO	FM9 9/380 9.4	[D9A380]	12.2001-09.2005
VOLVO	FMX 330 10.8	[D11C330]	09.2013-
VOLVO	FMX 330 10.8	[D11K330]	09.2013-
VOLVO	FMX 370 10.8	[D11C370]	09.2013-
VOLVO	FMX 370 10.8	[D11K370]	09.2013-
VOLVO	FMX 410 10.8	[D11C410]	09.2013-
VOLVO	FMX 410 10.8	[D11K410]	09.2013-
VOLVO	FMX 450 10.8	[D11C450]	09.2013-
VOLVO	FMX 450 10.8	[D11K450]	09.2013-

28.1495 21036377 M9T68771AM M009T64973AM 20397219 85000148 85020161 M90R3556SE 11.139.619 STR71072 STR5091 114193 20437446OE 19081902 S5070 85006148 STM4193 7421036377 561.504.113.310 M9T61472 M9T61473 M9T61474 7420732977 22807178 8151 M9T61471 7485021170 438482 M90R3538SE 22344130 M9T61479 F042S01198 88213886 6035644.1 STM1059 IS9471 85013135 3807225 85013134 28.2013M M9T64972 M9T64973 7421598449 7485003371 M9T64971 35055VL M009T68771ZZ9 M9T68771 S24MH0077 EAA-121206 6035644 CGB-91471 LRS2463 M009T61471ZZ9 220559 M009T64973 M009T64972 M009T64971 561.504.113.130 20563533 561.504.113.139 MS775 M009T61471AM 7485013136 DRS0538 336597 220560 M009T68771 33311N 21598446 561.504.113.380 21598449 255499M M009T61474 M009T61472 M009T61473 F042001198 255499P M009T61471 S24MH0077A2 8EA012586-271 5001866702 21025968 255499B AZE4691 45-4135 85021310 28.2013 115593 DRS0125 LRS02463 M90R3538AM 85021160 CST35644GS 21598436 19081020 255499V 20437446BN M9T64973AM M009T68771AM 7422807161 8824670 CST35644AS 11127809 M9T61471AM 85000883 254401P 254401M M90R3555SE PREM90R3556SE 860822 SG0539 85000937 20732977 85000934 336439 5001866924 RNLM9T61471 M9T61471ZZ9 72447149 0986024670 MITM9T61471 STRL314 M9T68771ZZ9 561.504.113.370

S5070
