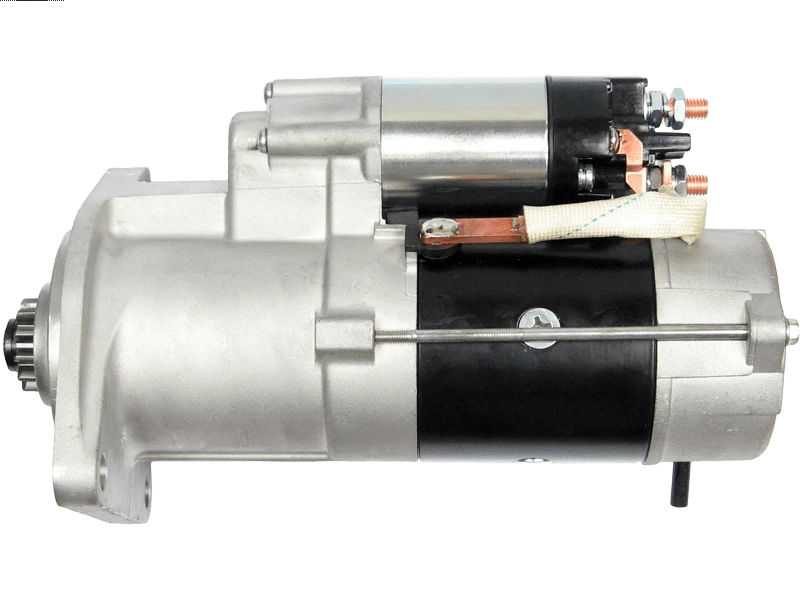

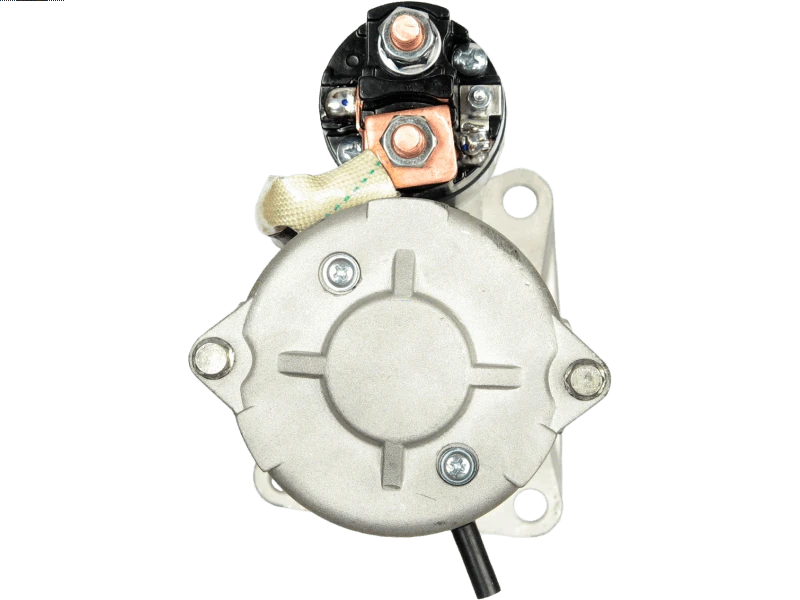

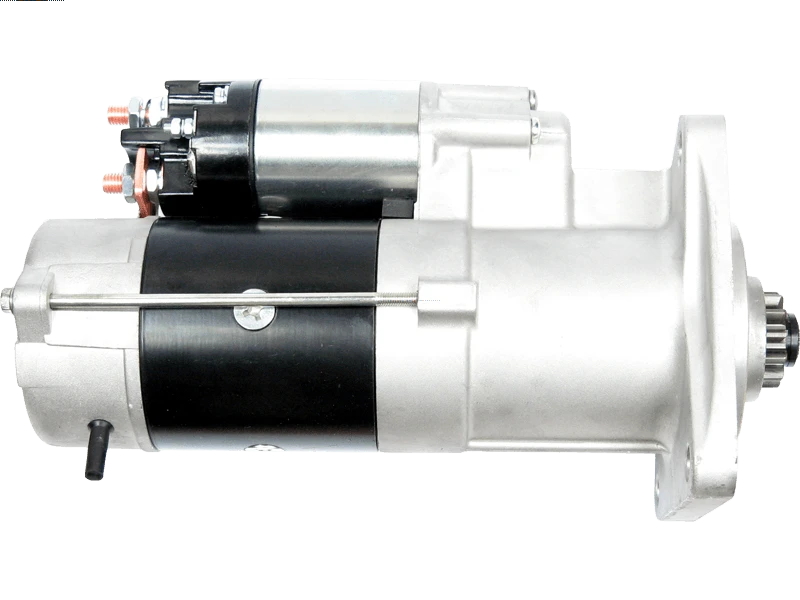

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 710.09 including GST
NZ$ 617.47 excluding GST
or four payments of $177.52
with
Learn More
each
S5078
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
1811003453 254886 M009T80871 M9T80871Specifications
| Kilowatt | 7.5 kW |
| Length (L.1) | 348 mm |
| Mount Hole Center - Center (O.1) | 168 mm |
| Mount Hole Center - Center (O.2) | 116 mm |
| Mount Hole Center - Center (O.3) | 141 mm |
| Mount Hole Diameter (C.1) | 15 mm |
| Mount Hole Diameter (C.2) | 15 mm |
| Mount Hole Diameter (C.3) | 15 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | Engine | [10PE1] | |
| ISUZU | Engine | [CXZ81K] |
Reference Information
1811003453 254886 MAV377000A STR5185 M9T80871 CST35700AS 20437007BN S5078 M009T80871 6035700 STRE238Video/Publications
