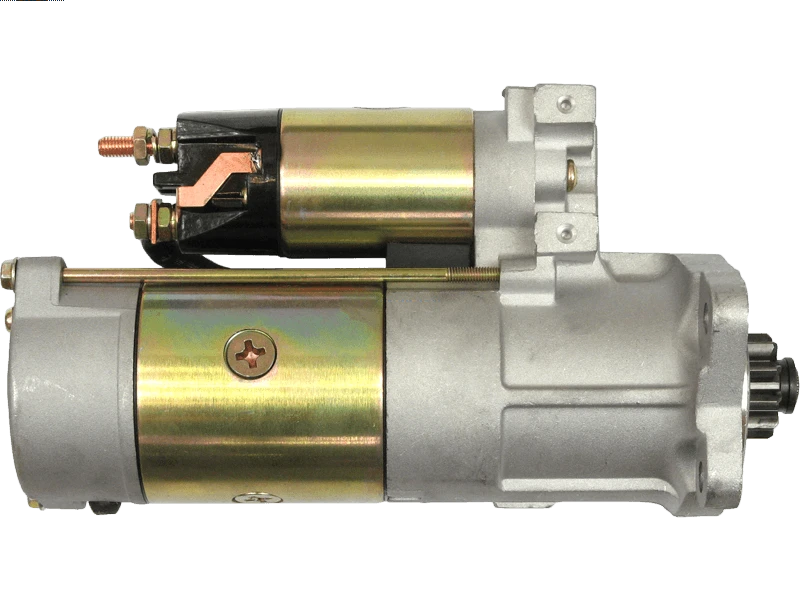

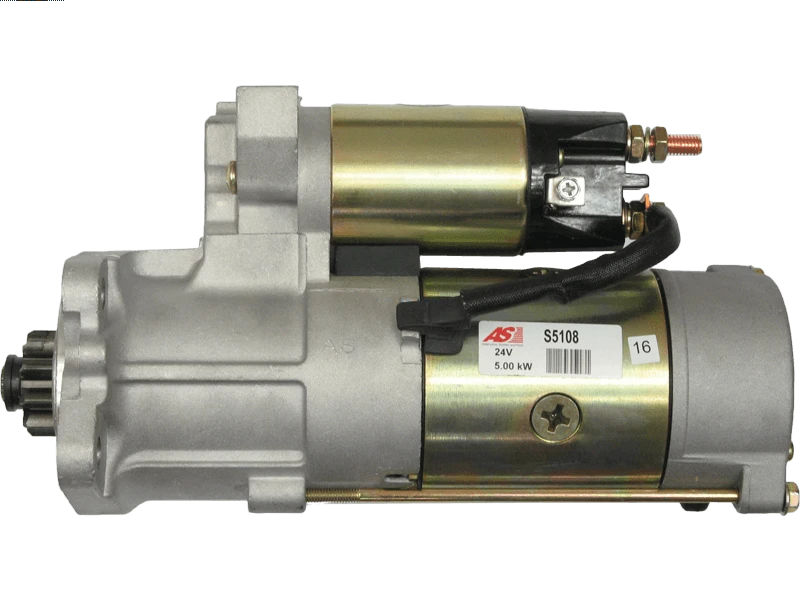

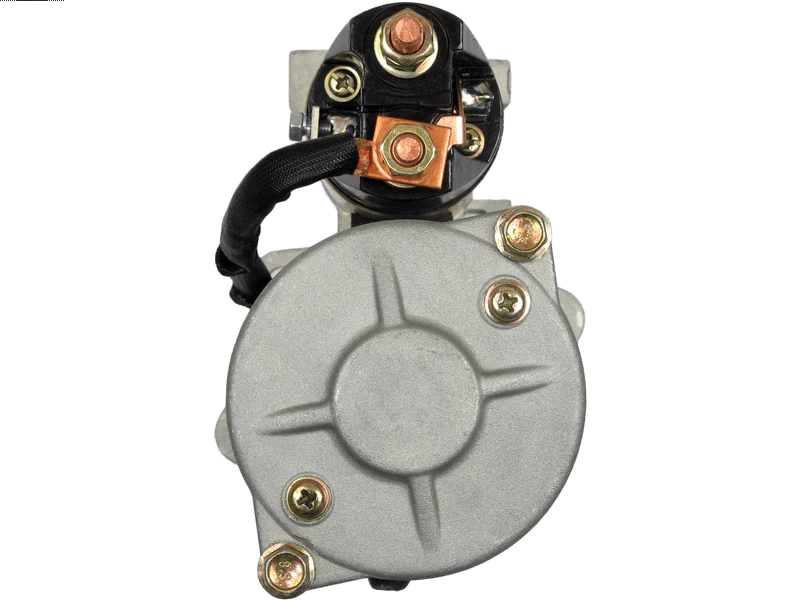

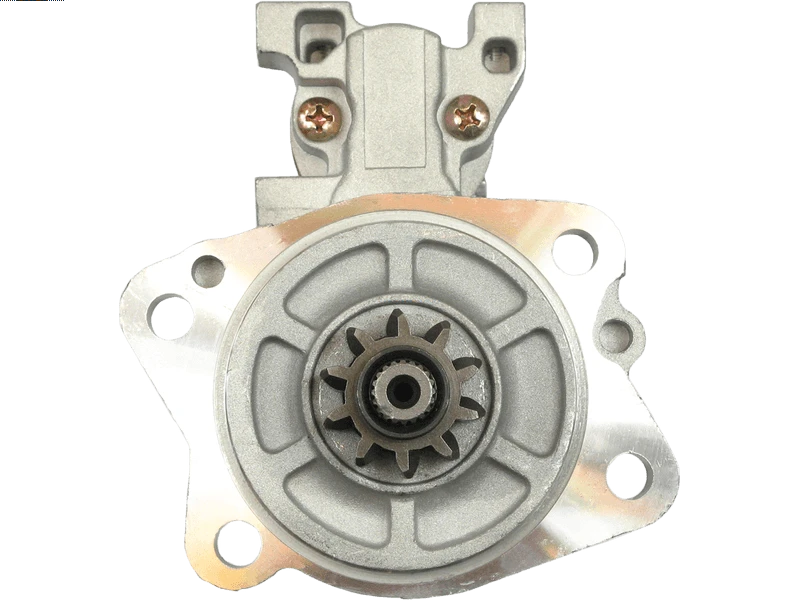

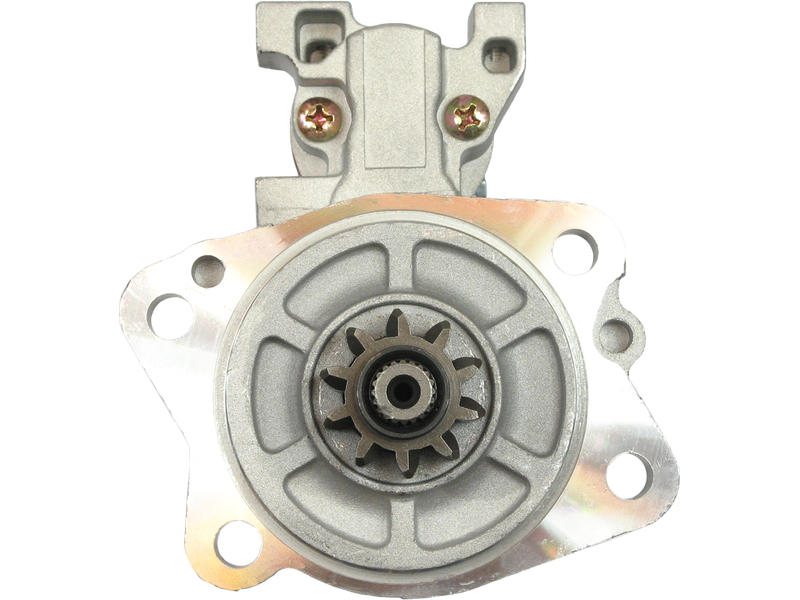

S5108 - Brand new AS-PL Starter motor

Specifications

Kilowatt	5 kW
Length (L.1)	287 mm
Mount Hole Center - Center (O.1)	55 mm
Mount Hole Center - Center (O.2)	95 mm
Mount Hole Center - Center (O.3)	55 mm
Mount Hole Center - Center (O.4)	95 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
Mount Hole Diameter (C.4)	11 mm
No./Mount holes	4 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
OEM Product	No
Pinion at Rest (B)	22 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	DP40	[S6E]
MITSUBISHI	DP40	[S6S]
MITSUBISHI	FD35D	[S6E]
MITSUBISHI	FD35D	[S6S]
MITSUBISHI	FD35D2	[S6E]
MITSUBISHI	FD35D2	[S6S]
MITSUBISHI	FD35DS	[S6E]
MITSUBISHI	FD35DS	[S6S]
MITSUBISHI	FD38	[S6E]
MITSUBISHI	FD38	[S6S]
MITSUBISHI	FD40D	[S6E]
MITSUBISHI	FD40D	[S6S]
MITSUBISHI	FD45D	[S6E]
MITSUBISHI	FD45D	[S6S]
MITSUBISHI	FD50C	[S6E]
MITSUBISHI	FD50C	[S6S]
MITSUBISHI	FD50D	[S6E]
MITSUBISHI	FD50D	[S6S]

Reference Information

STRL617 20437316BN 254090 8214 32B6620102 32B66-00200 M008T60384AM 32B66-00202 18246N 32B66-00204 32B6620104 M8T60384 LRS02199 DS1187 M003T58771 151.513.102.130 151.513.102.370 UD11083S M8T60375AM CST35613AS 32B6600402 32B6602302 M8T60375 M8T60373 M8T60374 M8T60371 PRSL617 M8T60372 STR28018 CGB-20077 MAV376130 45-3370 114169 M008T60384 M8T60384AM 32B66-20100 32866-00202 STR5430 DRS0077 336370 151.513.102.510 LRS2199 32B6610200 6035613 S5108 STM4169 5135151 88213960 M008T60375 M008T60374 M008T60373 254090M M008T60372 EAA-121561 M008T60371 32B6600101 S24MH0132A2 M3T58771 254090B

Video/Publications

S5108
